Flywheel






Install the engine flywheel bolts until snug.

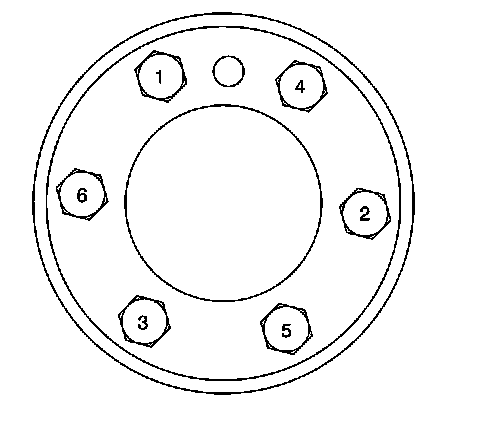

Tighten the engine flywheel bolts a first pass in sequence to 20 Nm (15 lb ft).
Tighten the engine flywheel bolts a second pass in sequence to 50 Nm (37 lb ft).
Tighten the engine flywheel bolts a final pass in sequence to 100 Nm (74 lb ft).
