Home >> Chevrolet >> 2009 >> Corvette V8-6.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Accelerator Pedal Position Sensor >> Diagrams

Accelerator Pedal Position Sensor: Diagrams

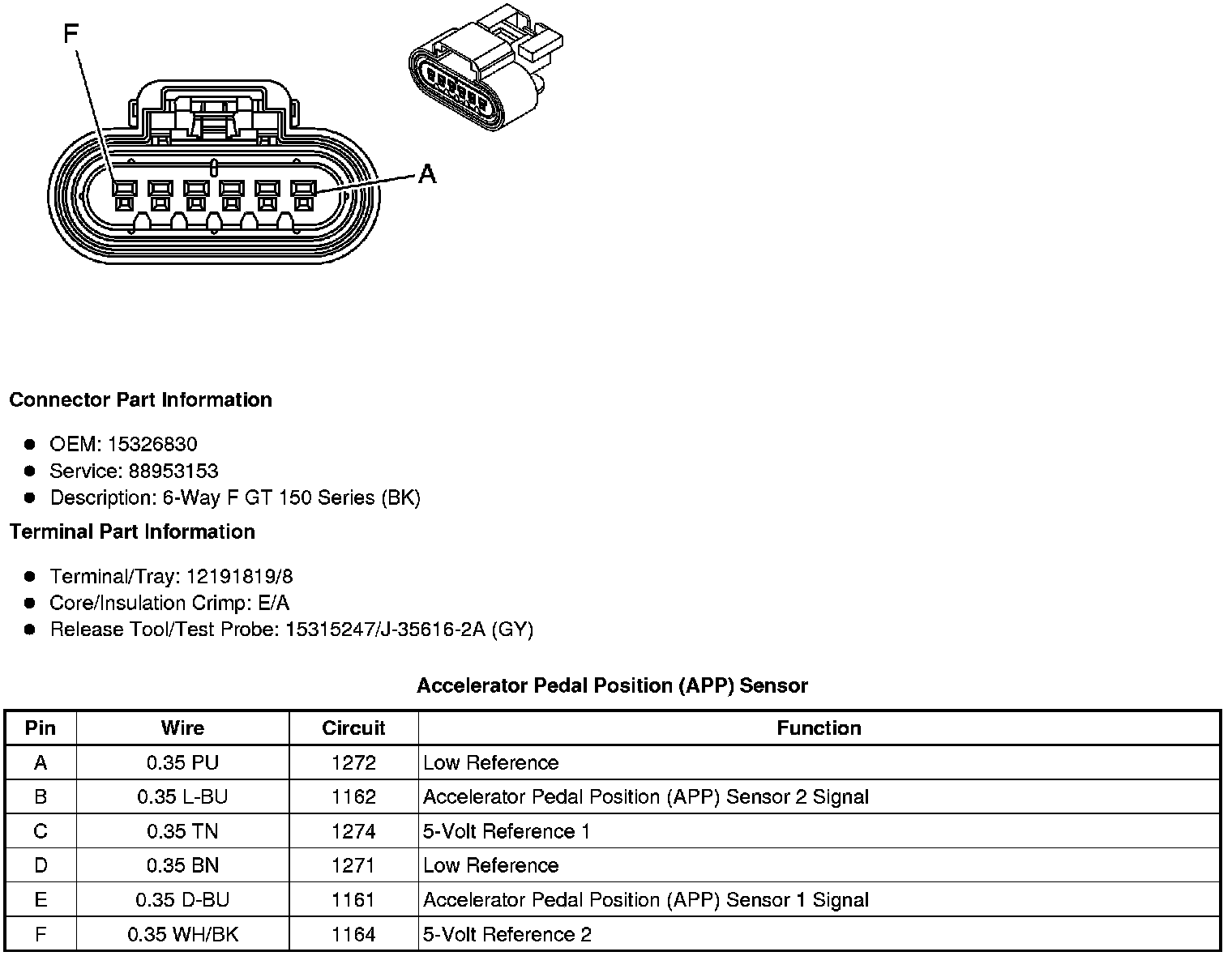

Component Connector End Views

Accelerator Pedal Position (APP) Sensor
