Keyless Entry Receiver: Diagrams

Component Connector End Views

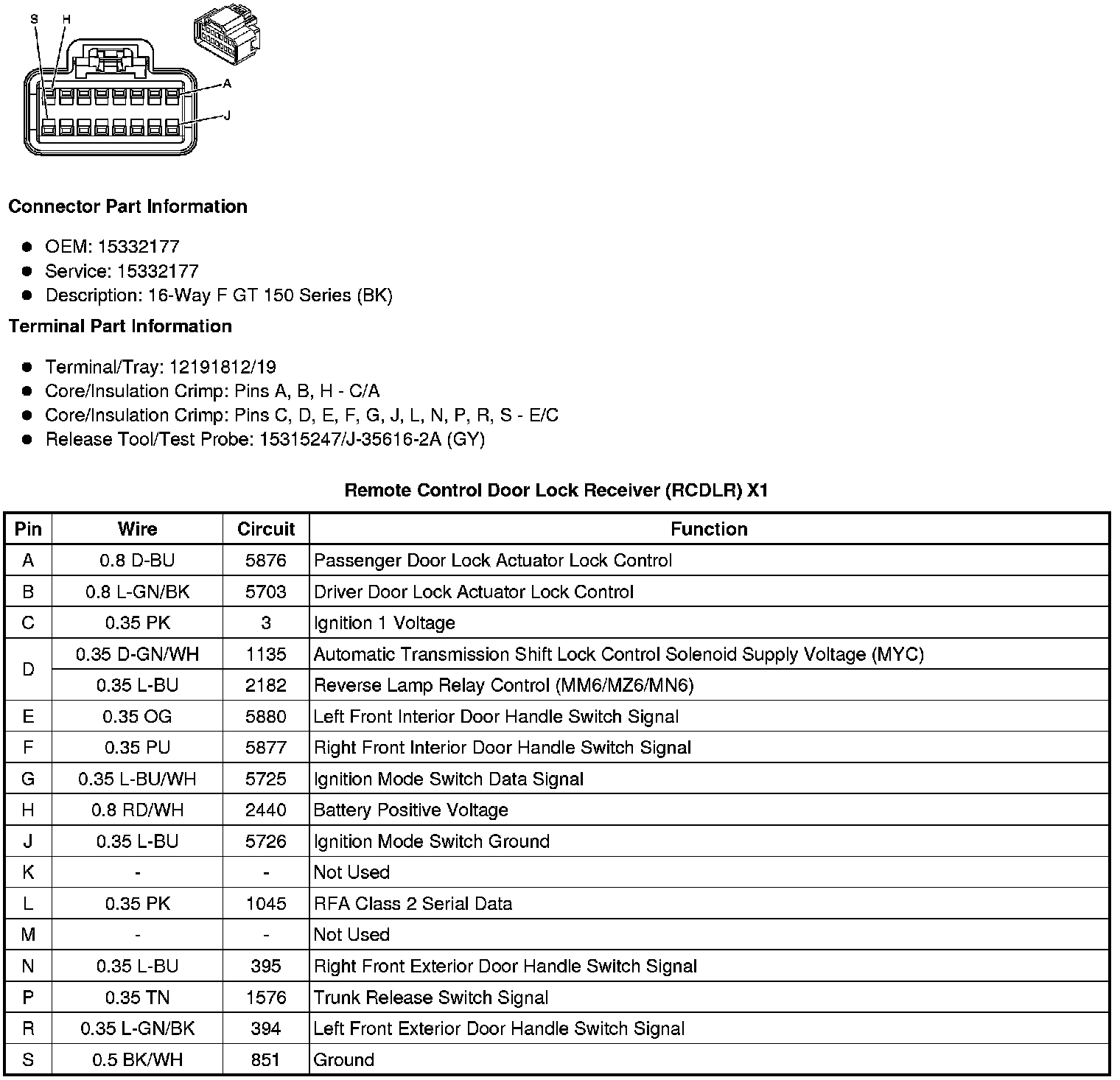

Remote Control Door Lock Receiver (RCDLR) X1

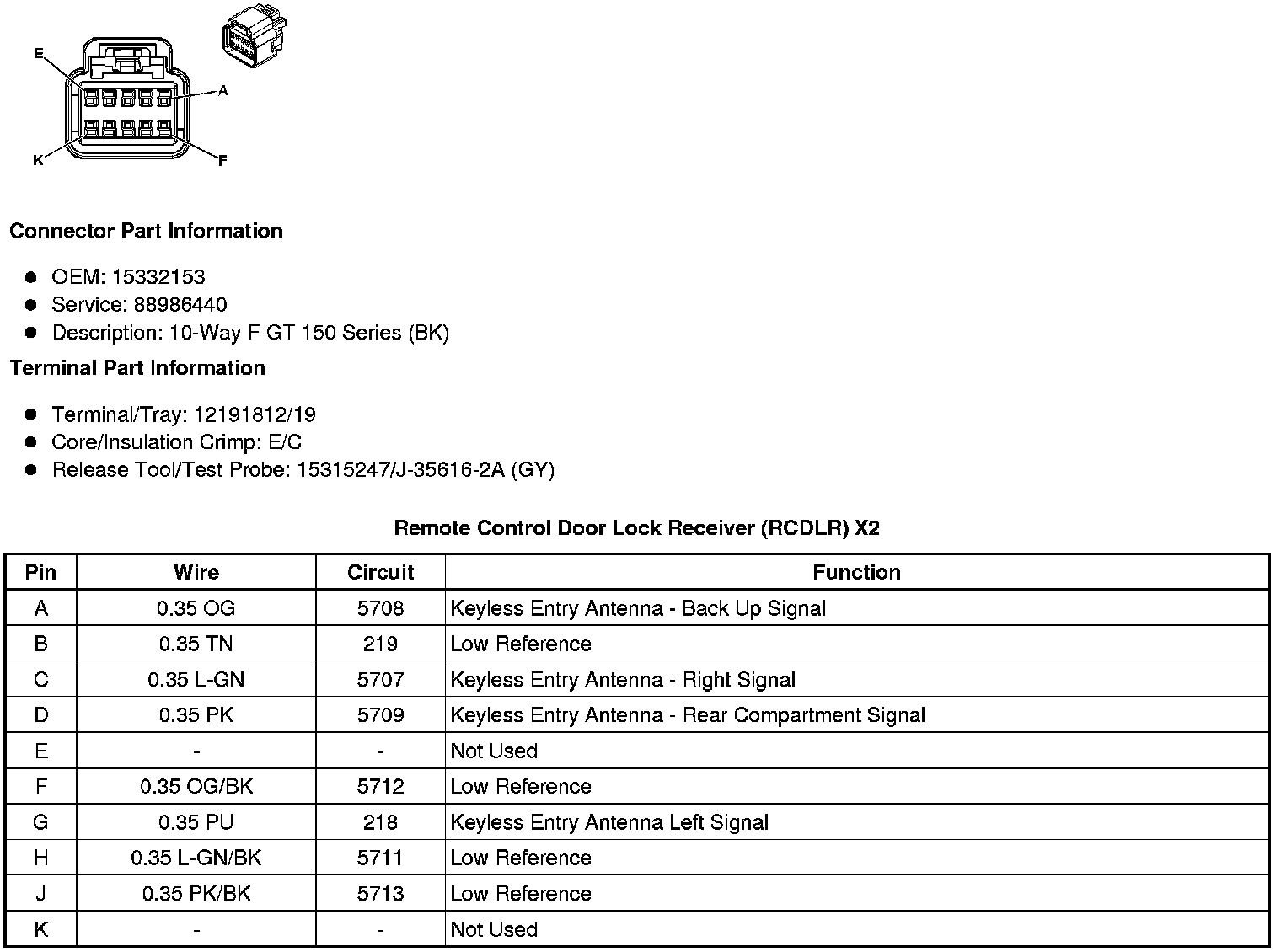

Remote Control Door Lock Receiver (RCDLR) X2
