Transmission Position Sensor/Switch: Diagrams

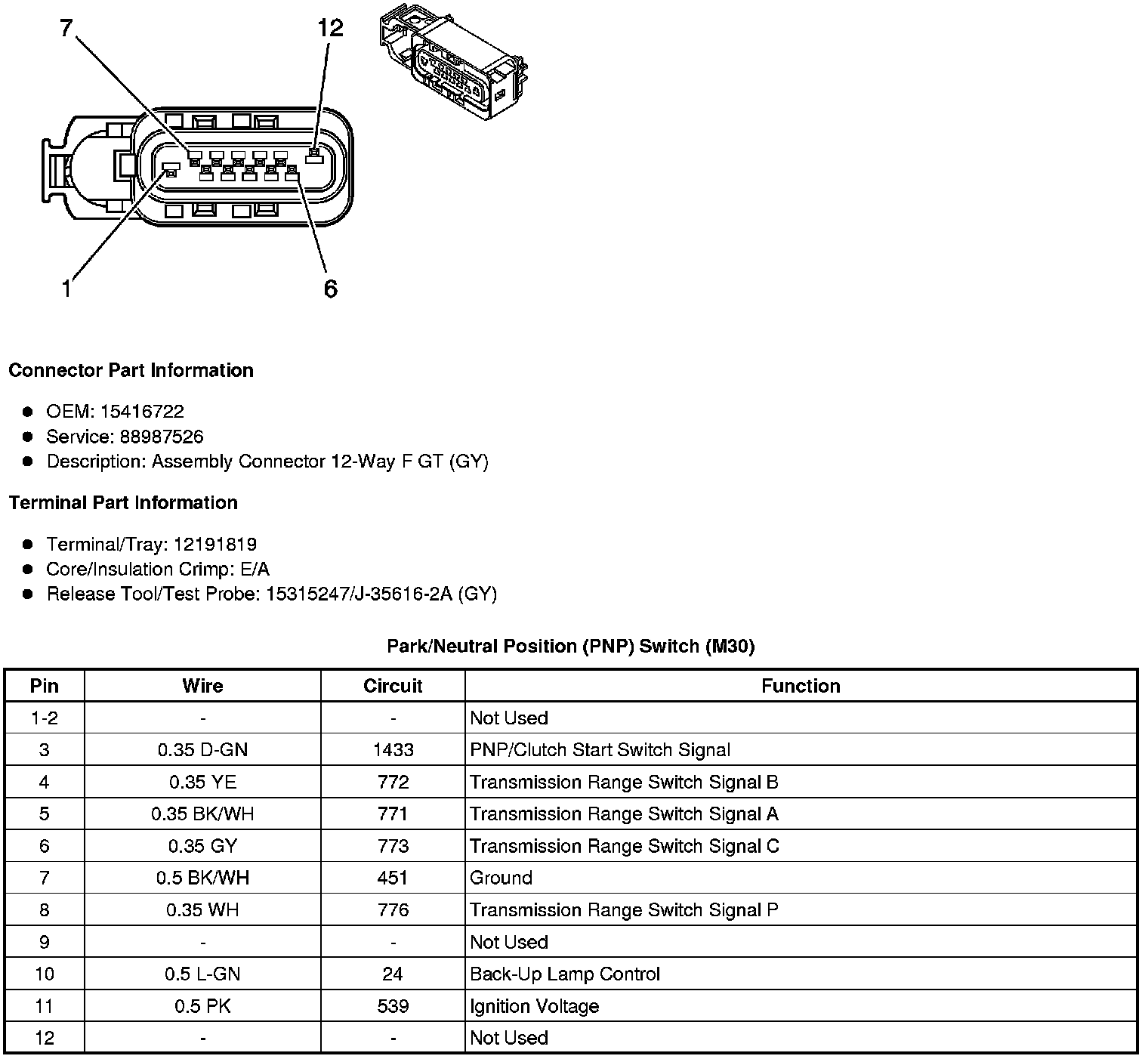

Component Connector End Views

Park/Neutral Position (PNP) Switch (M30)
