Home >> Chevrolet >> 2009 >> Colorado 2WD L4-2.9L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lateral Accelerometer

Lateral Accelerometer

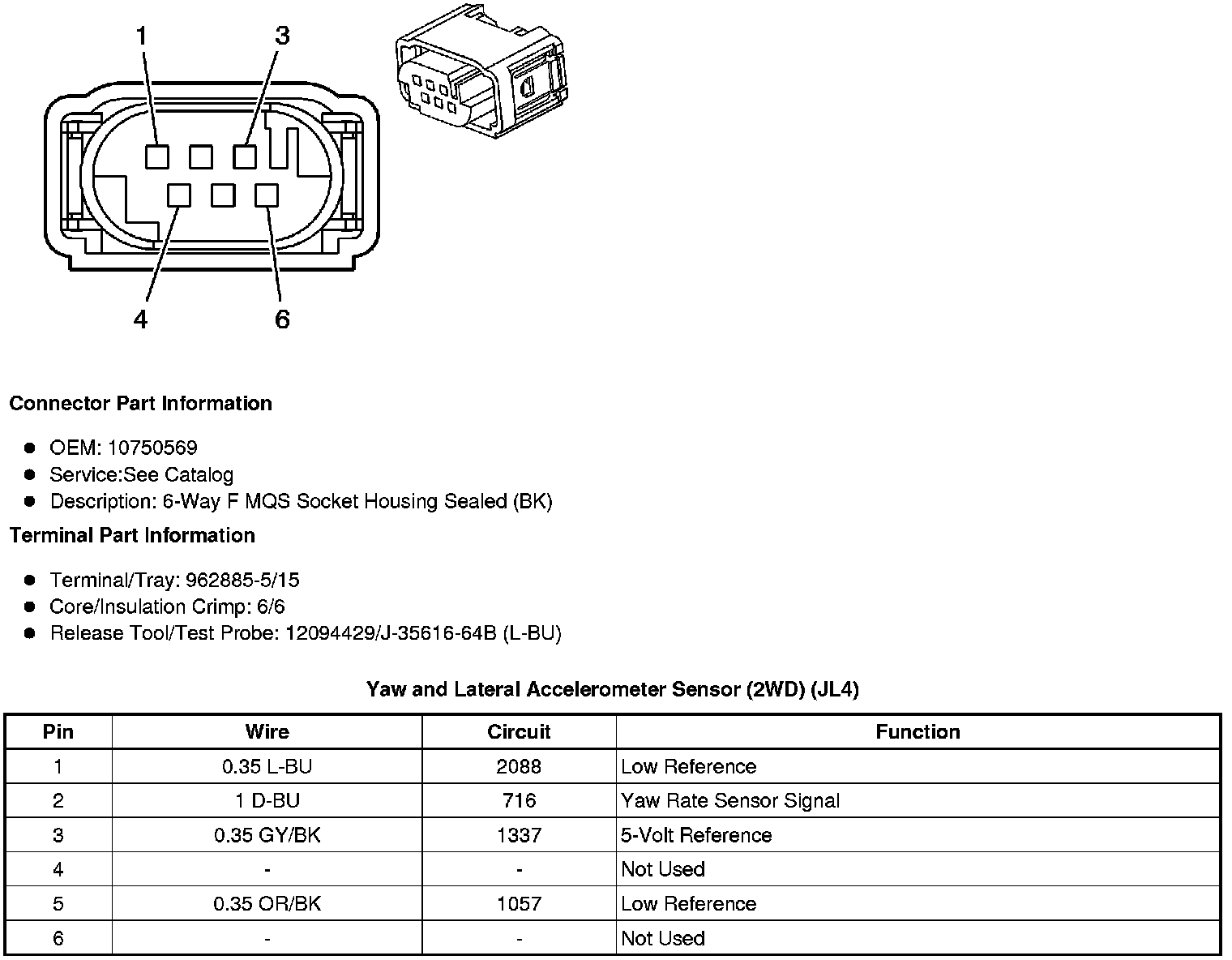

Component Connector End Views

Yaw and Lateral Accelerometer Sensor (2WD) (JL4)
