Lateral Accelerometer
Lateral Accelerometer

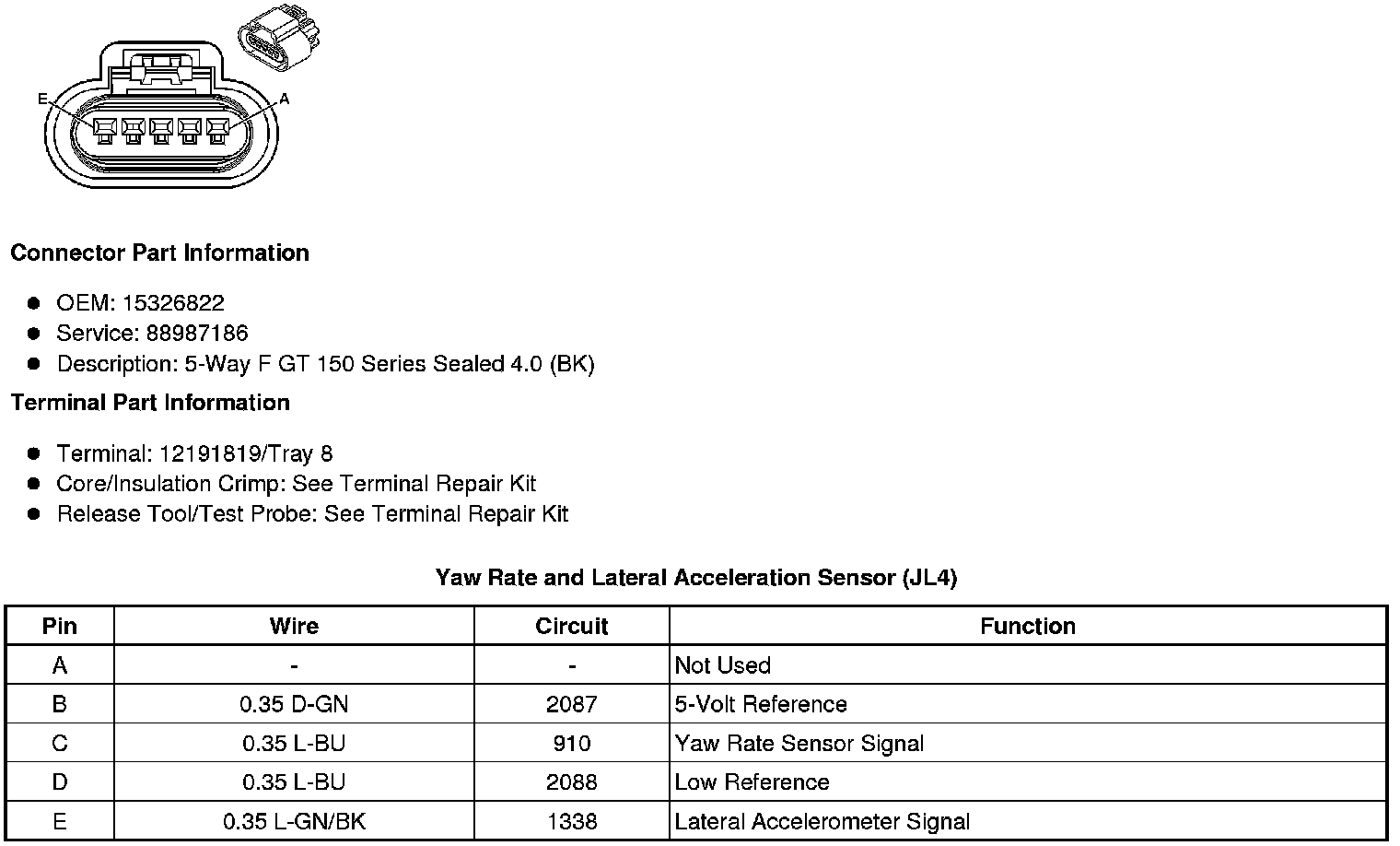

Component Connector End Views
Yaw Rate and Lateral Acceleration Sensor (JL4)
