Impact Sensor



Component Connector End Views

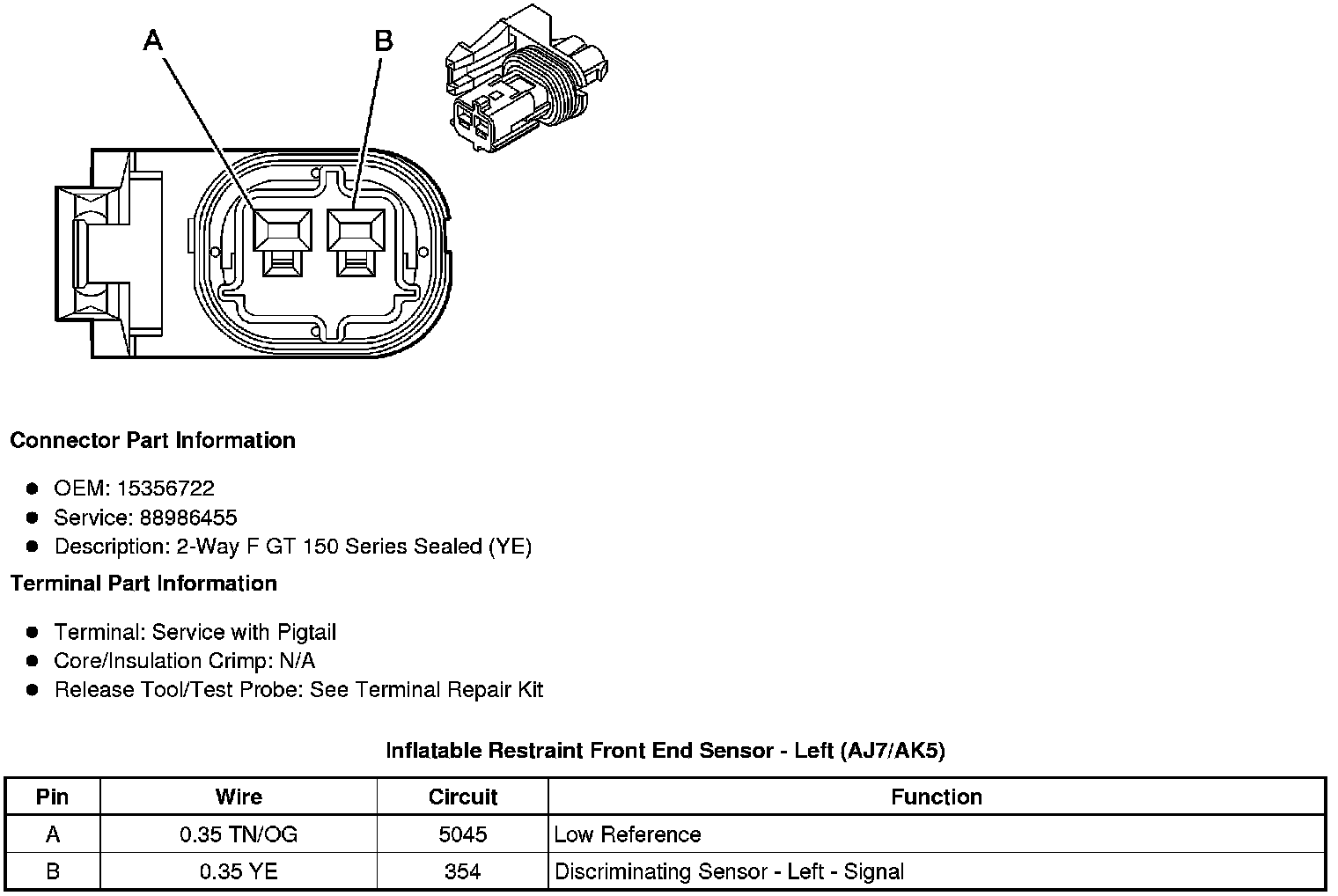

Inflatable Restraint Front End Sensor - Left (AJ7/AK5)

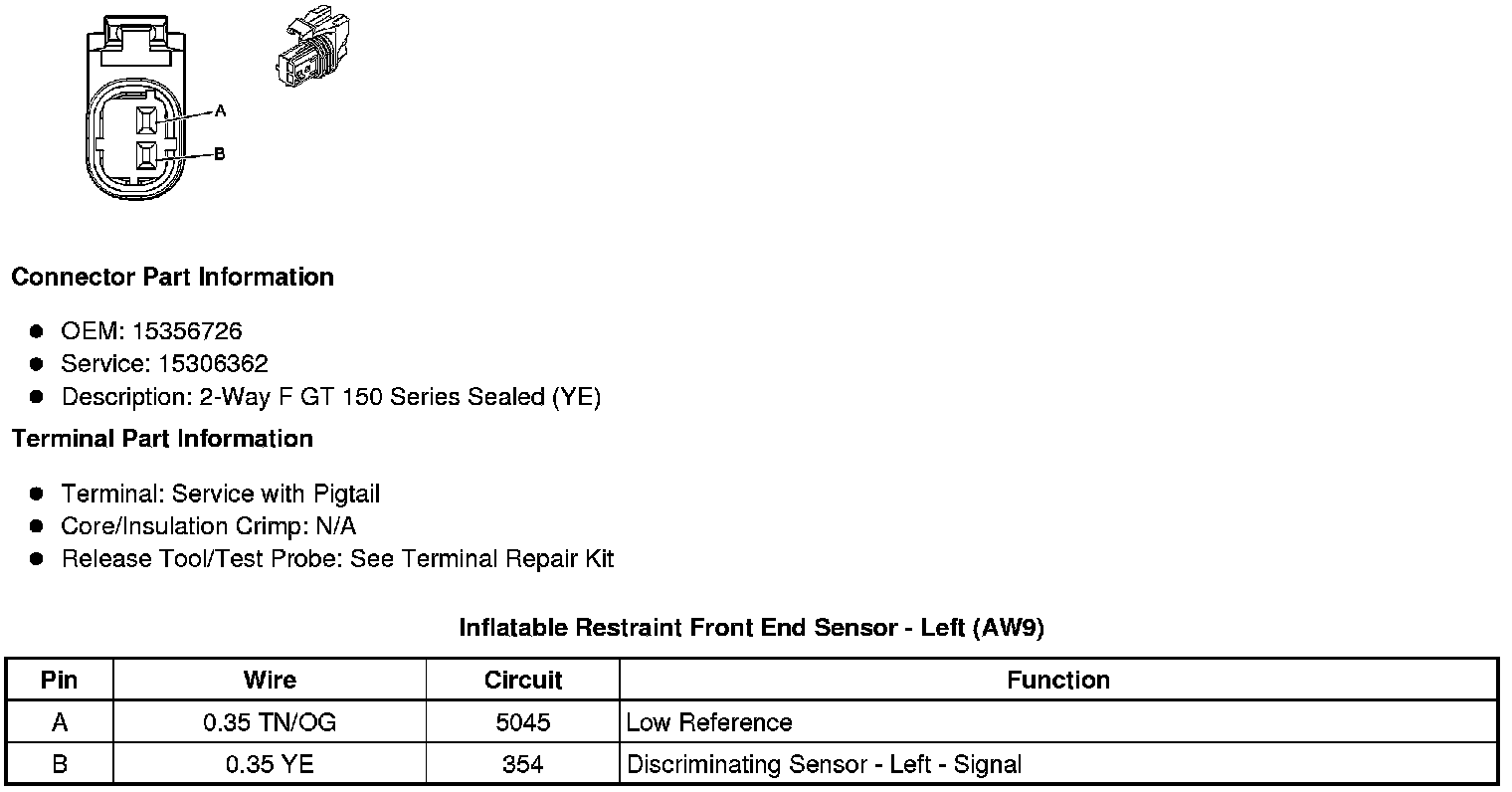

Inflatable Restraint Front End Sensor - Left (AW9)

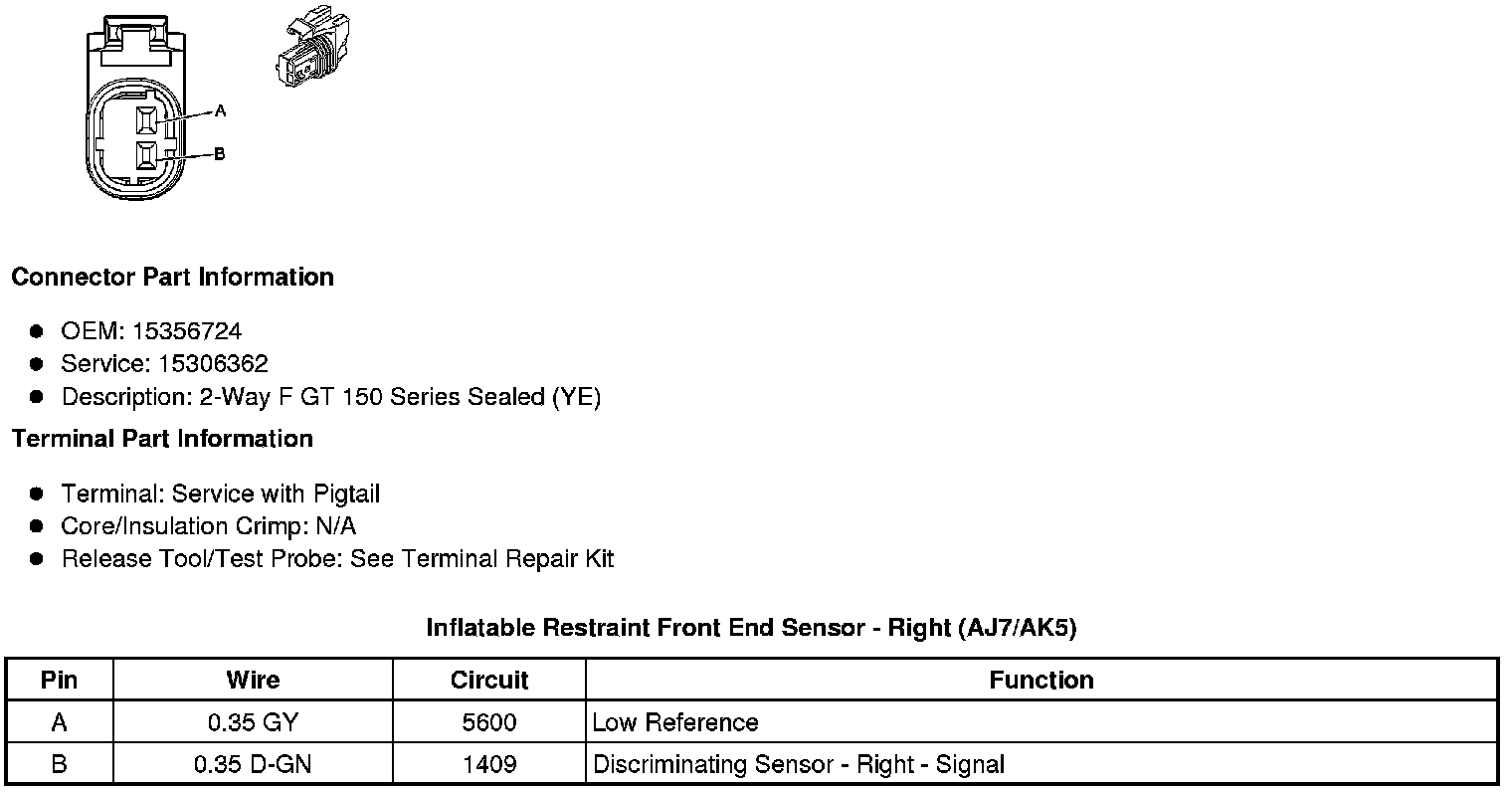

Inflatable Restraint Front End Sensor - Right (AJ7/AK5)

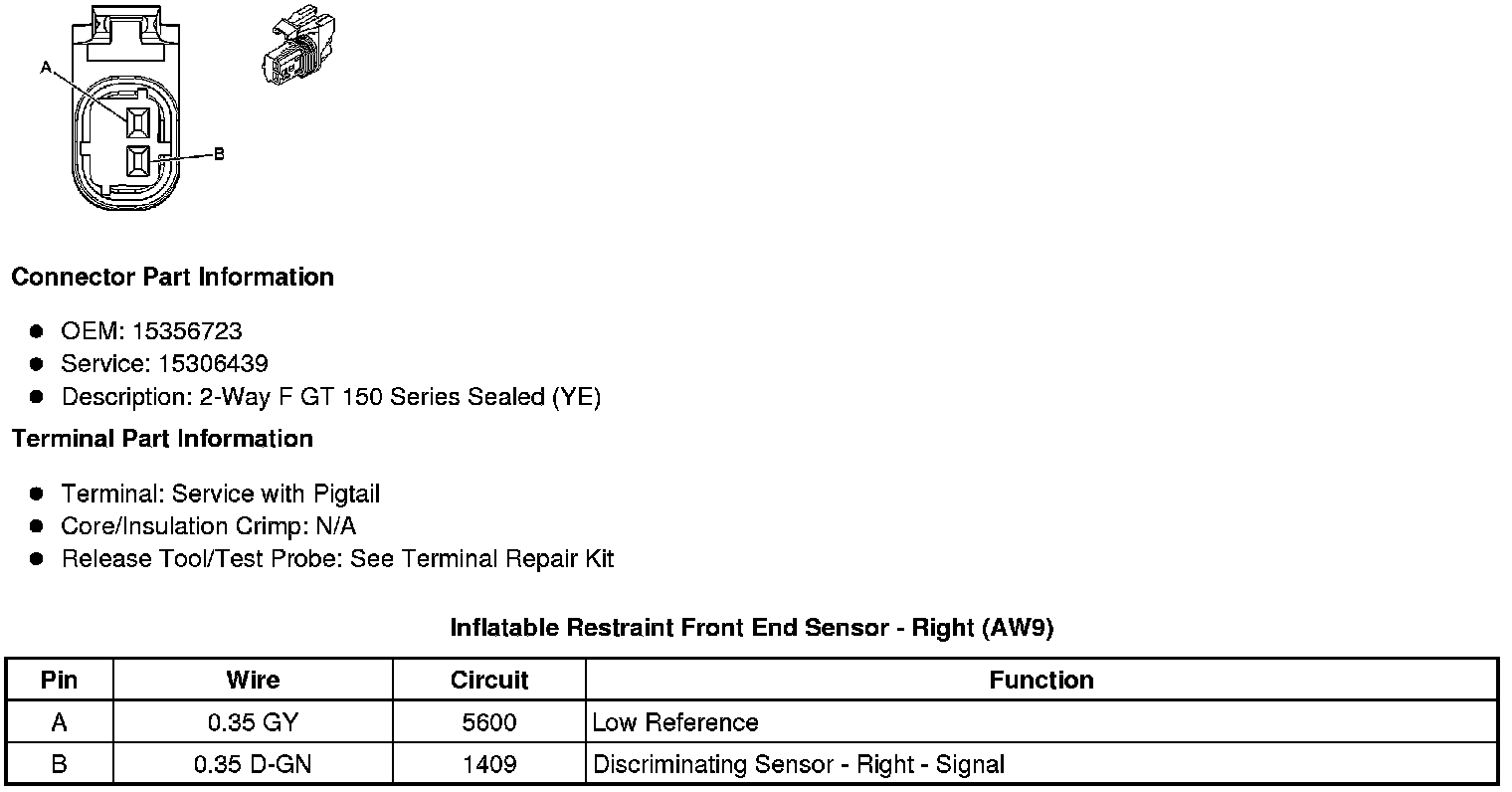

Inflatable Restraint Front End Sensor - Right (AW9)
