Blower Motor Control Module - Auxiliary
Component Connector End Views

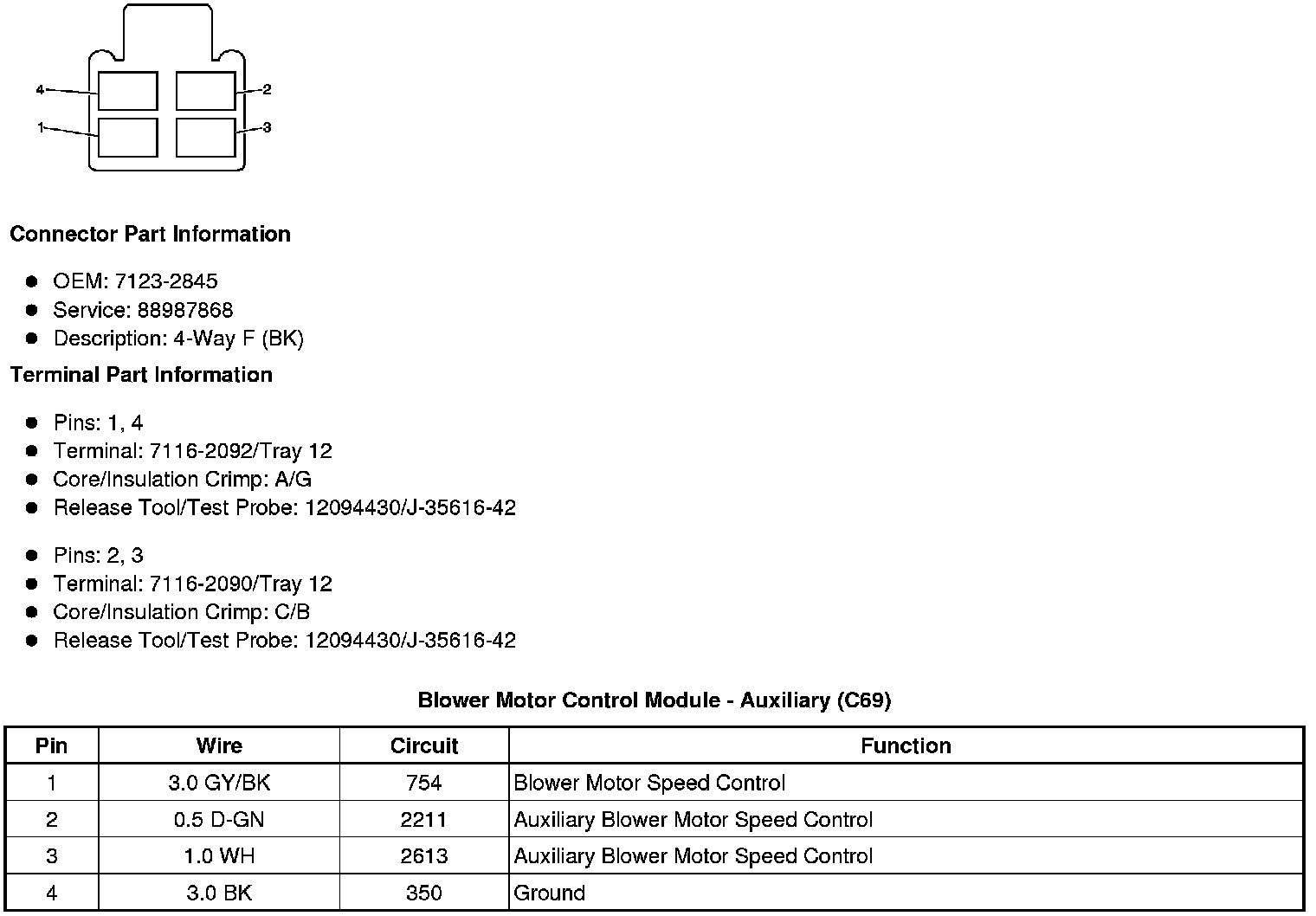

Blower Motor Control Module - Auxiliary (C69)
