Home >> Chevrolet >> 2008 >> Uplander V6-3.9L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Component Connector End Views >> Powertrain Management >> Engine Control Module

Engine Control Module



Component Connector End Views

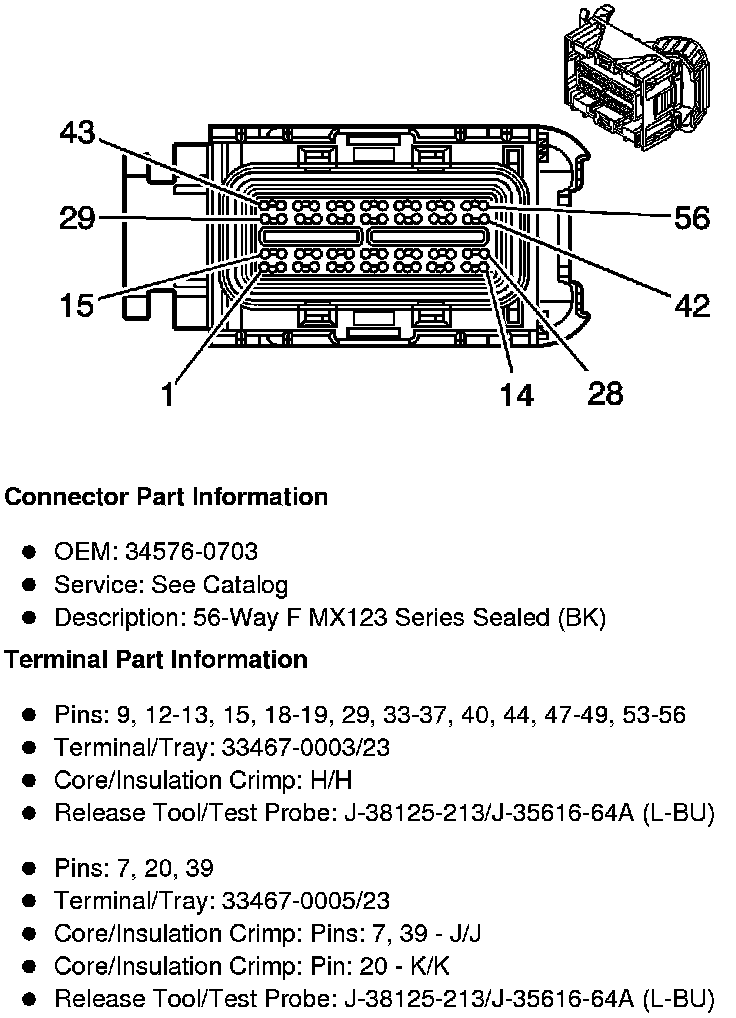

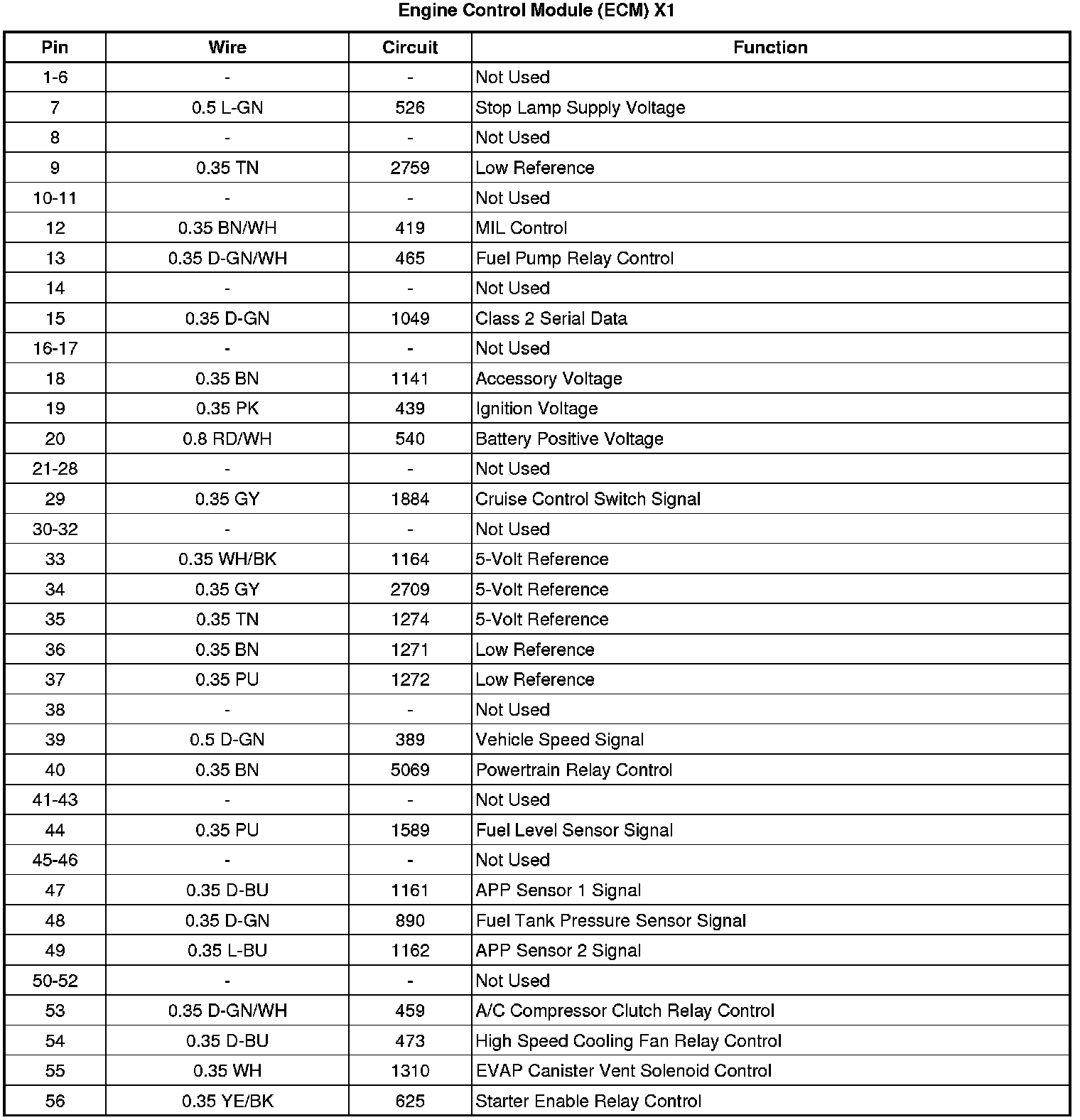

Engine Control Module (ECM) X1

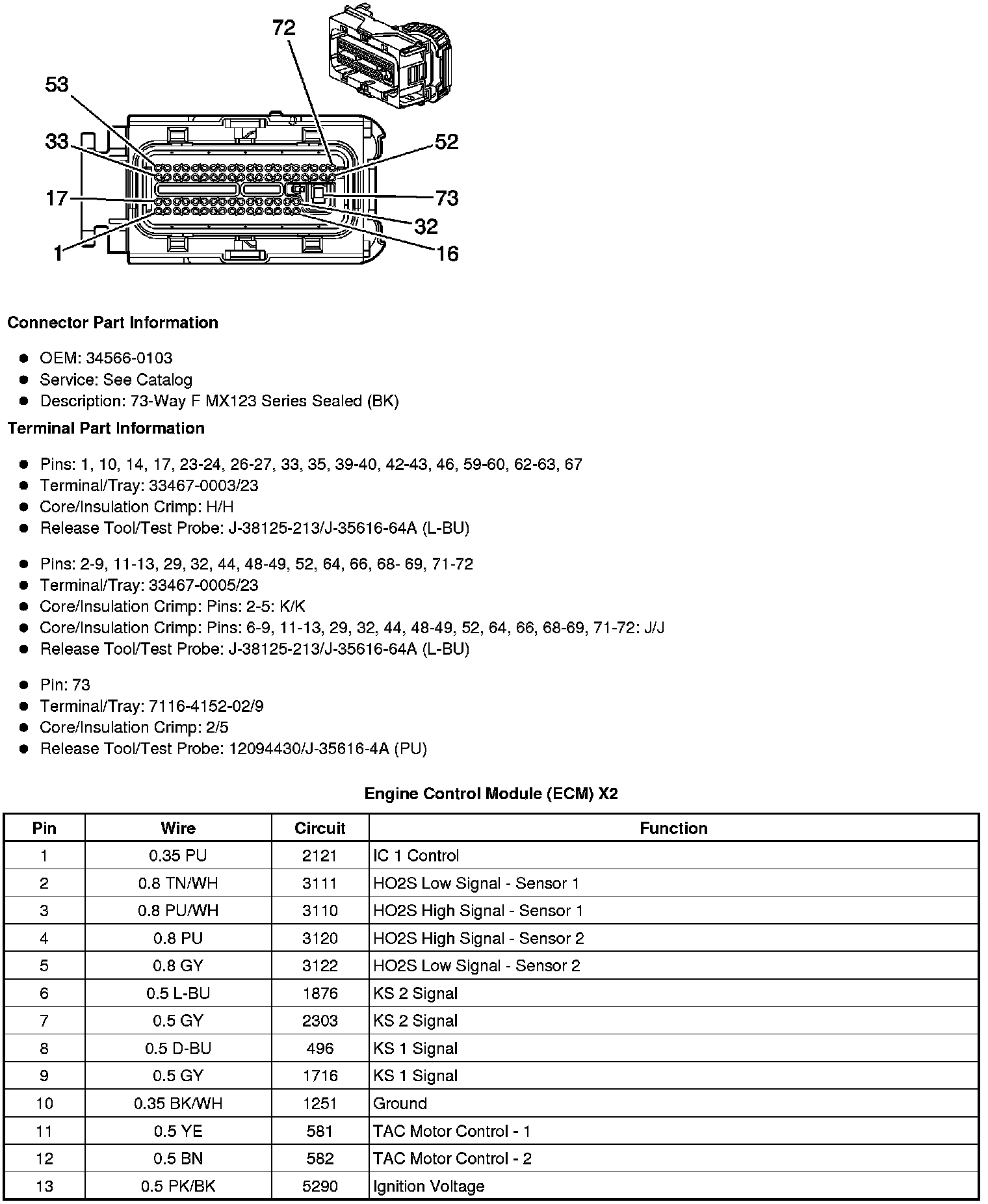

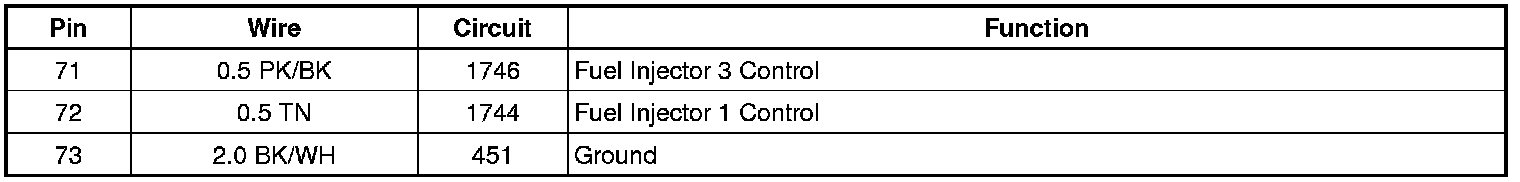

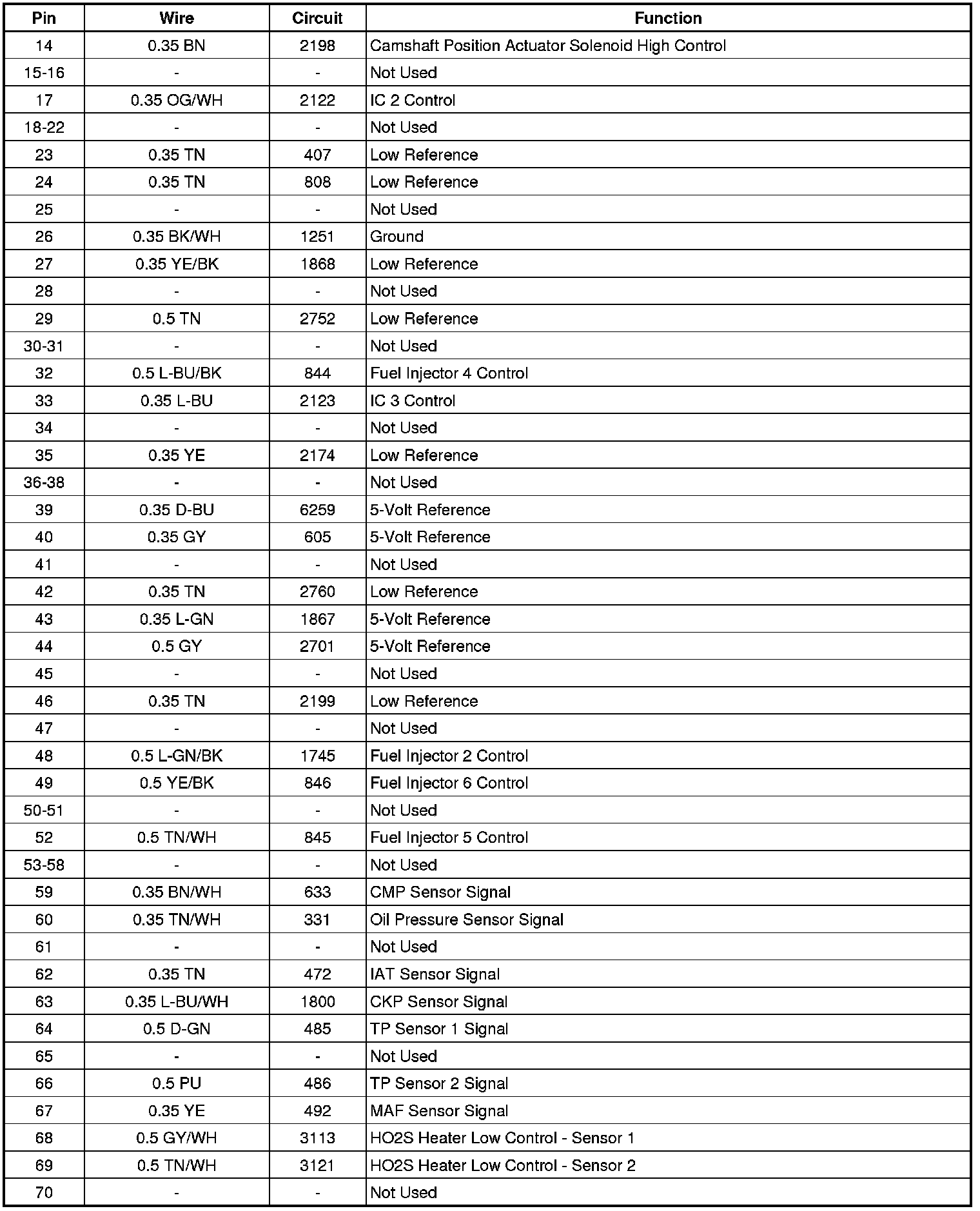

Engine Control Module (ECM) X2

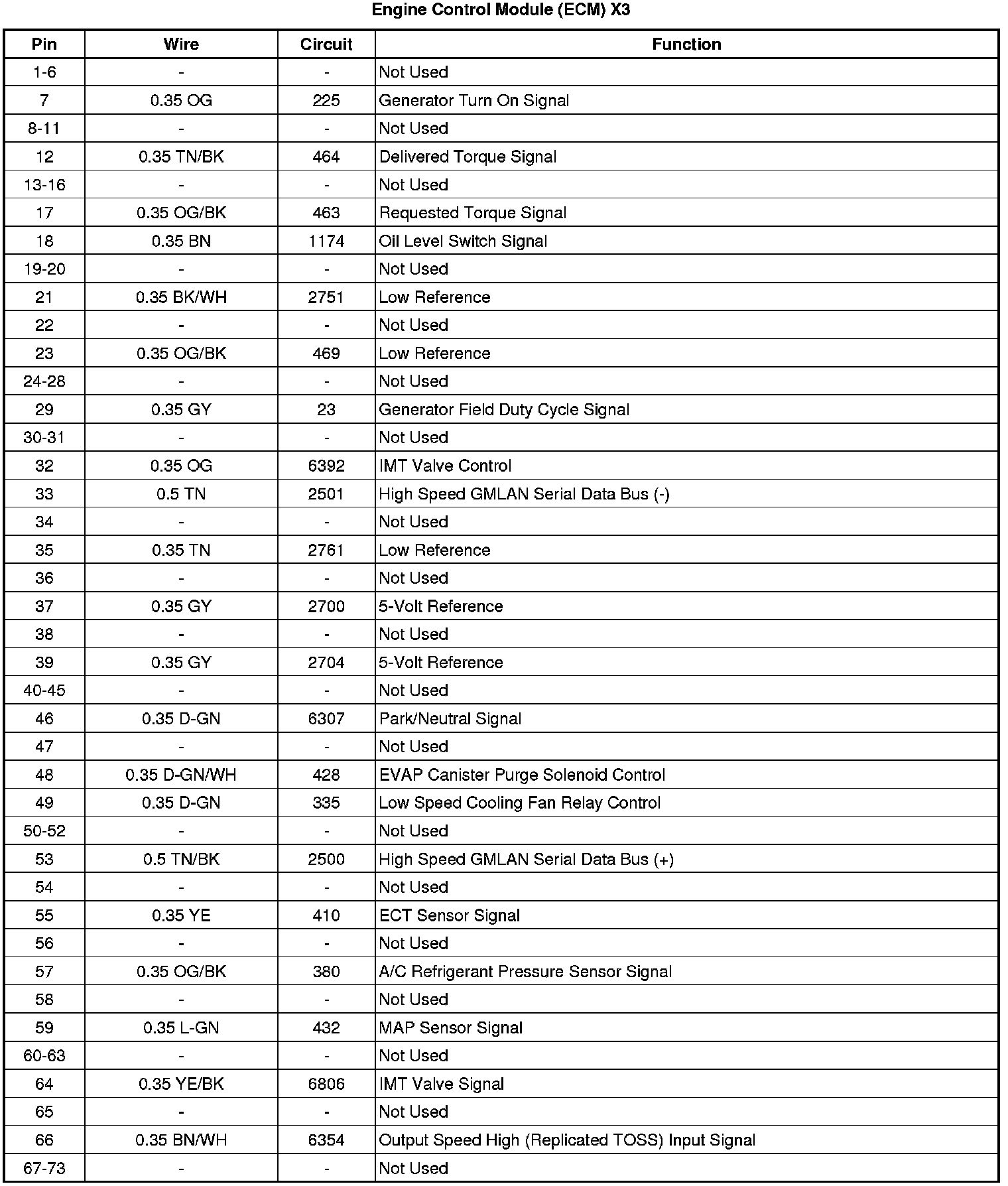

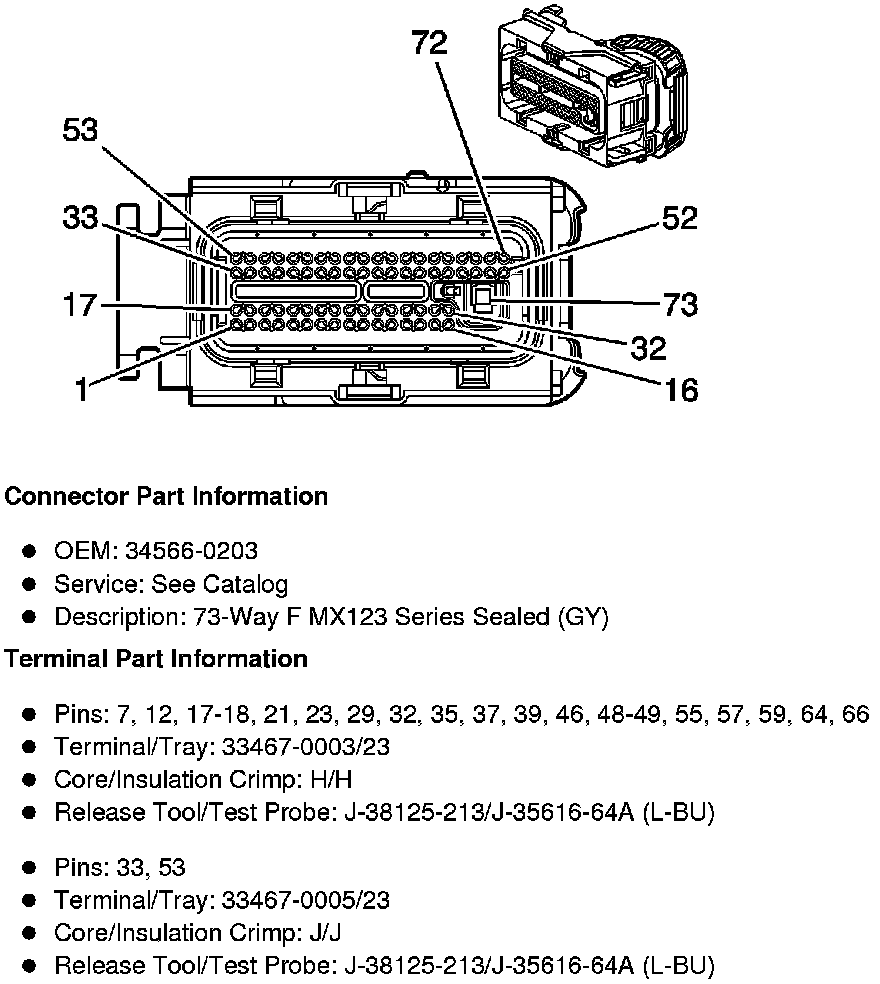

Engine Control Module (ECM) X3
