Body Control Module



Component Connector End Views

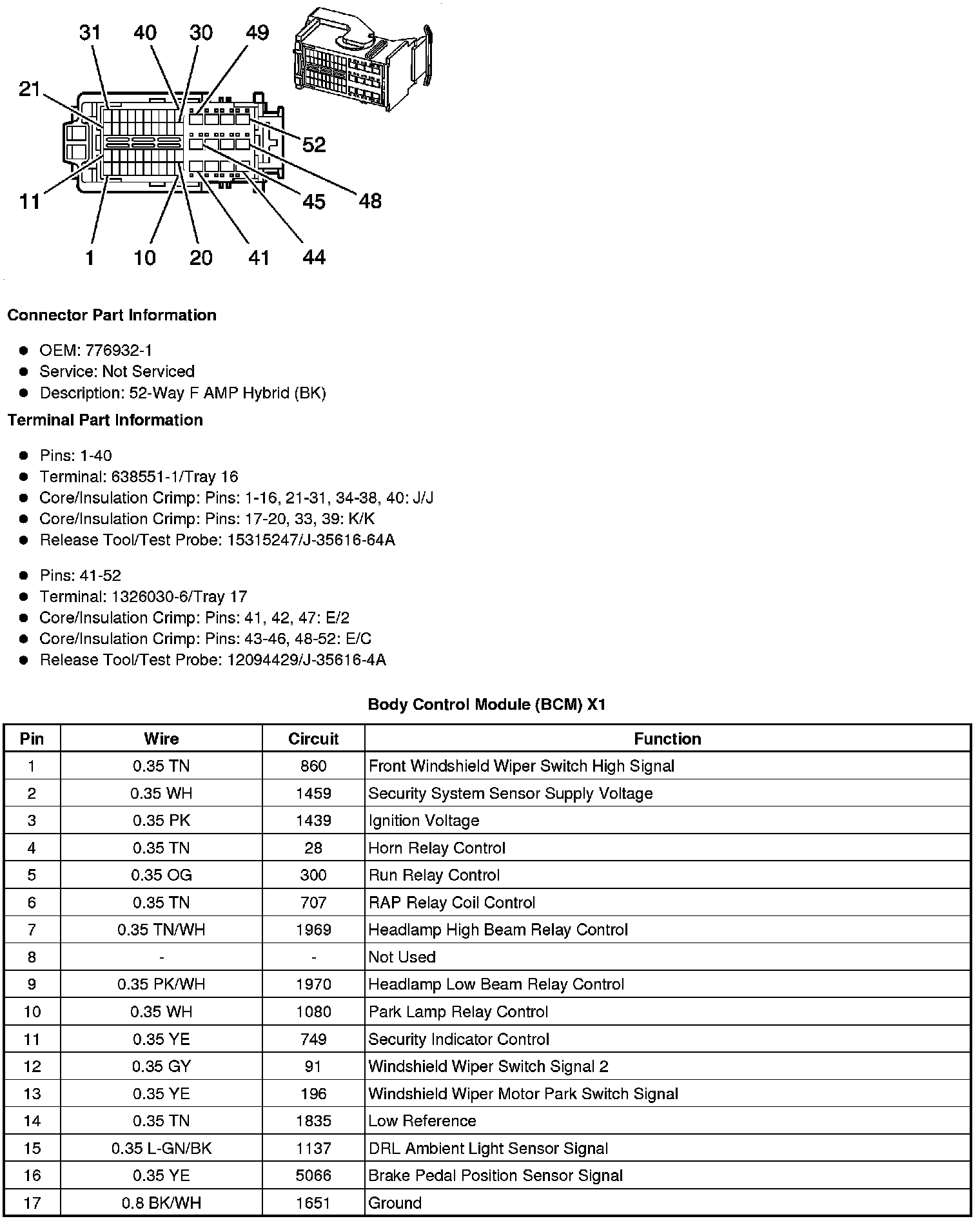

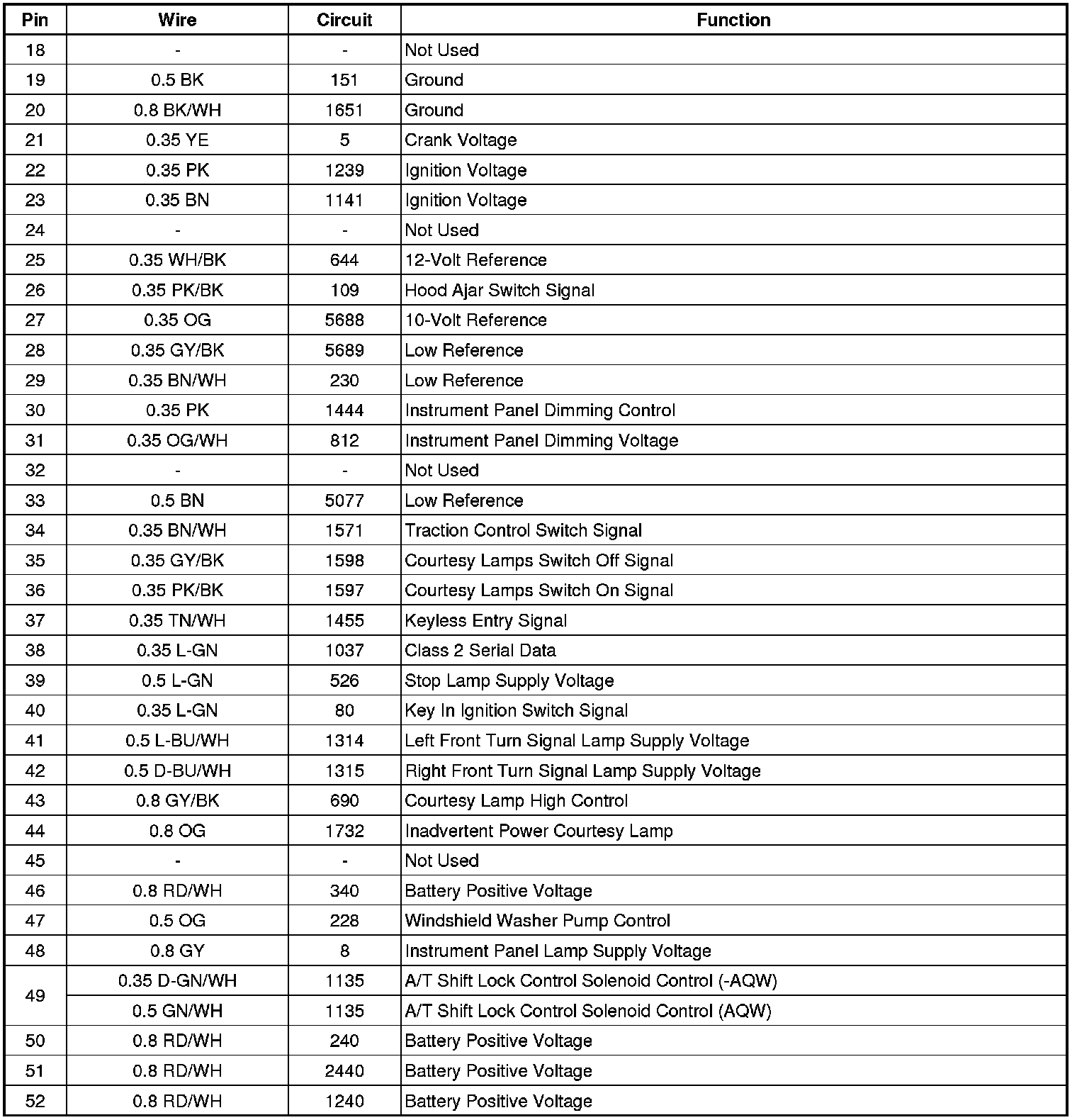

Body Control Module (BCM) X1

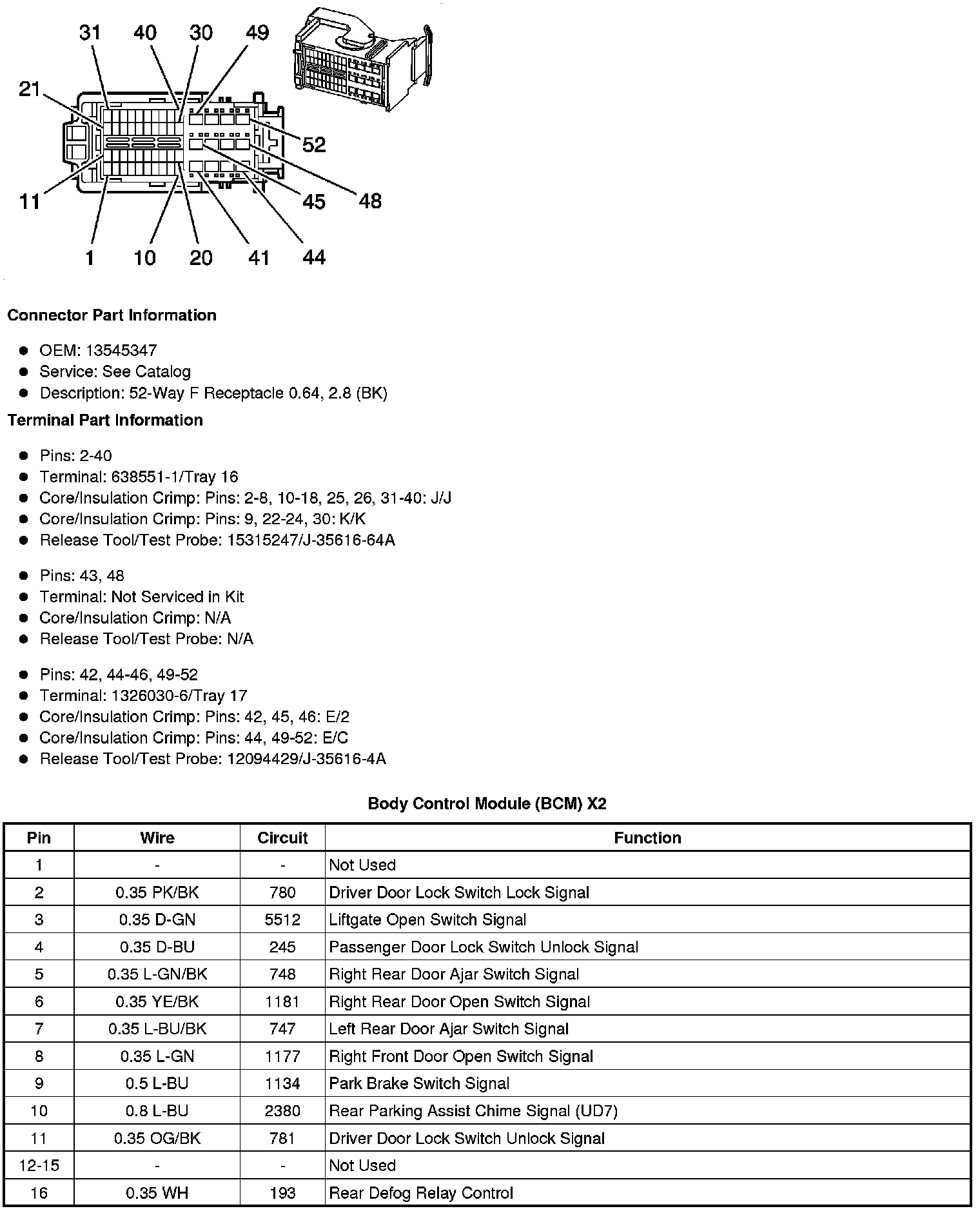

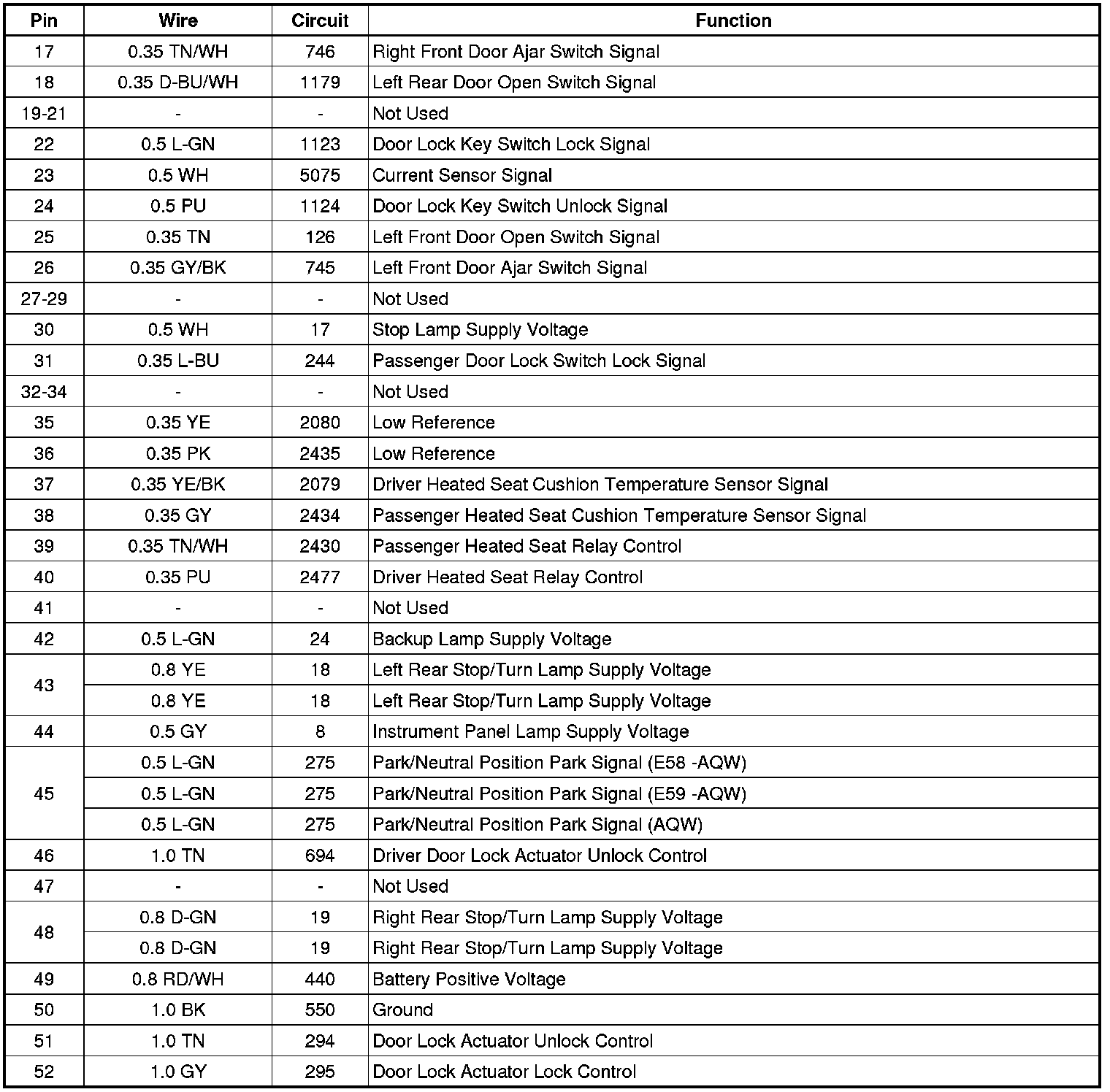

Body Control Module (BCM) X2

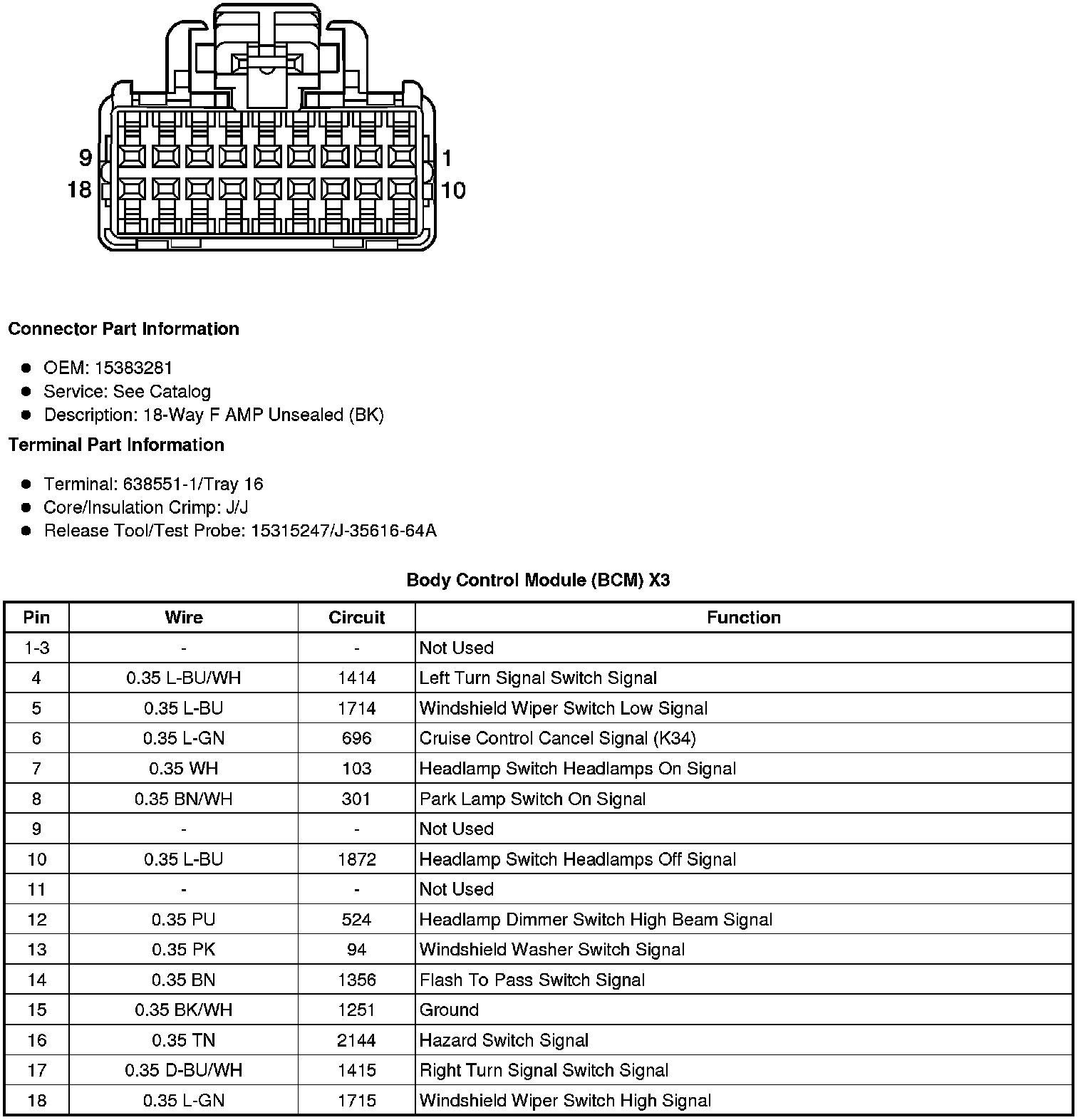

Body Control Module (BCM) X3
