Brake Fluid Level Sensor/Switch

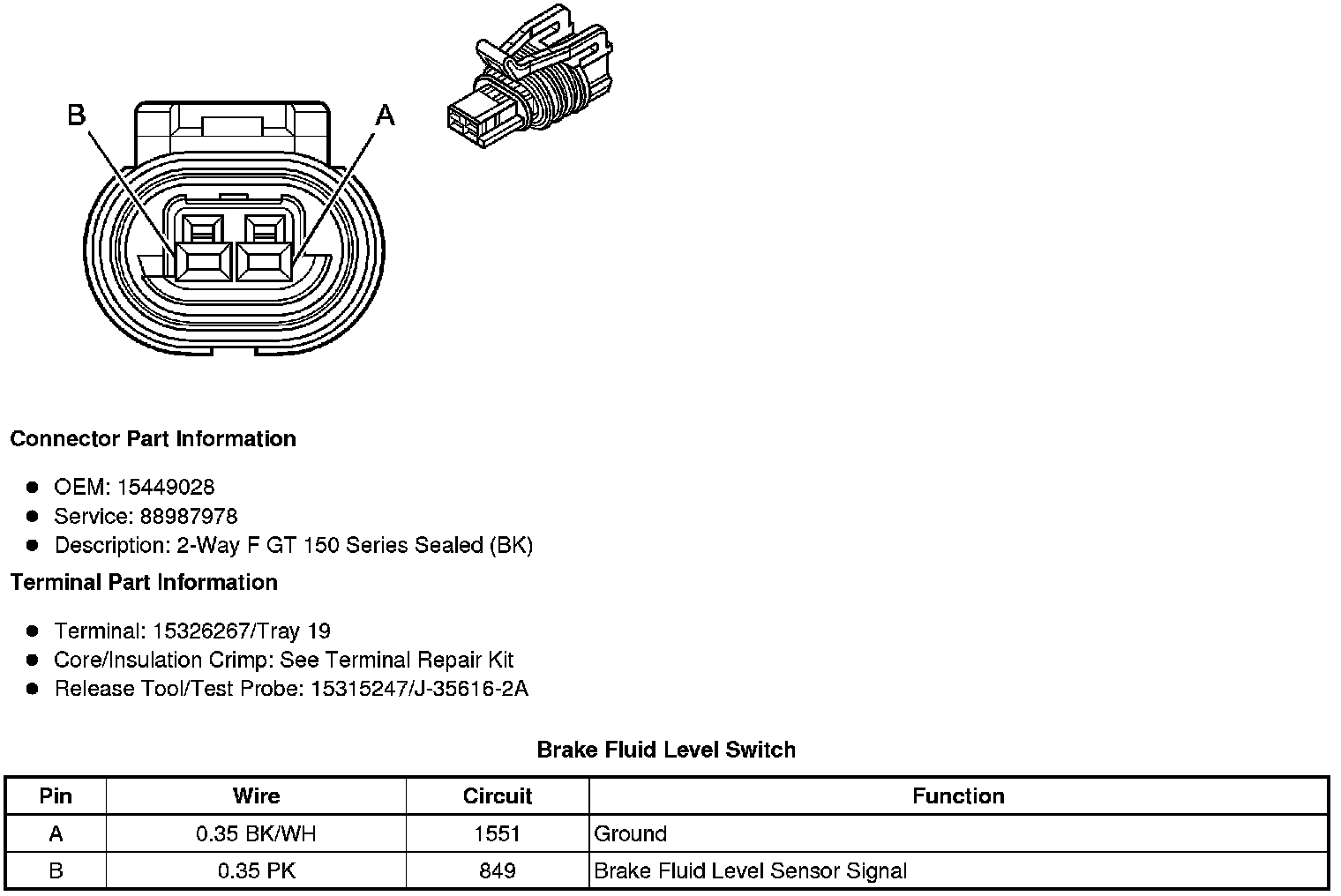

Brake Fluid Level Sensor/Switch
Component Connector End Views
Brake Fluid Level Switch
