Home >> Chevrolet >> 2008 >> Uplander V6-3.9L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag >> Inflatable Restraint Instrument Panel Module

Inflatable Restraint Instrument Panel Module

Component Connector End Views

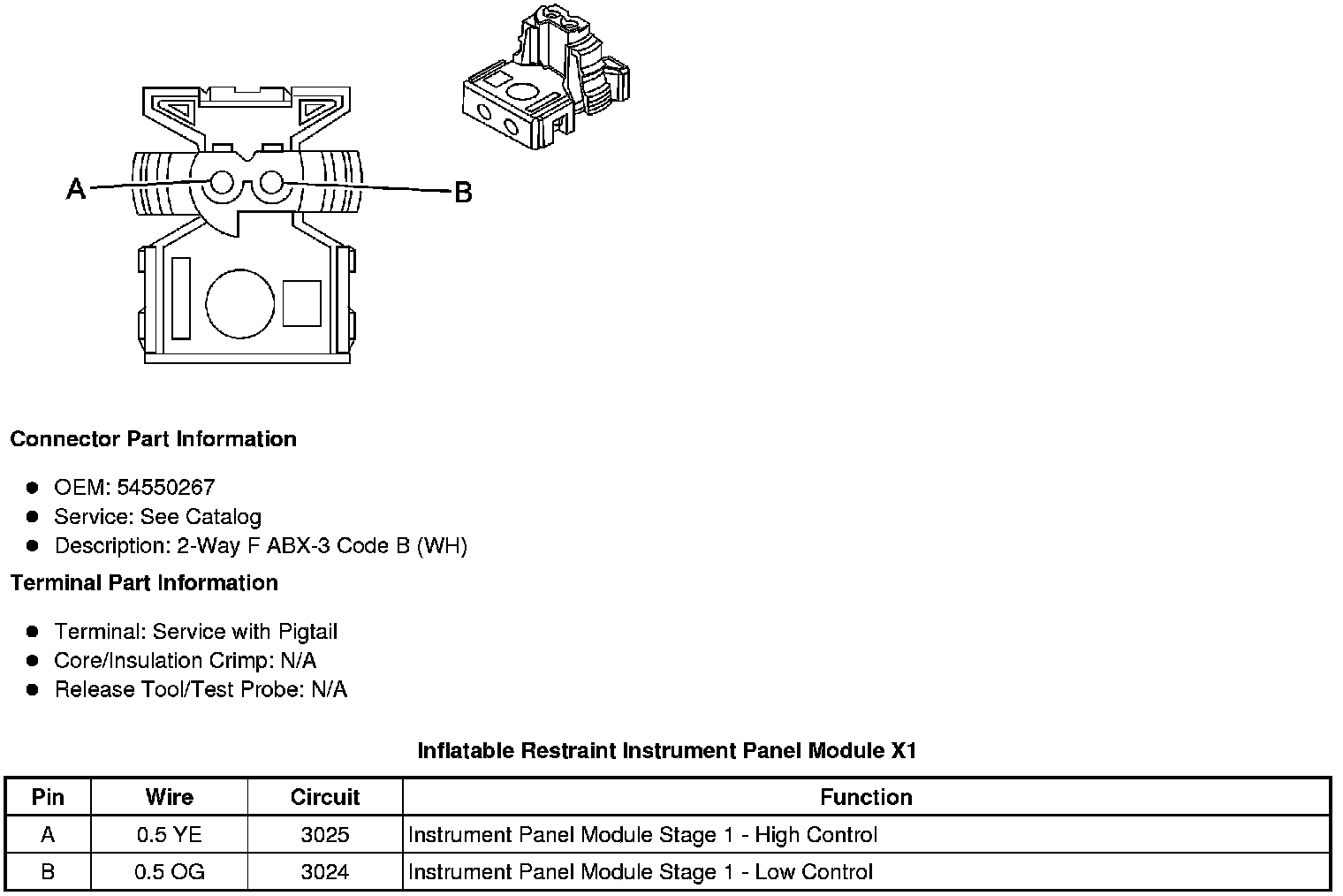

Inflatable Restraint Instrument Panel Module X1

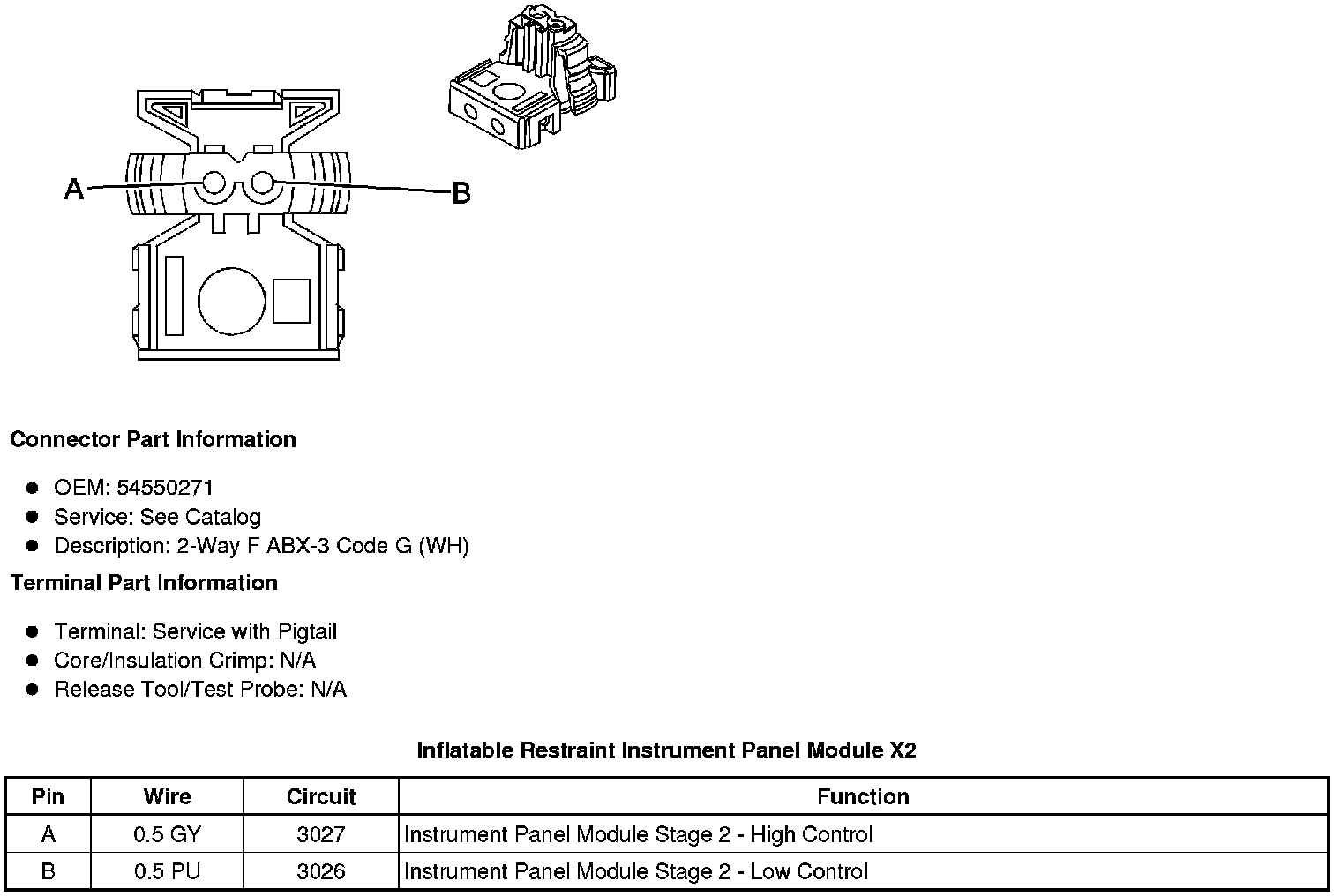

Inflatable Restraint Instrument Panel Module X2
