Memory Positioning Module: Diagrams



Component Connector End Views

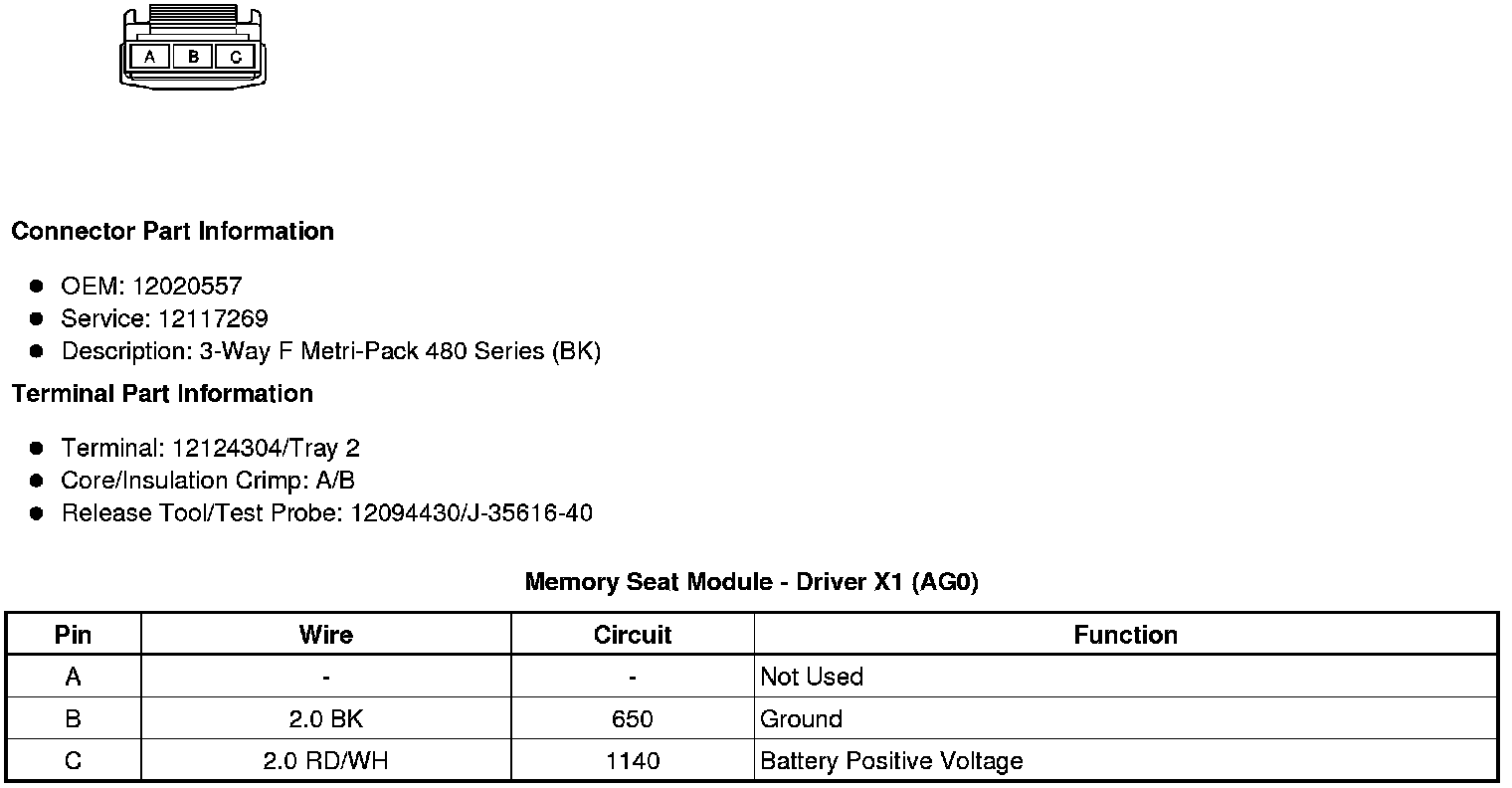

Memory Seat Module - Driver X1 (AG0)

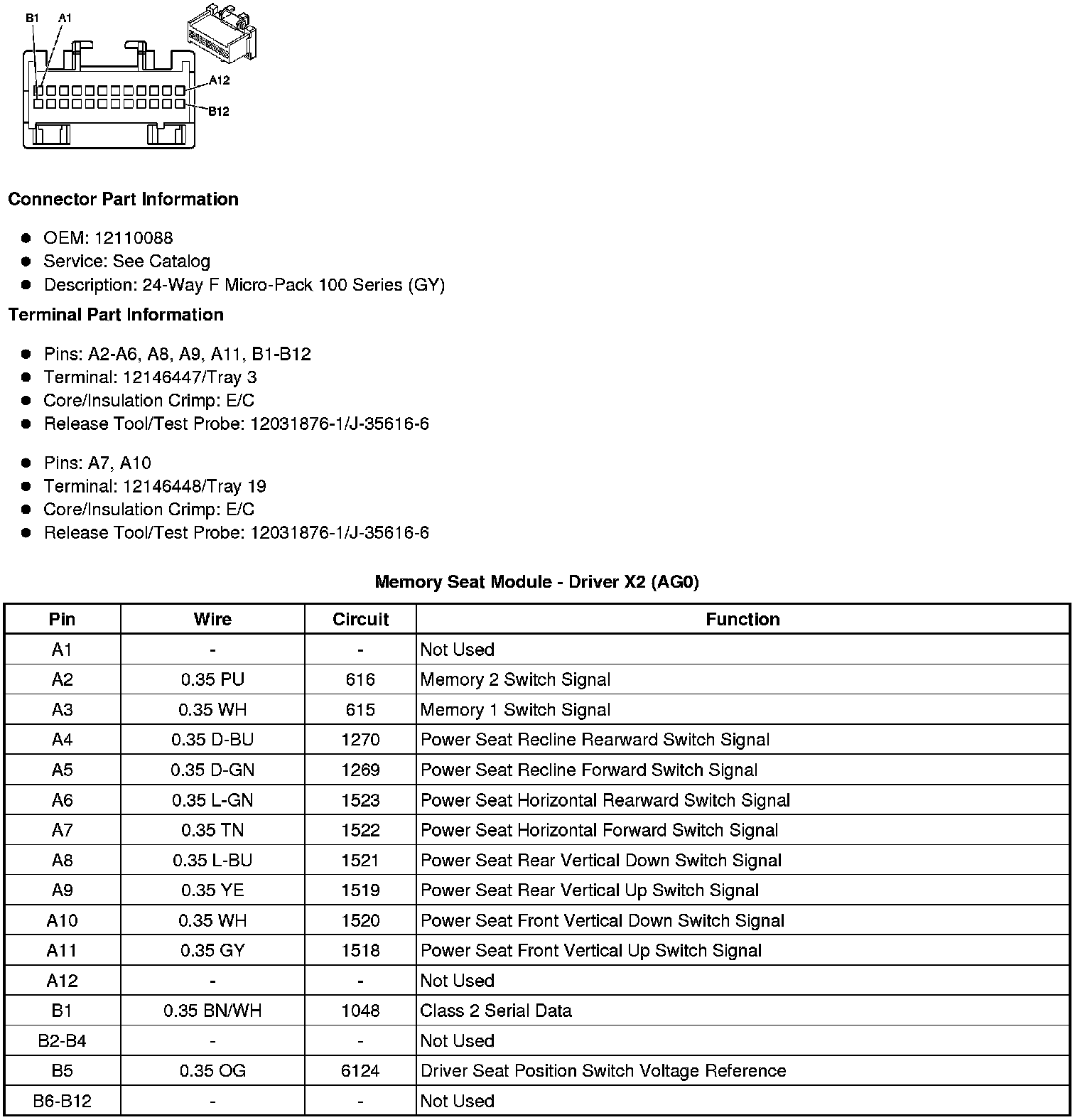

Memory Seat Module - Driver X2 (AG0)

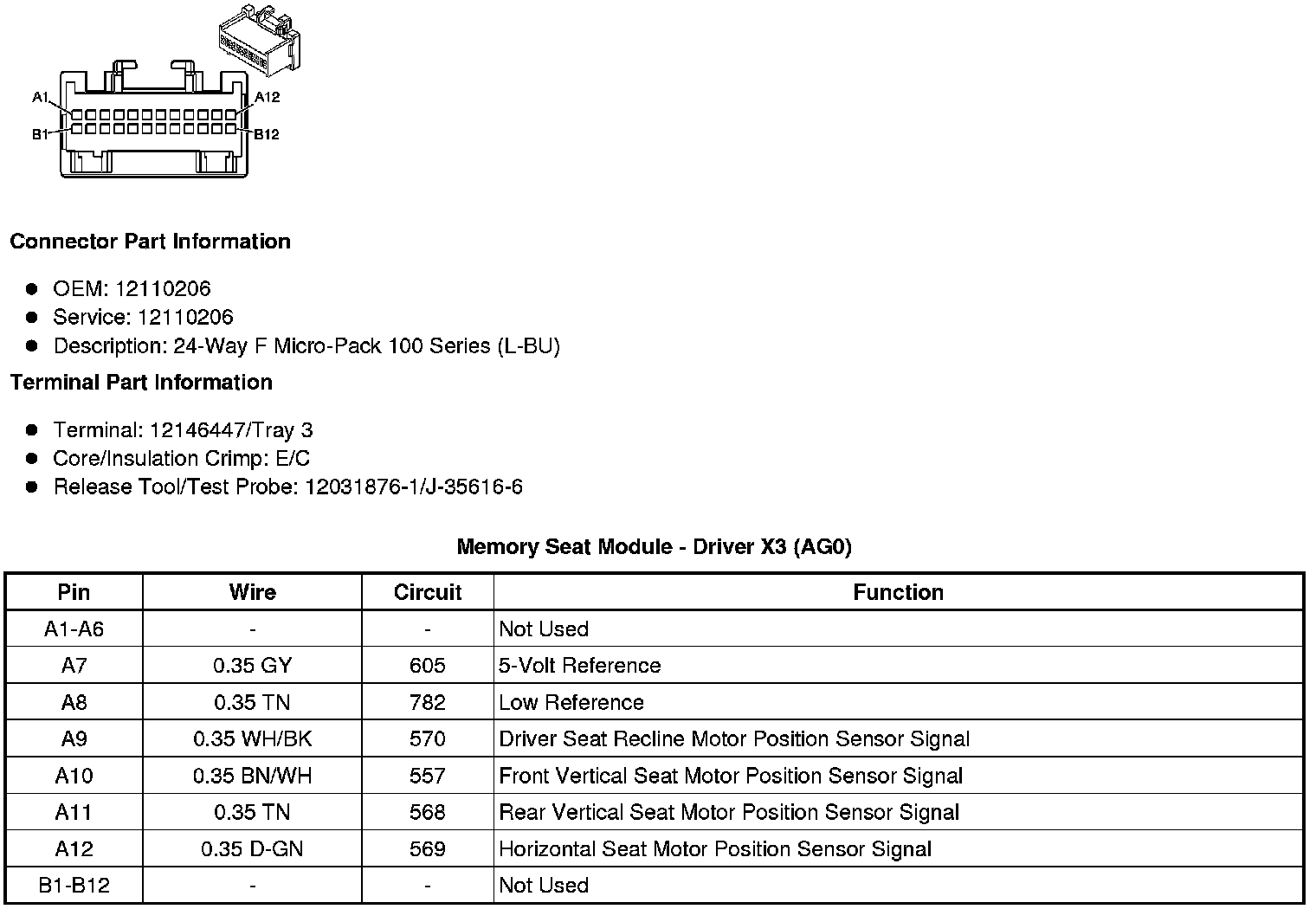

Memory Seat Module - Driver X3 (AG0)

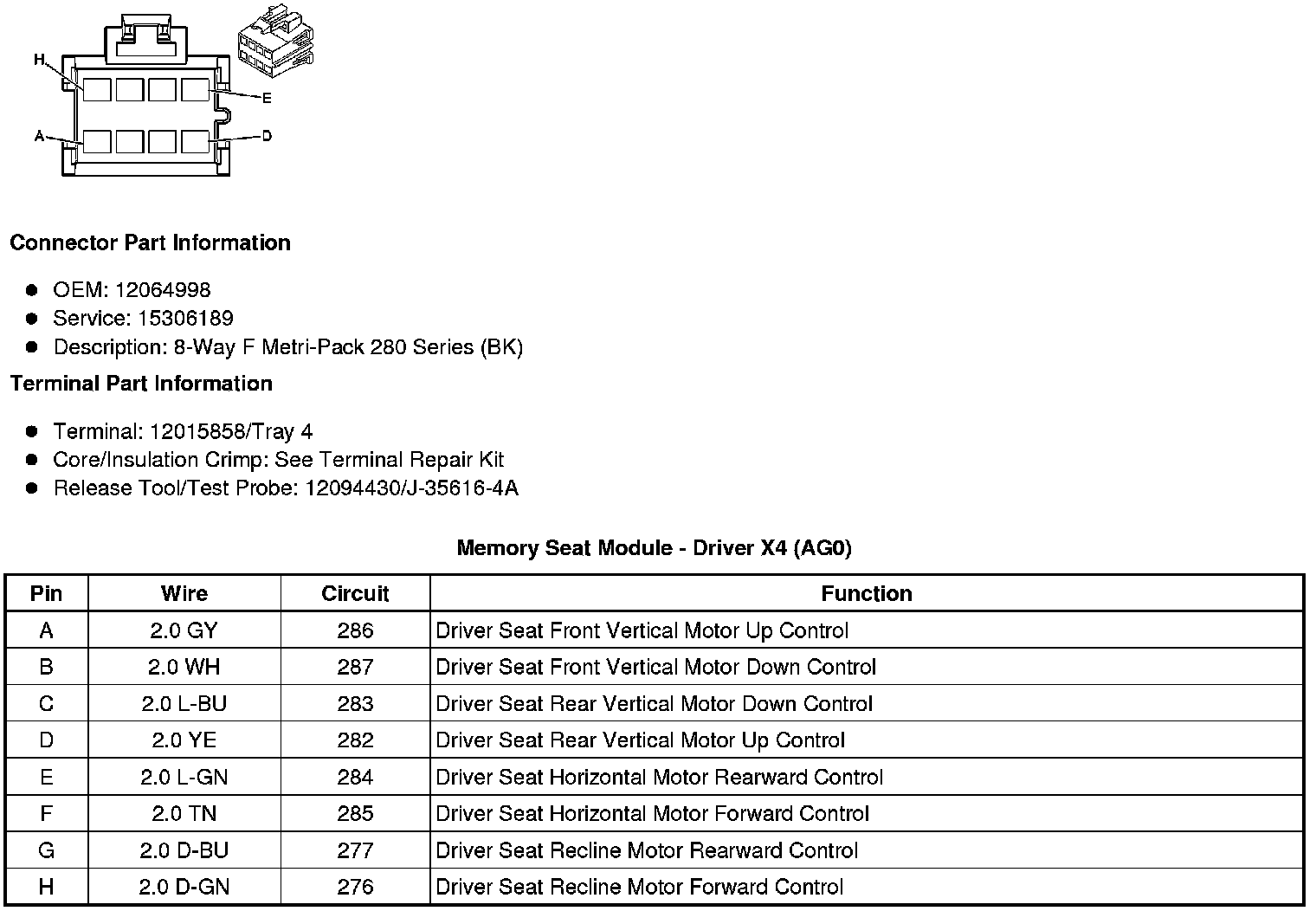

Memory Seat Module - Driver X4 (AG0)
