Ignition Coil/Module 1-6 (LY7)

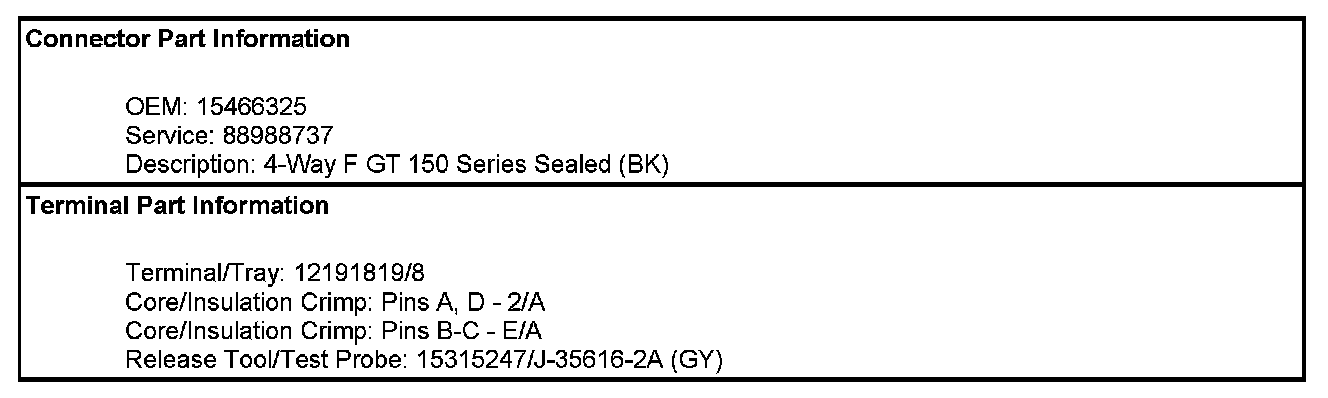

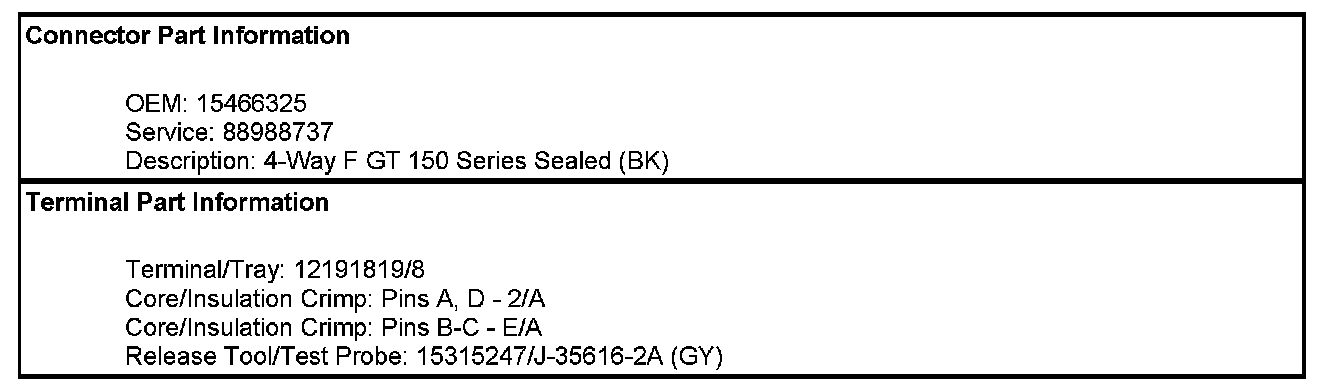

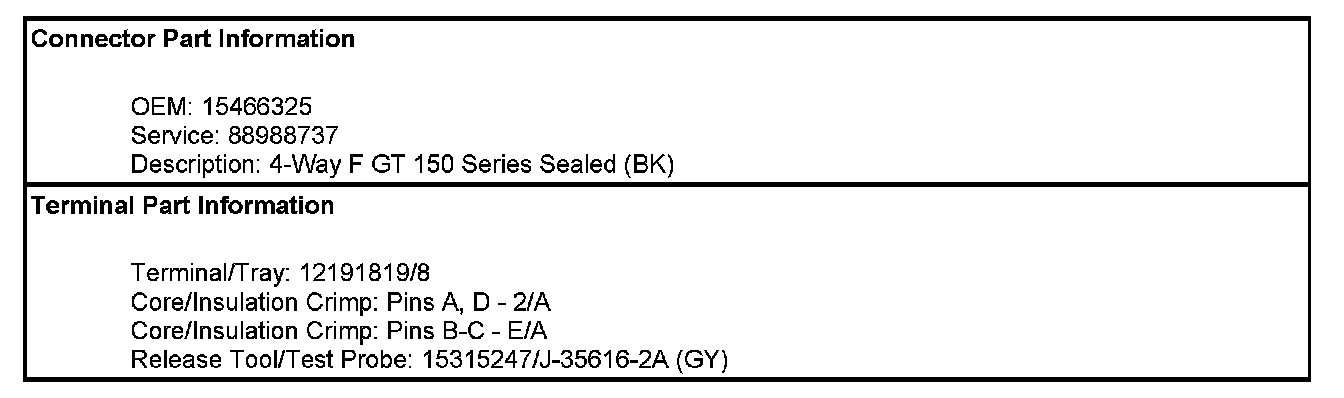

Component Connector End Views

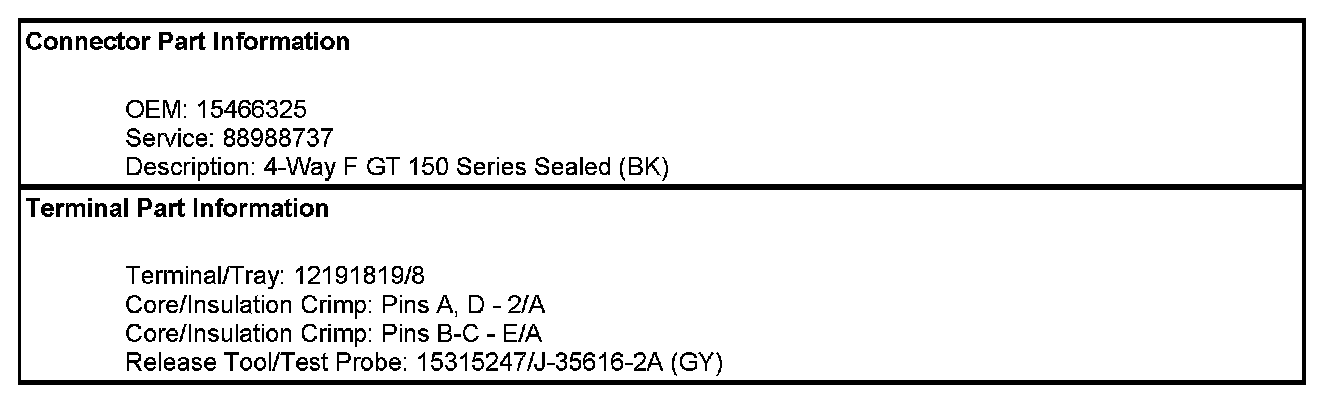

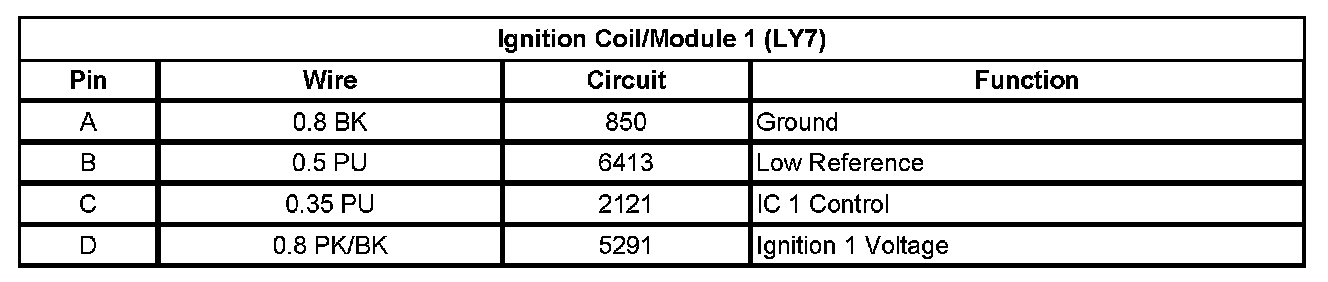

Ignition Coil/Module 1 (LY7)

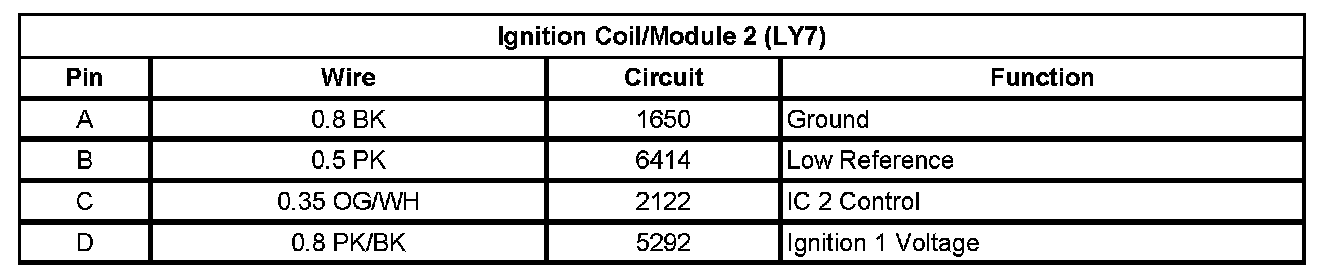

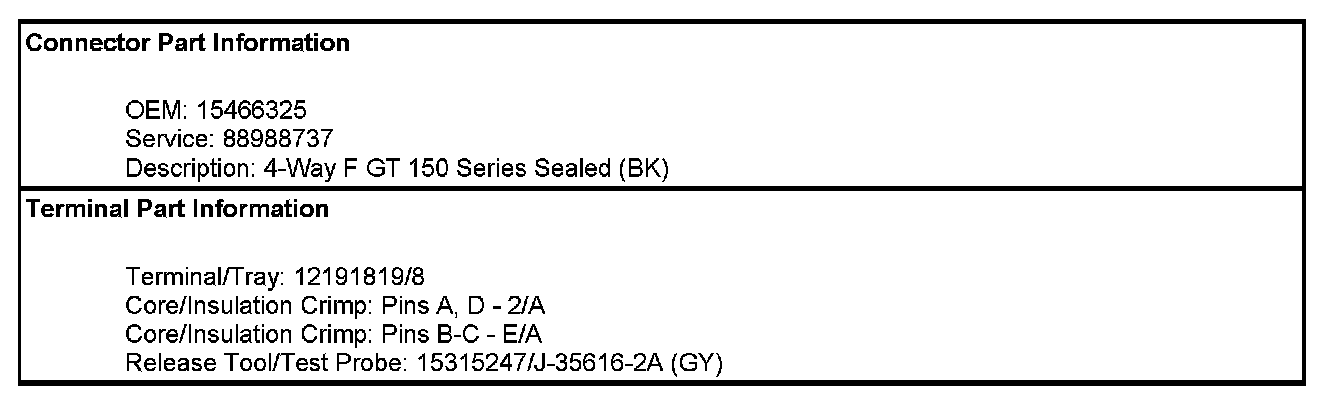

Ignition Coil/Module 2 (LY7)

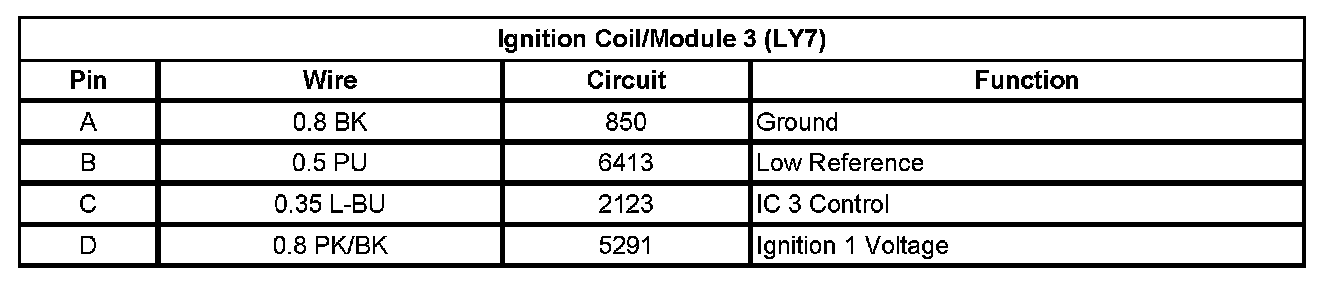

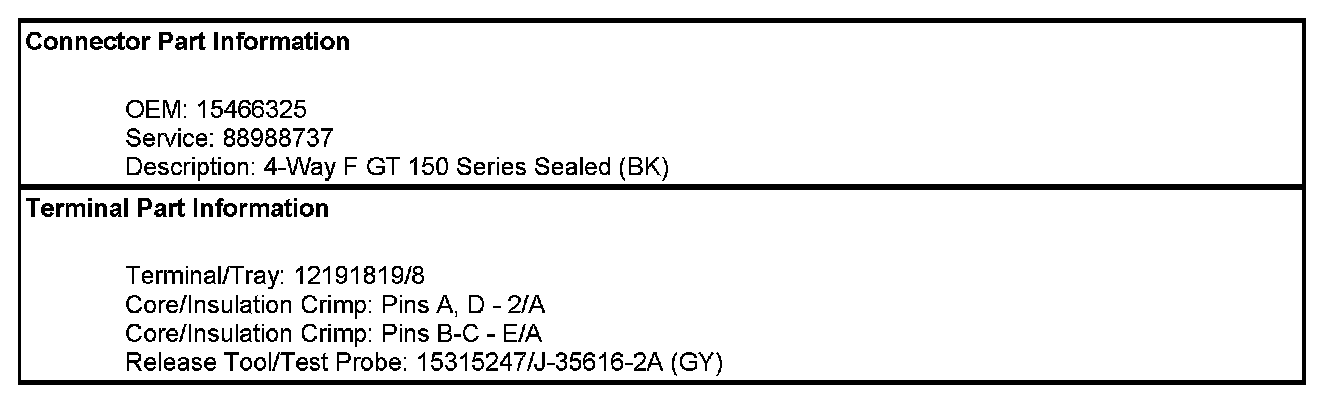

Ignition Coil/Module 3 (LY7)

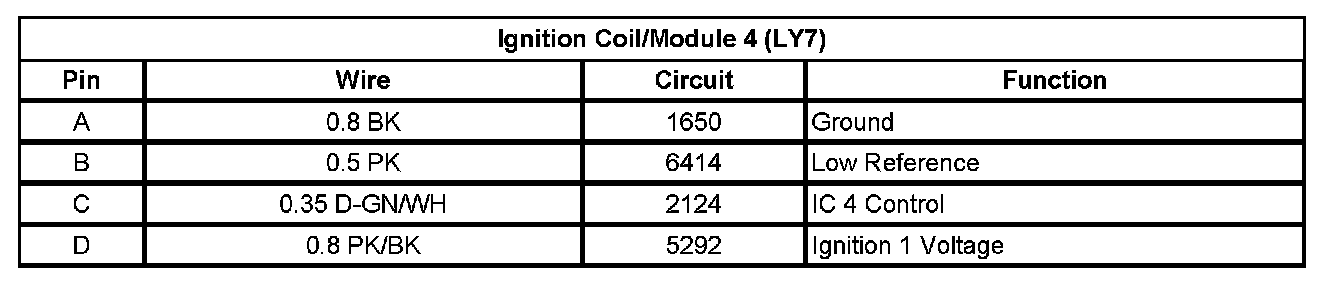

Ignition Coil/Module 4 (LY7)

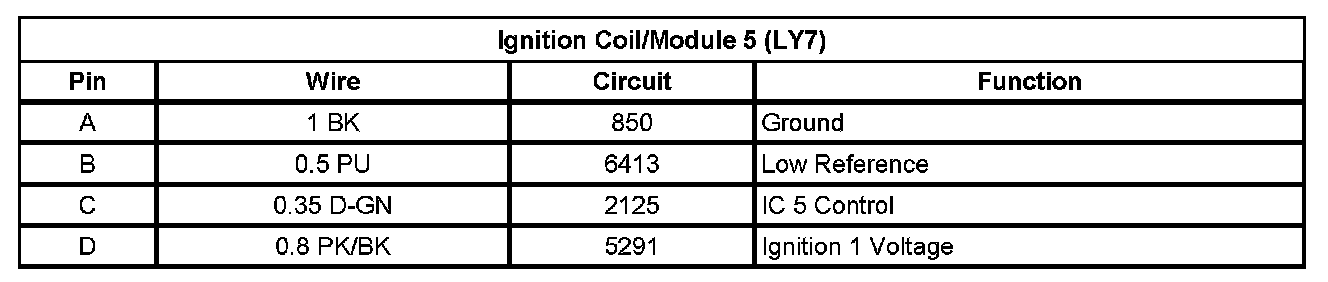

Ignition Coil/Module 5 (LY7)

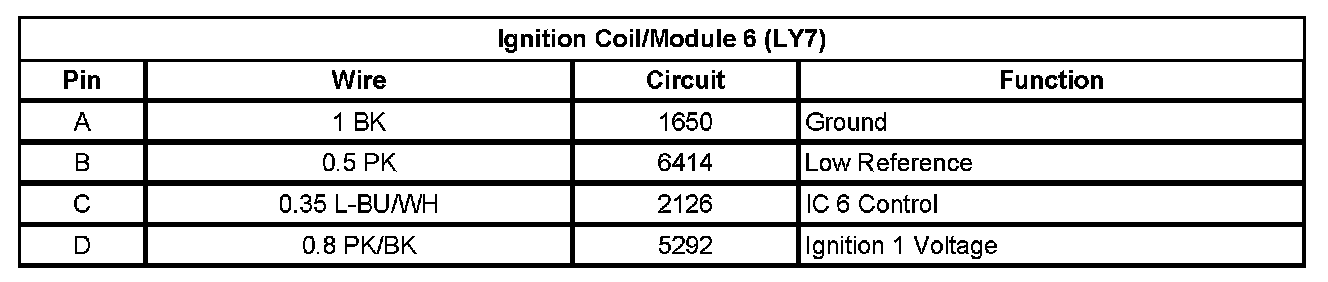

Ignition Coil/Module 6 (LY7)
