Engine Control Module (ECM) X1 / X2 (LZ4)



Component Connector End Views

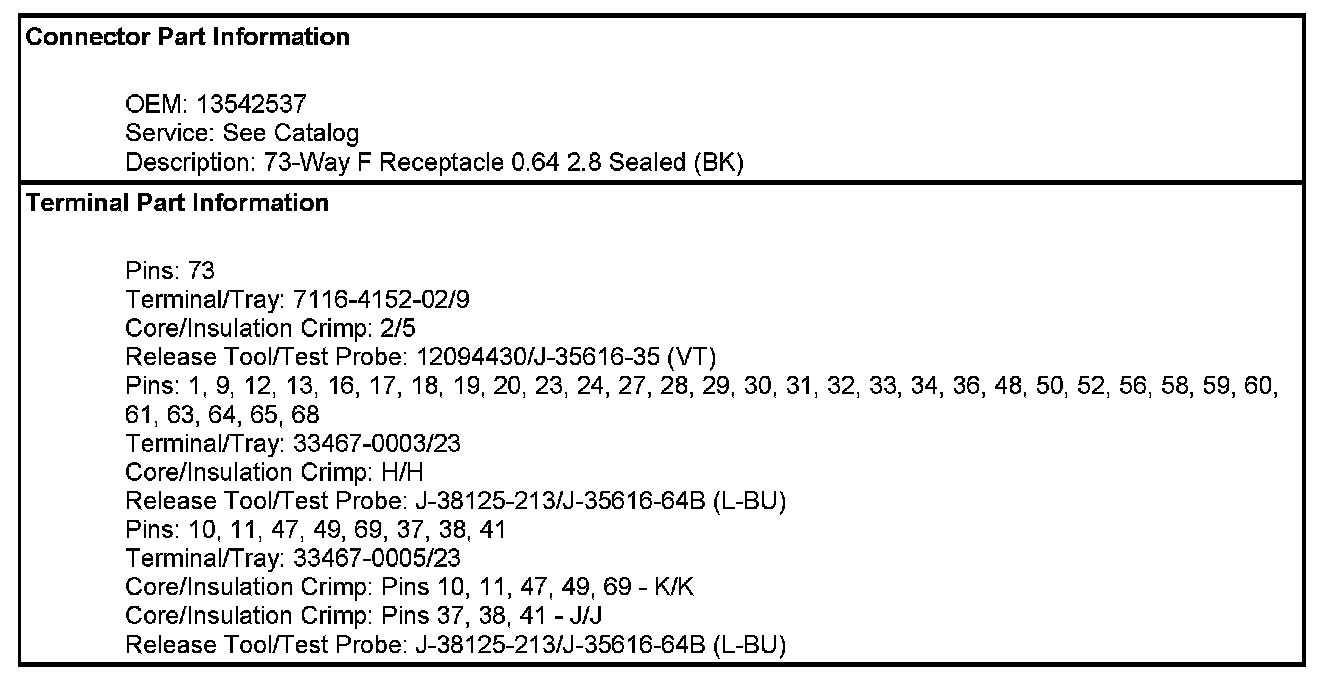

Engine Control Module (ECM) X1 (LZ4)

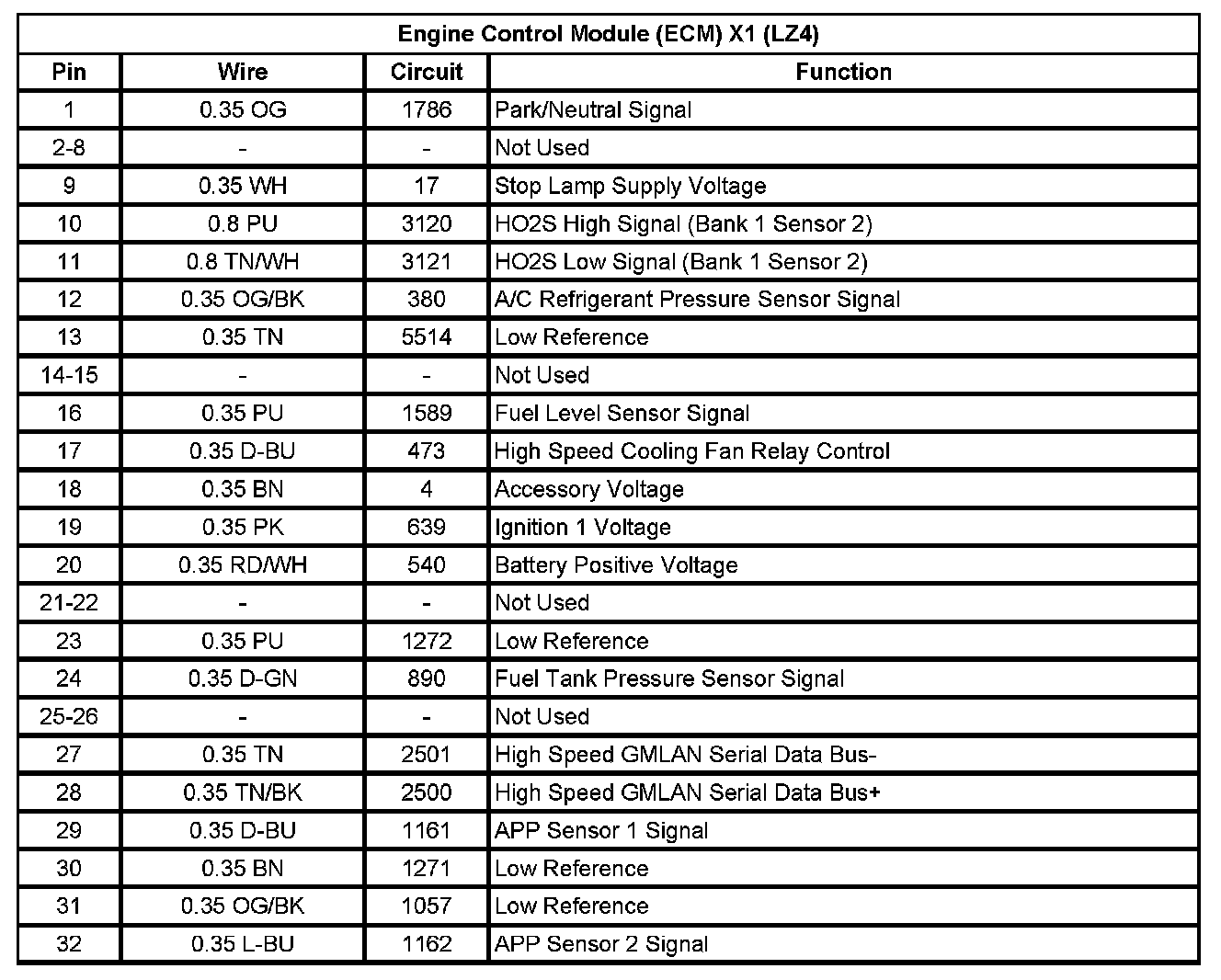

Engine Control Module (ECM) X1 (LZ4) (Pin 1 To 32):

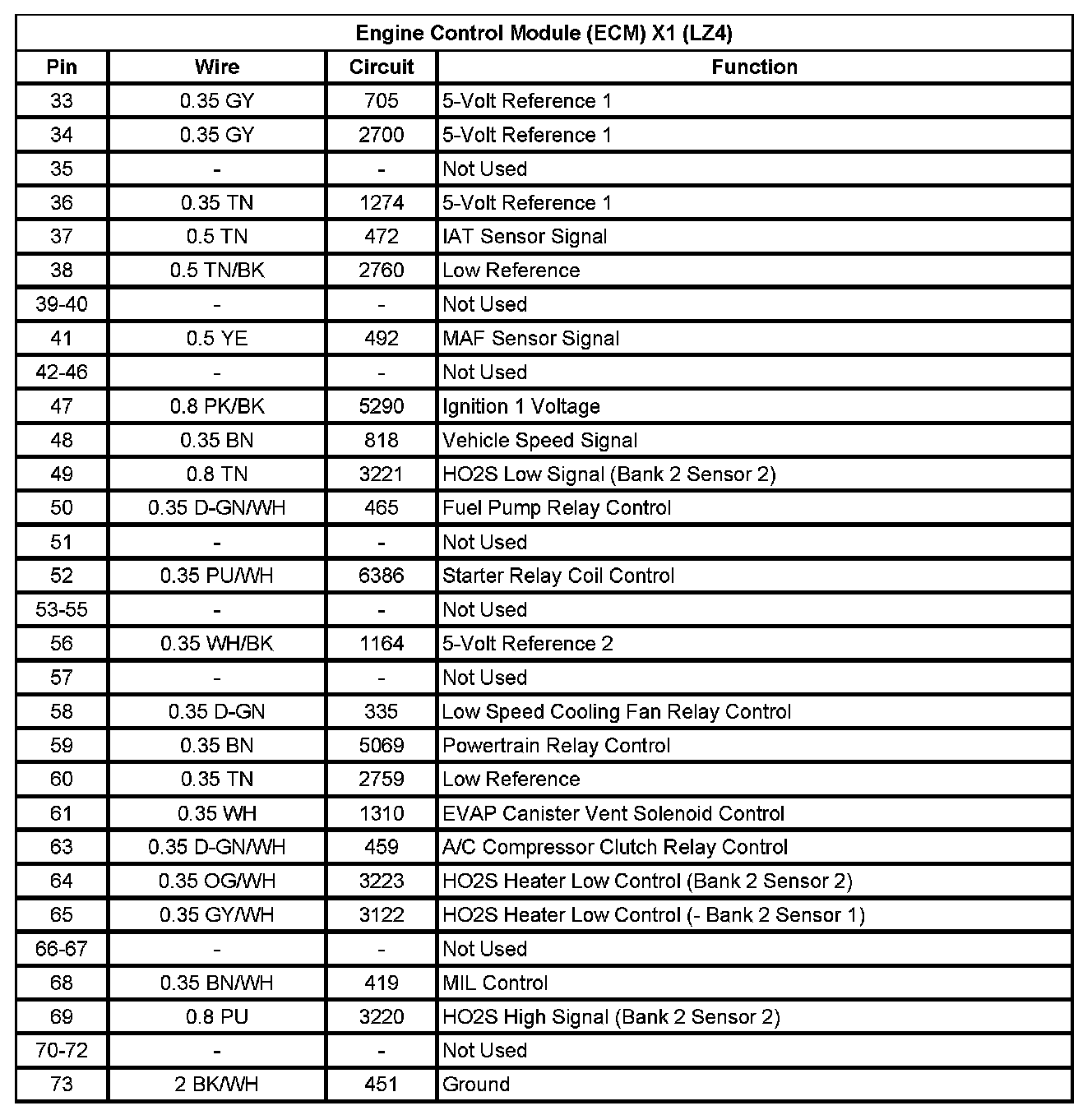

Engine Control Module (ECM) X1 (LZ4) (Pin 33 To 73):






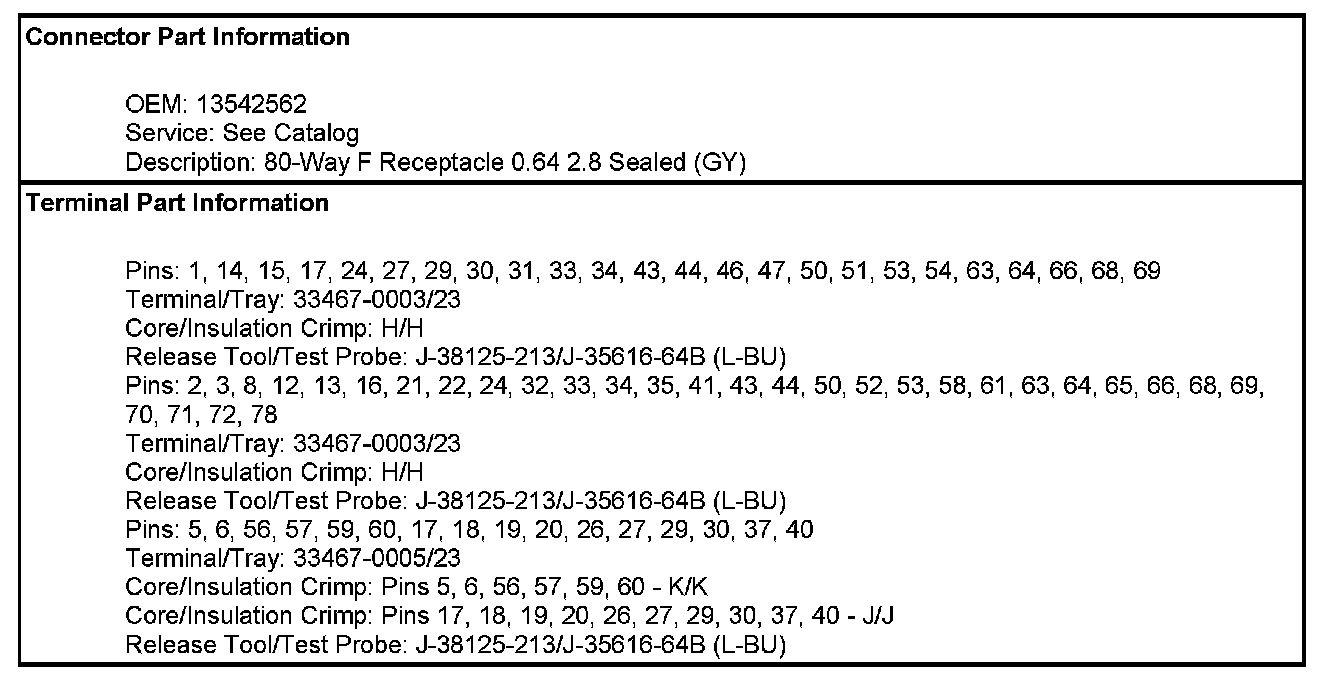

Engine Control Module (ECM) X2 (LZ4)

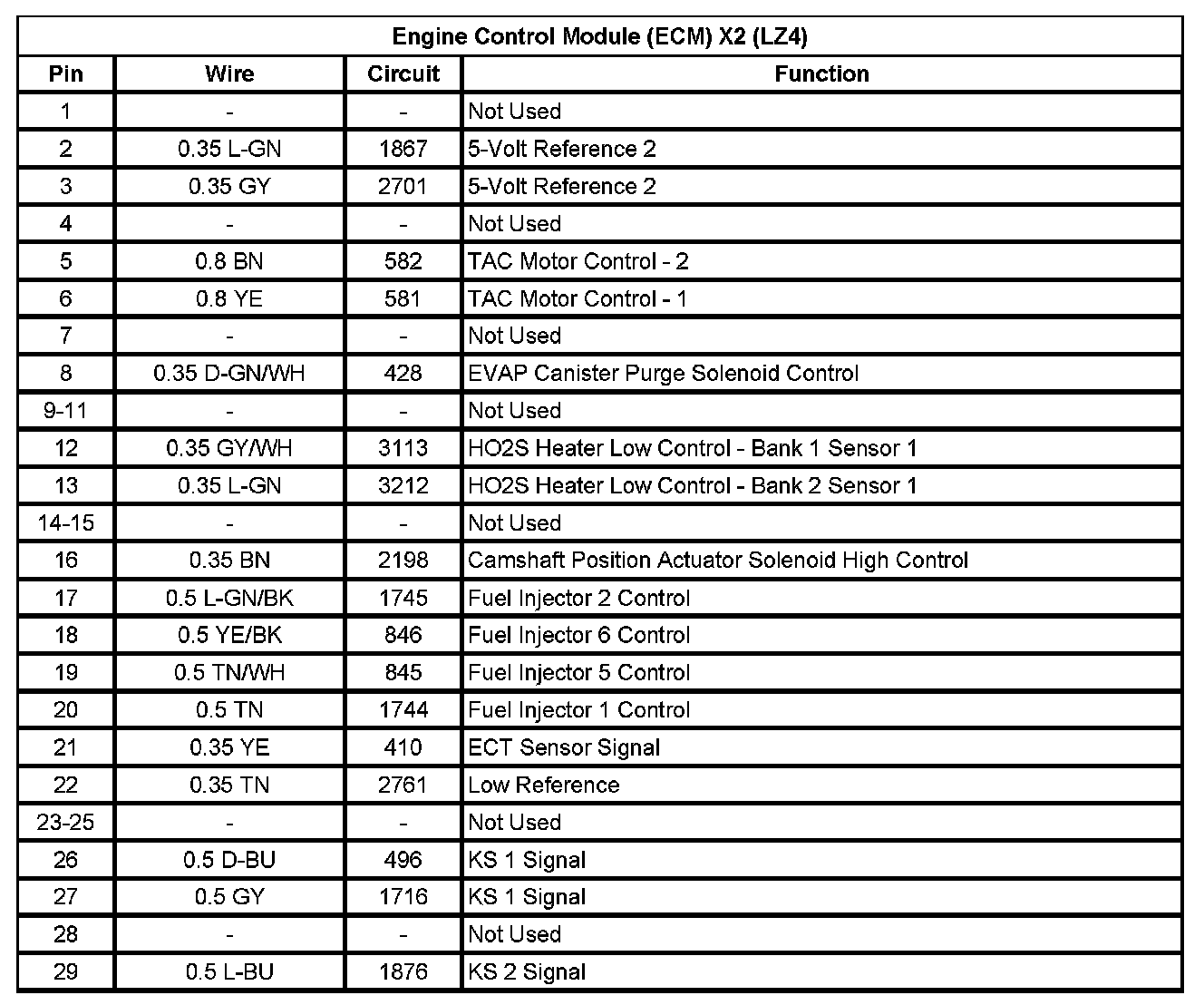

Engine Control Module (ECM) X2 (LZ4) (Pin 1 To 29):

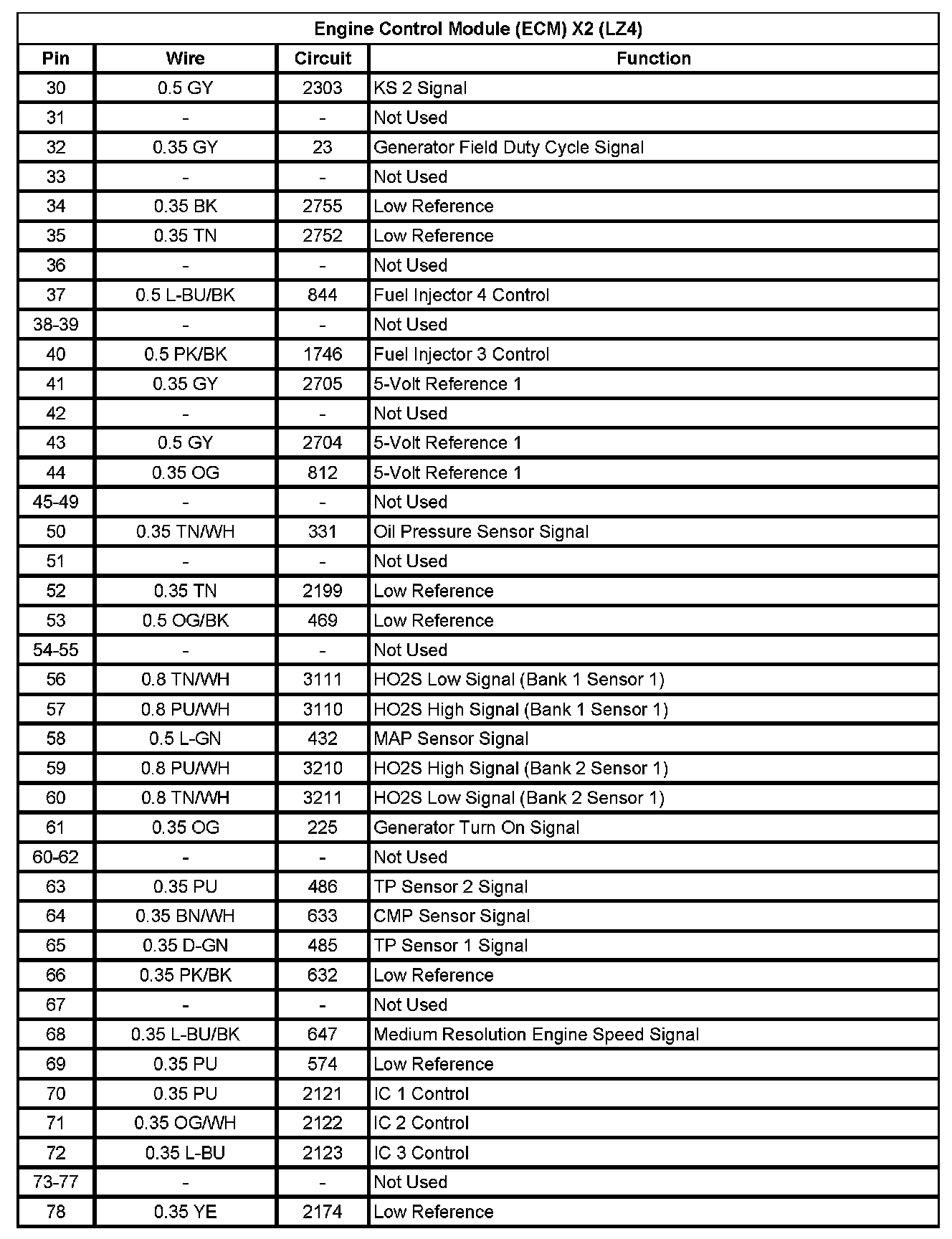

Engine Control Module (ECM) X2 (LZ4) (Pin 30 To 78):
