Engine Control Module (ECM) X1 (LAT) (LE5)



Component Connector End Views

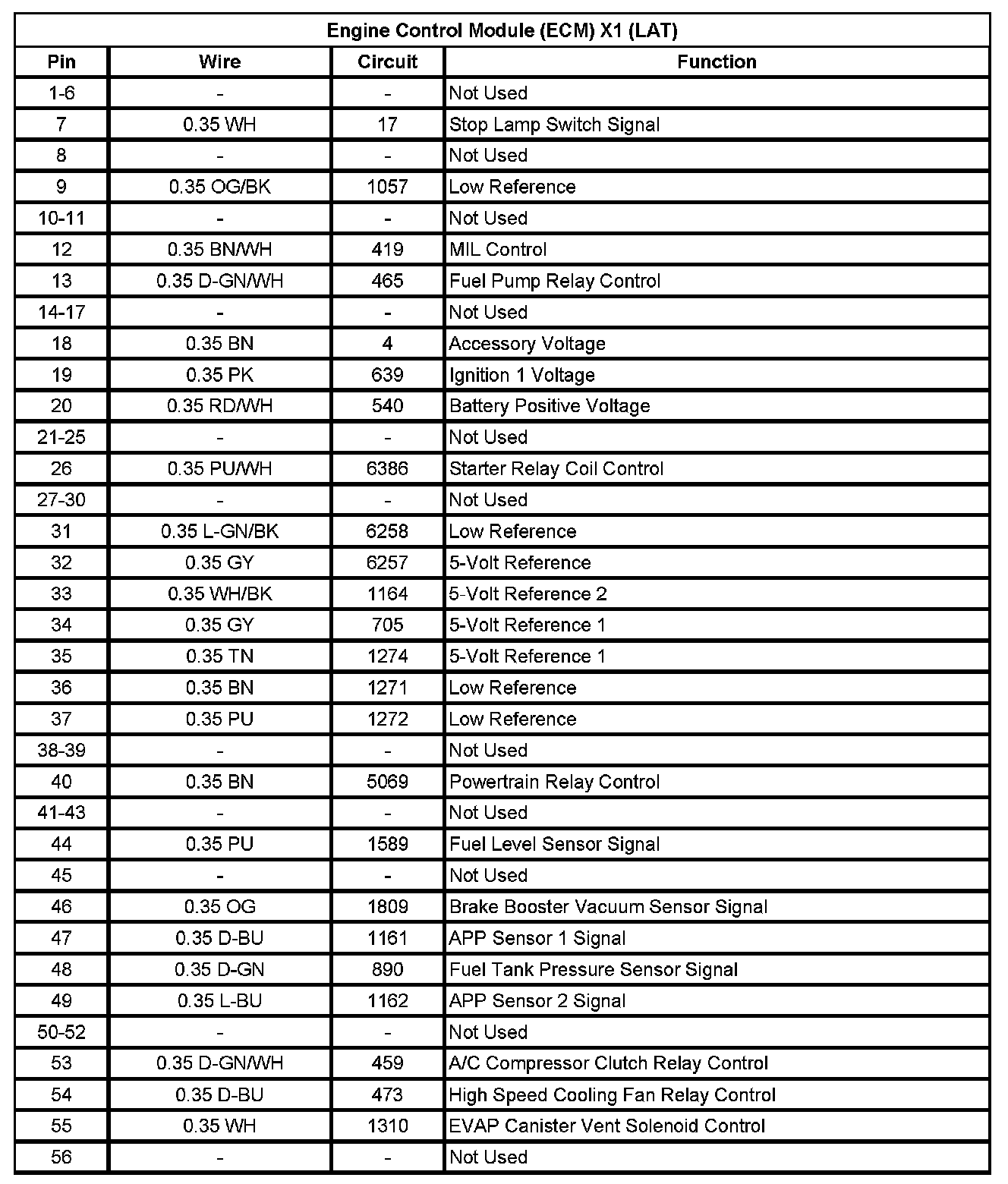

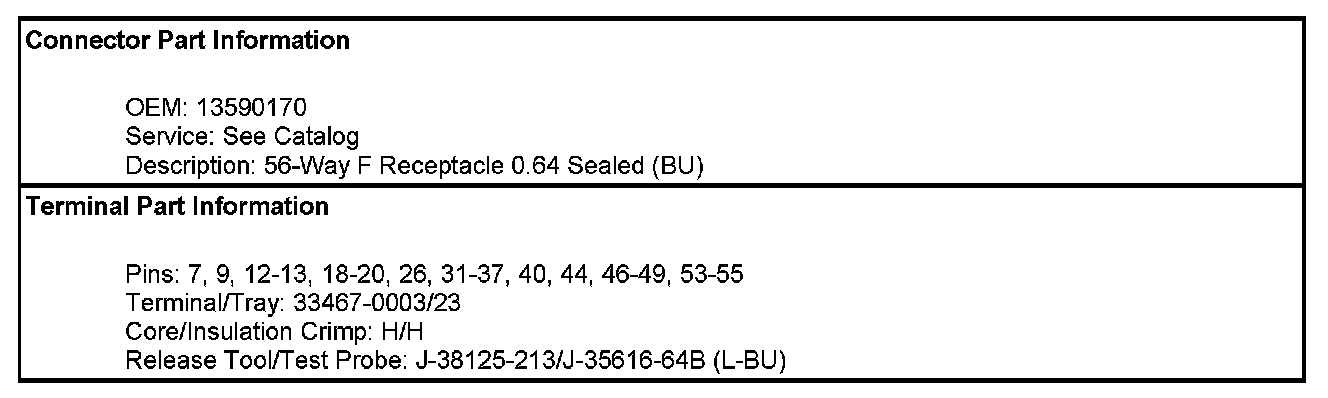

Engine Control Module (ECM) X1 (LAT)

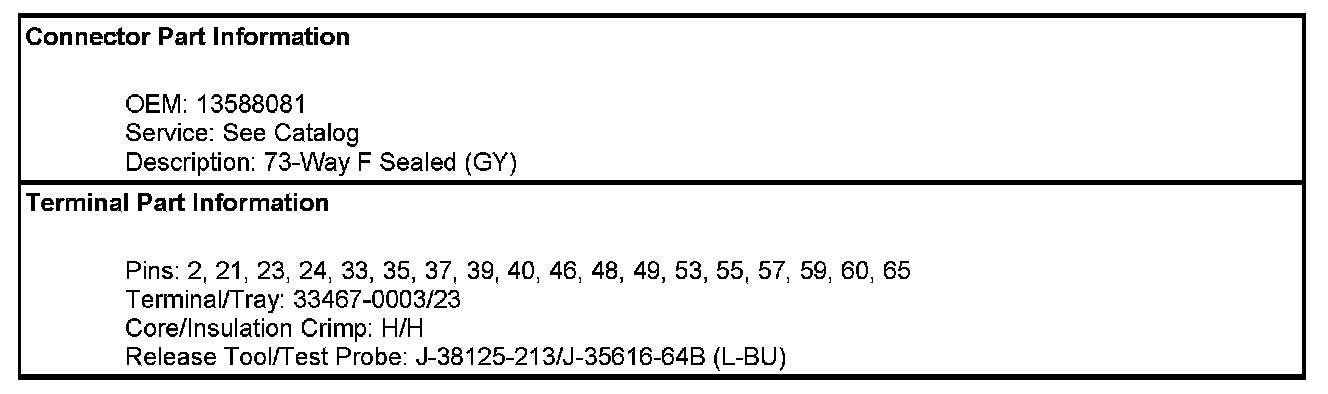

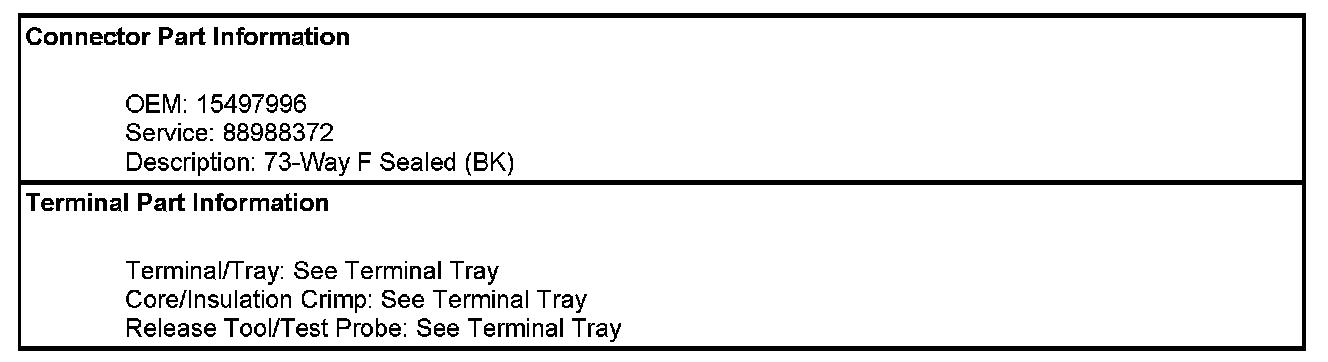

Engine Control Module (ECM) X1 (LE5)

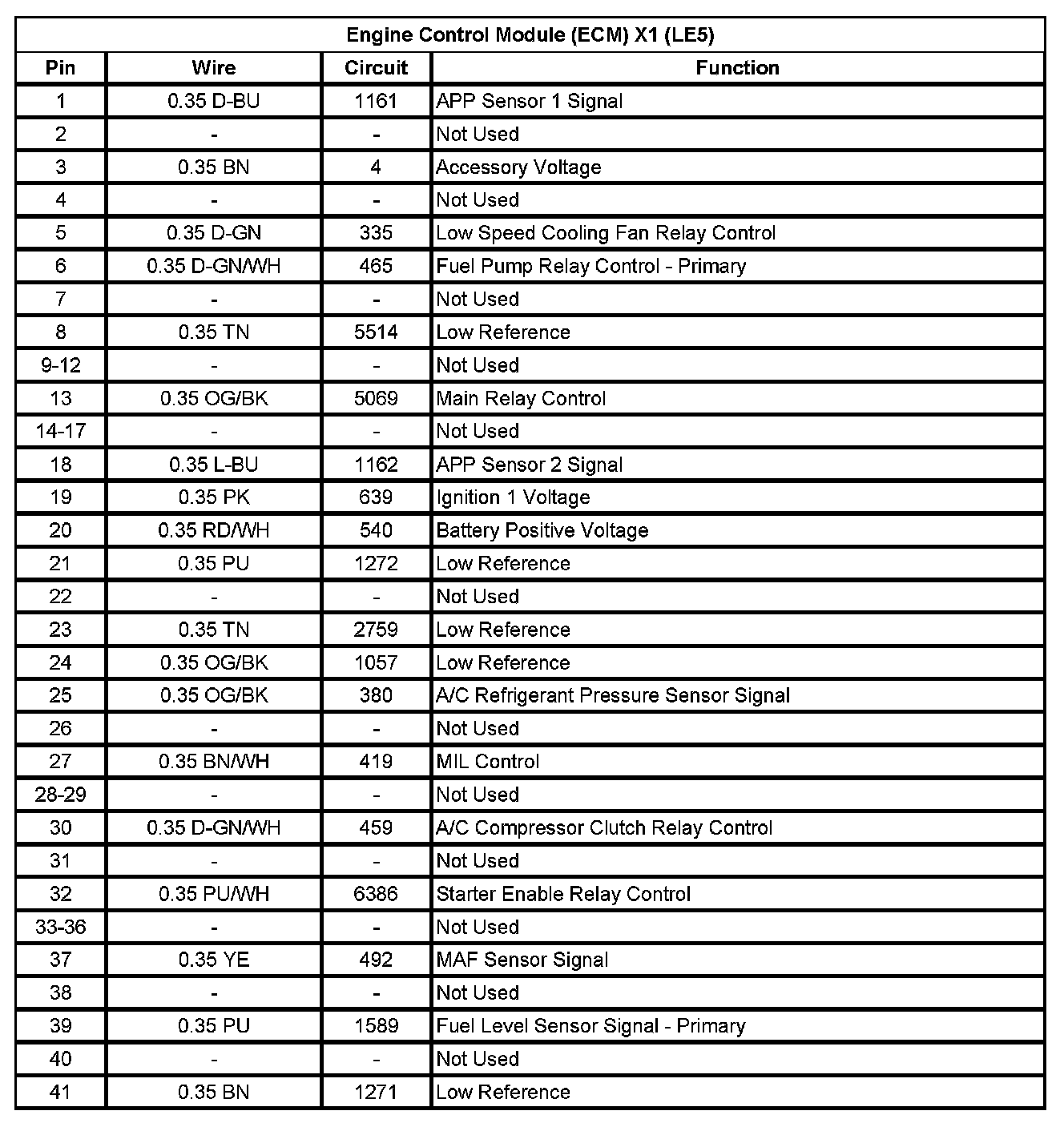

Engine Control Module (ECM) X1 (LE5) (Pin 1 To 41):

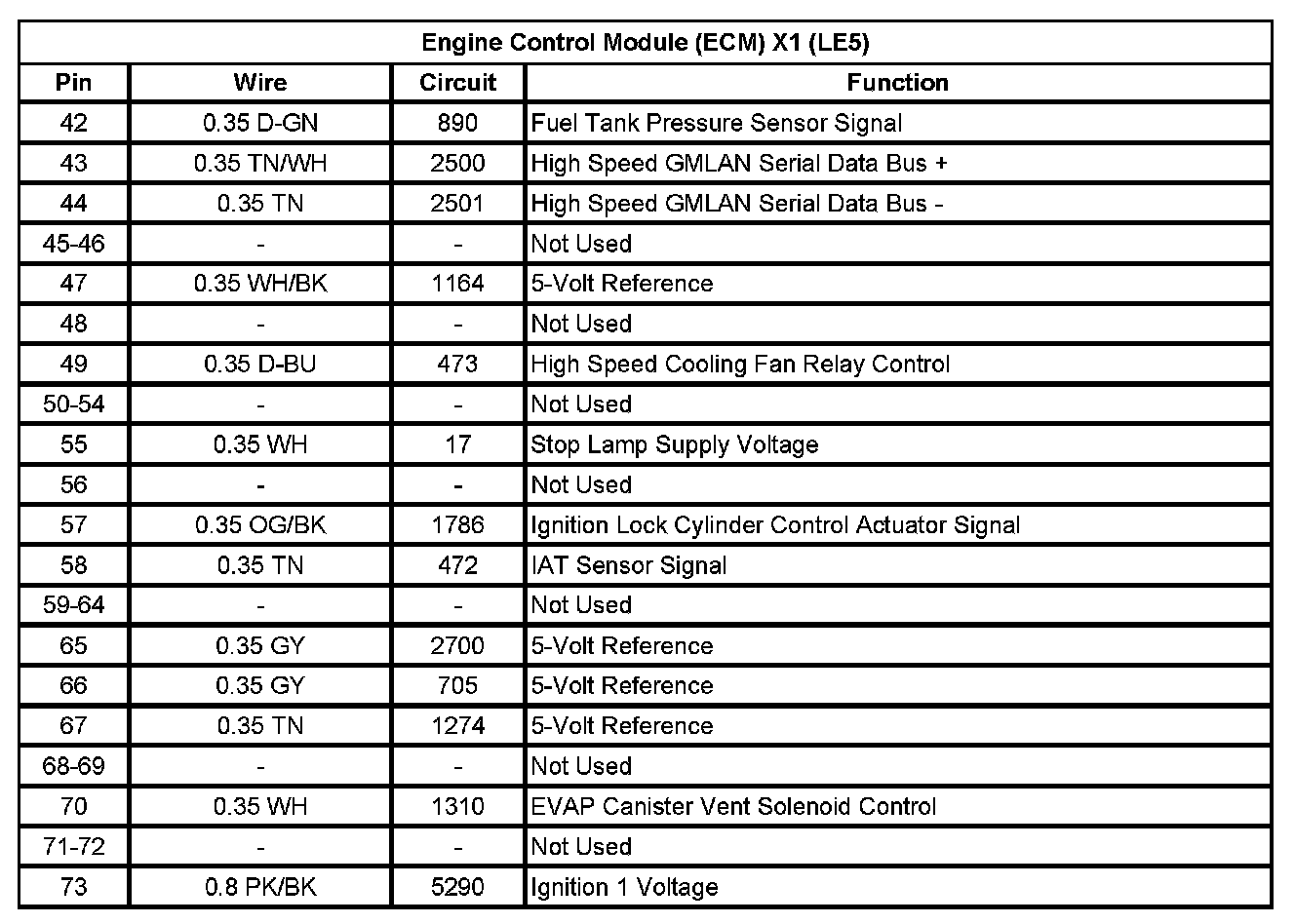

Engine Control Module (ECM) X1 (LE5) (Pin 42 To 73):

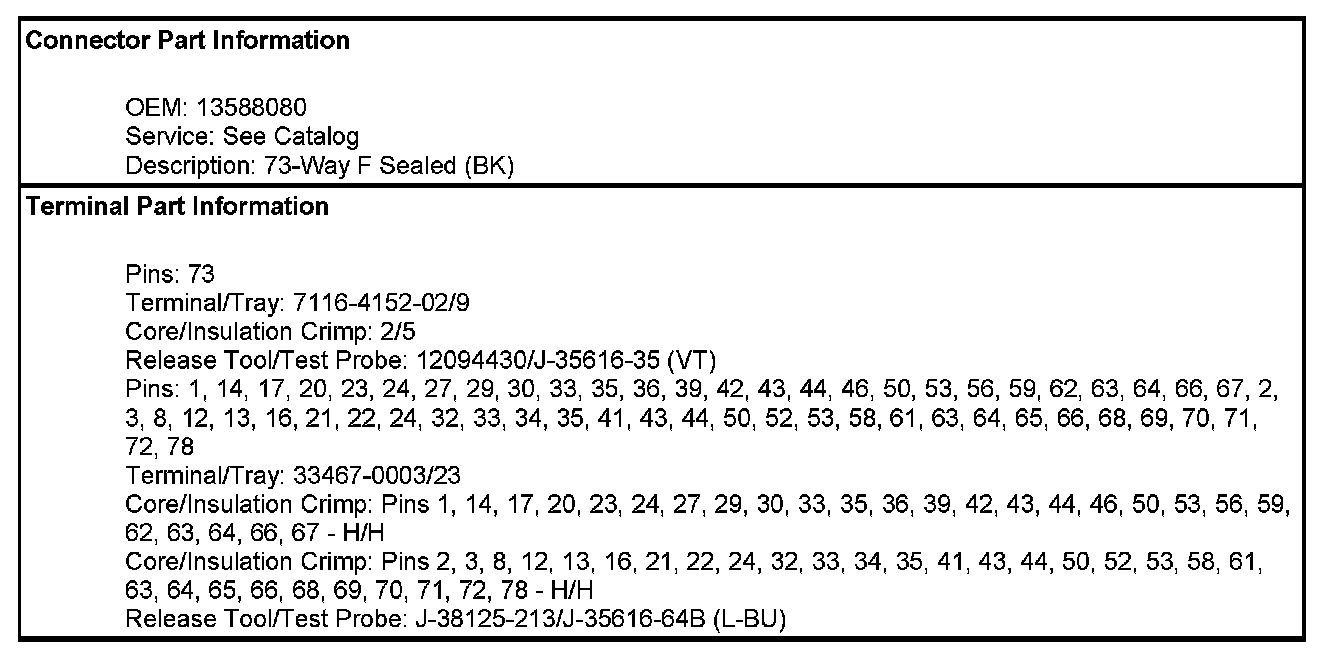

Engine Control Module (ECM) X2 (LAT)

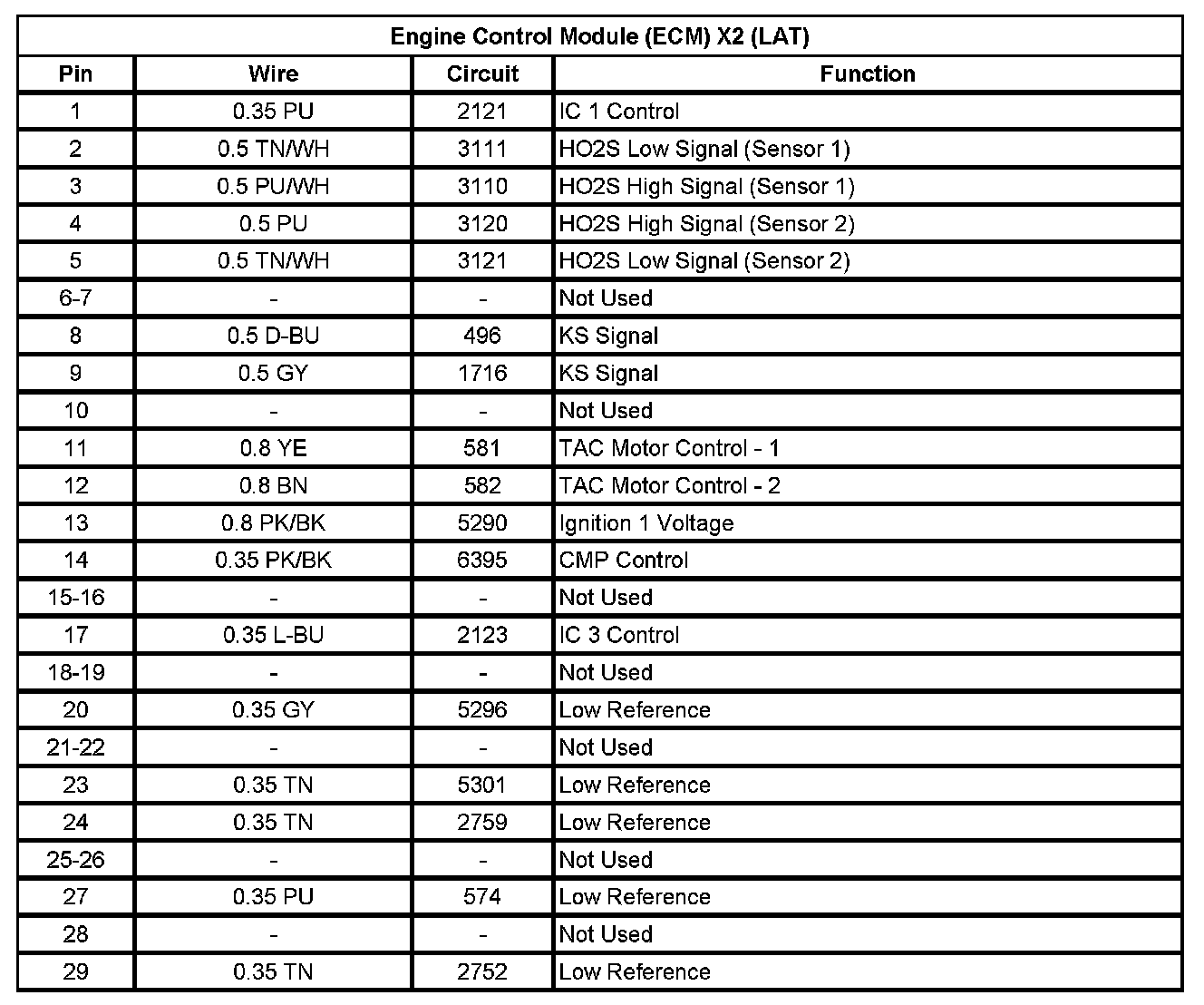

Engine Control Module (ECM) X2 (LAT) (Pin 1 To 29):

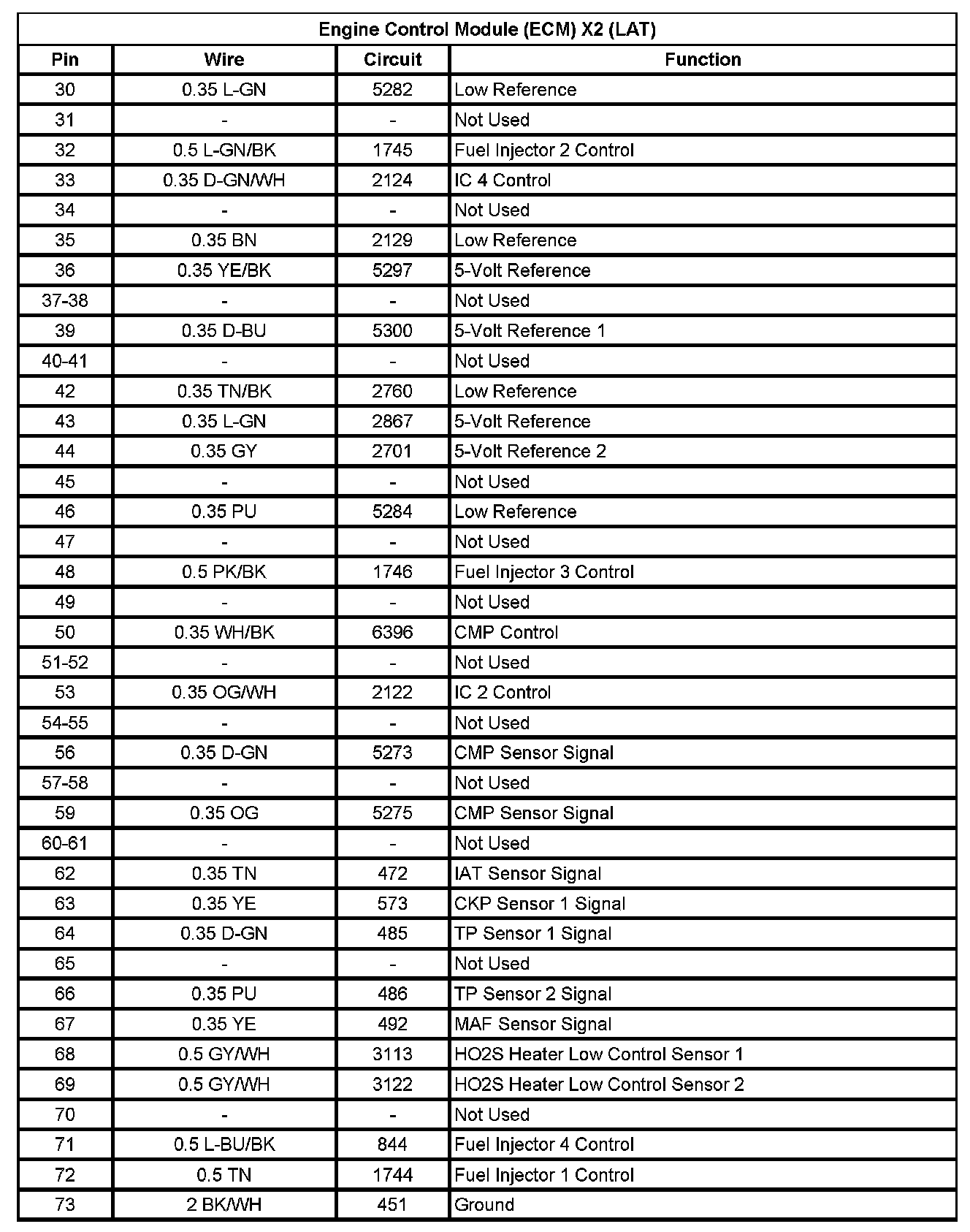

Engine Control Module (ECM) X2 (LAT) (Pin 30 To 73):

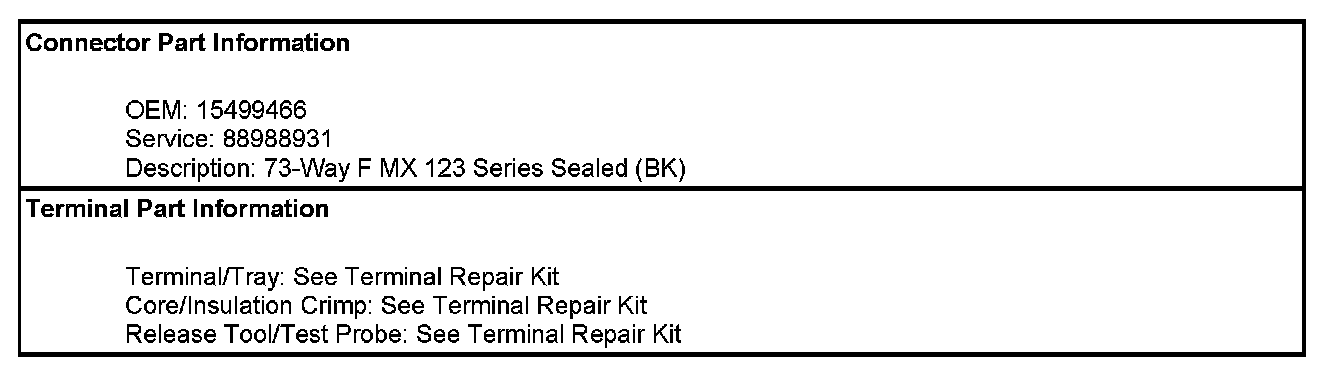

Engine Control Module (ECM) X2 (LE5)

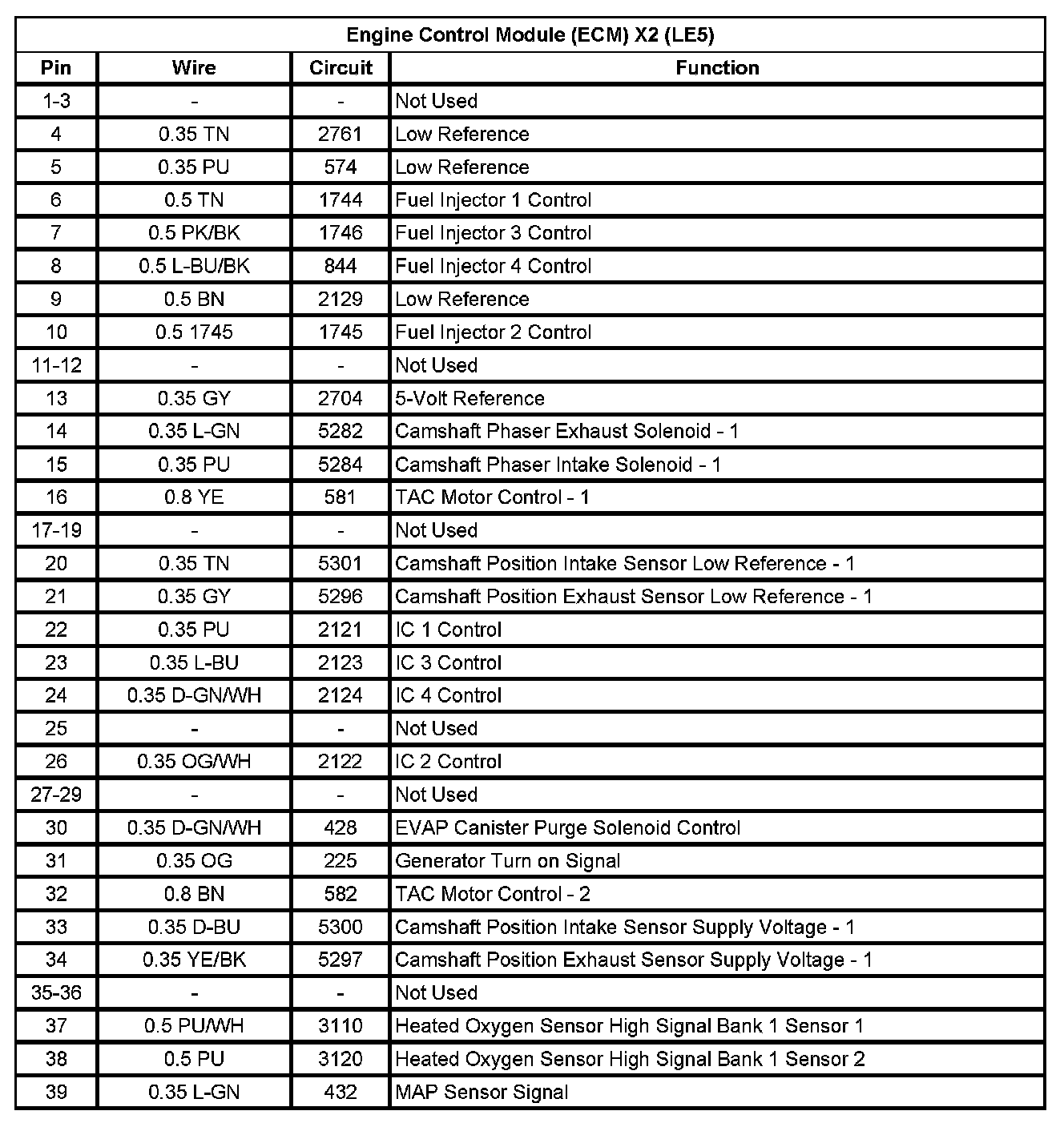

Engine Control Module (ECM) X2 (LE5) (Pin 1 To 39):

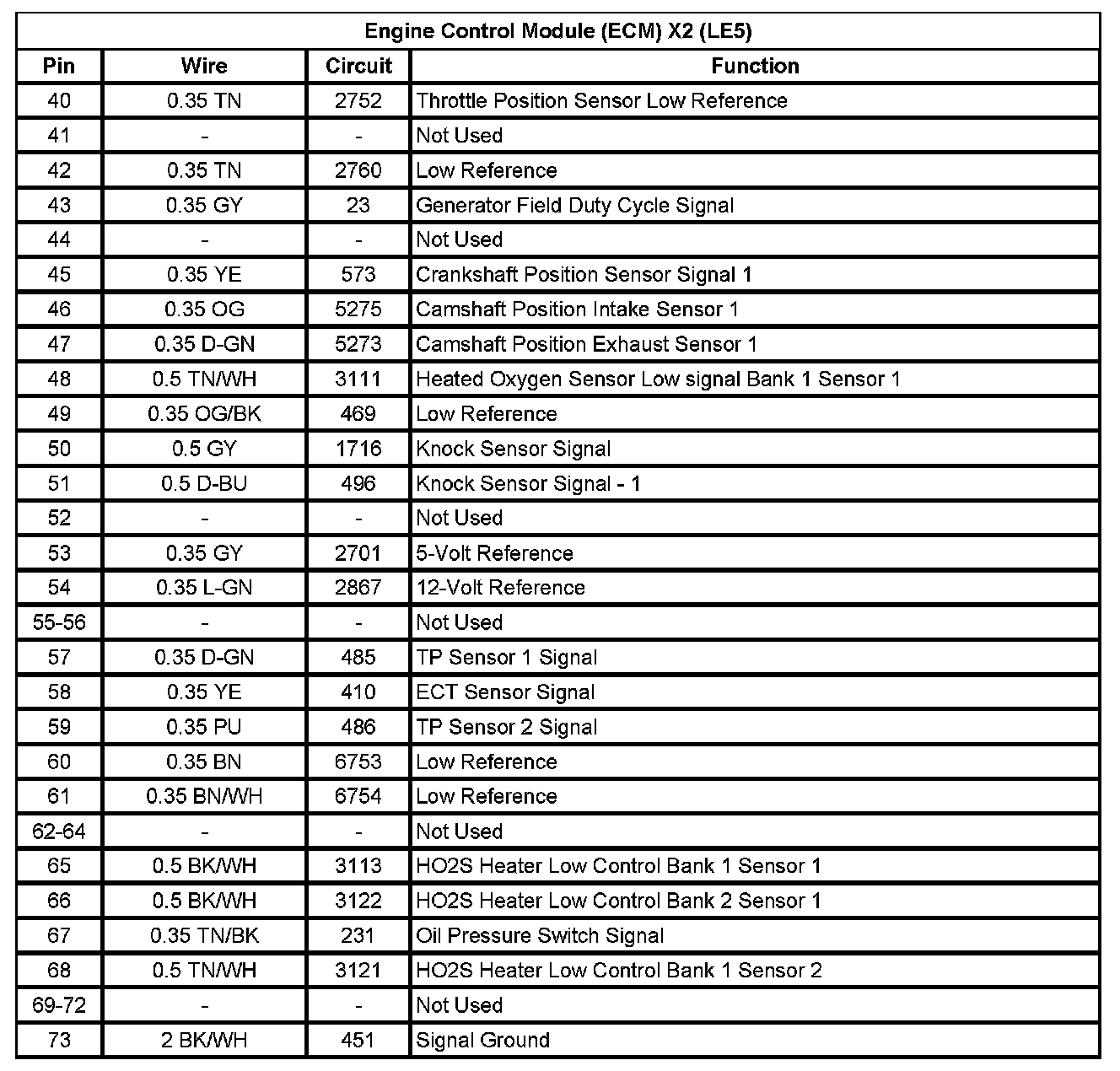

Engine Control Module (ECM) X2 (LE5) (Pin 40 To 73):






Engine Control Module (ECM) X3 (LAT)
