Ignition Coil/Module 1-4 (LAT/LE5)



Component Connector End Views

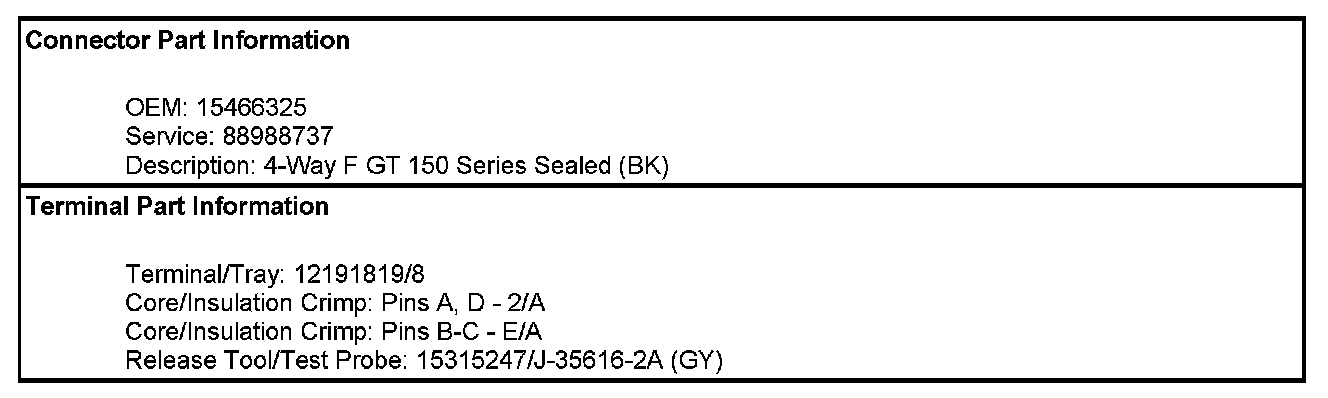

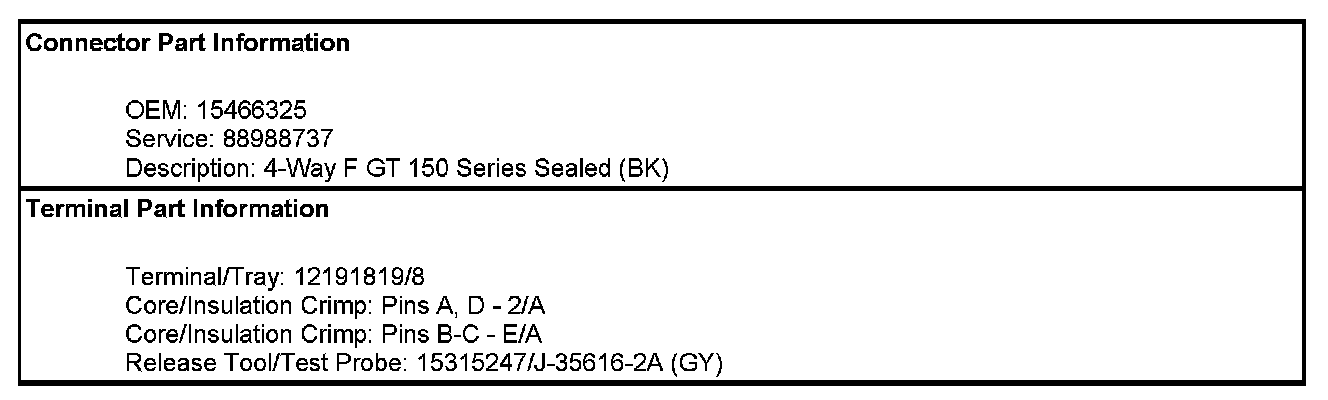

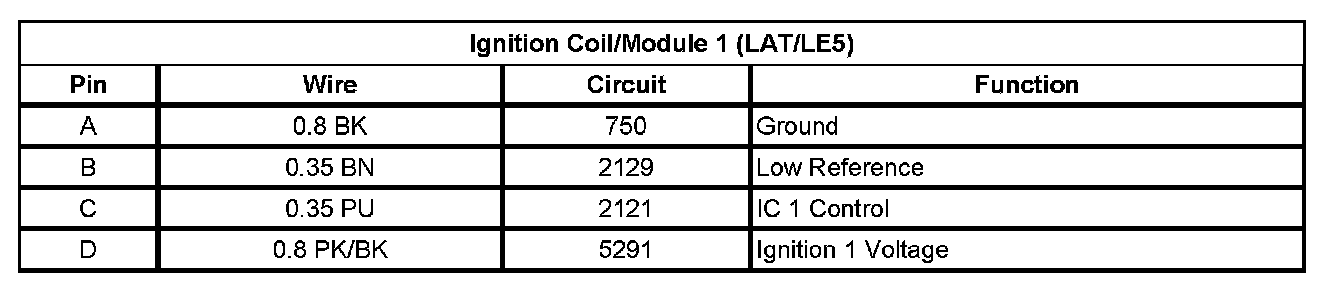

Ignition Coil/Module 1 (LAT/LE5)

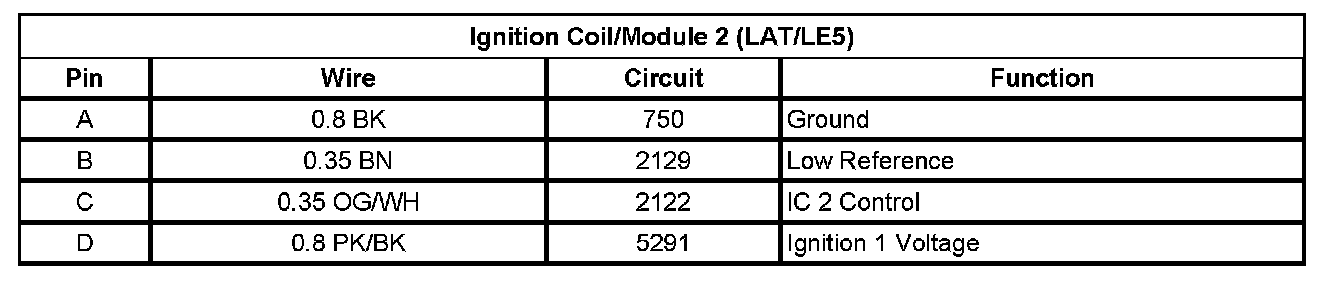

Ignition Coil/Module 2 (LAT/LE5)

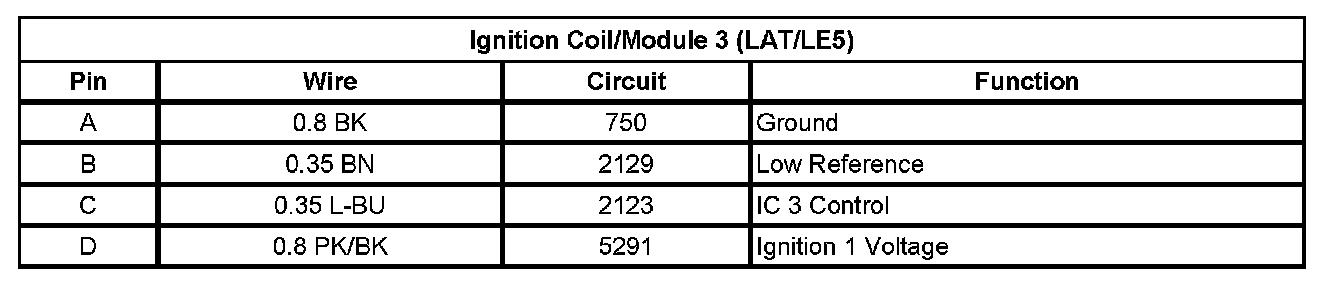

Ignition Coil/Module 3 (LAT/LE5)

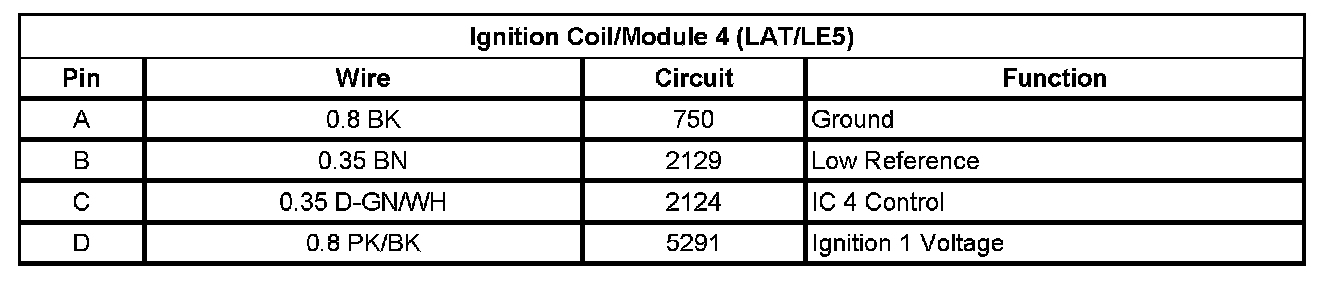

Ignition Coil/Module 4 (LAT/LE5)
