Electronic Brake Control Module



Component Connector End Views

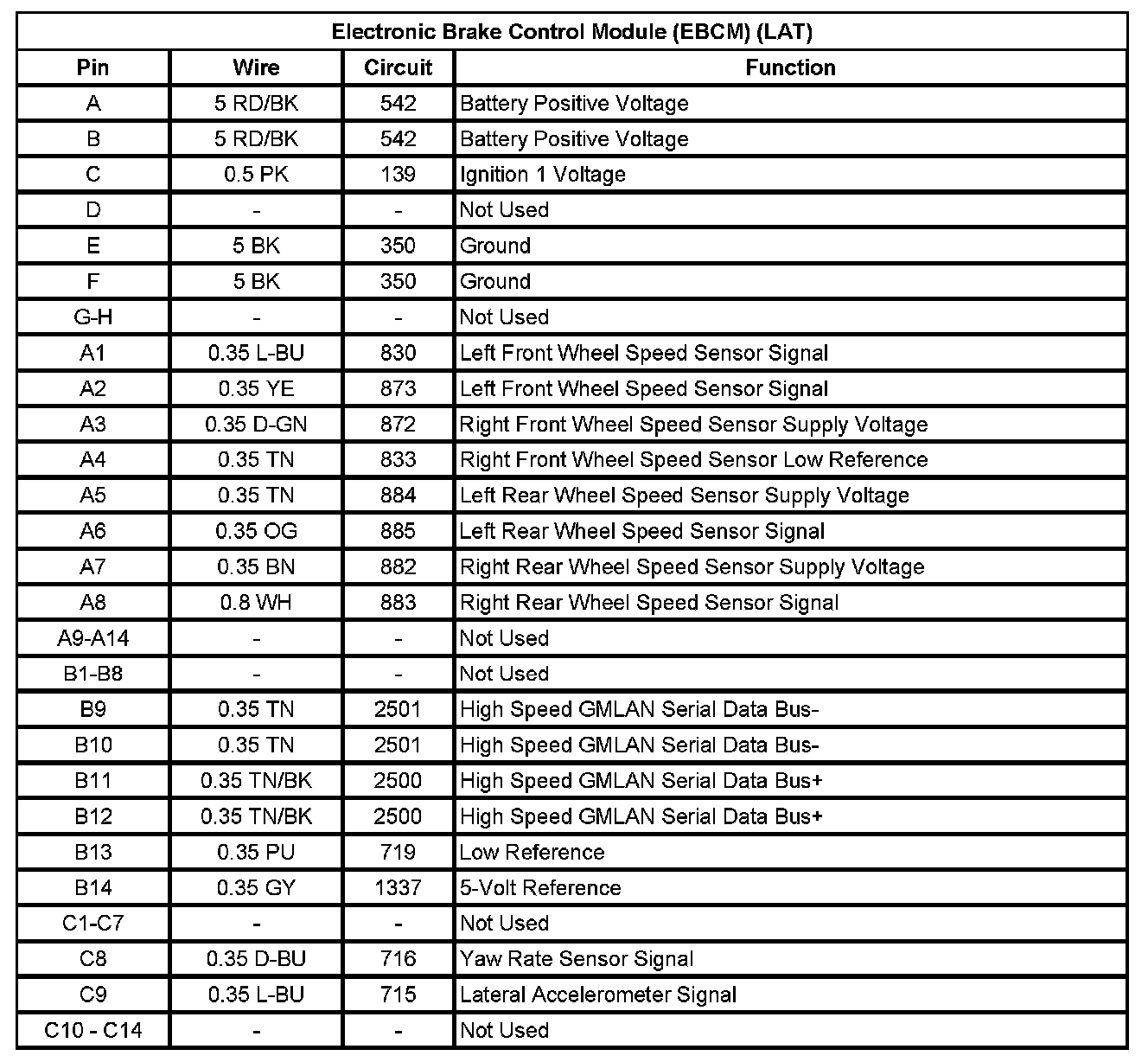

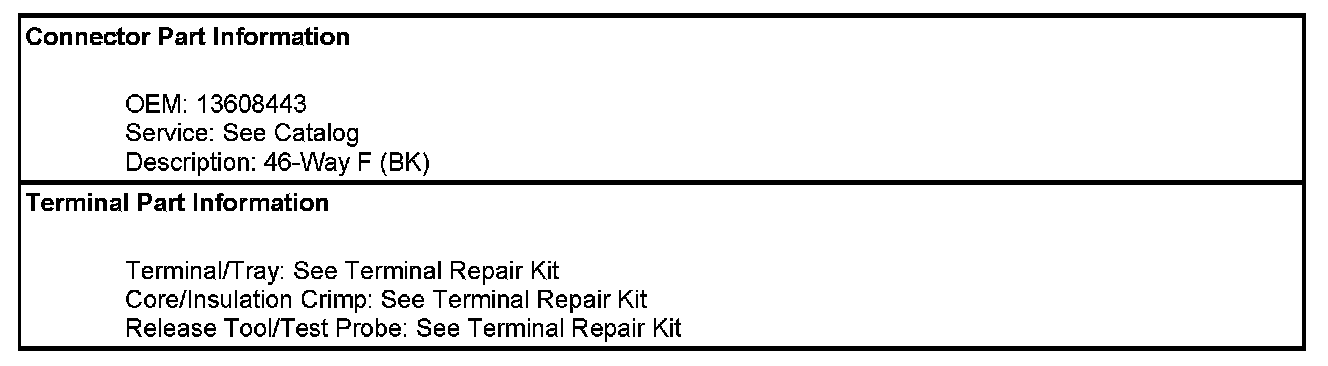

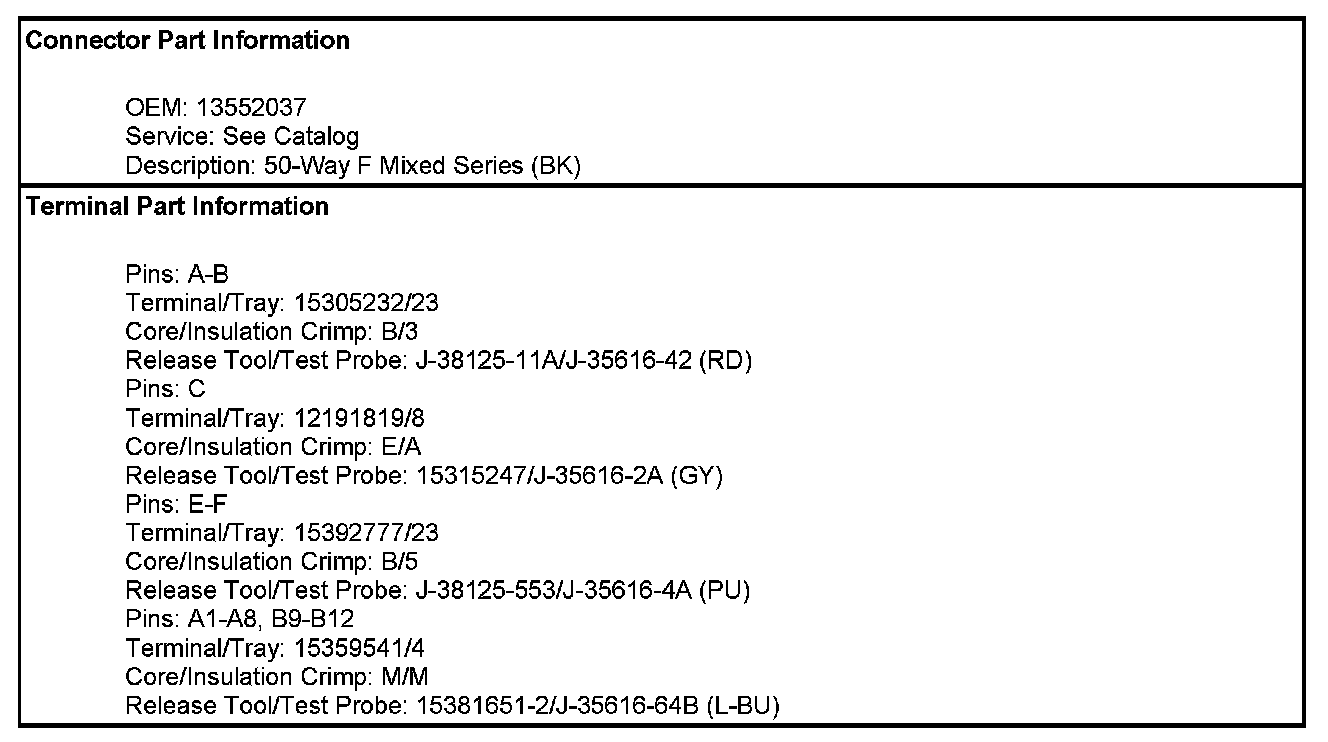

Electronic Brake Control Module (EBCM) (LAT)

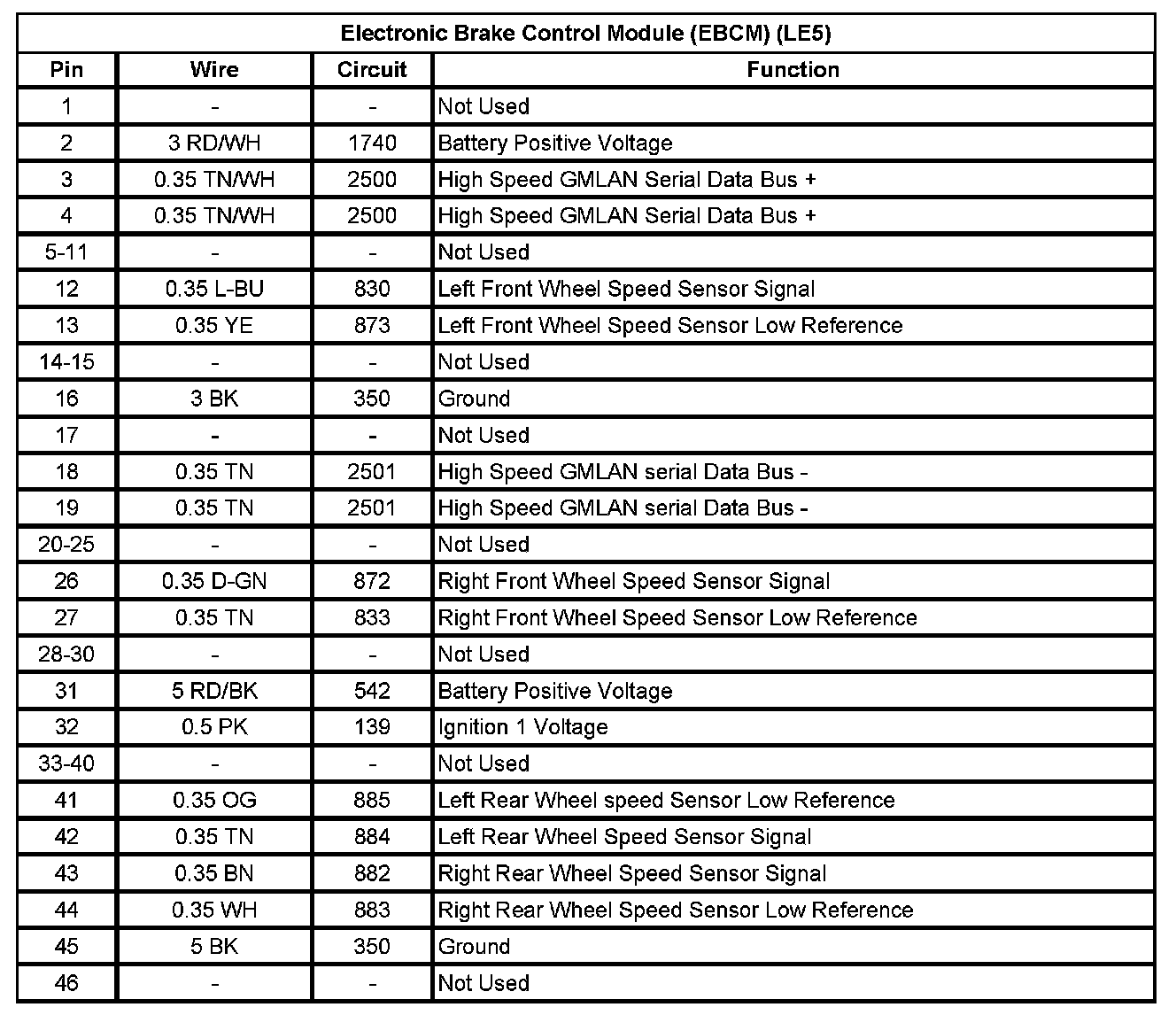

Electronic Brake Control Module (EBCM) (LE5)
