Automatic Volume Control
Automatic Volume Control
Component Connector End Views - Continued

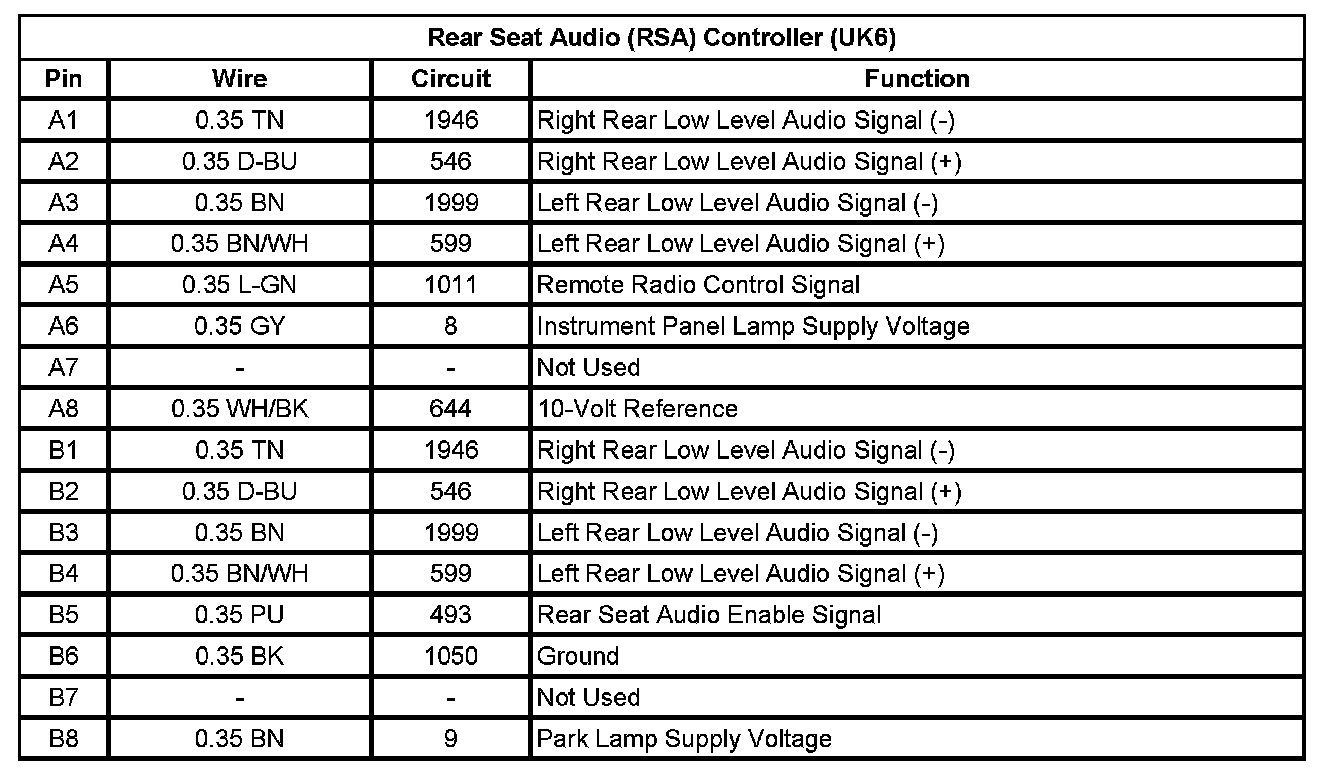

Rear Seat Audio (RSA) Controller (UK6)
