Air Bag Control Module



Component Connector End Views - Continued

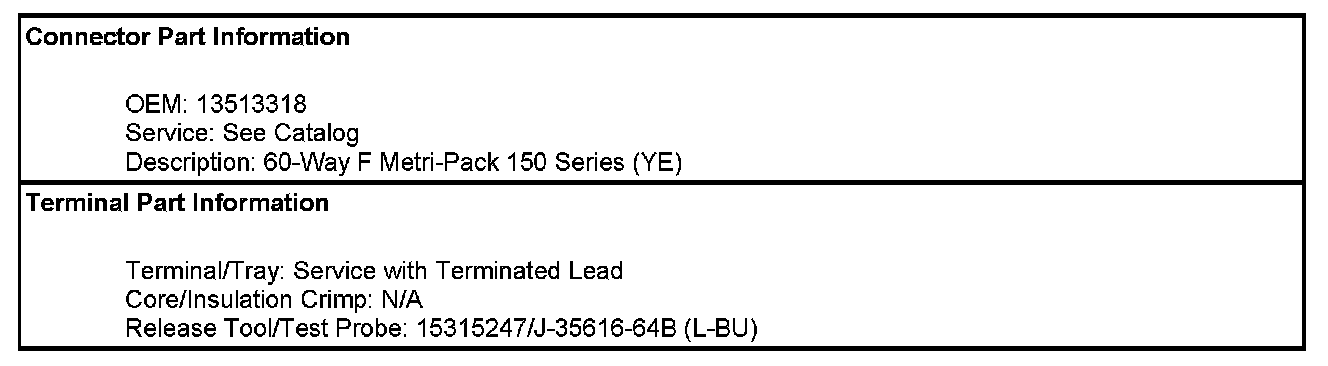

Inflatable Restraint Sensing and Diagnostic Module (SDM)

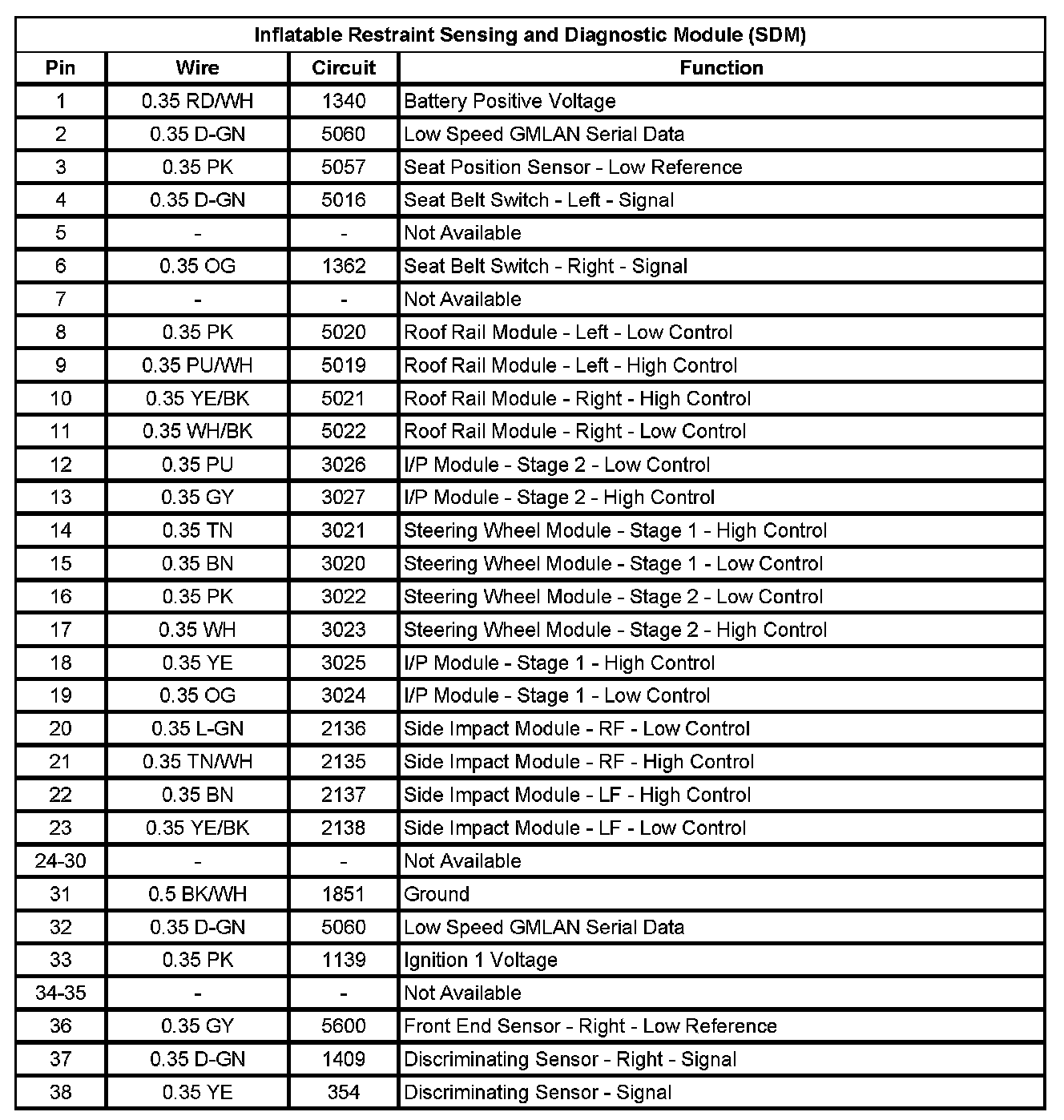

Inflatable Restraint Sensing And Diagnostic Module (SDM) (Pin 1 To 38):

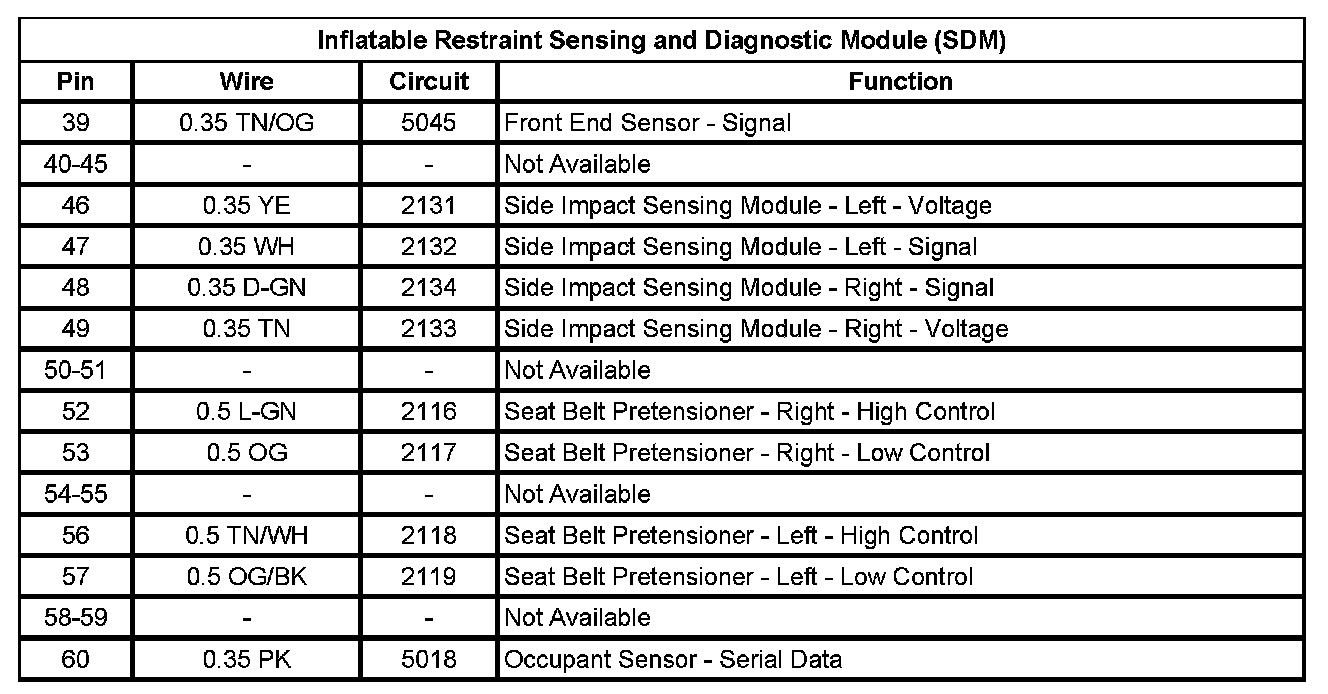

Inflatable Restraint Sensing And Diagnostic Module (SDM) (Pin 39 To 60):
