Seat Temperature Control Module



Component Connector End Views

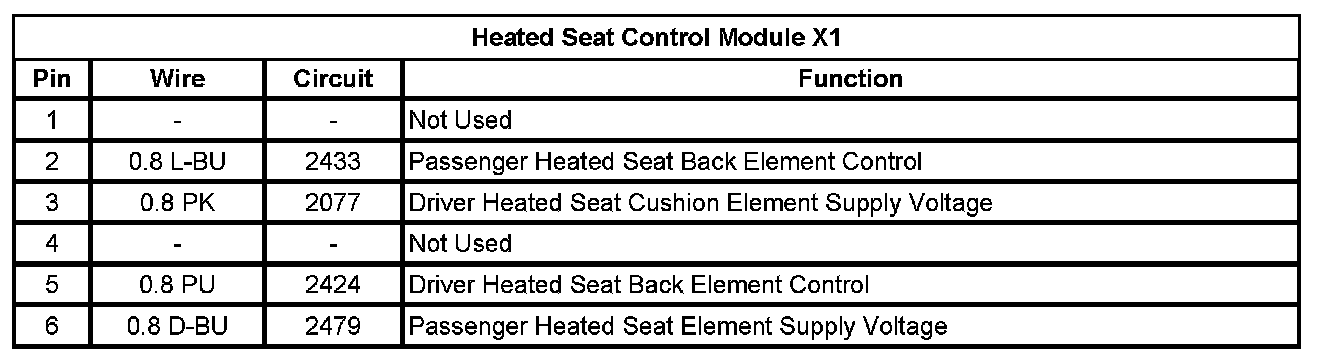

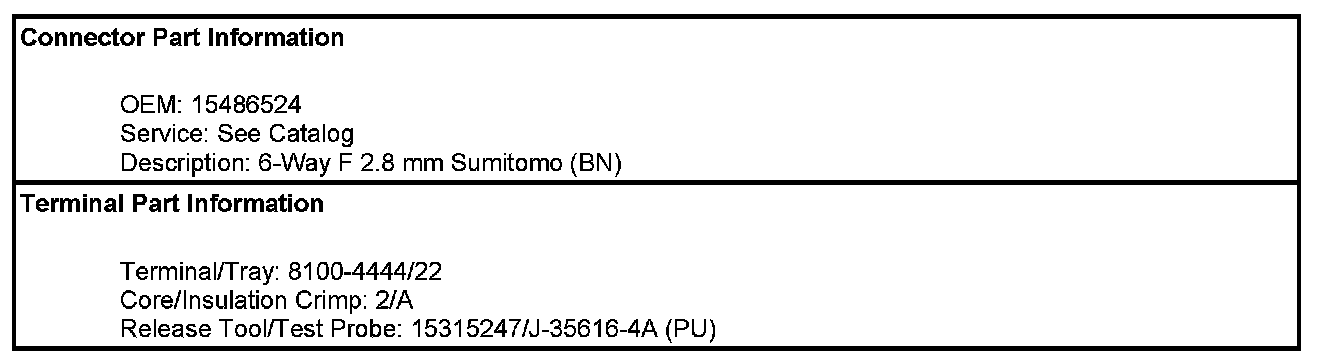

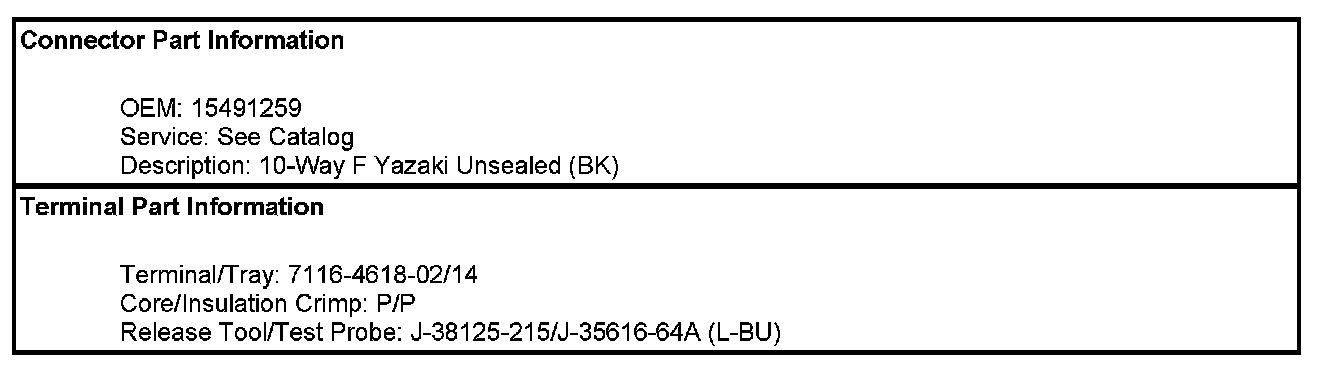

Heated Seat Control Module X1

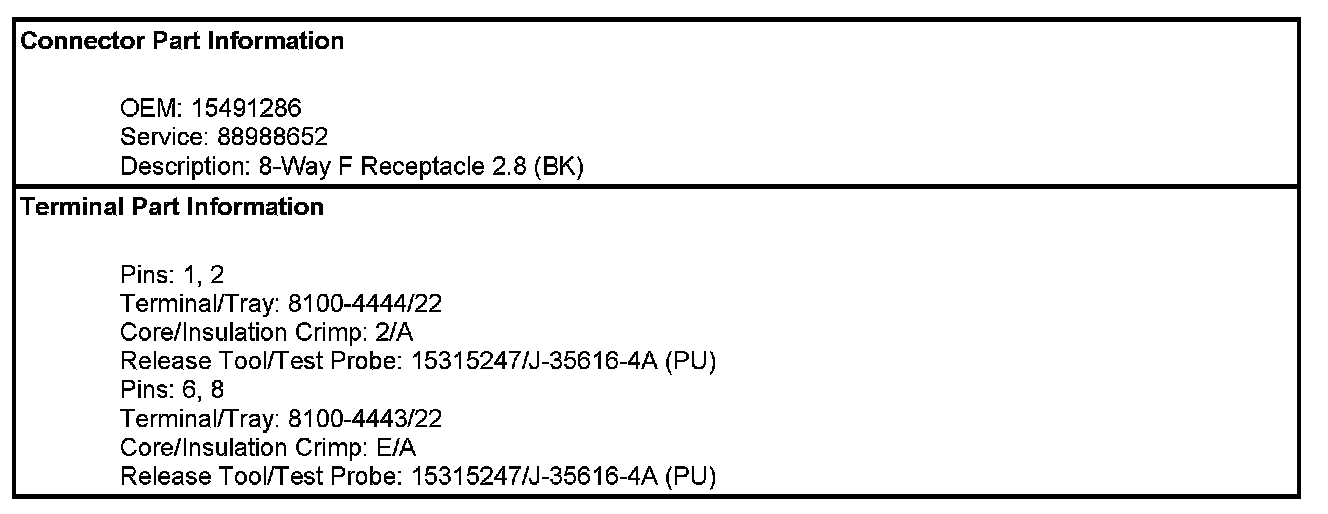

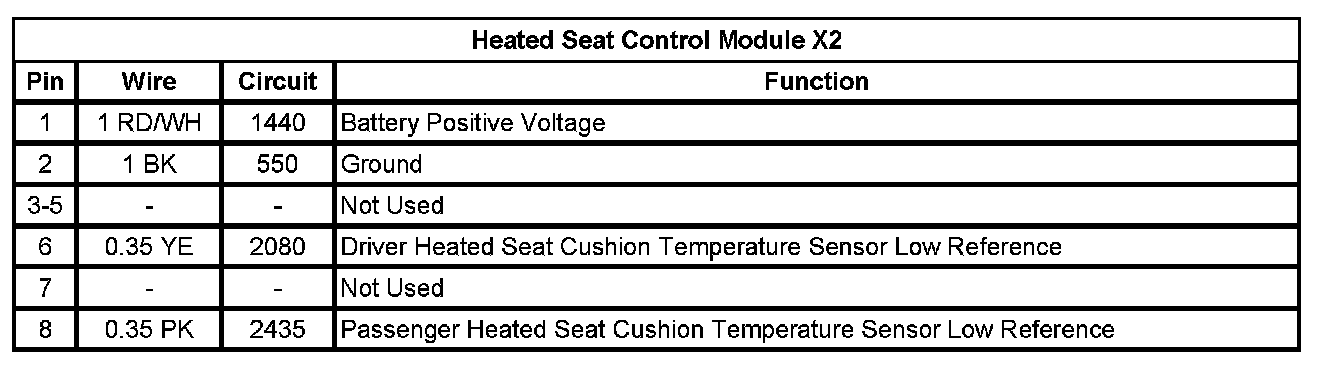

Heated Seat Control Module X2














Heated Seat Control Module X3

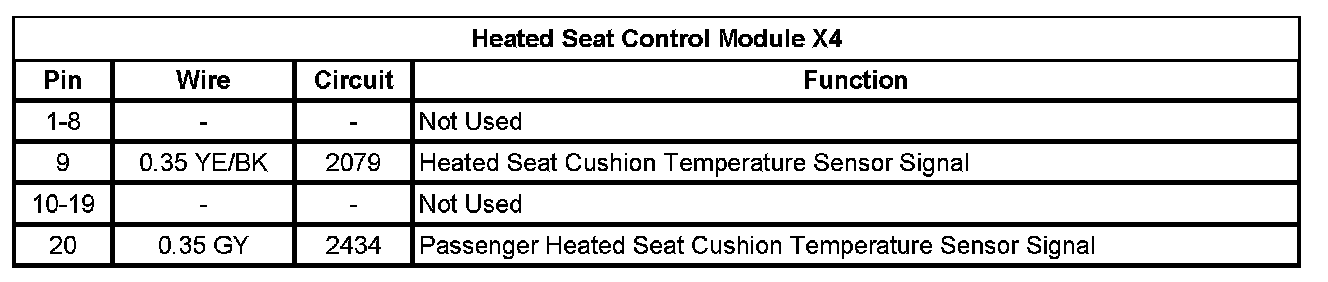

Heated Seat Control Module X4
