Central Control Module
Component Connector End Views - Continued

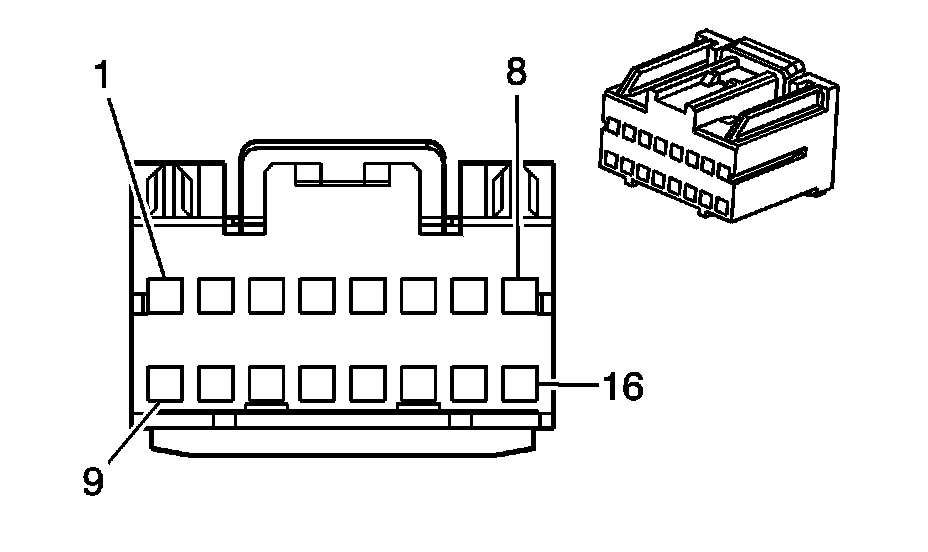

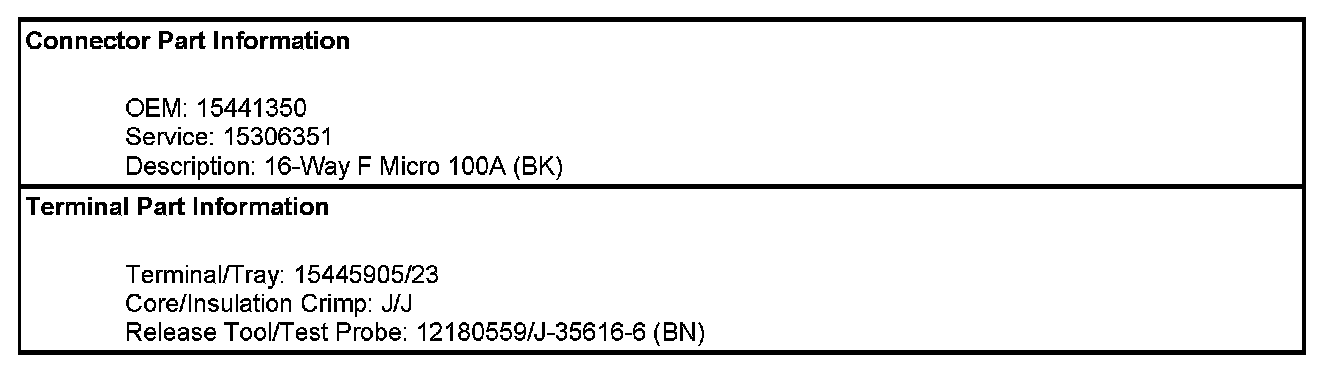

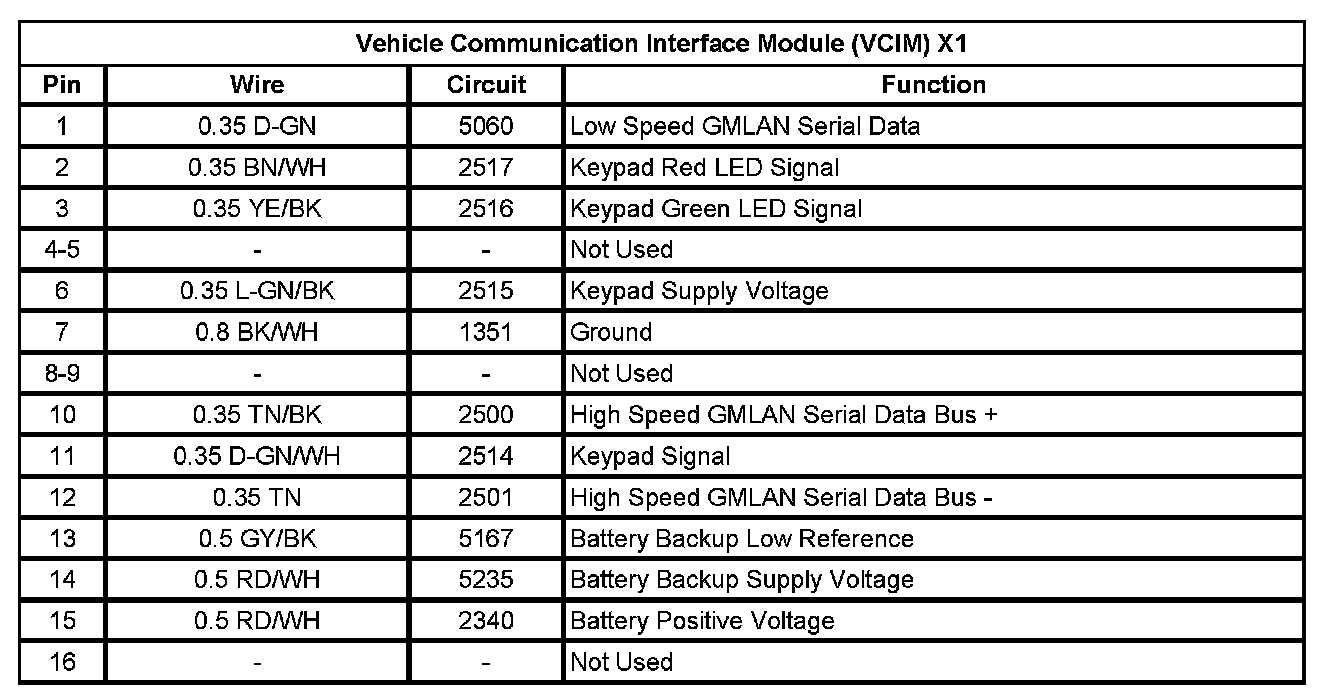

Vehicle Communication Interface Module (VCIM) X1

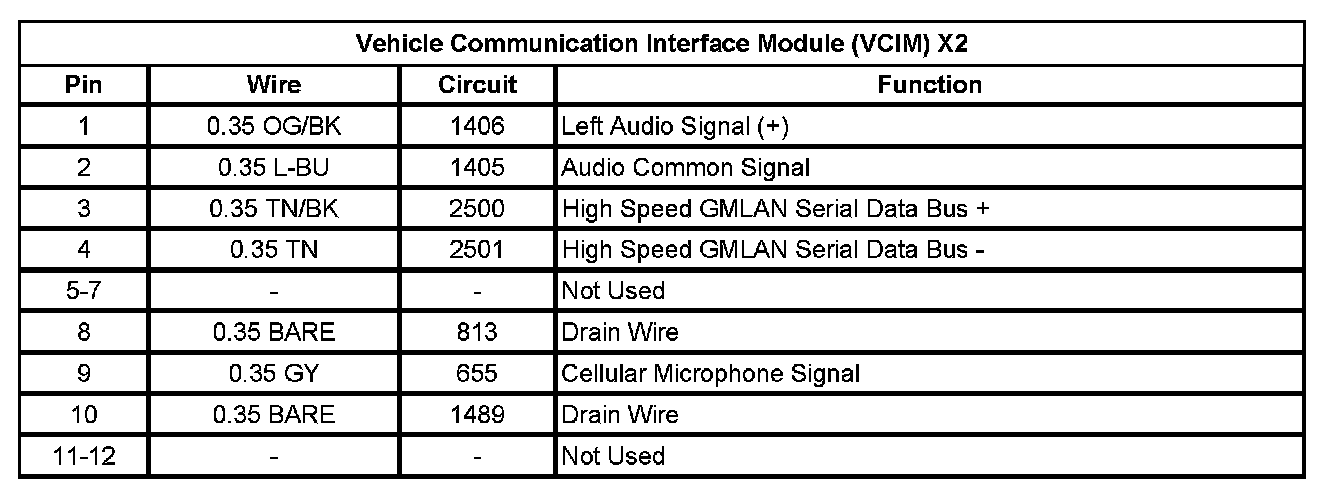

Vehicle Communication Interface Module (VCIM) X2

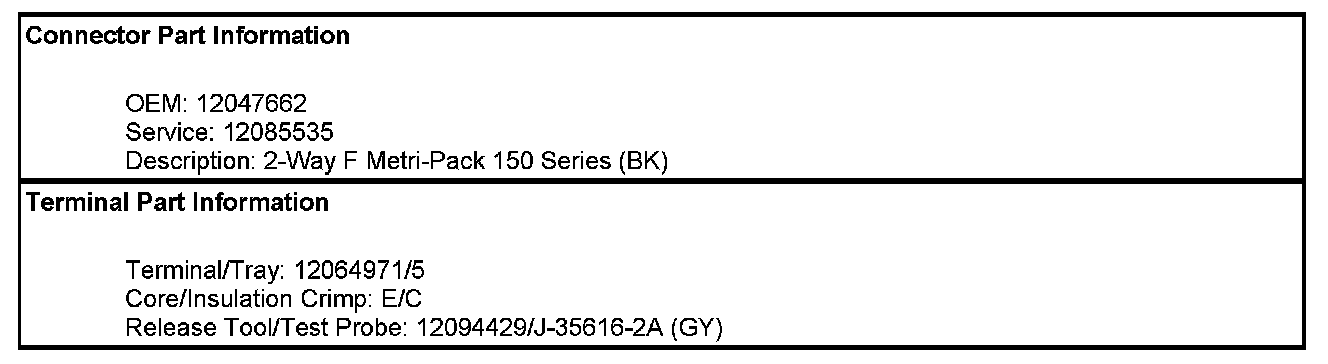

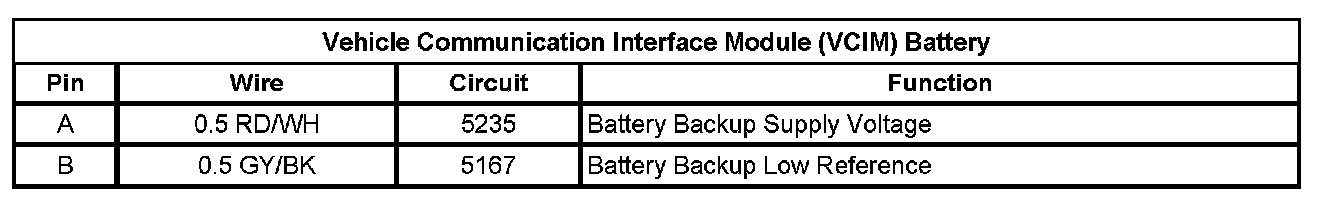

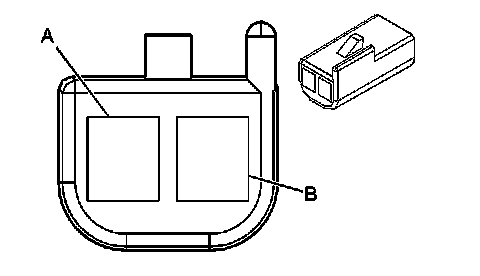

Vehicle Communication Interface Module (VCIM) Battery
Component Connector End Views - Continued
Vehicle Communication Interface Module (VCIM) X1
Vehicle Communication Interface Module (VCIM) X2
Vehicle Communication Interface Module (VCIM) Battery
