Home >> Chevrolet >> 2008 >> Impala V6-3.9L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

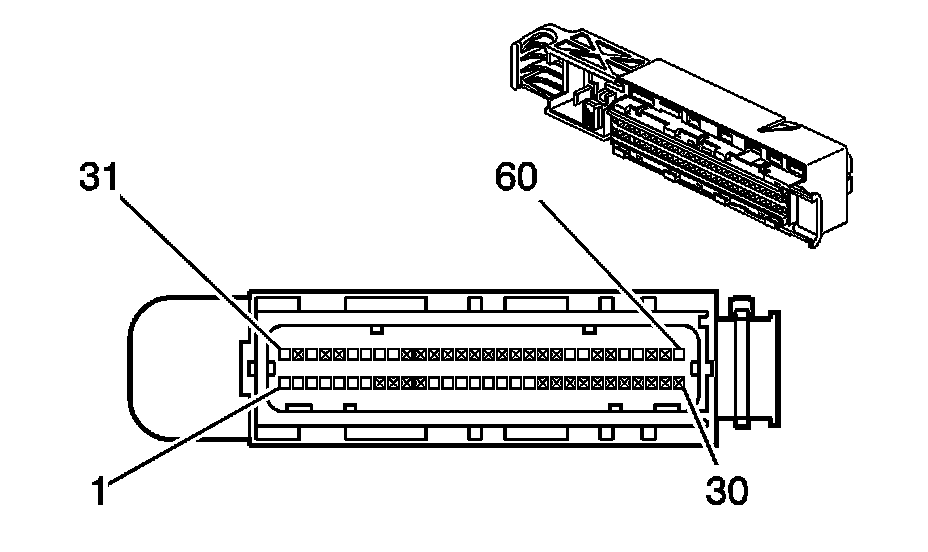

Component Connector End Views - Continued

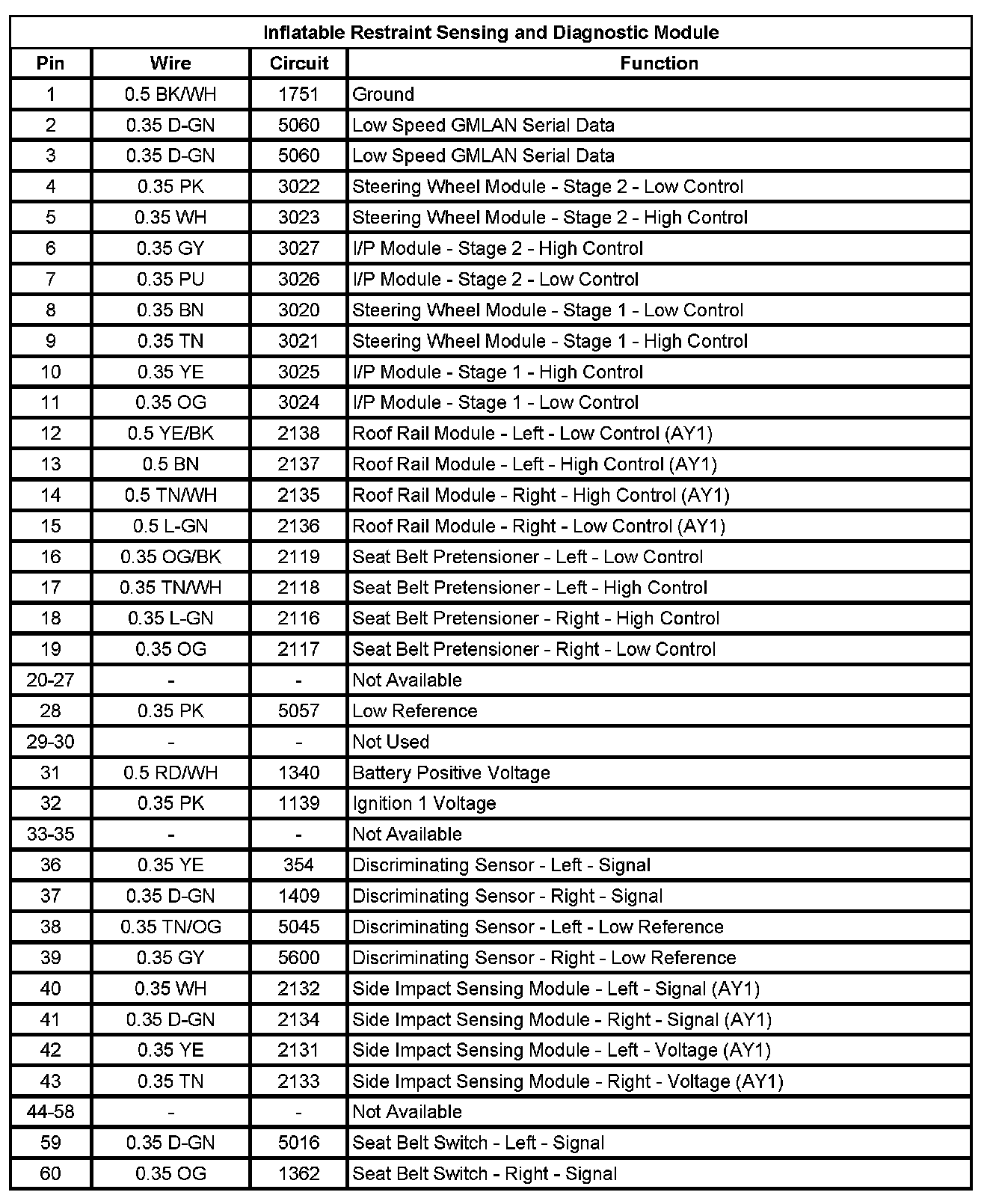

Inflatable Restraint Sensing and Diagnostic Module
