Control Module: Diagrams

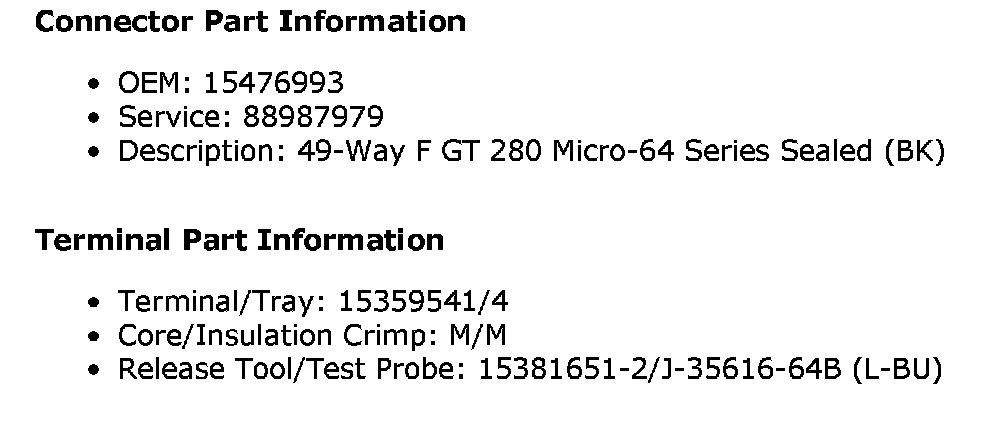

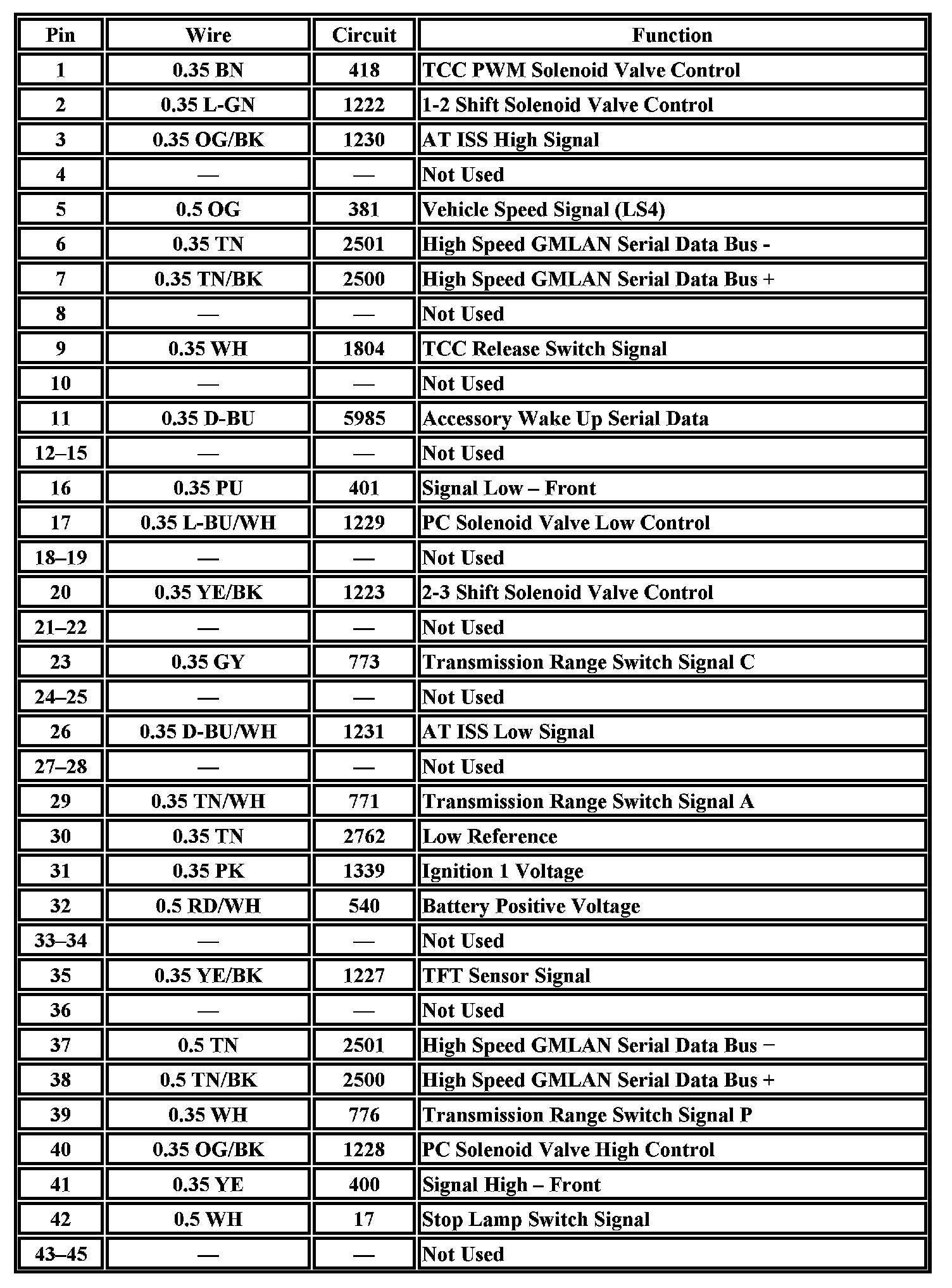

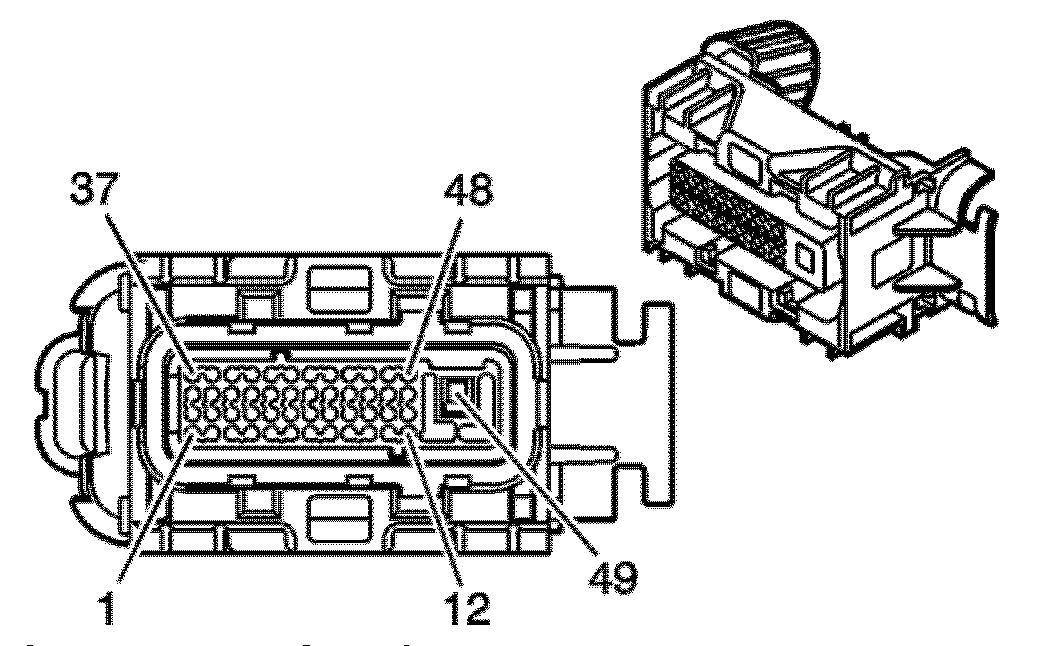

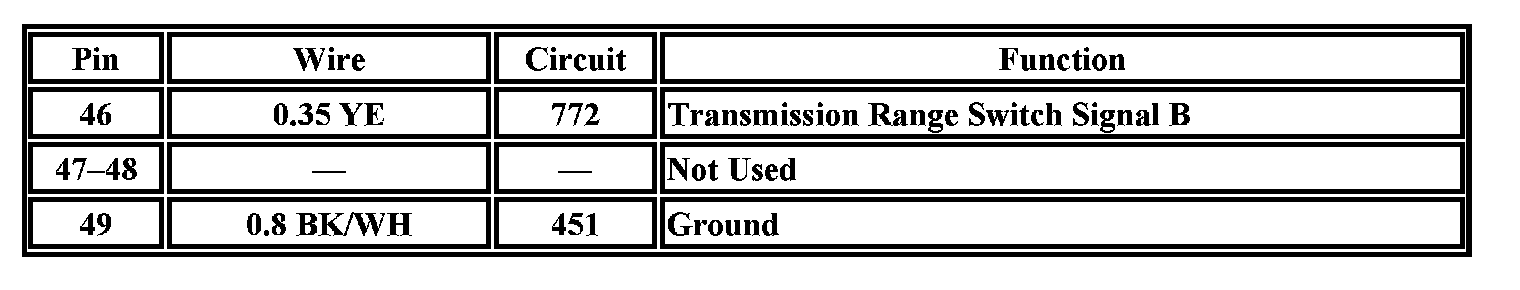

Transmission Control Module (TCM)



















Left side of the engine compartment in with the air cleaner.
