Impact Sensor



Component Connector End Views - Continued

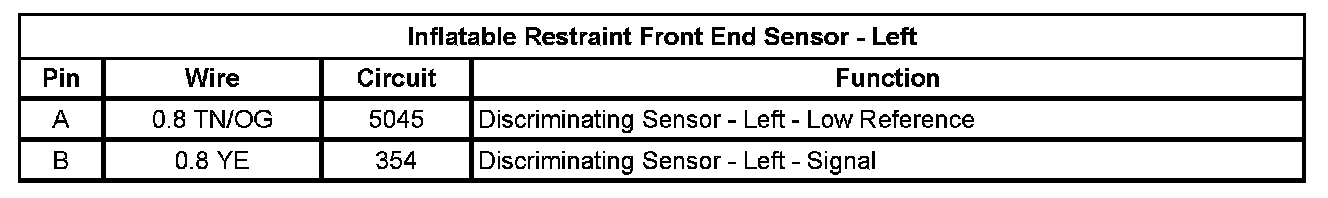

Inflatable Restraint Front End Sensor - Left

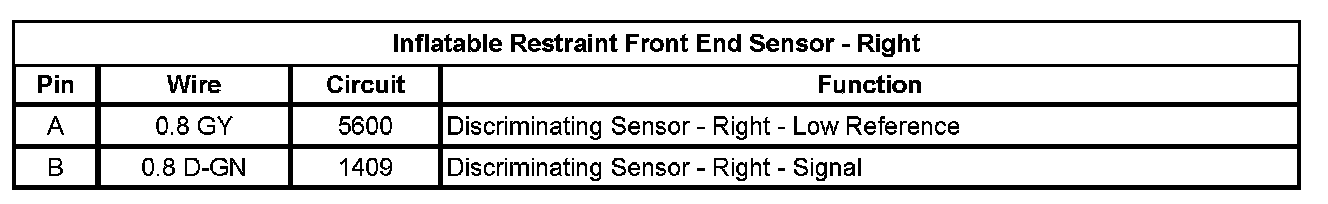

Inflatable Restraint Front End Sensor - Right

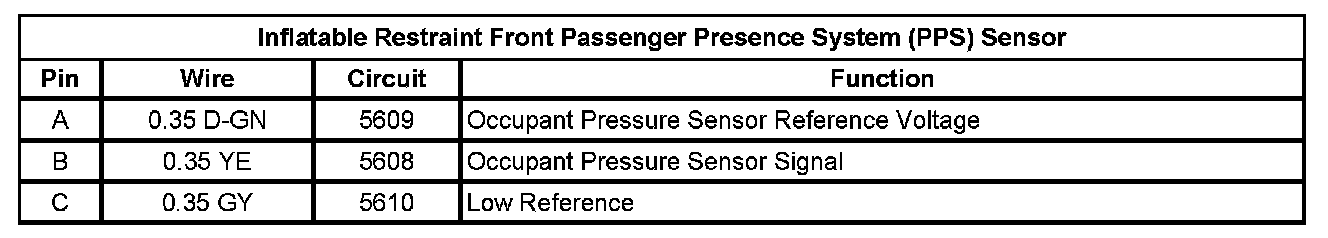

Inflatable Restraint Front Passenger Presence System (PPS) Sensor

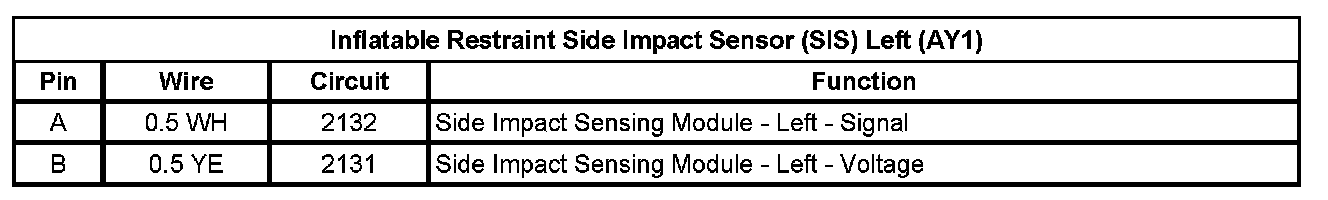

Inflatable Restraint Side Impact Sensor (SIS) - Left (AY1)

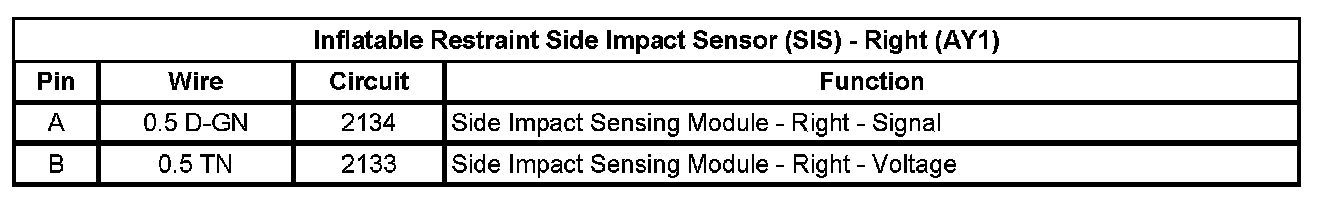

Inflatable Restraint Side Impact Sensor (SIS) Right (AY1)
