Home >> Chevrolet >> 2008 >> HHR L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Motor

Power Window Motor



Window Motor - Driver

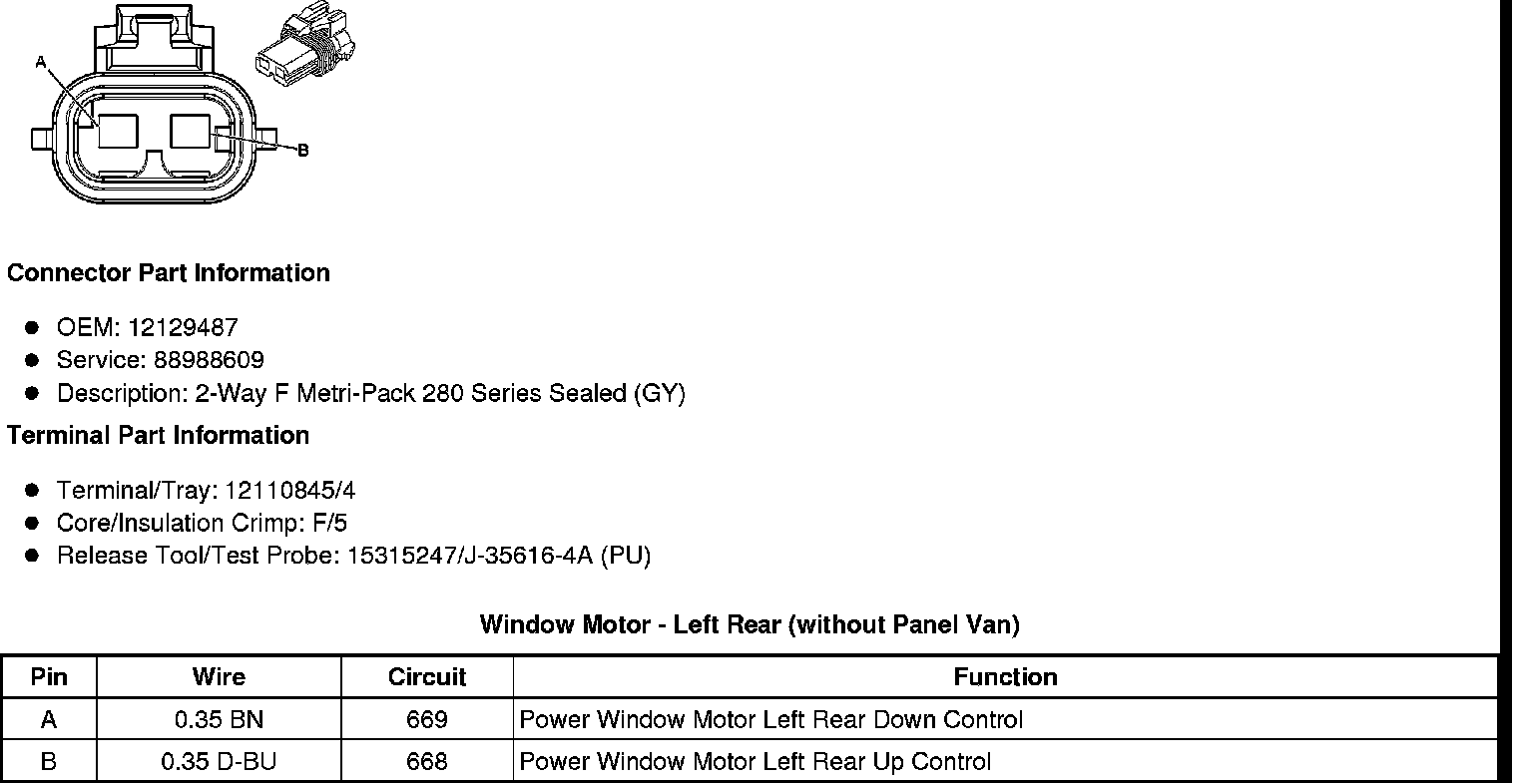

Window Motor - Left Rear (without Panel Van)

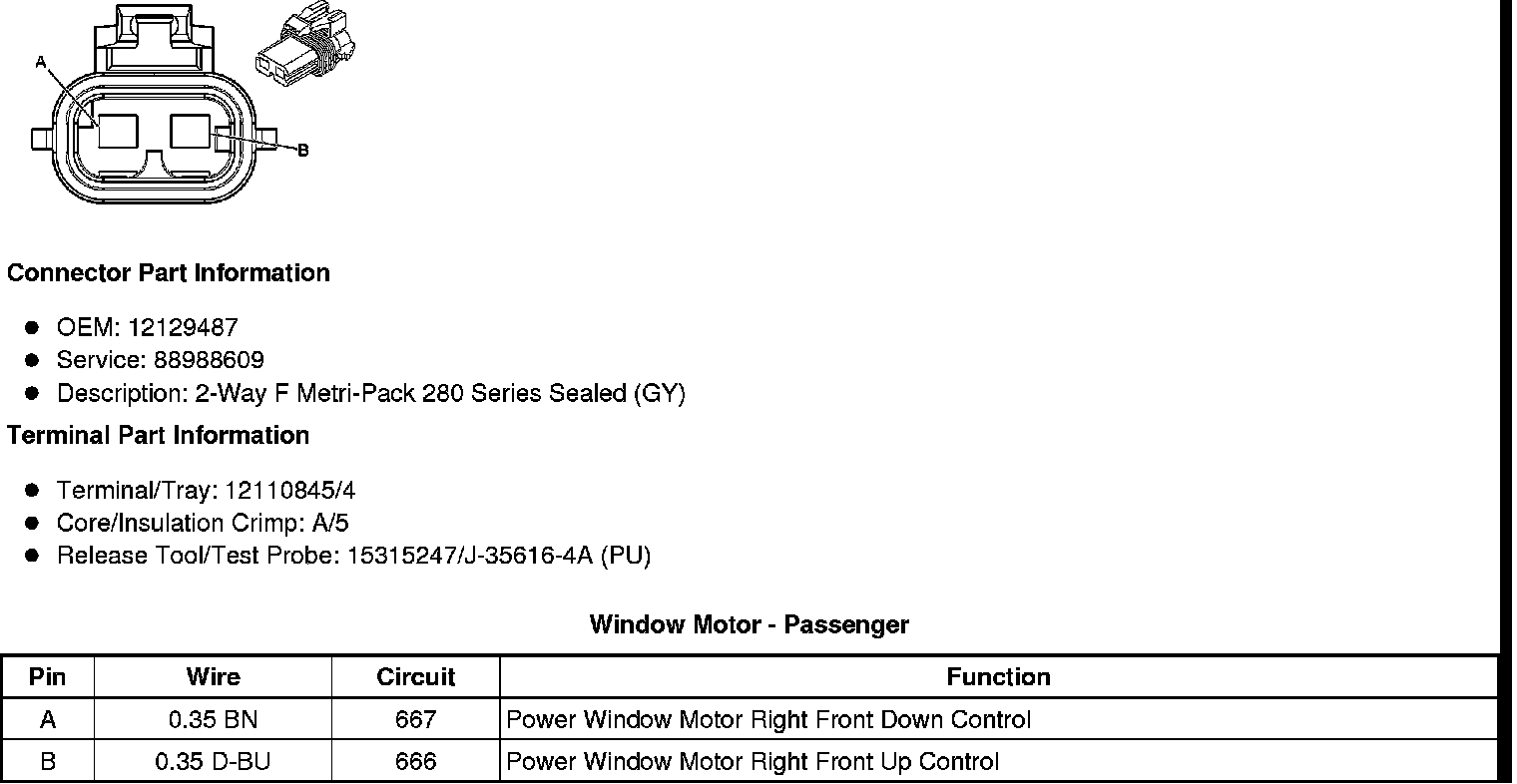

Window Motor - Passenger






Window Motor - Right Rear (without Panel Van)
