Engine Control Module

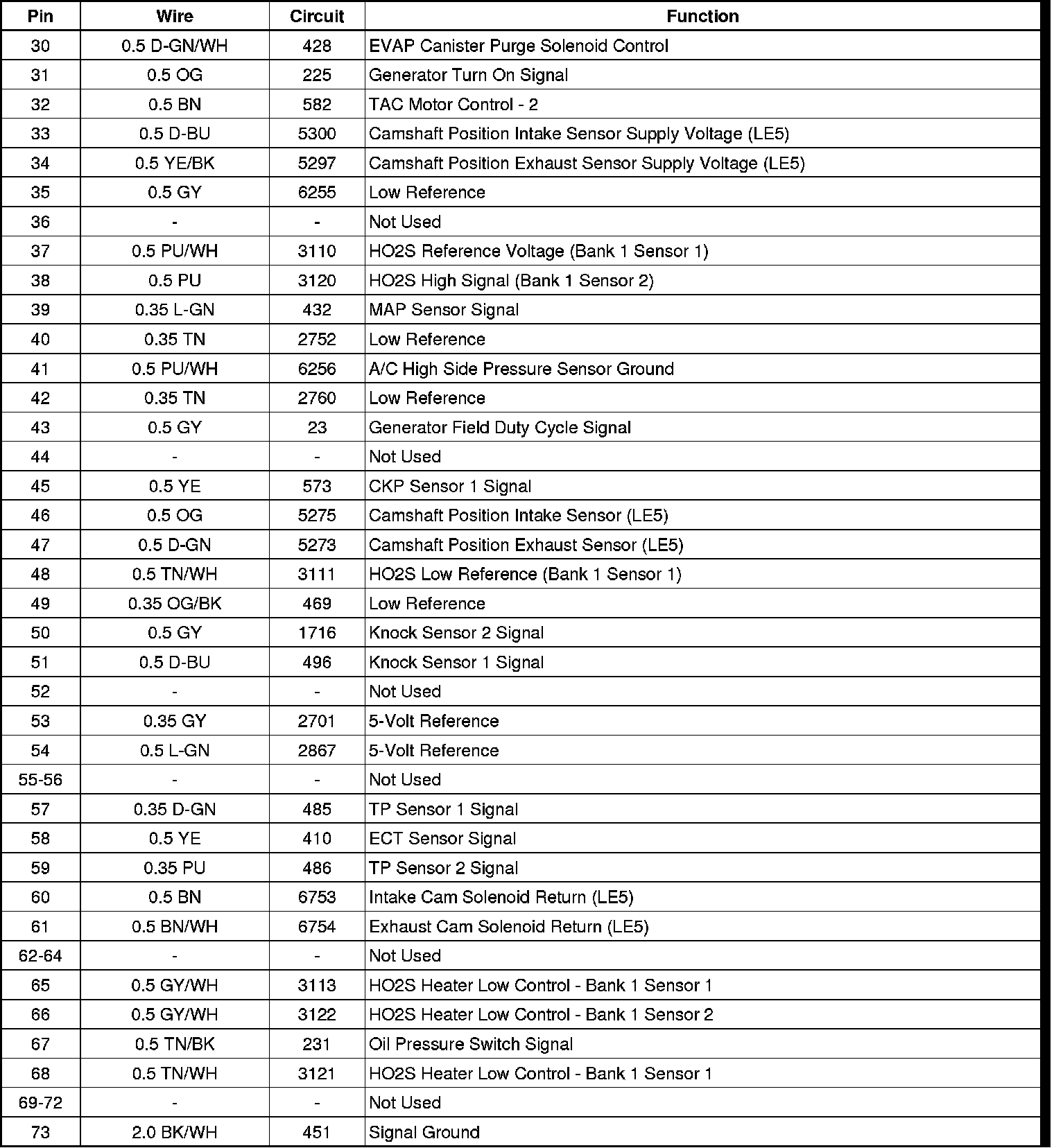

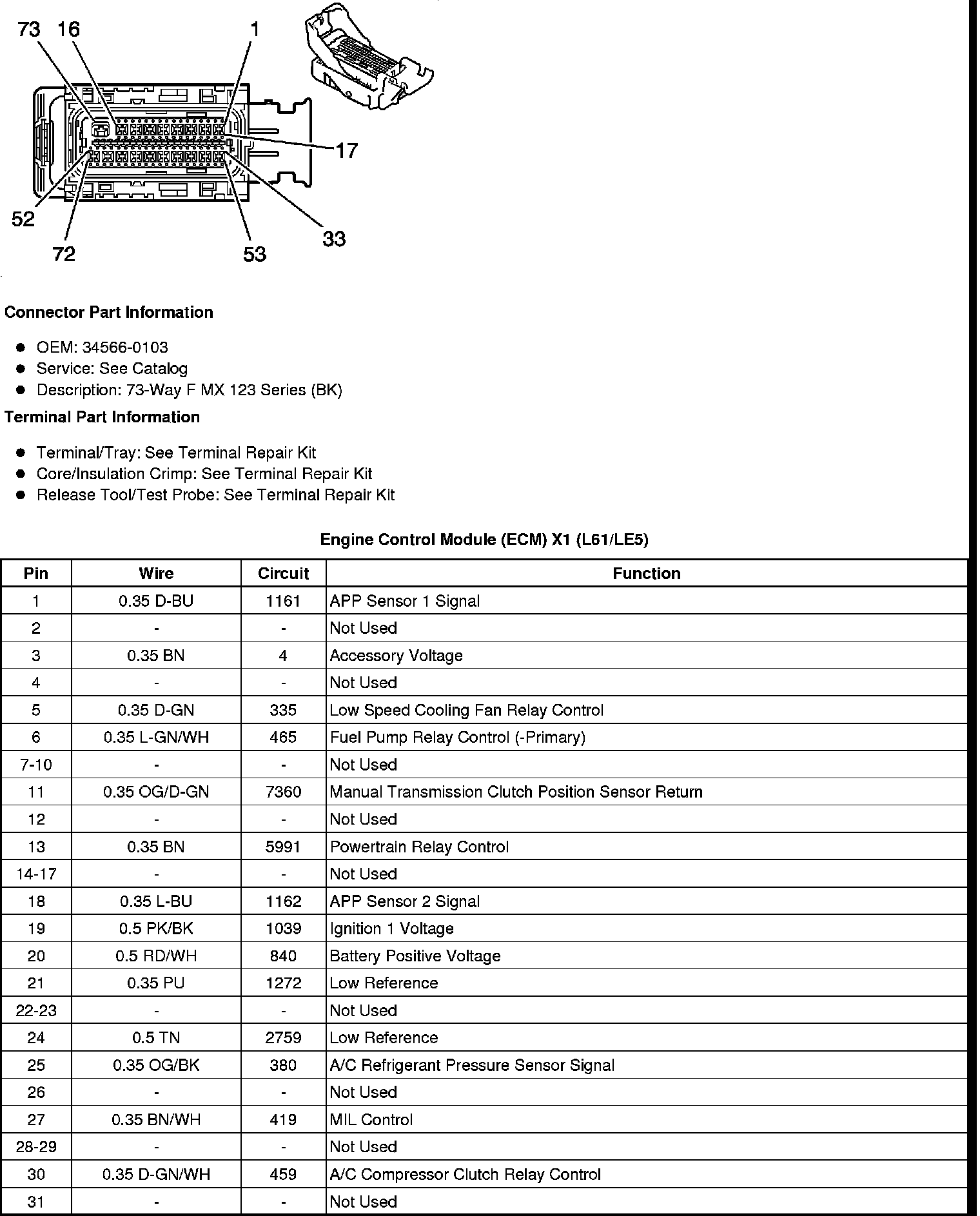

Engine Control Module (ECM) X1 (L61/LE5)

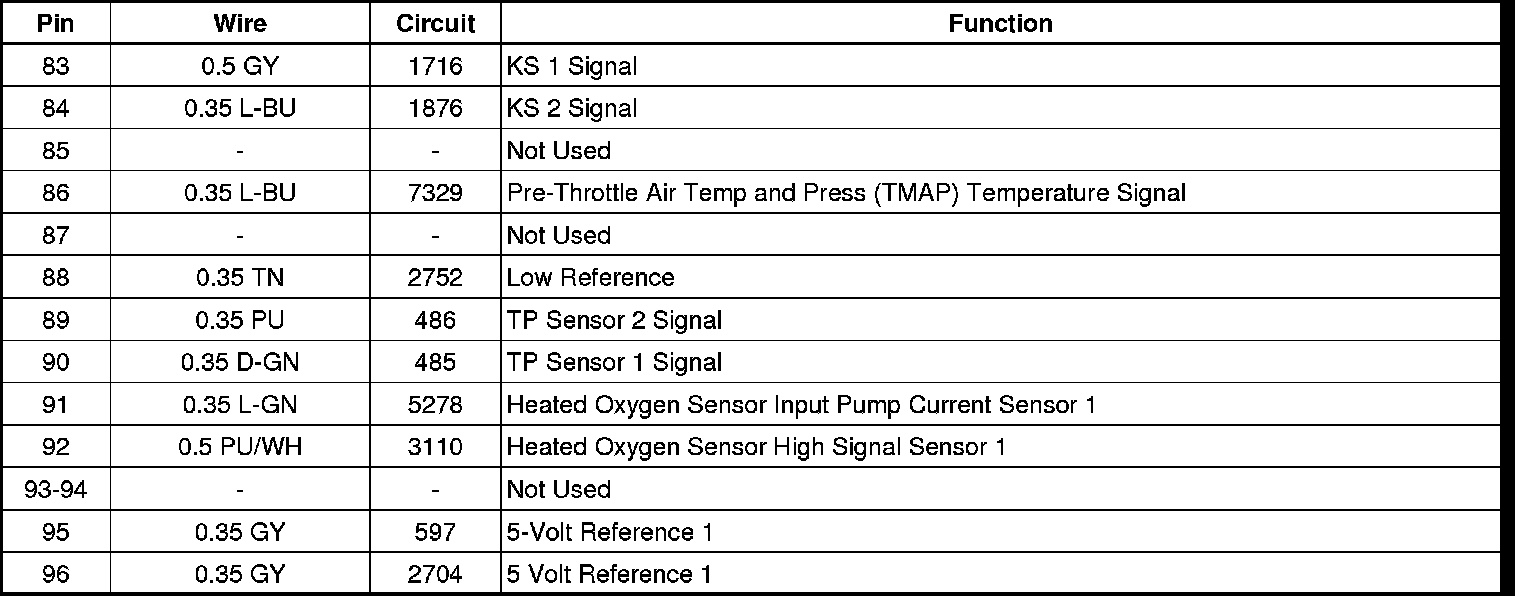

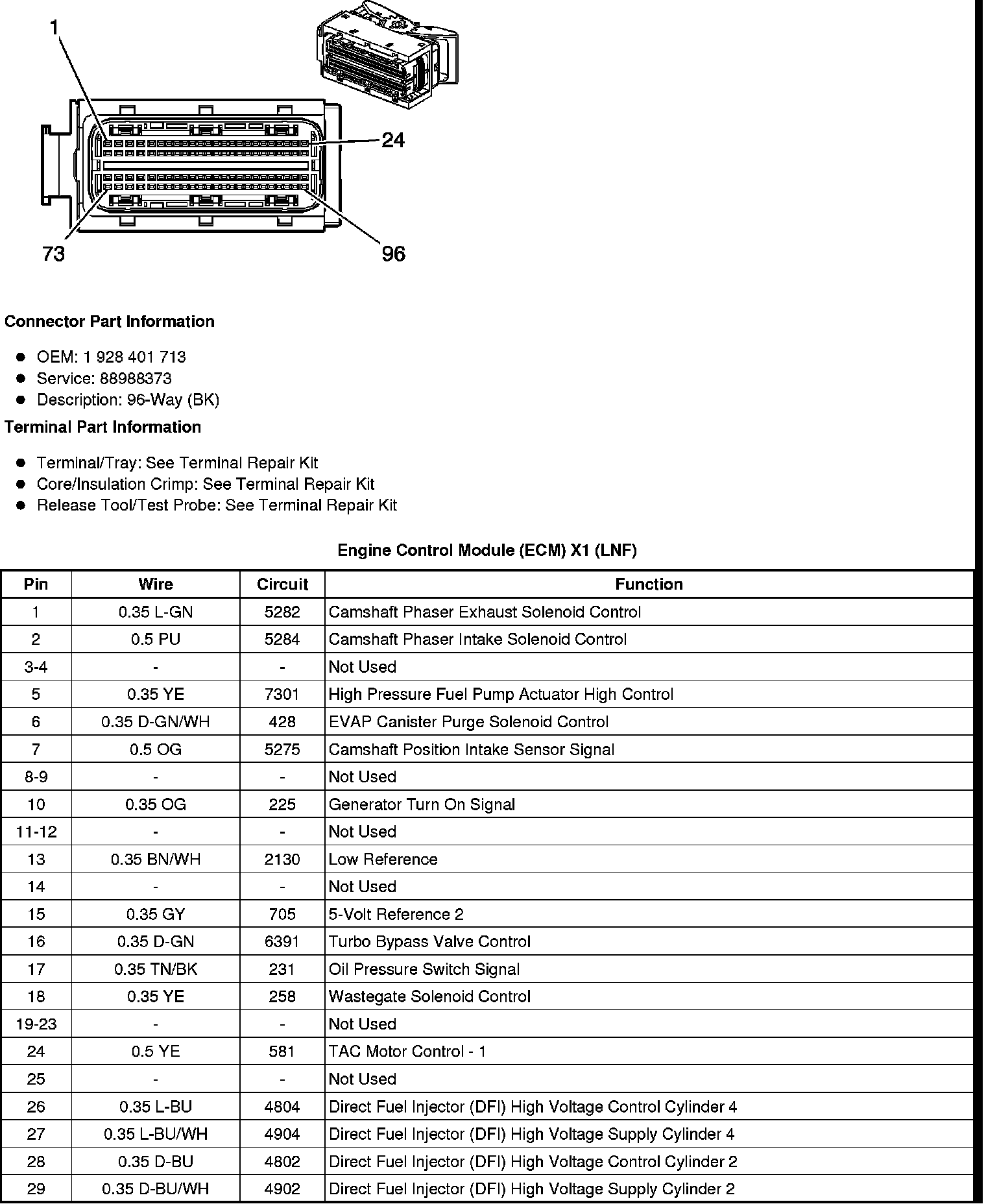

Engine Control Module (ECM) X1 (LNF)

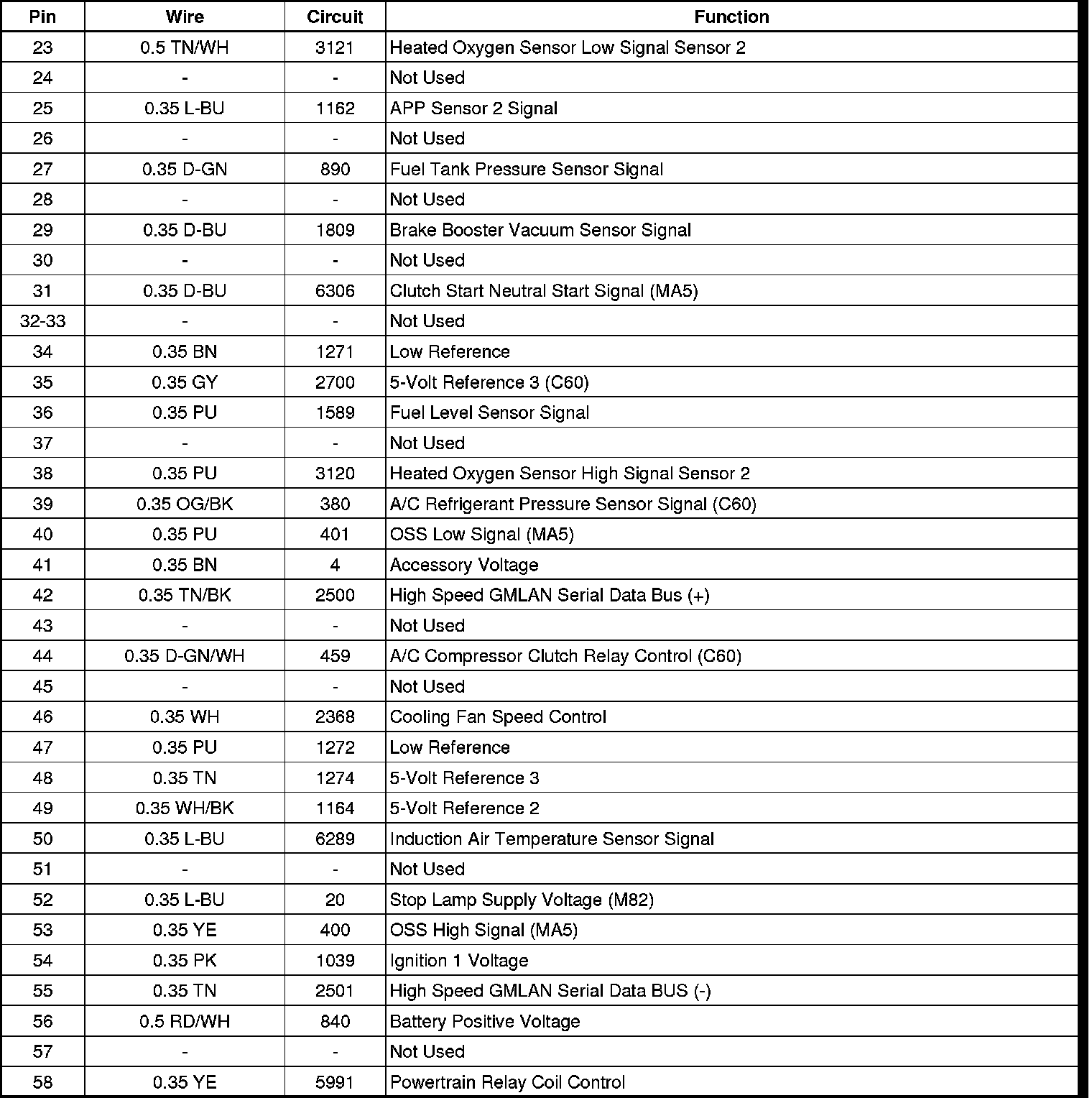

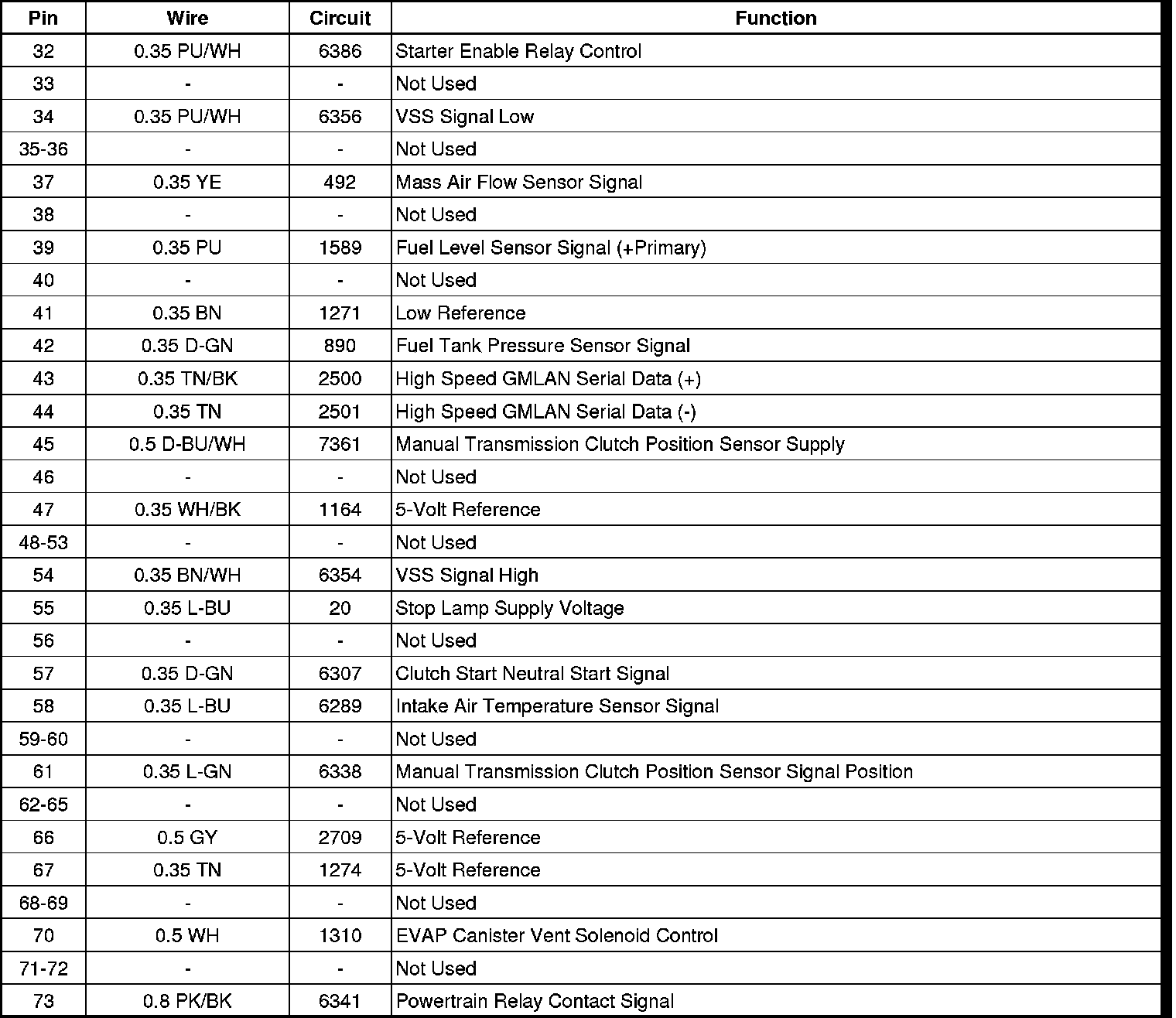

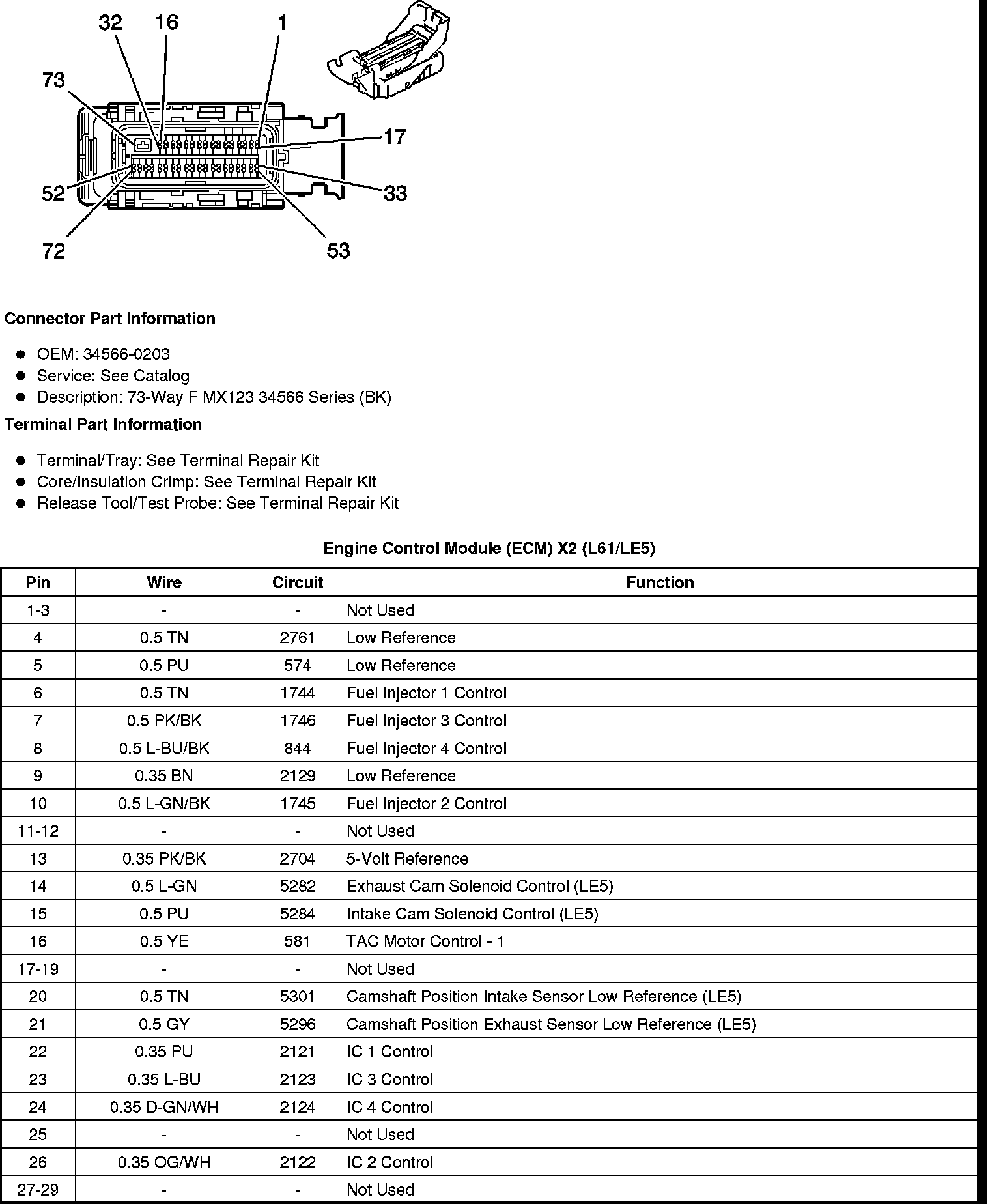

Engine Control Module (ECM) X2 (L61/LE5)

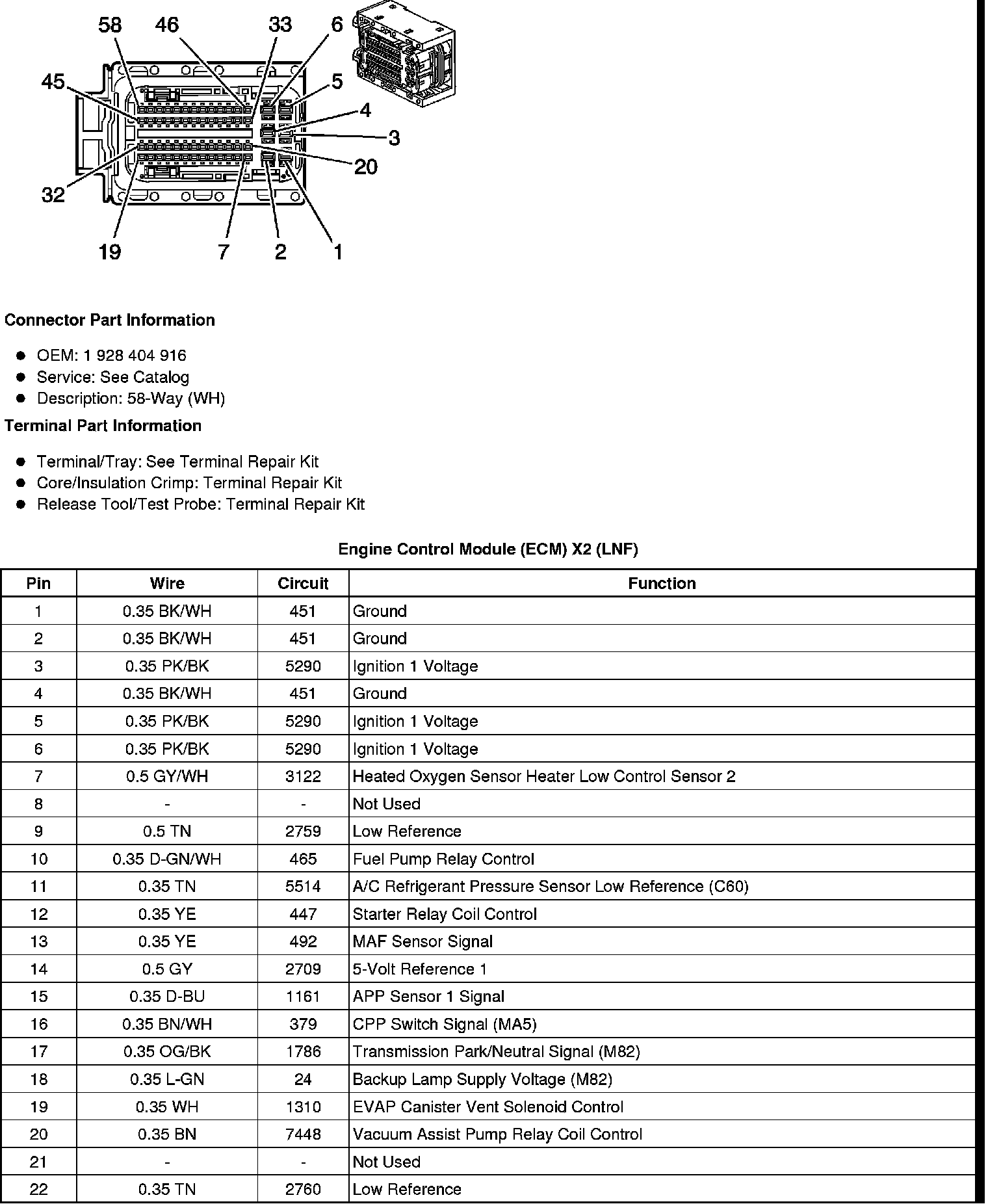

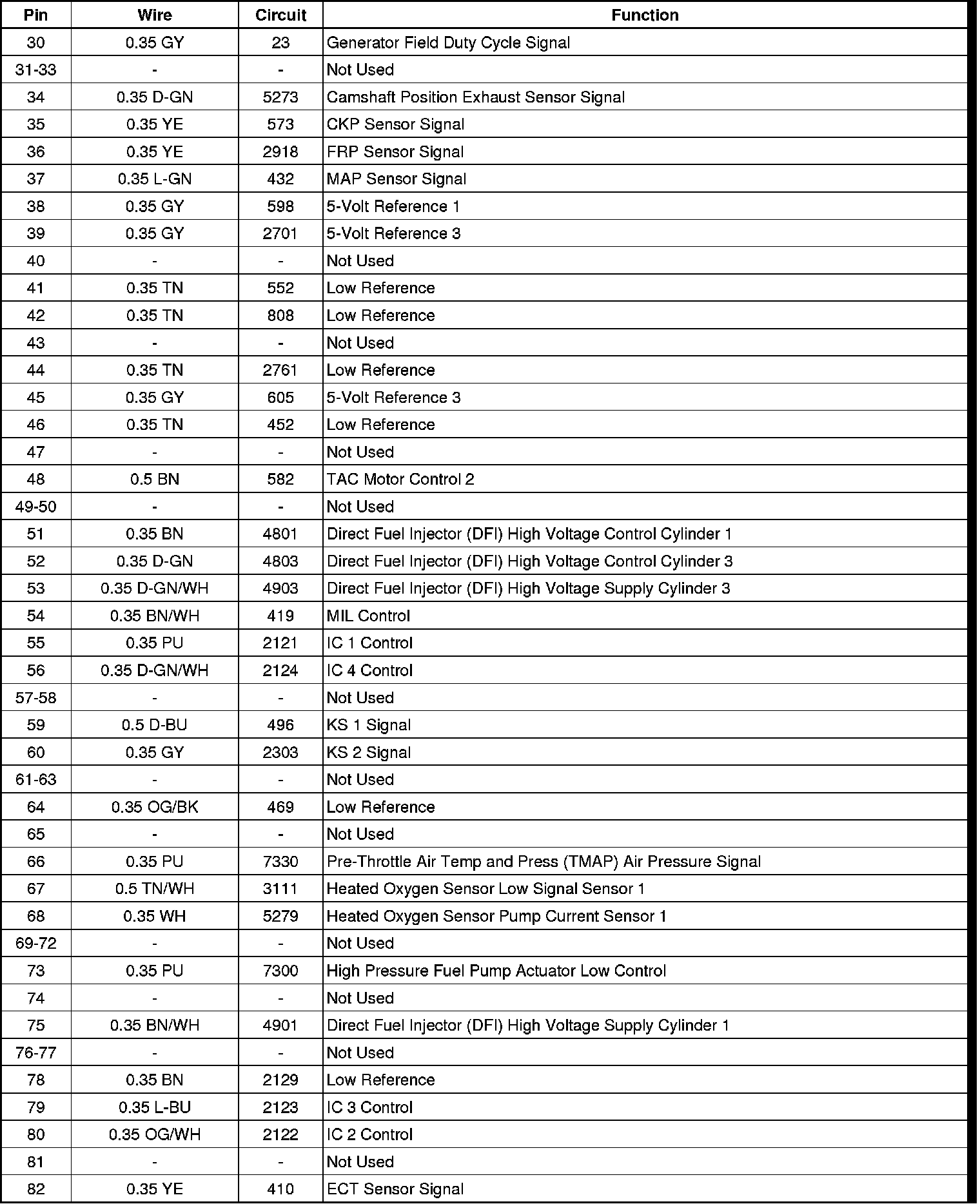

Engine Control Module (ECM) X2 (LNF)
