Home >> Chevrolet >> 2008 >> HHR L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module

Body Control Module

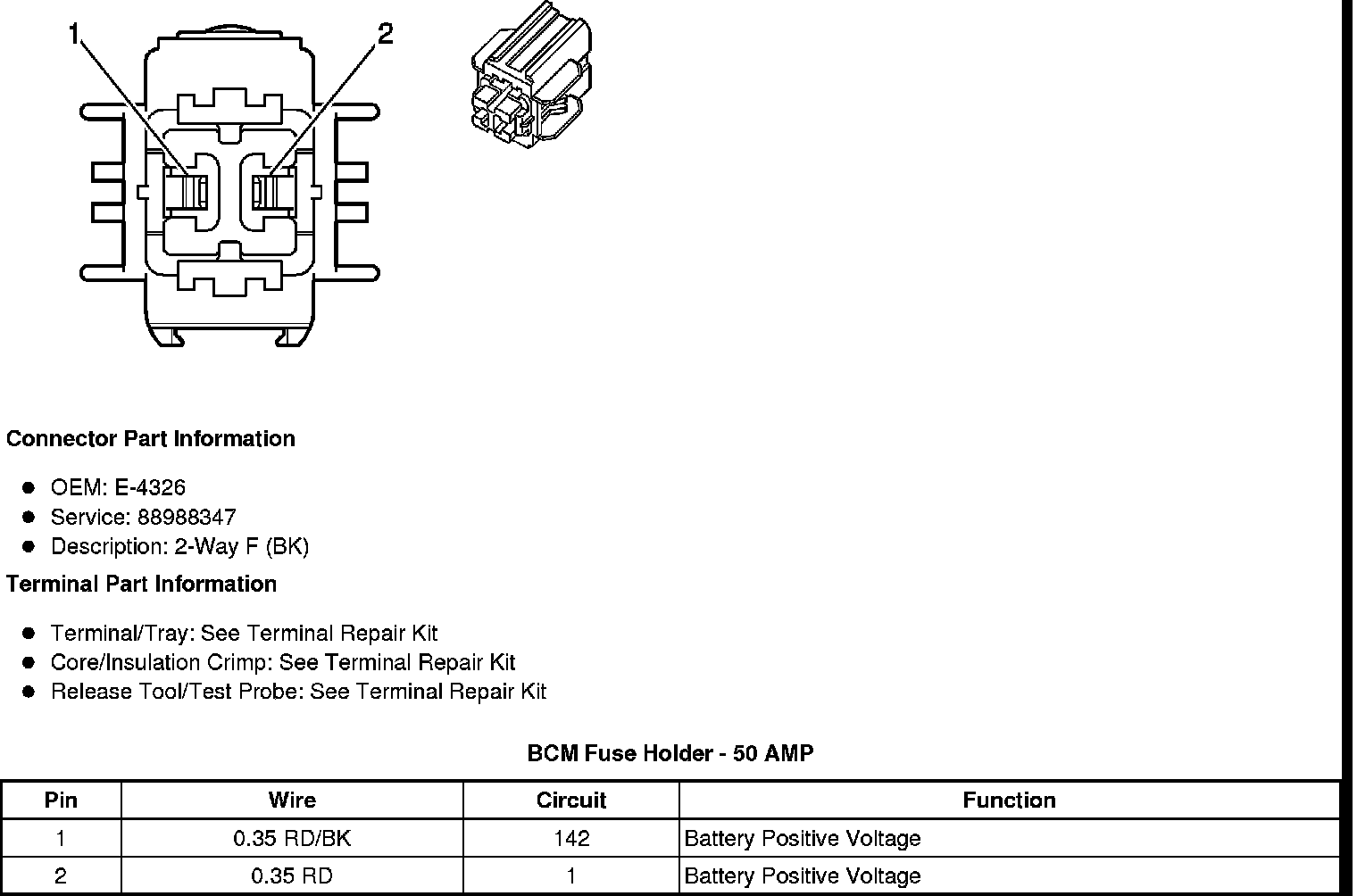

BCM Fuse Holder - 50 AMP

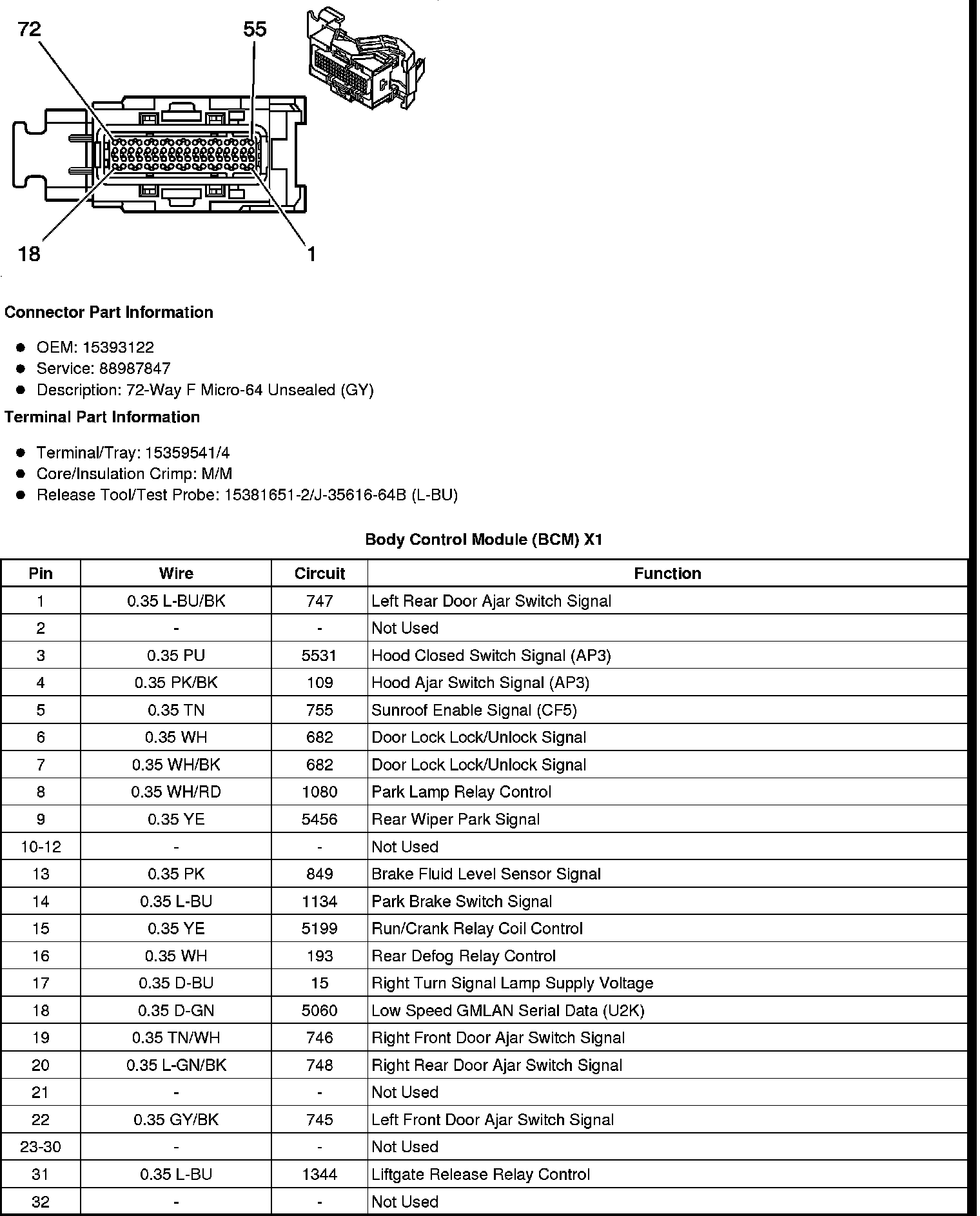

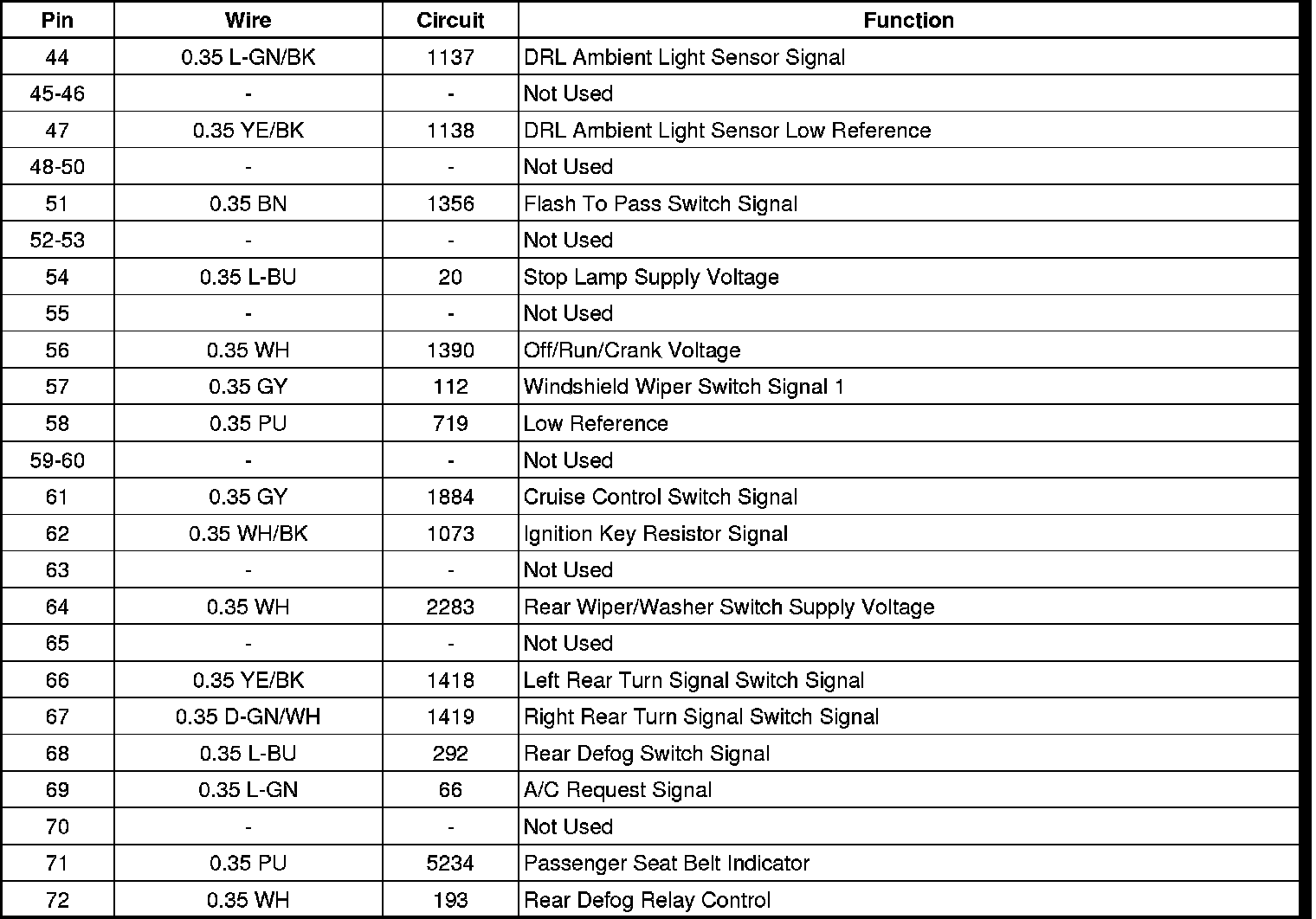

Body Control Module (BCM) X1

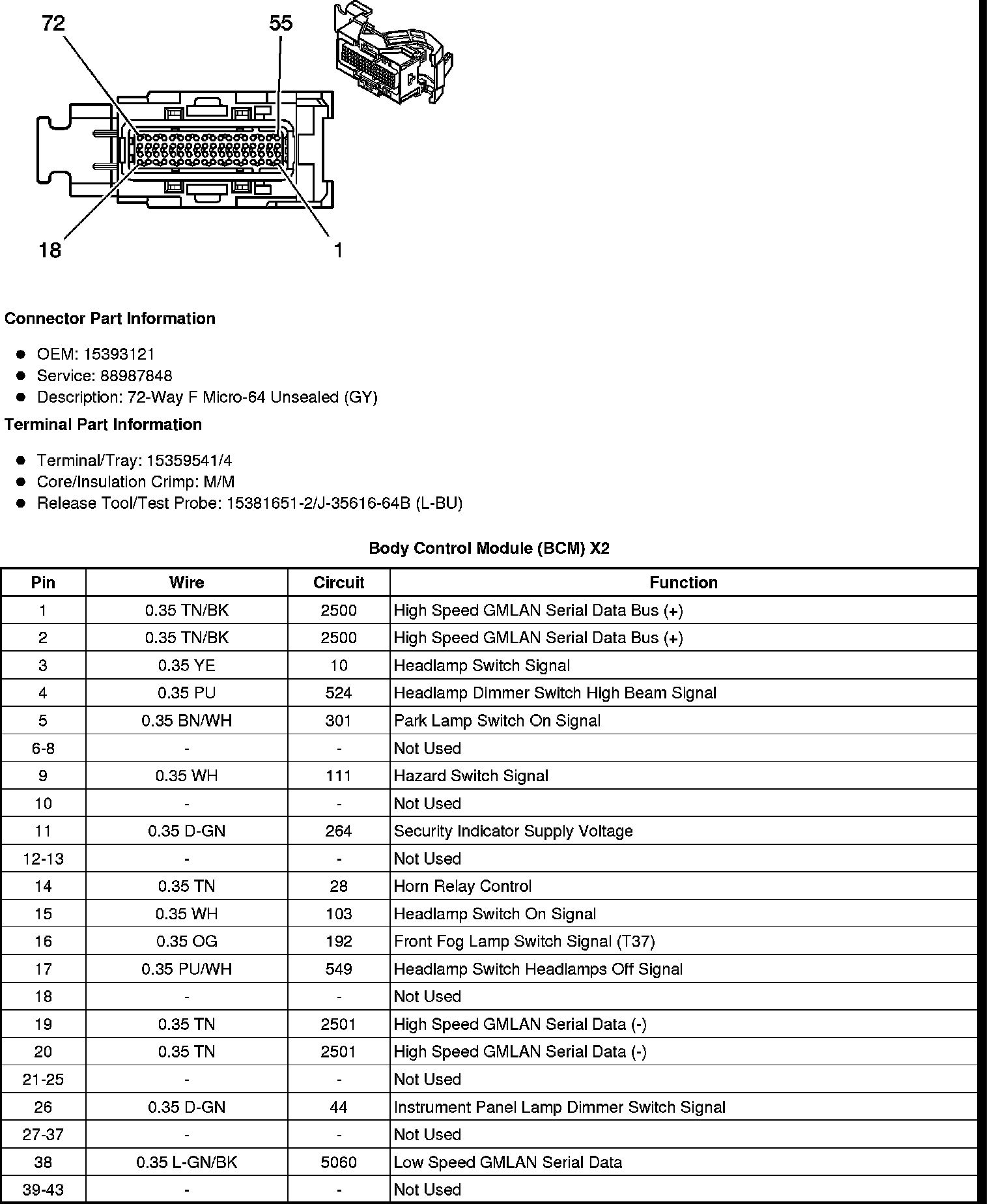

Body Control Module (BCM) X2

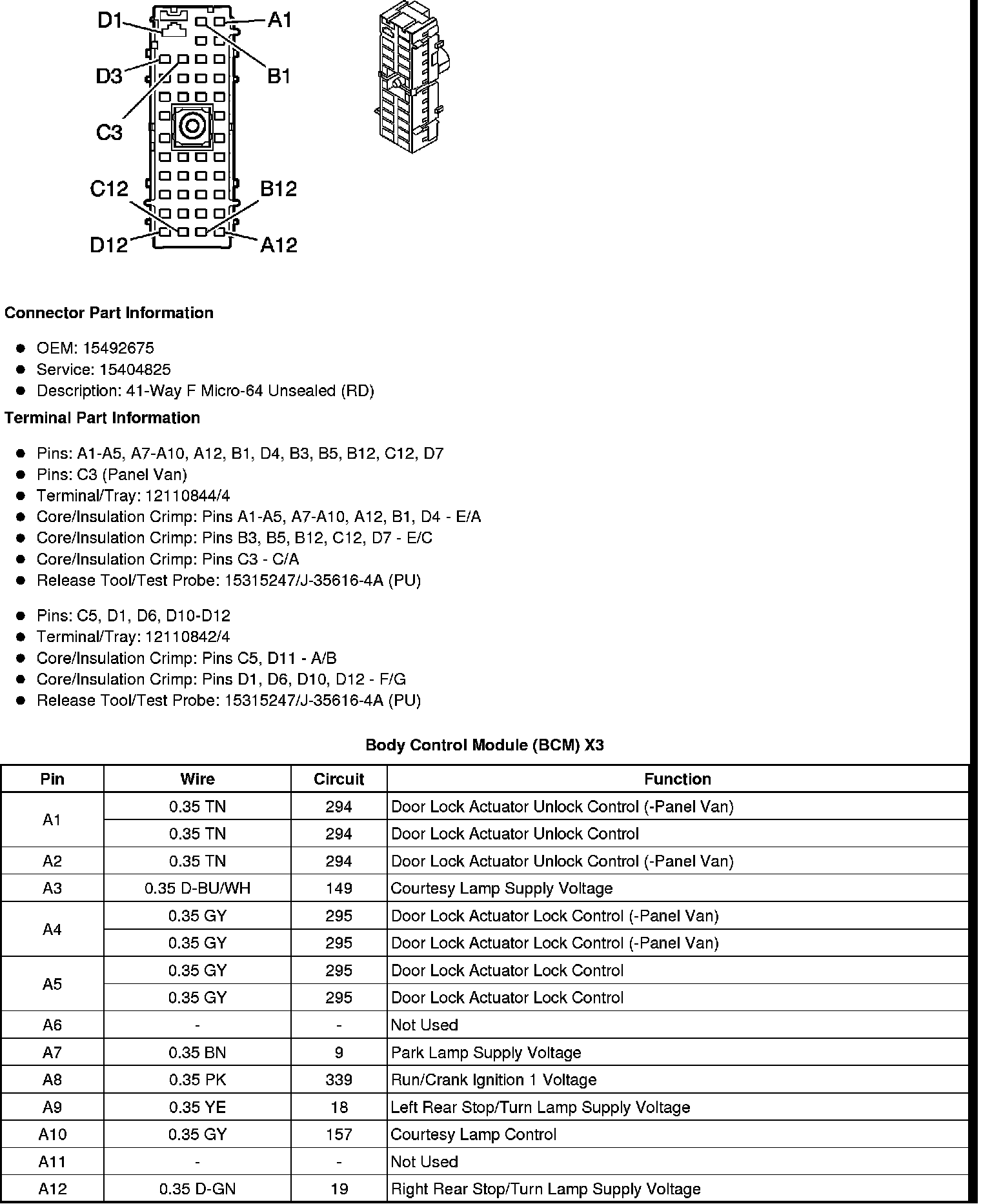

Body Control Module (BCM) X3

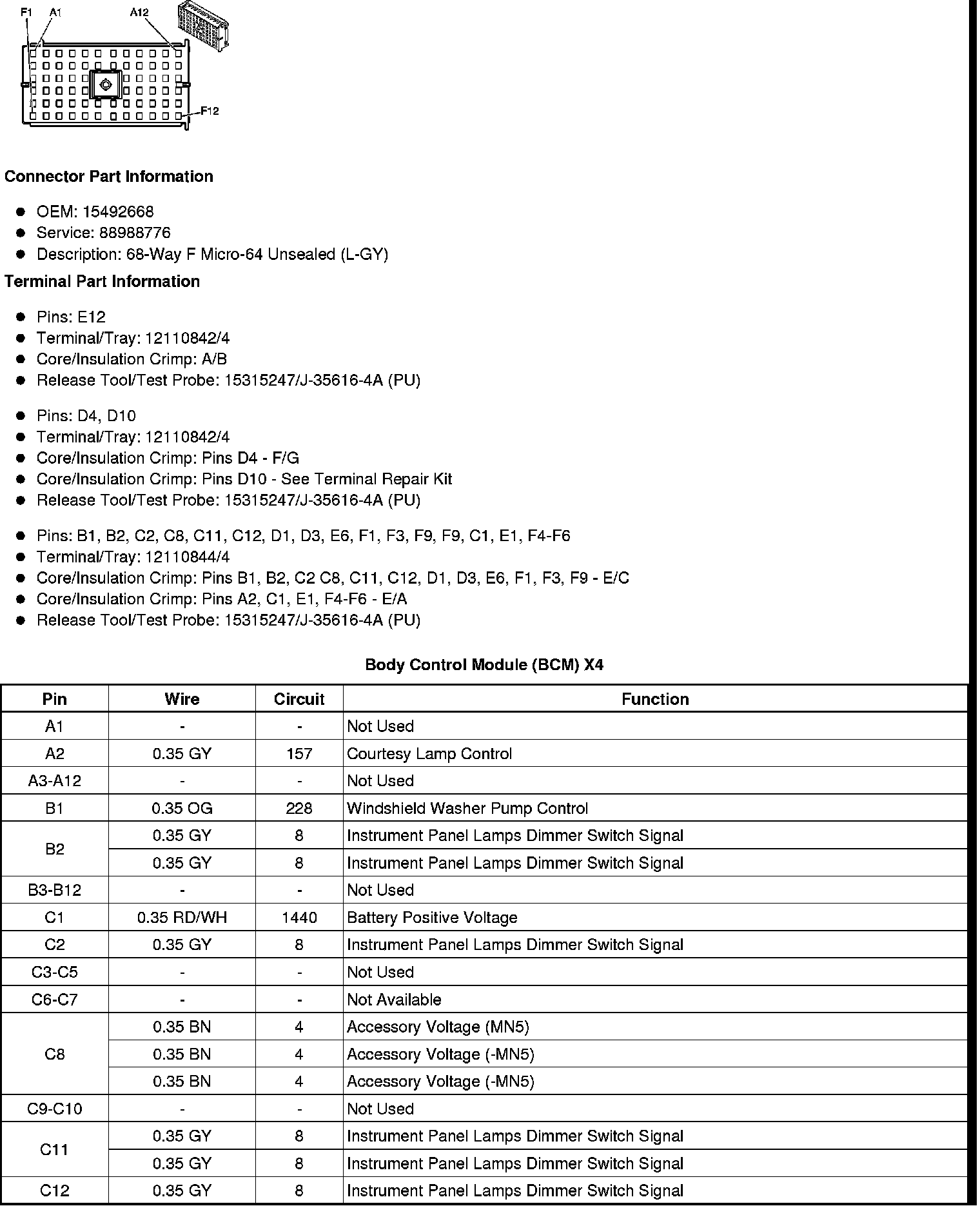

Body Control Module (BCM) X4
