Connector Views



Component Connector End Views

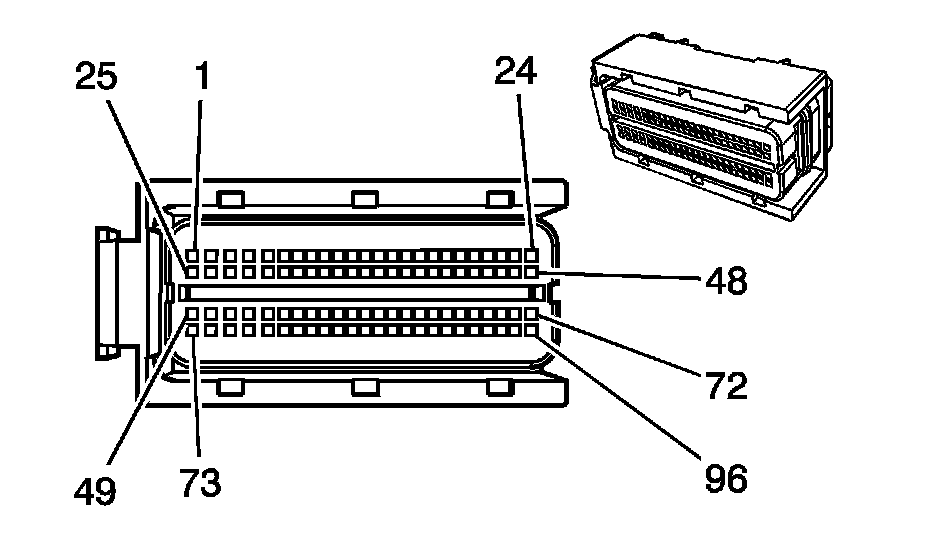

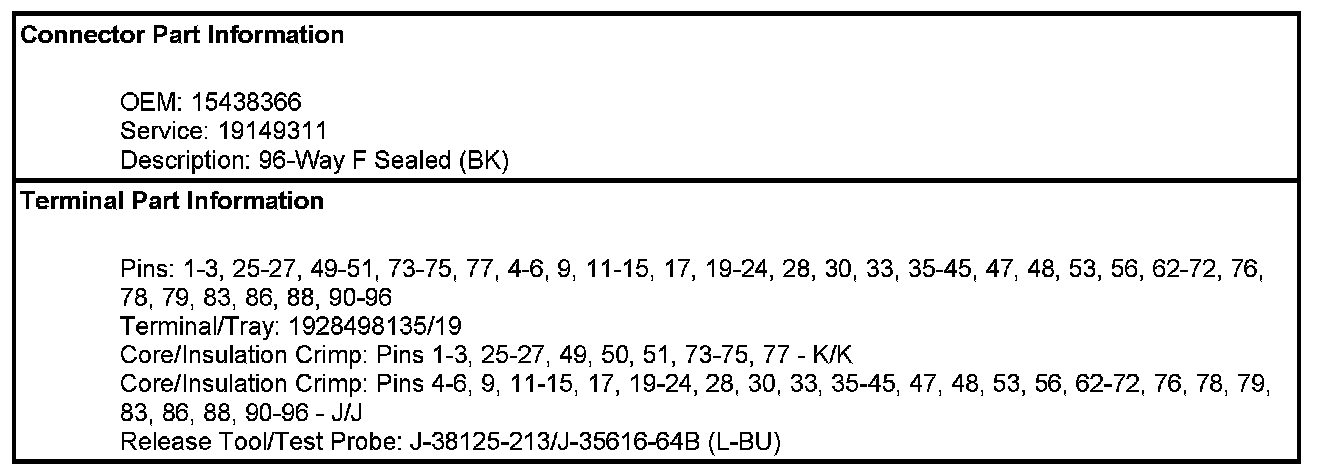

Engine Control Module (ECM) X1 (6.6L)

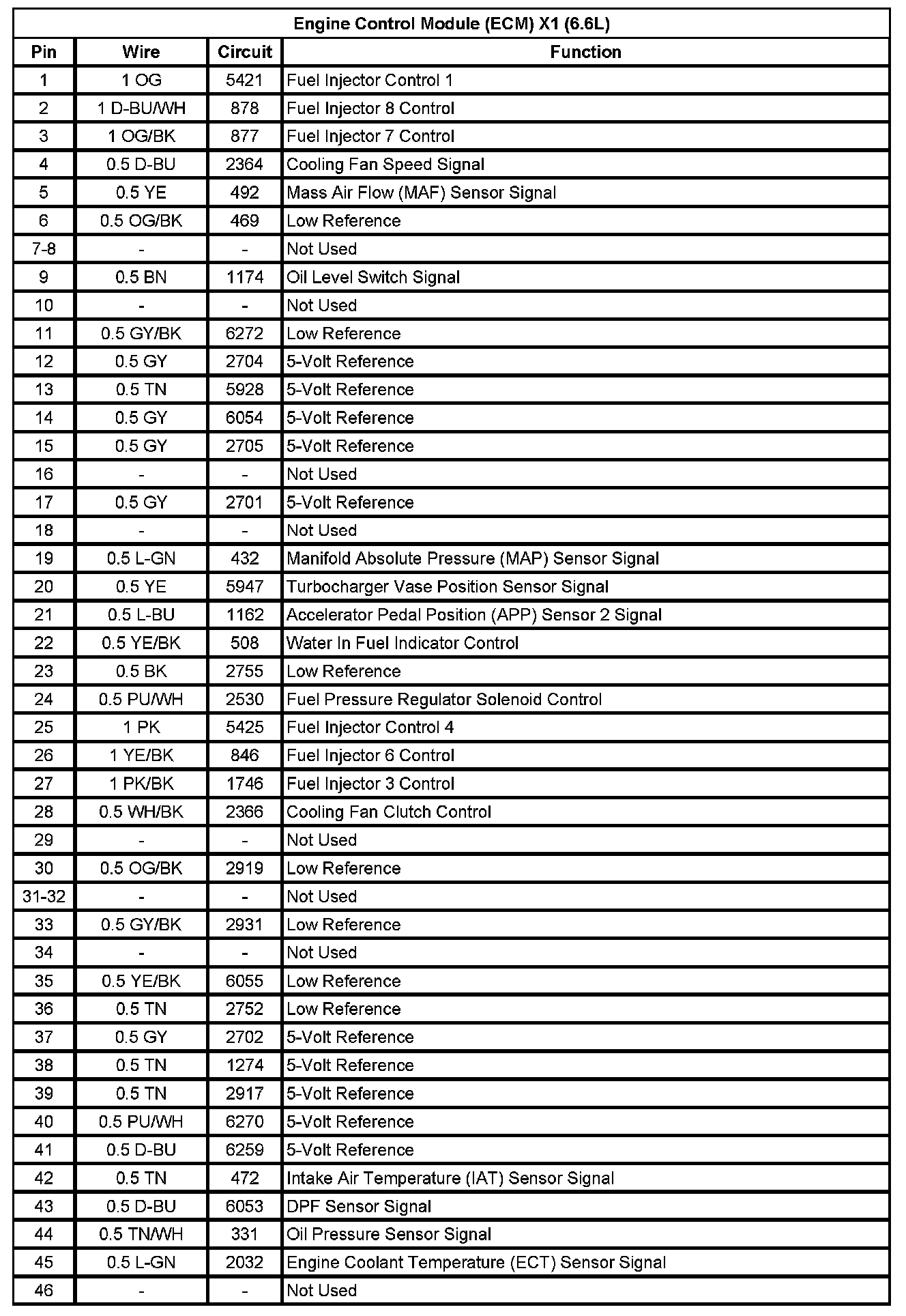

Engine Control Module (ECM) X1 (6.6L) (Pin 1 To 46):

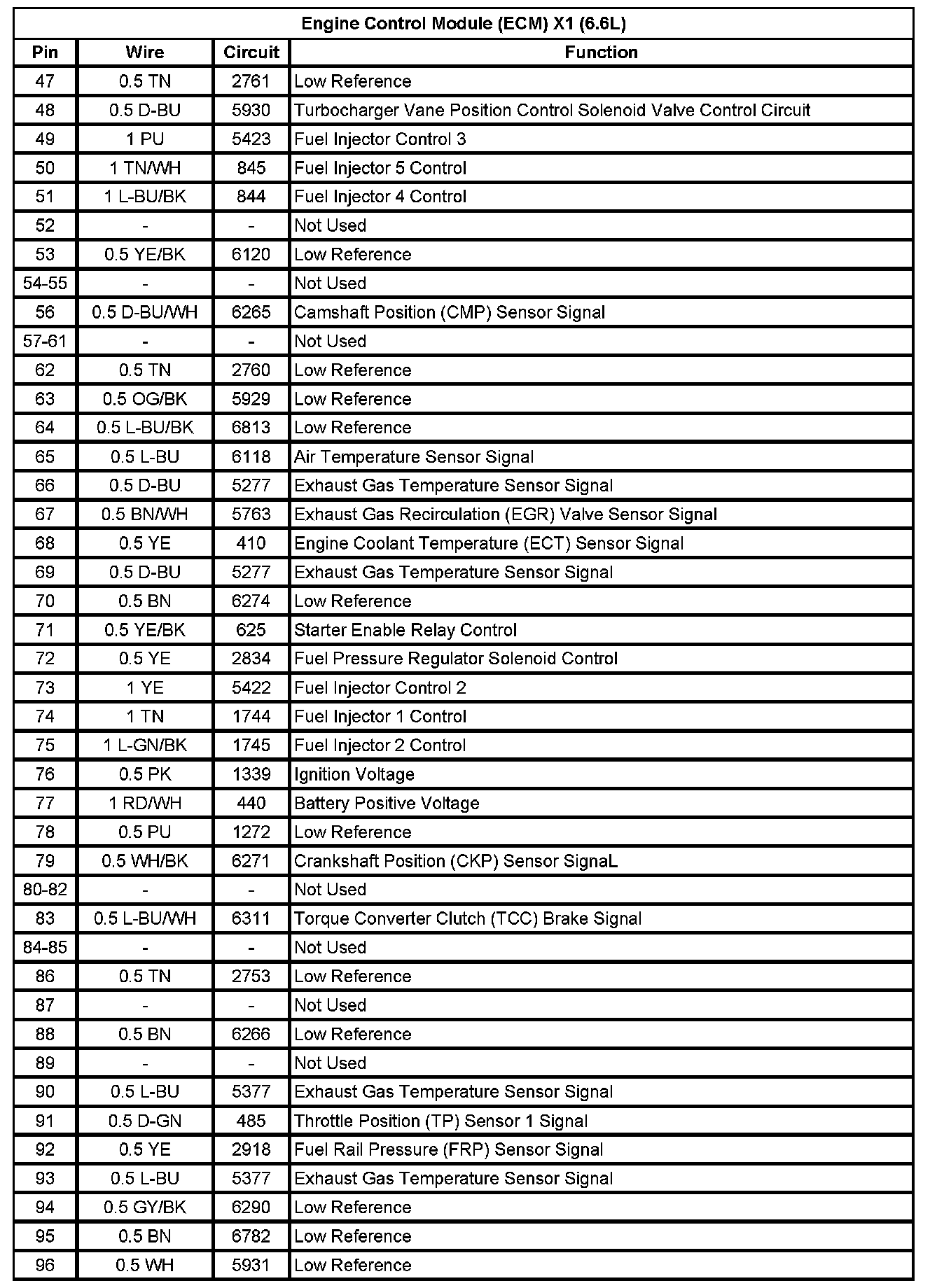

Engine Control Module (ECM) X1 (6.6L) (Pin 47 To 96):

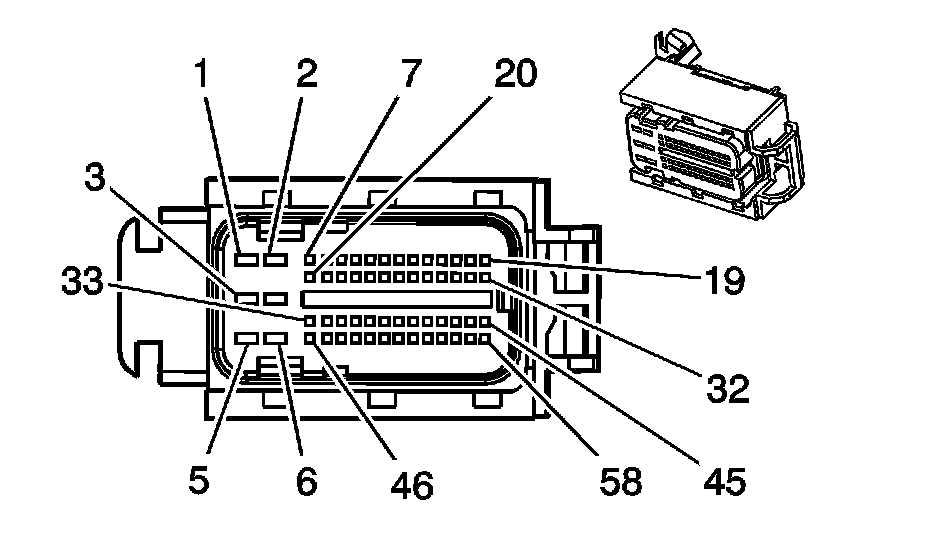

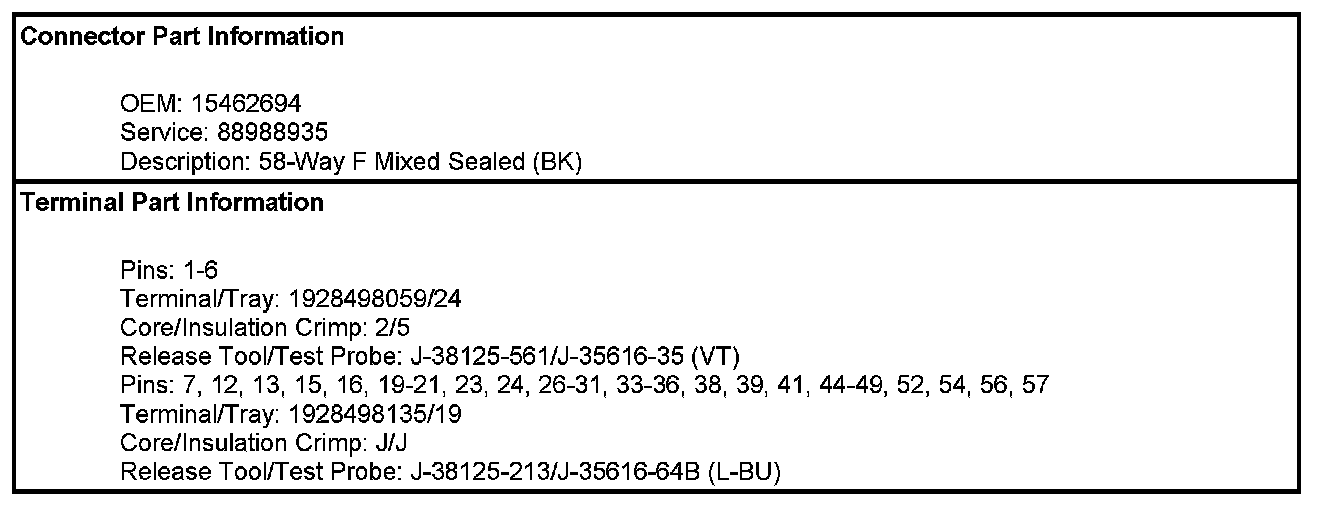

Engine Control Module (ECM) X2 (6.6L)

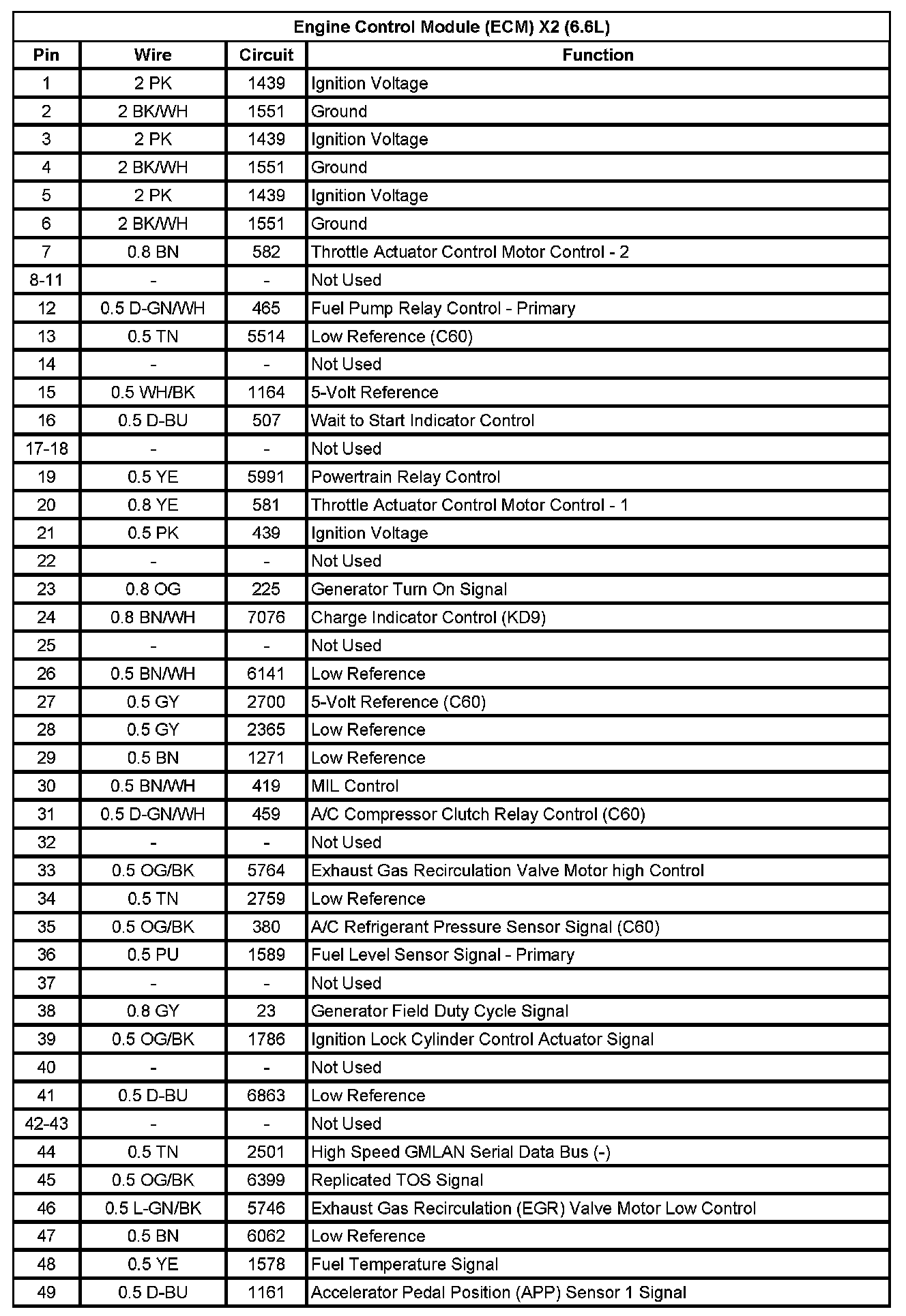

Engine Control Module (ECM) X2 (6.6L) (Pin 1 To 49):

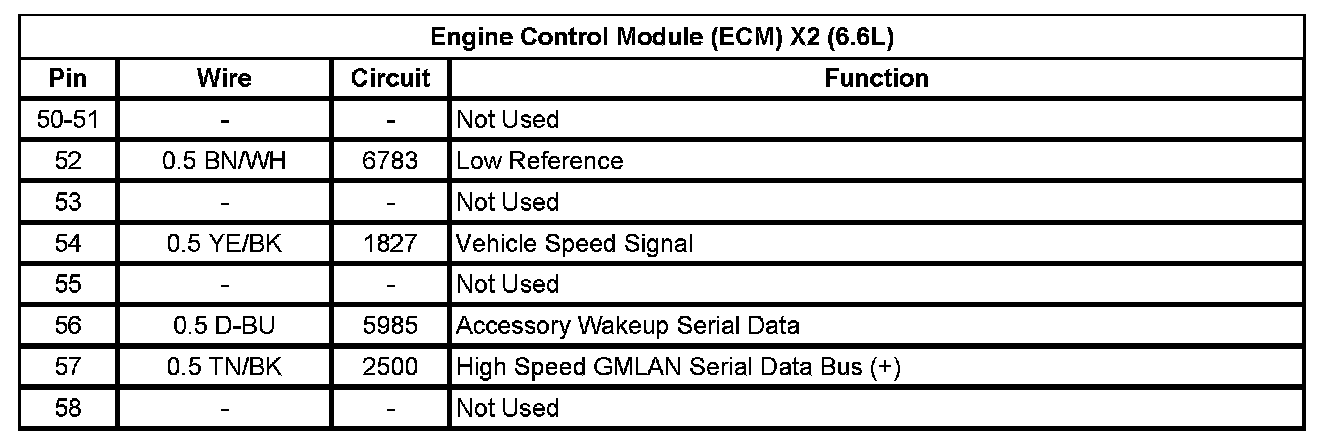

Engine Control Module (ECM) X2 (6.6L) (Pin 50 To 58):
