Air Flow Meter/Sensor: Service and Repair

Mass Airflow Sensor/Intake Air Temperature Sensor Replacement

Removal Procedure

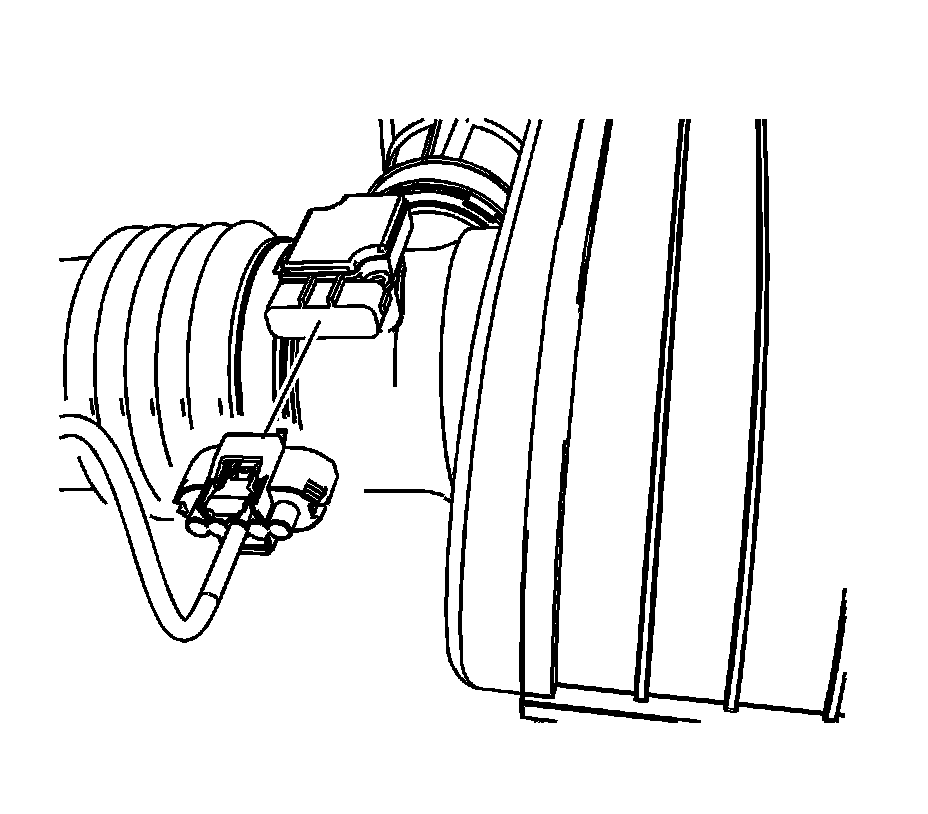

1. Disconnect the mass air flow (MAF)/intake air temperature (IAT) sensor electrical connector.

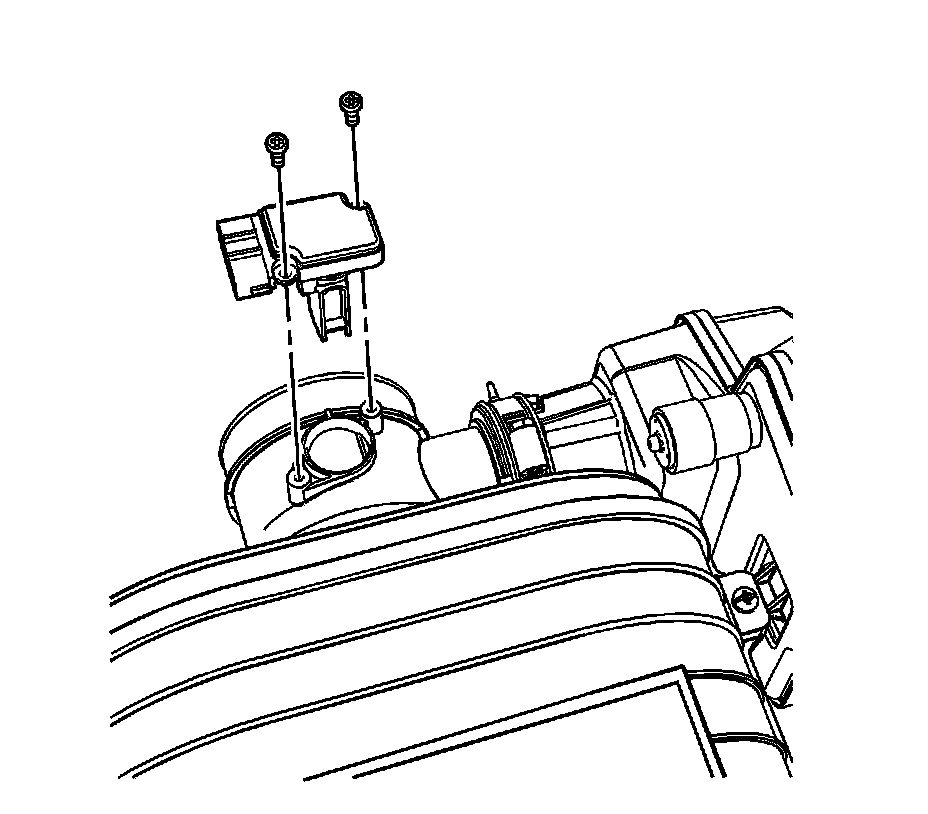

2. Remove the MAF/IAT sensor TORX(R) screws.
3. Remove the MAF/IAT sensor.

Installation Procedure




1. Install the MAF/IAT sensor.

Notice: Refer to Fastener Notice.

2. Install the MAF/IAT sensor TORX(R) screws.

Tighten the screws to 8 N.m (70 lb in).




3. Connect the MAF/IAT sensor electrical connector.
