Control Module, A/T



Component Connector End Views - Continued

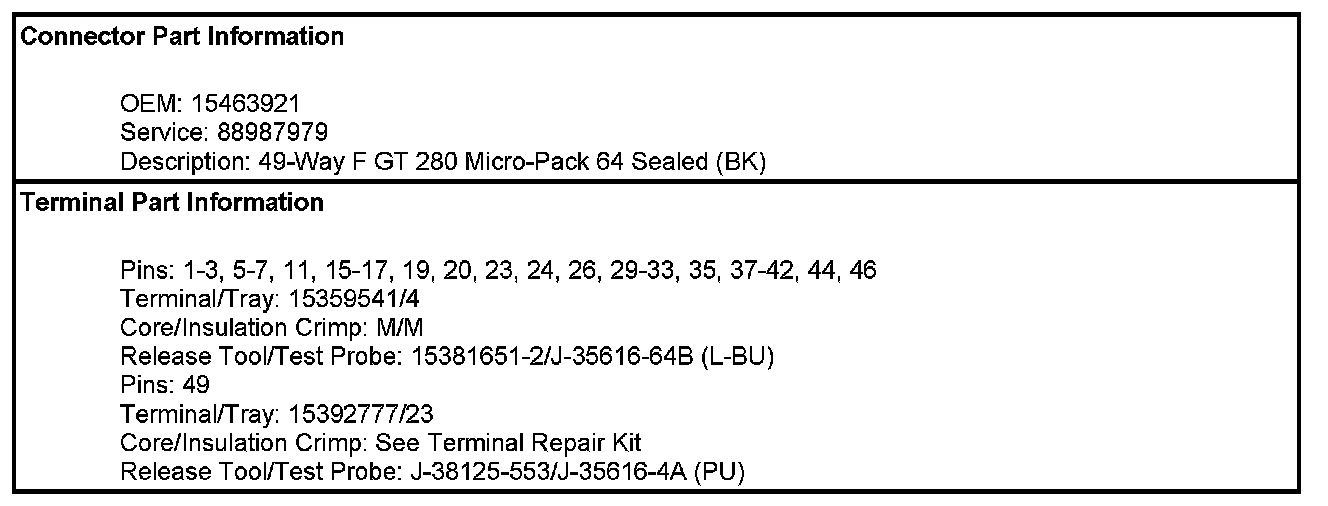

Transmission Control Module (TCM) (Diesel)

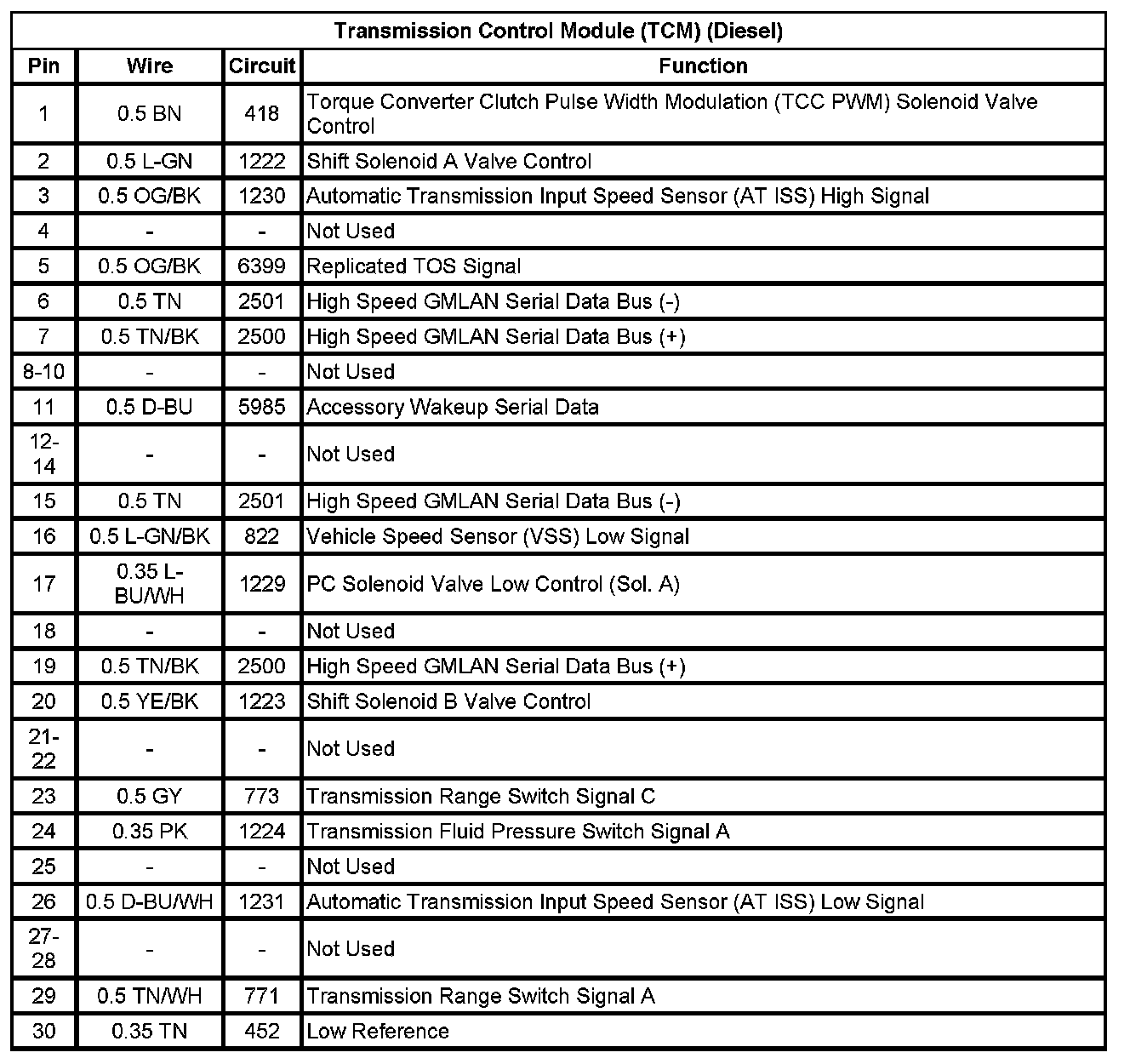

Transmission Control Module (TCM) (Diesel) (Pin 1 To 30):

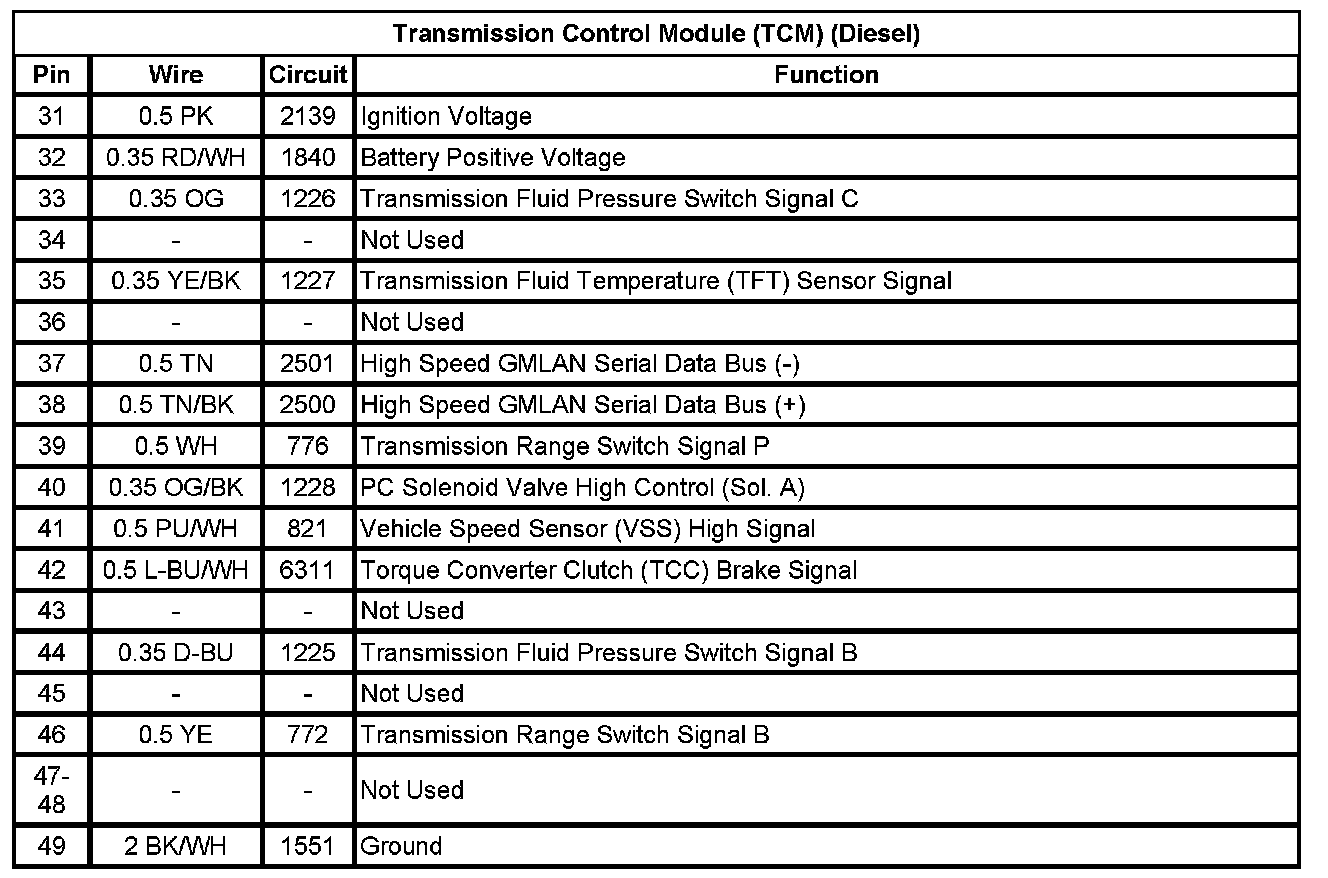

Transmission Control Module (TCM) (Diesel) (Pin 31 To 49):
