Accelerator Pedal Position Sensor: Diagrams

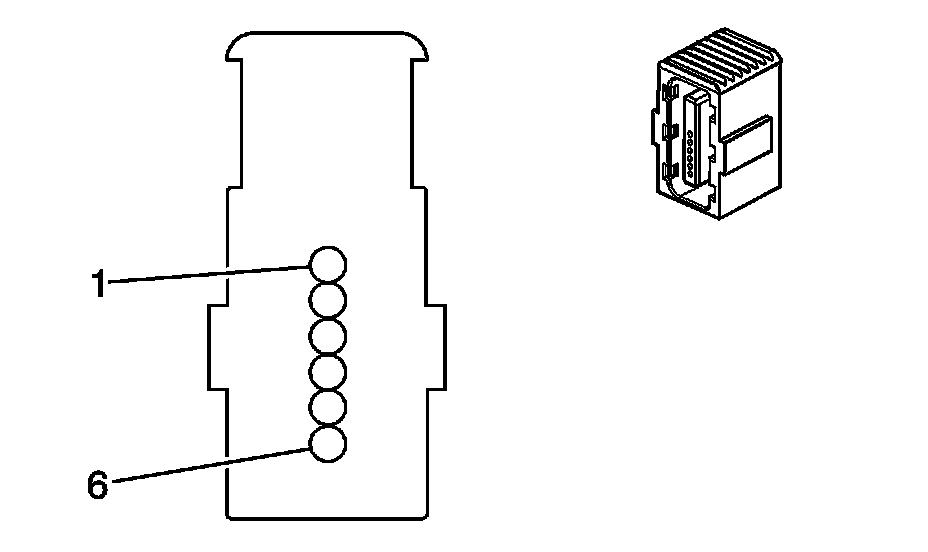

Component Connector End Views

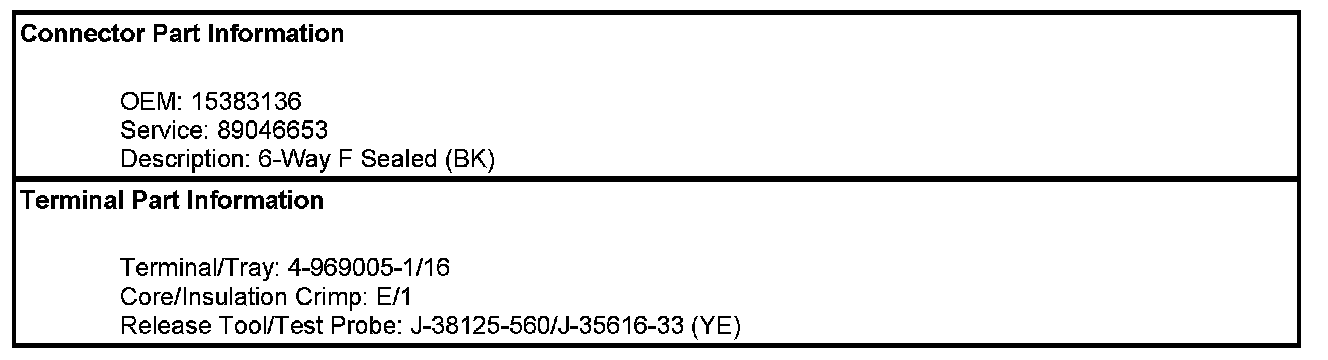

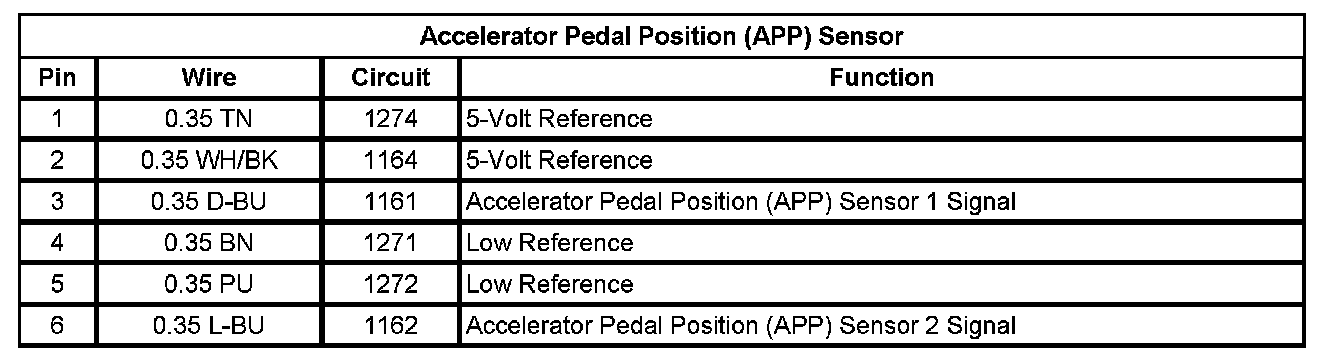

Accelerator Pedal Position (APP) Sensor
