Home >> Chevrolet >> 2008 >> Express 2500 V8-4.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Traction Control Switch

Traction Control Switch



Component Connector End Views - Continued

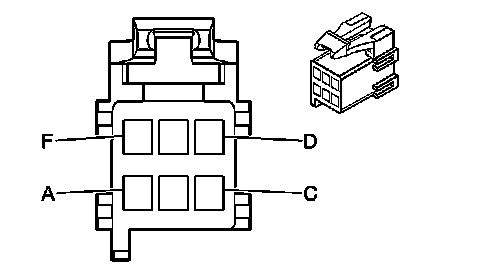

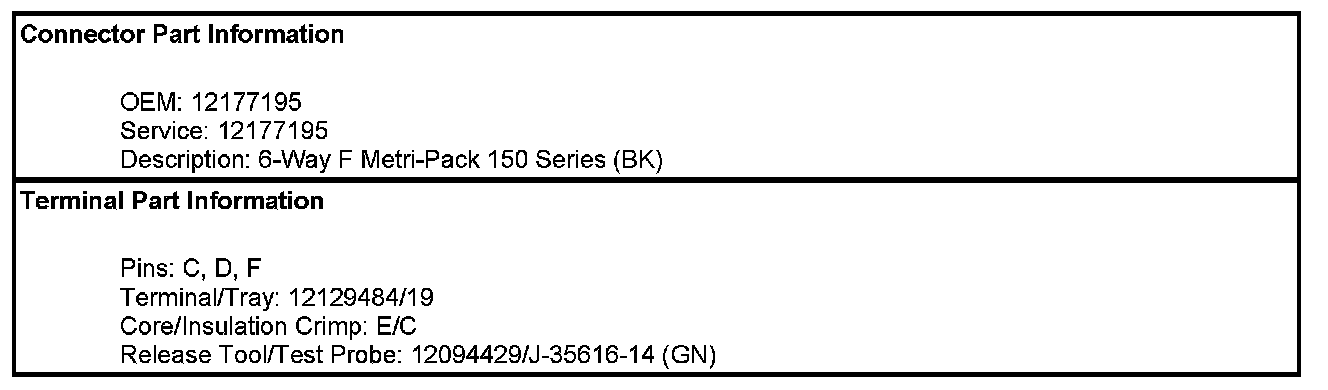

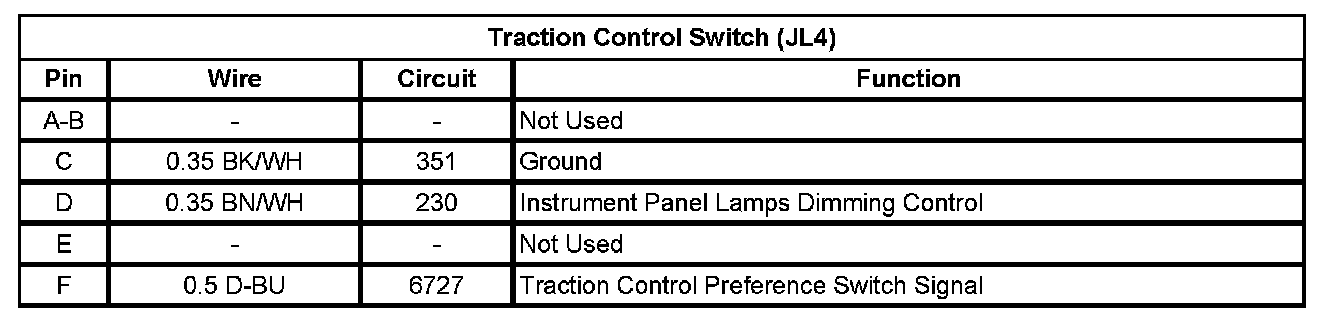

Traction Control Switch (JL4)
