Impact Sensor

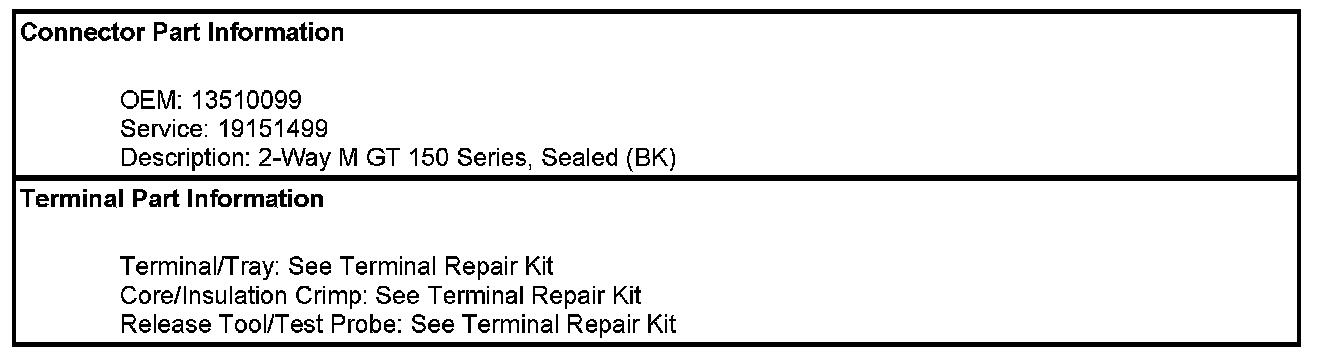

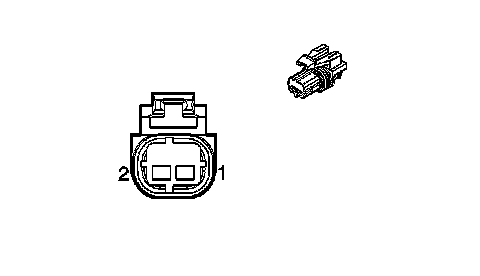

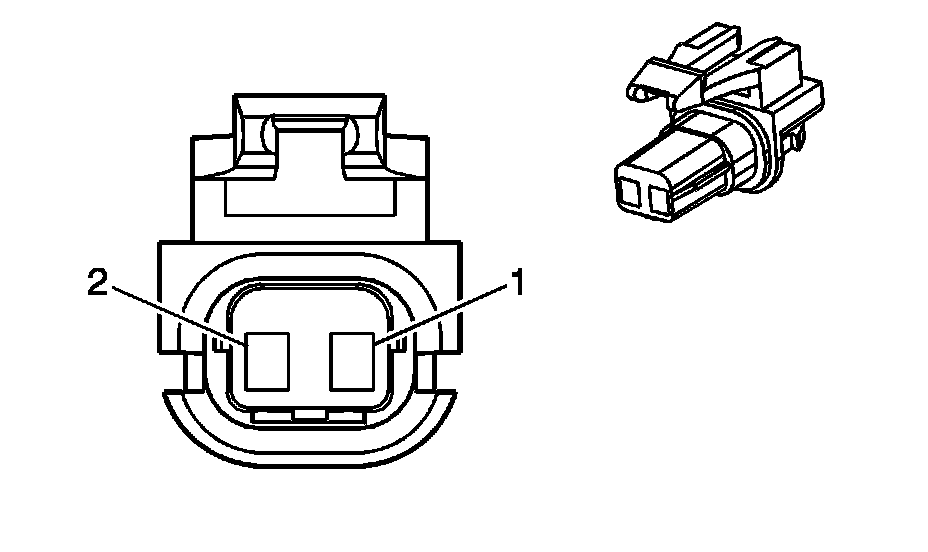

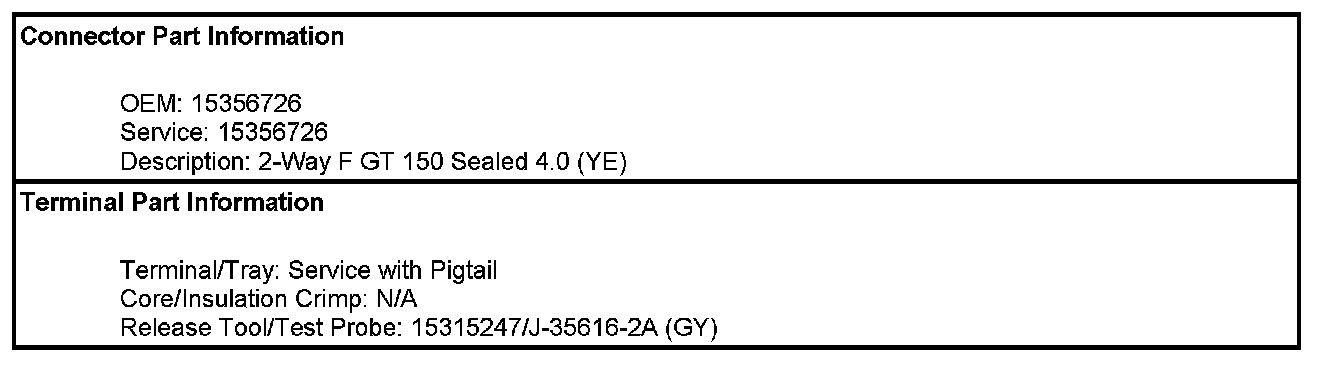

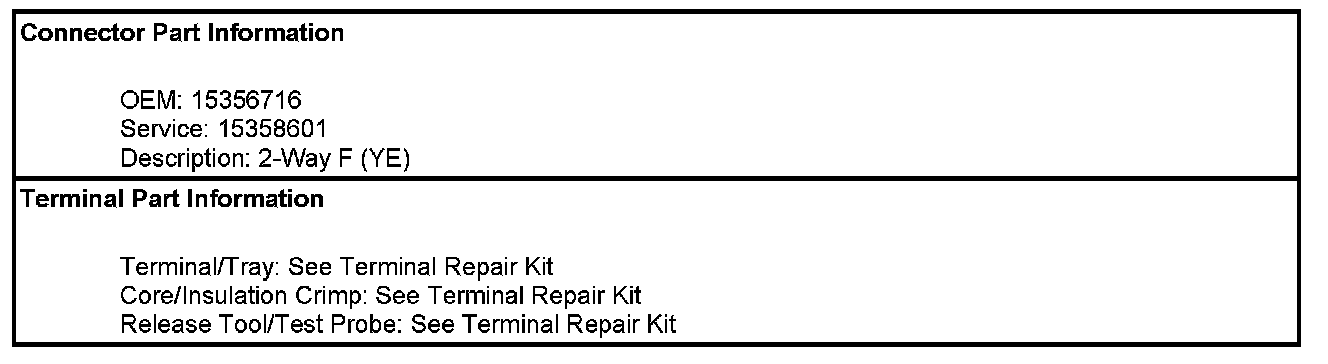

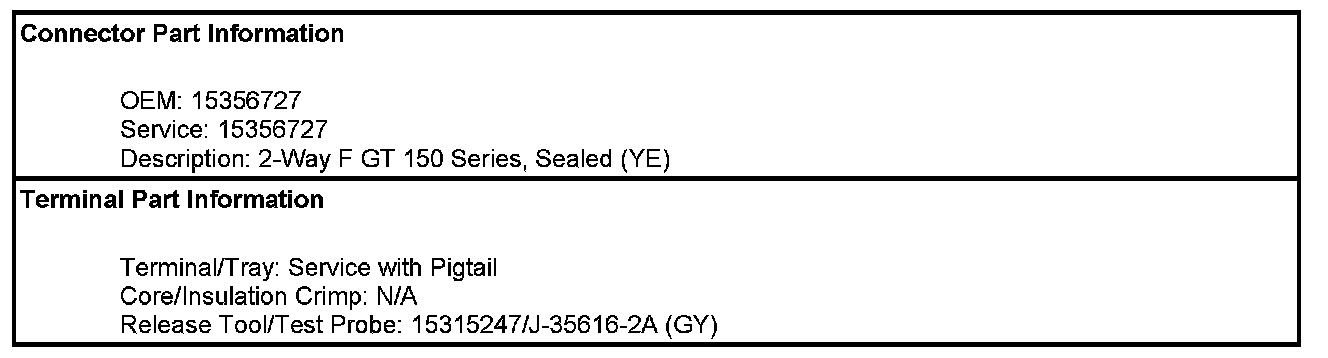

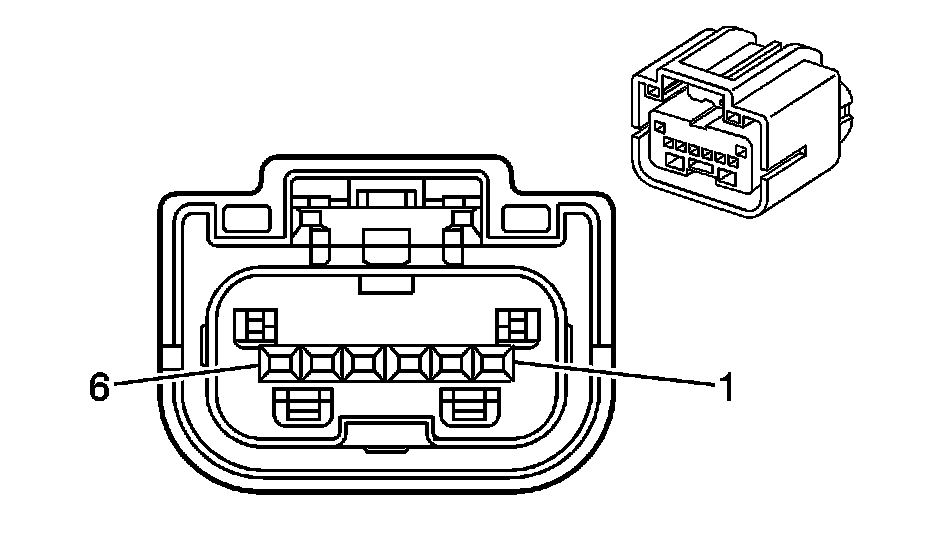

Component Connector End Views

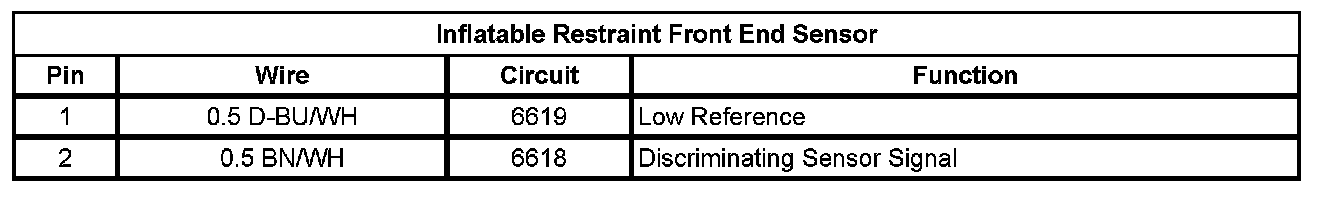

Inflatable Restraint Front End Sensor

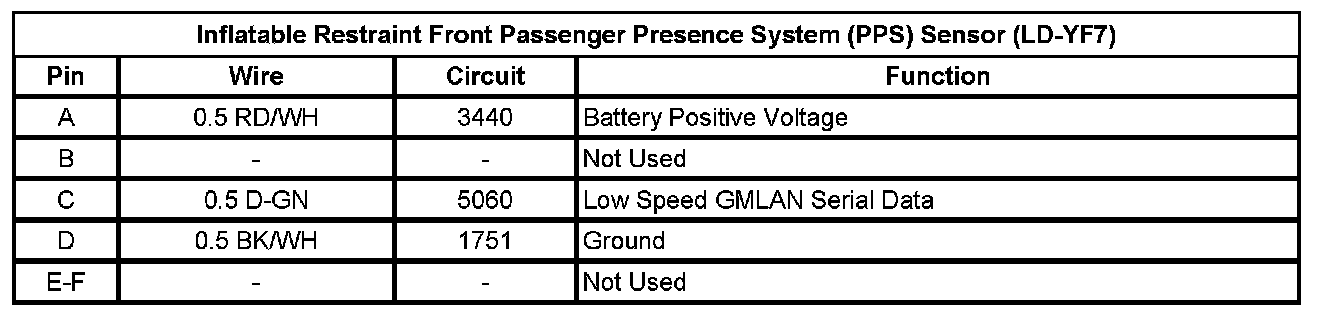

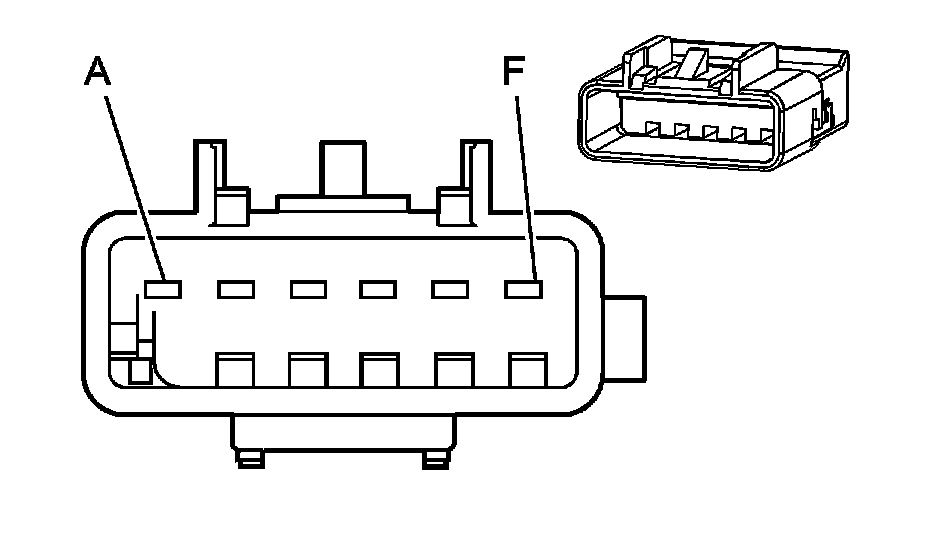

Inflatable Restraint Front Passenger Presence System (PPS) Sensor (LD-YF7)

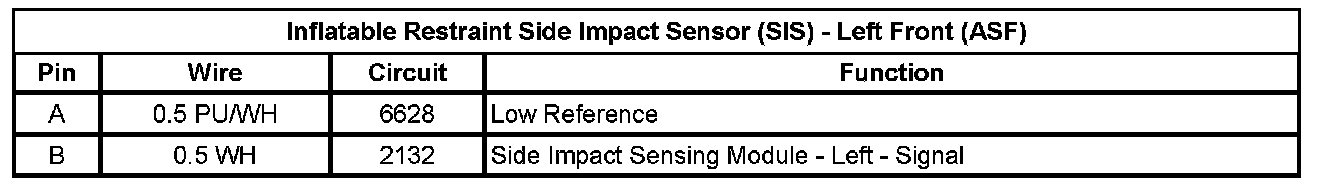

Inflatable Restraint Side Impact Sensor (SIS) - Left Front (ASF)

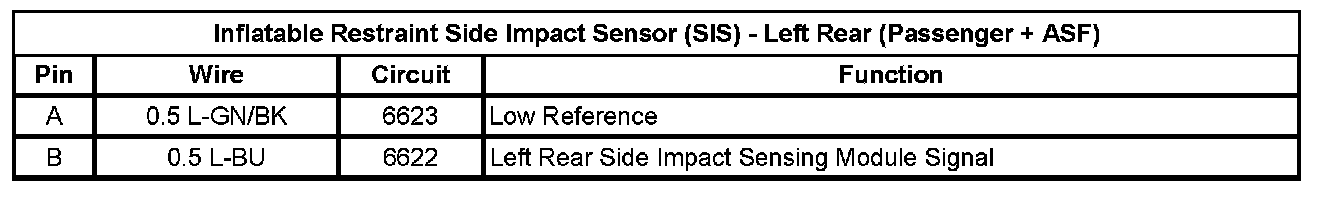

Inflatable Restraint Side Impact Sensor (SIS) - Left Rear (Passenger +ASF)

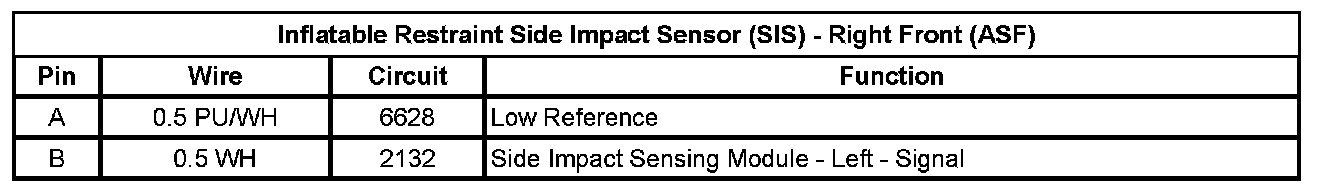

Inflatable Restraint Side Impact Sensor (SIS) - Right Front (ASF)

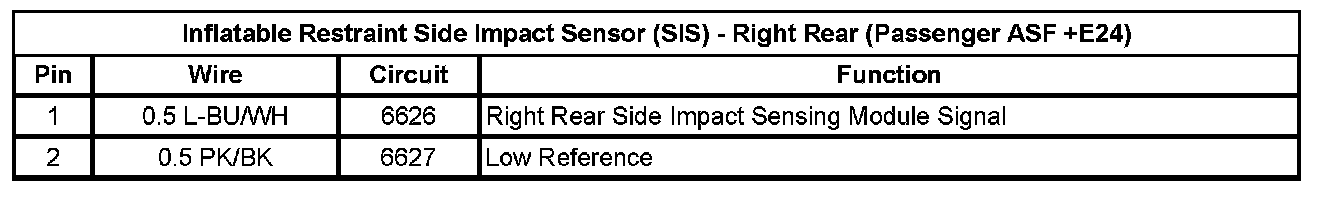

Inflatable Restraint Side Impact Sensor (SIS) - Right Rear (Passenger ASF +E24)

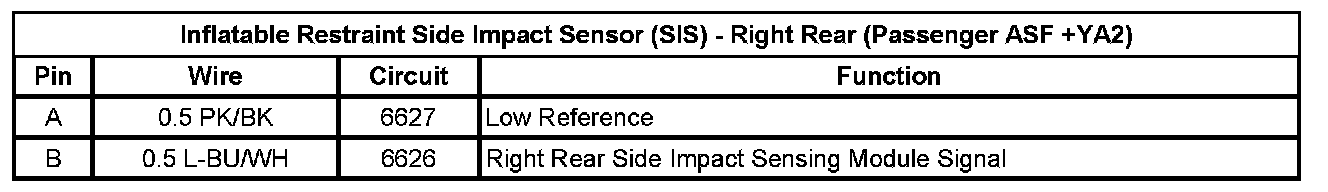

Inflatable Restraint Side Impact Sensor (SIS) - Right Rear (Passenger ASF +YA2)

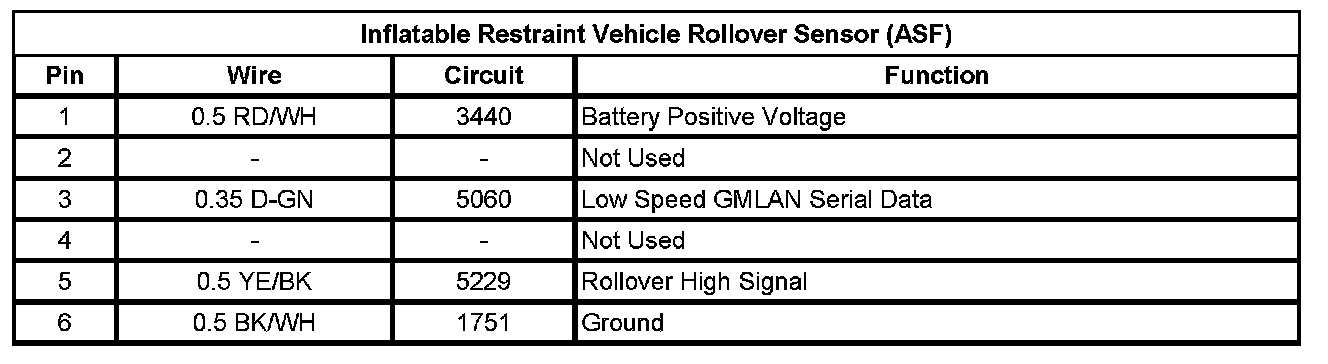

Inflatable Restraint Vehicle Rollover Sensor (ASF)
