Electronic Brake Control Module



Component Connector End Views

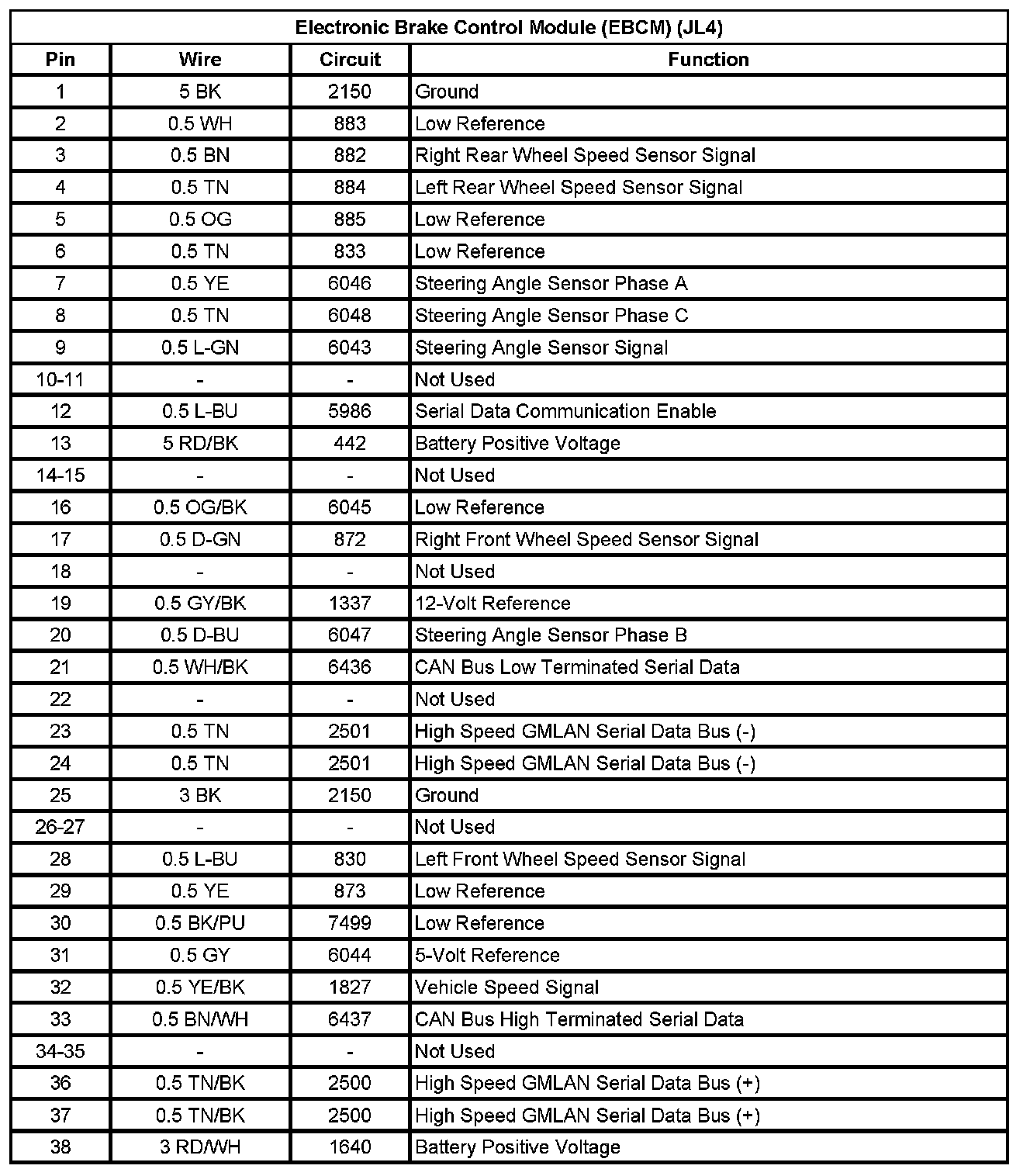

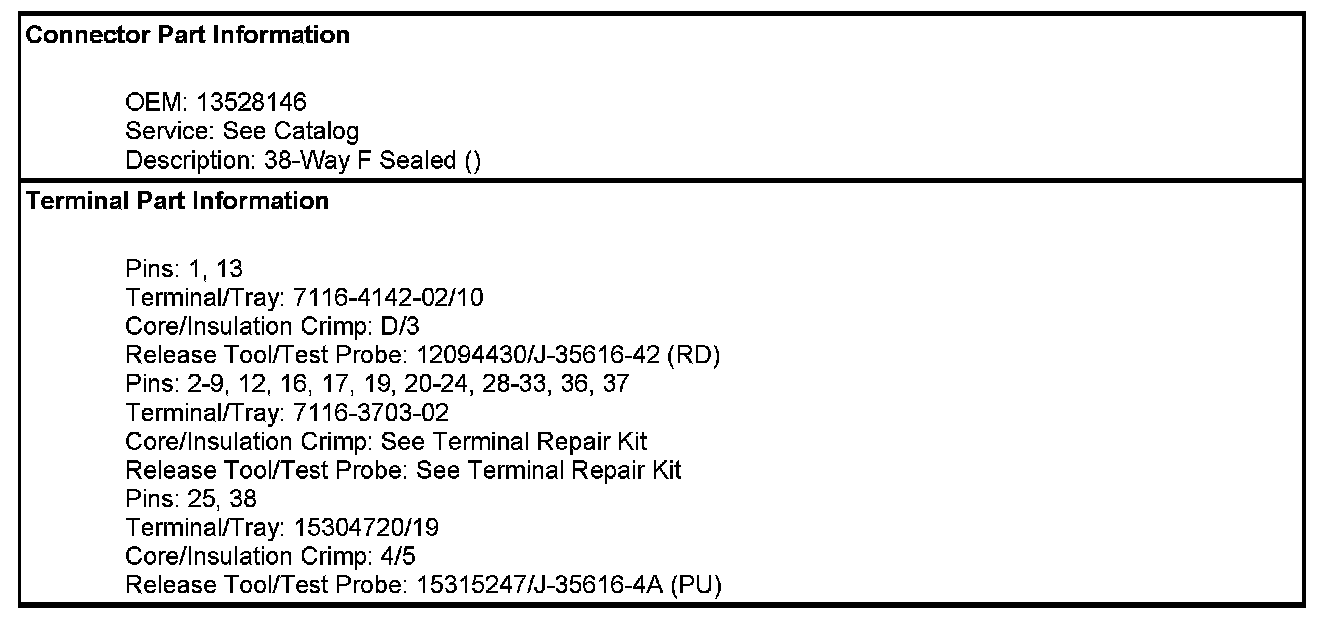

Electronic Brake Control Module (EBCM) (JL4)

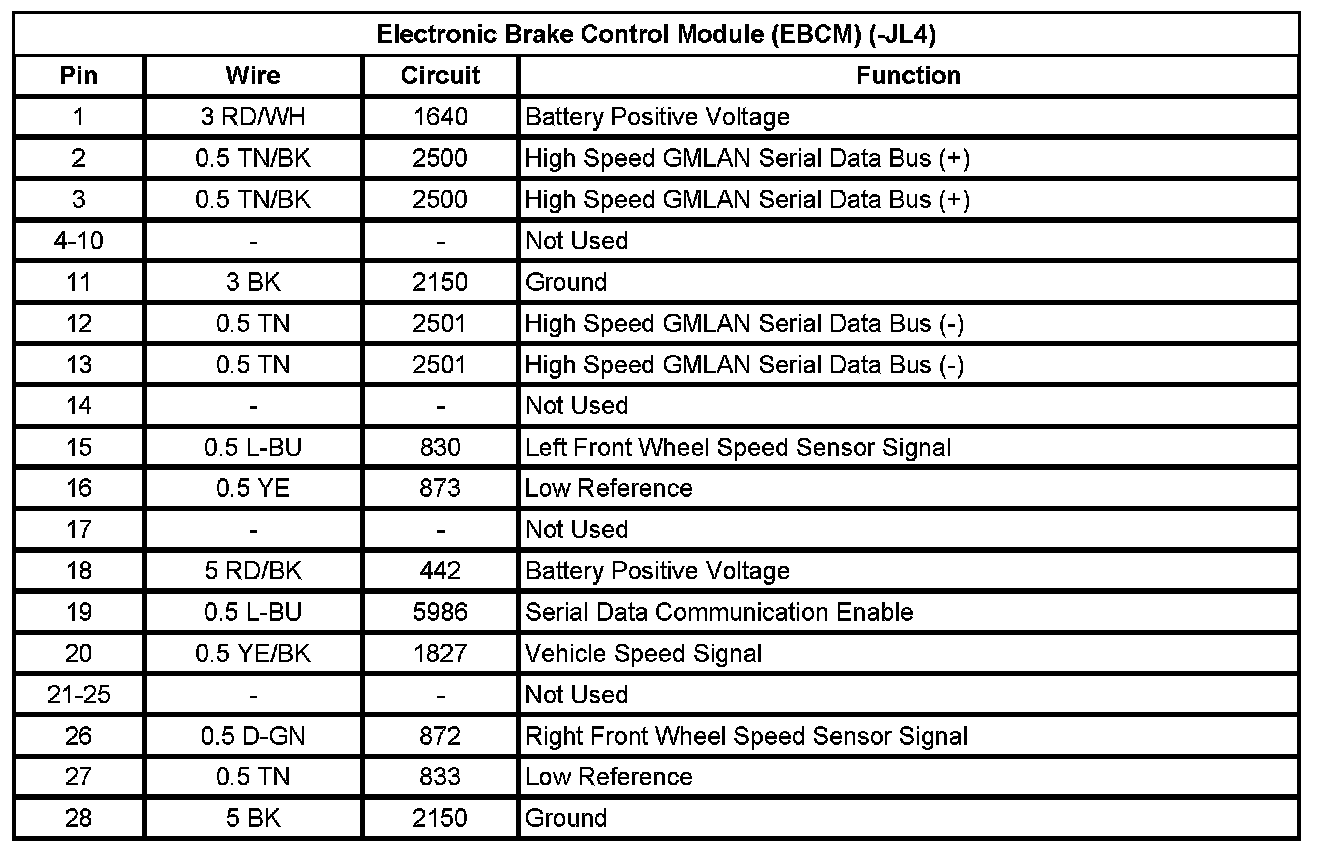

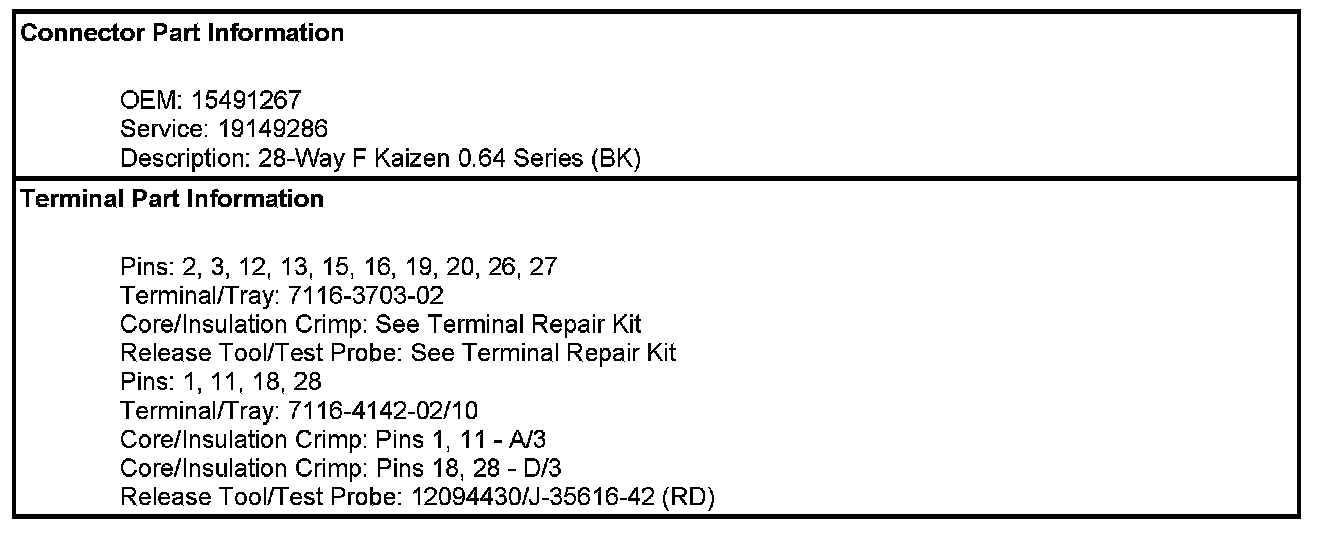

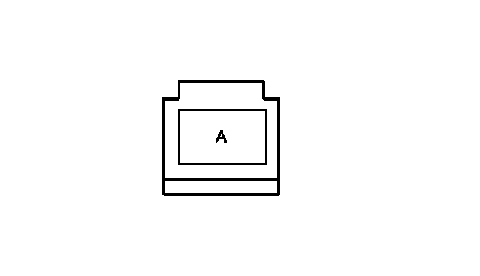

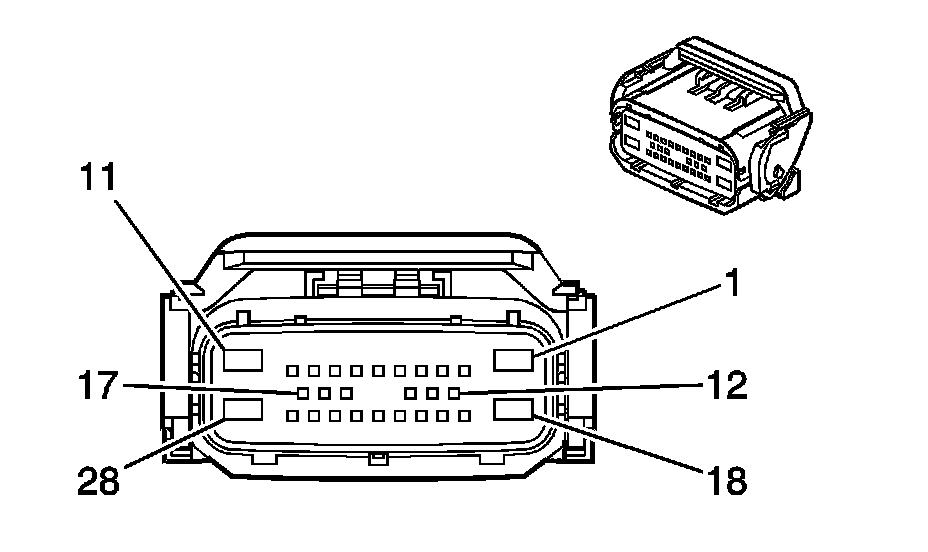

Electronic Brake Control Module (EBCM) (-JL4)
