Control Module HVAC
Component Connector End Views

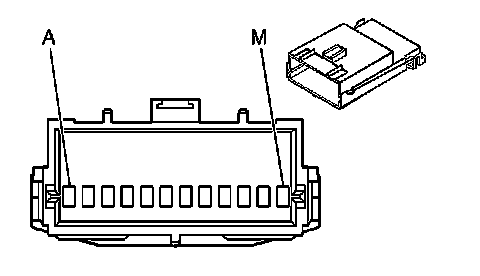

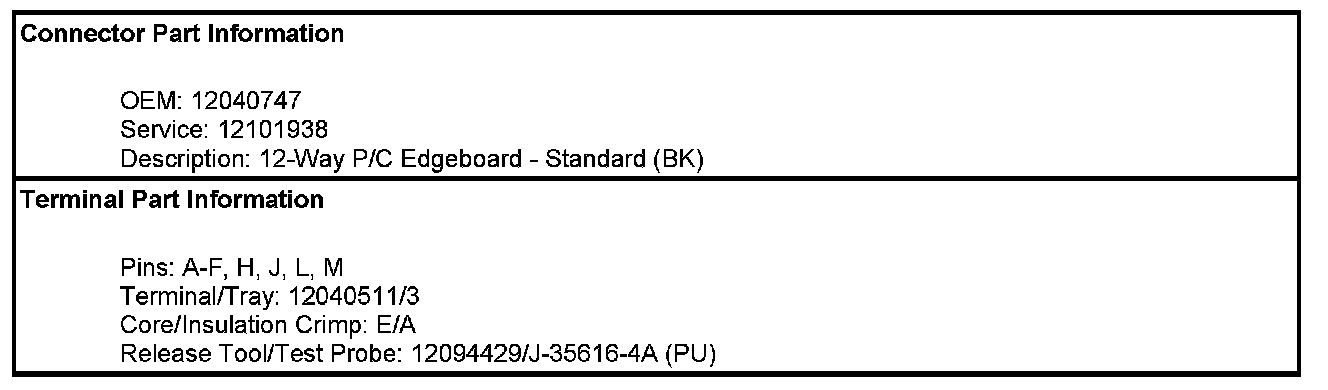

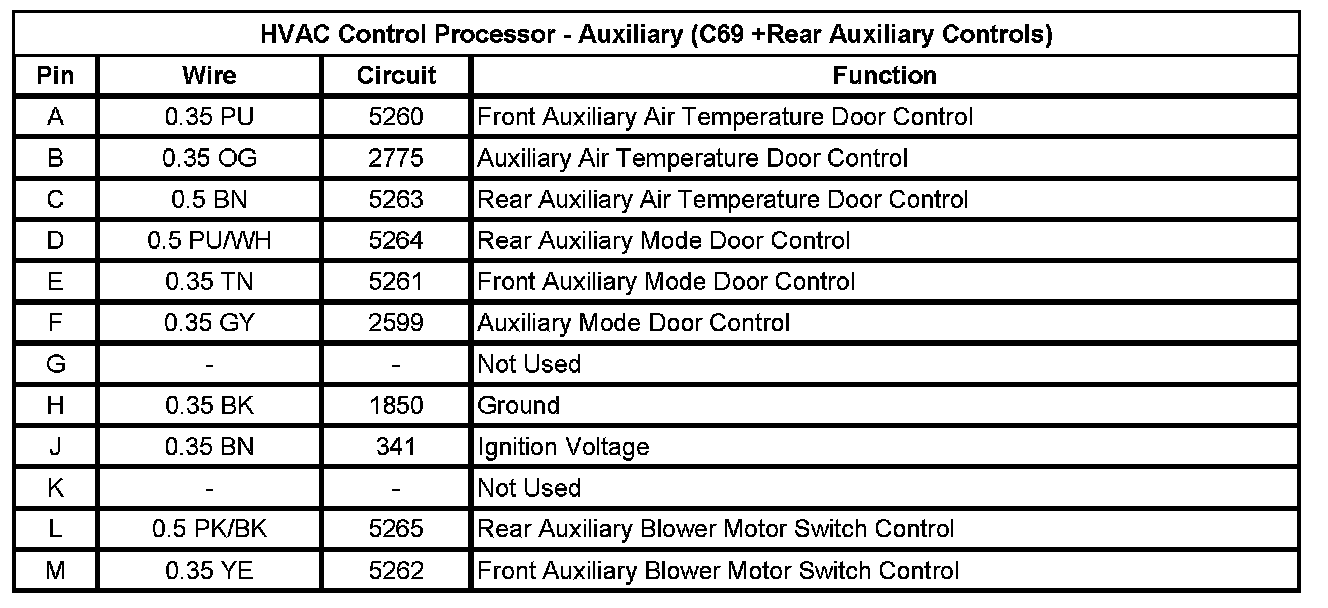

HVAC Control Processor - Auxiliary (C69+YF7/SWB Passenger)
