Home >> Chevrolet >> 2008 >> Express 2500 V8-4.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Combination Switch

Combination Switch



Component Connector End Views - Continued

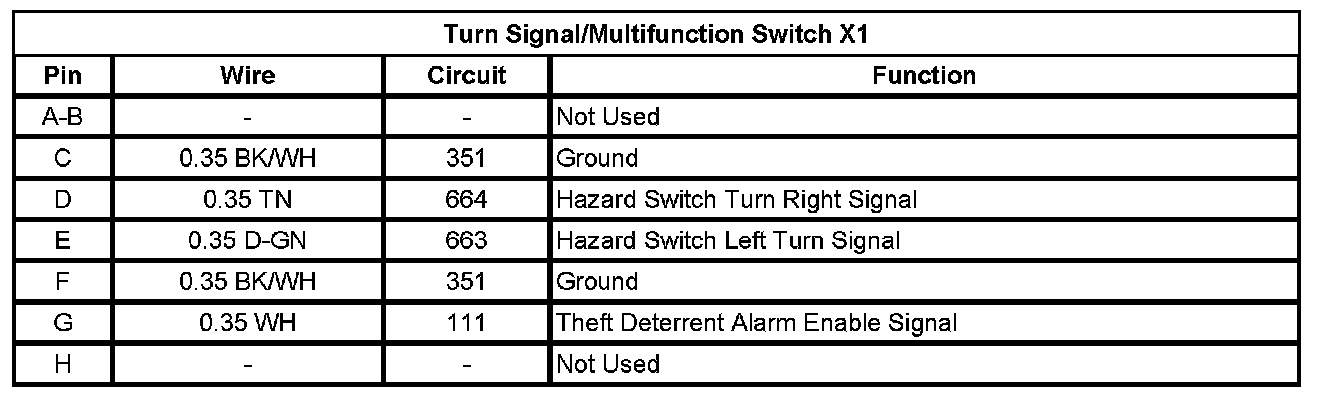

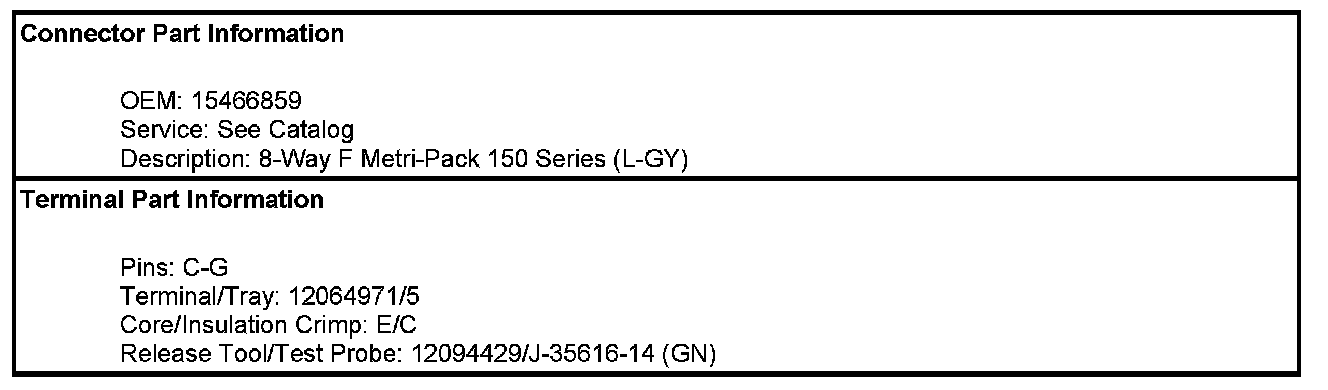

Turn Signal/Multifunction Switch X1

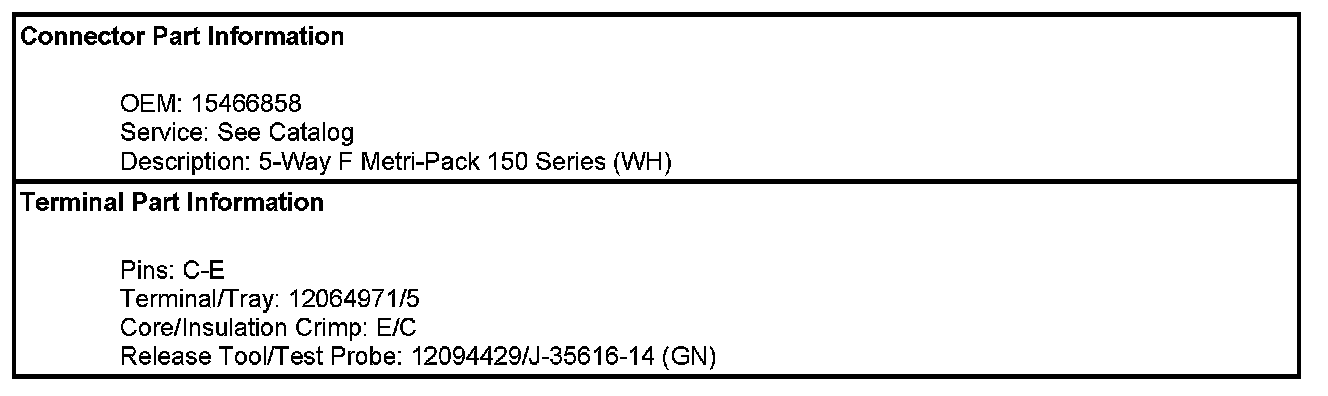

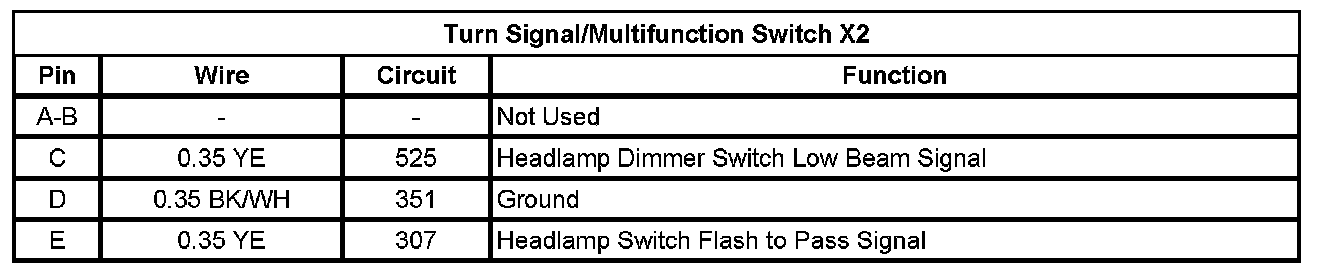

Turn Signal/Multifunction Switch X2

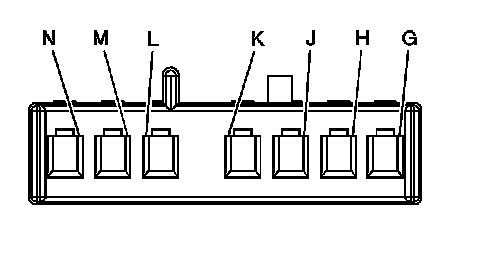

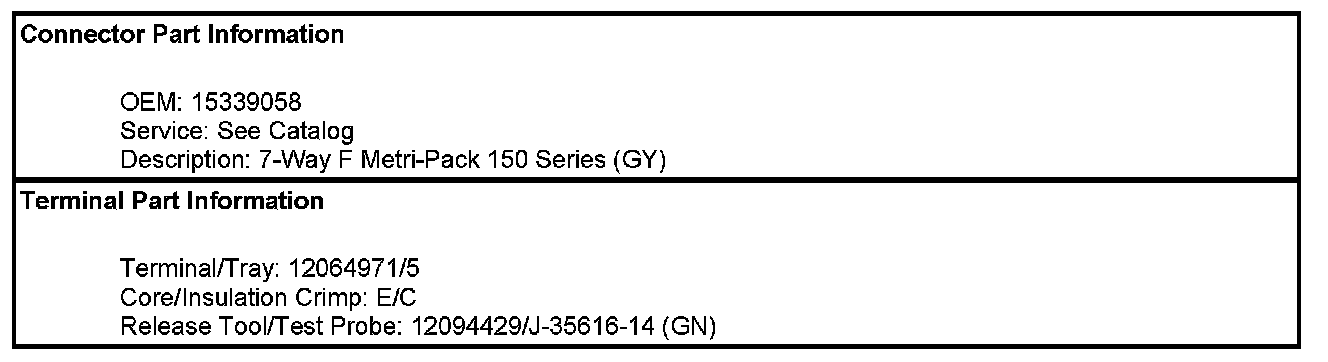

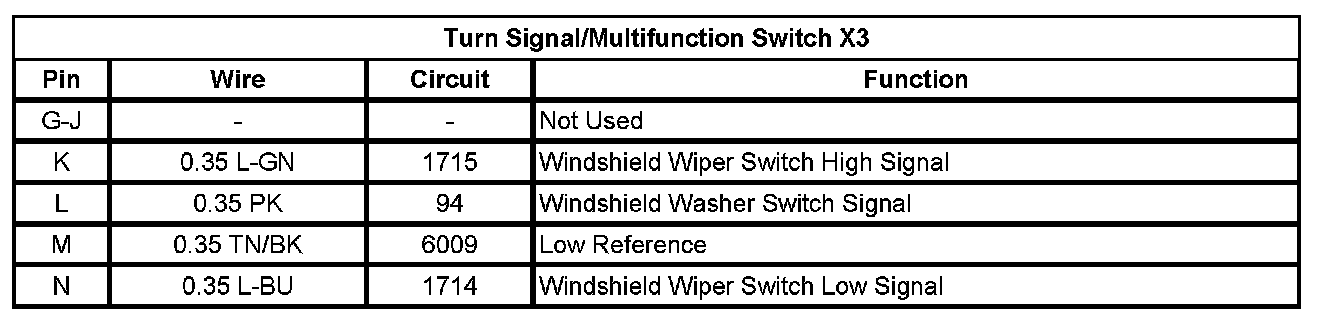

Turn Signal/Multifunction Switch X3
