Alarm Module, (Vehicle Antitheft)
Alarm Module, (Vehicle Antitheft)

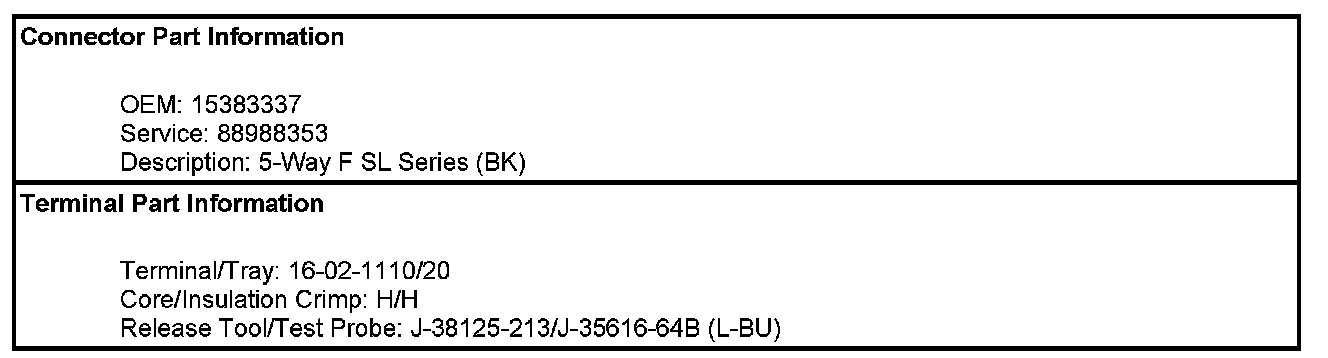

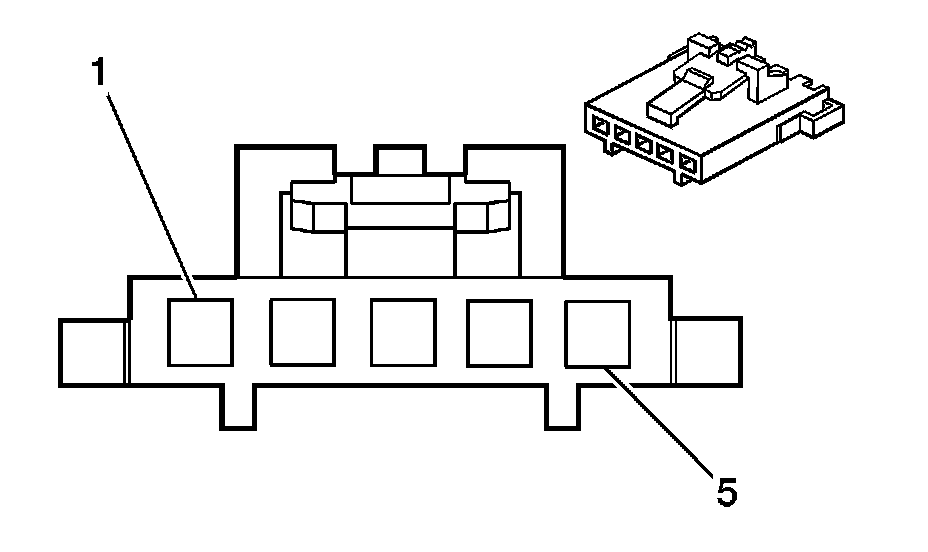

Component Connector End Views - Continued

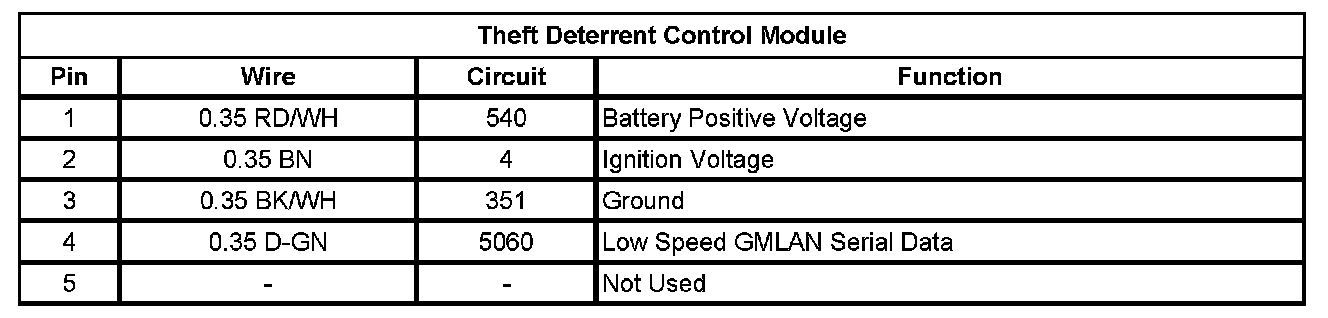

Theft Deterrent Control Module
