Intake Manifold

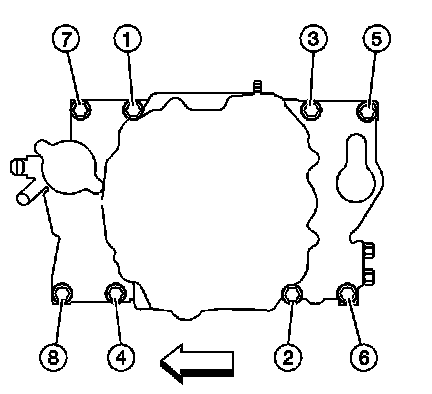

Lower Intake Manifold Bolt
First Pass in Sequence 3 N.m (27 lb in)
Second Pass in Sequence 12 N.m (106 lb in)
Final Pass in Sequence 15 N.m (11 lb ft)

Throttle Body Stud 9 N.m (80 lb in)

Upper Intake Manifold Stud
First Pass 5 N.m (44 lb in)
Final Pass 9 N.m (80 lb in)
