Ignition Control Module
Component Connector End Views - Continued

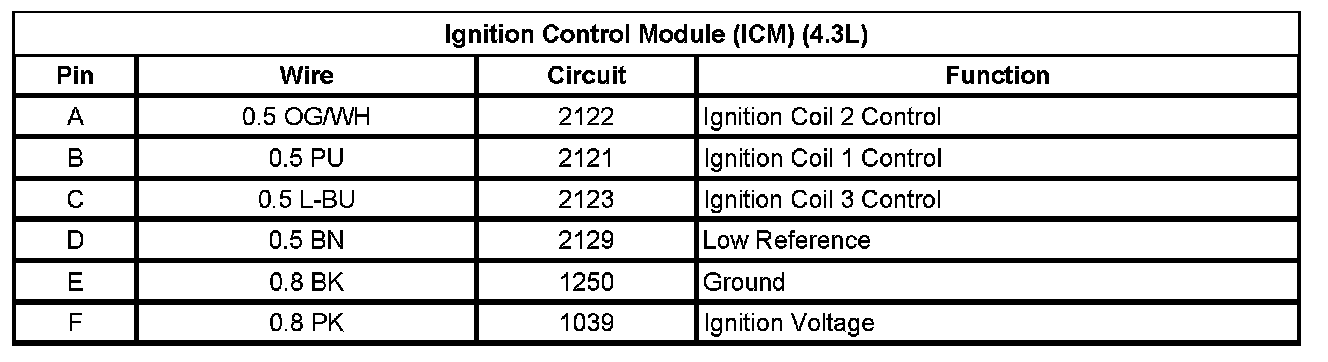

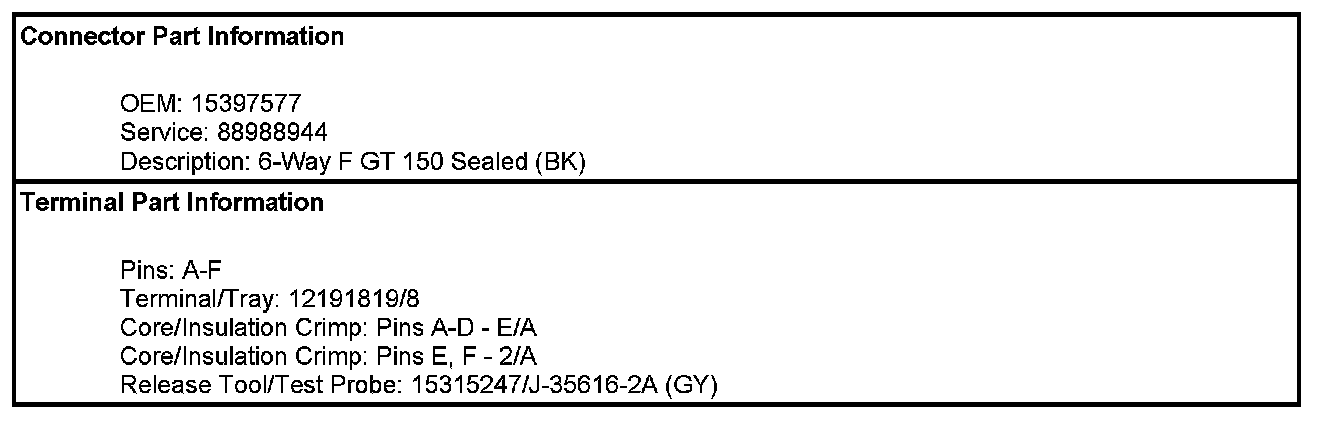

Ignition Control Module (ICM) (4.3L)
