Fuel Tank Pressure Sensor: Locations

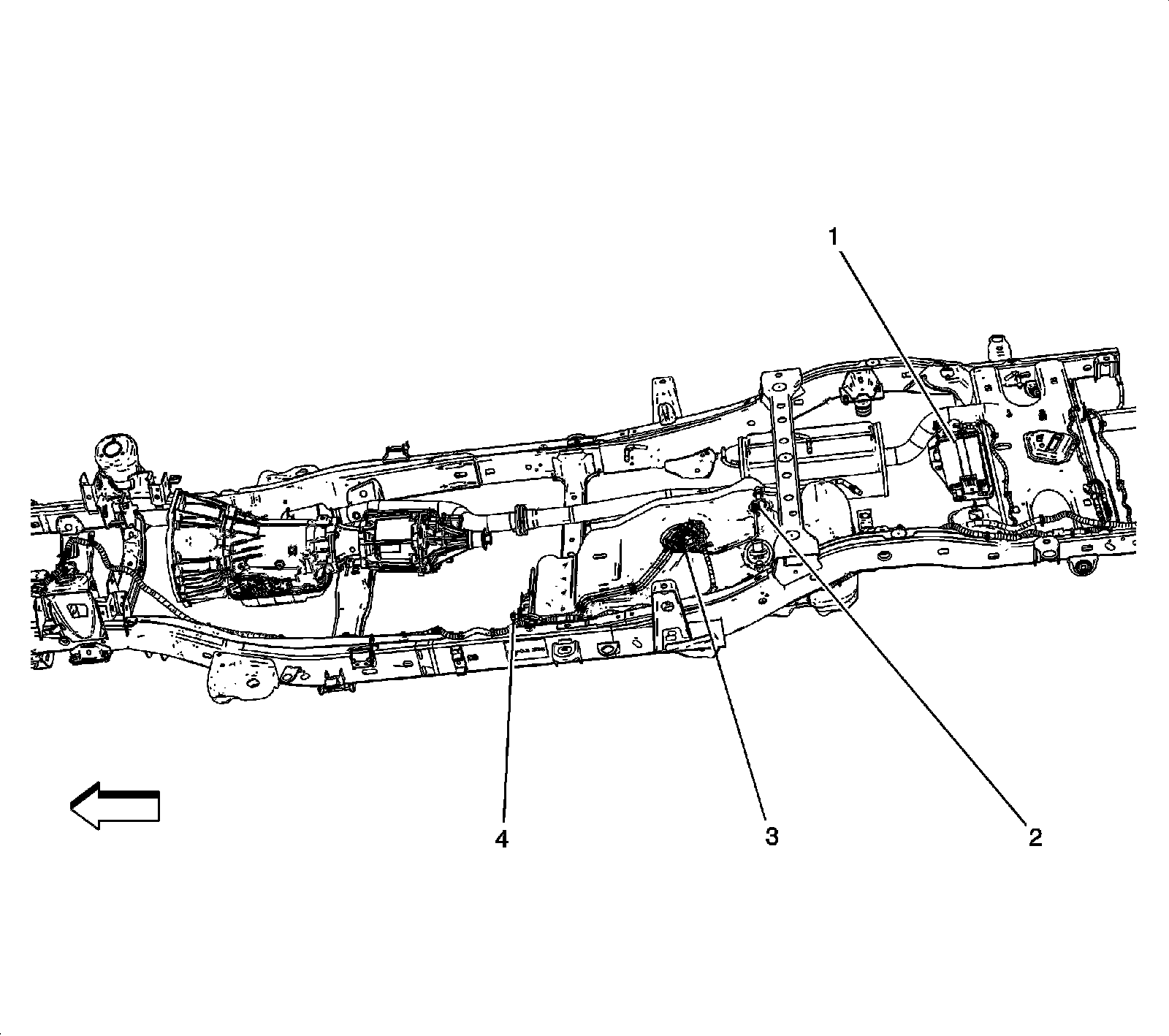

Rear of the Frame Components




1 - Evaporative Emission (EVAP) Canister Vent Solenoid
2 - Fuel Tank Pressure (FTP) Sensor
3 - Fuel Pump and Sender Assembly
4 - Fuel Pump
