Home >> Chevrolet >> 2008 >> Aveo L4-1.6L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Diagrams >> Engine Control Module Connector End Views (Hatchback)

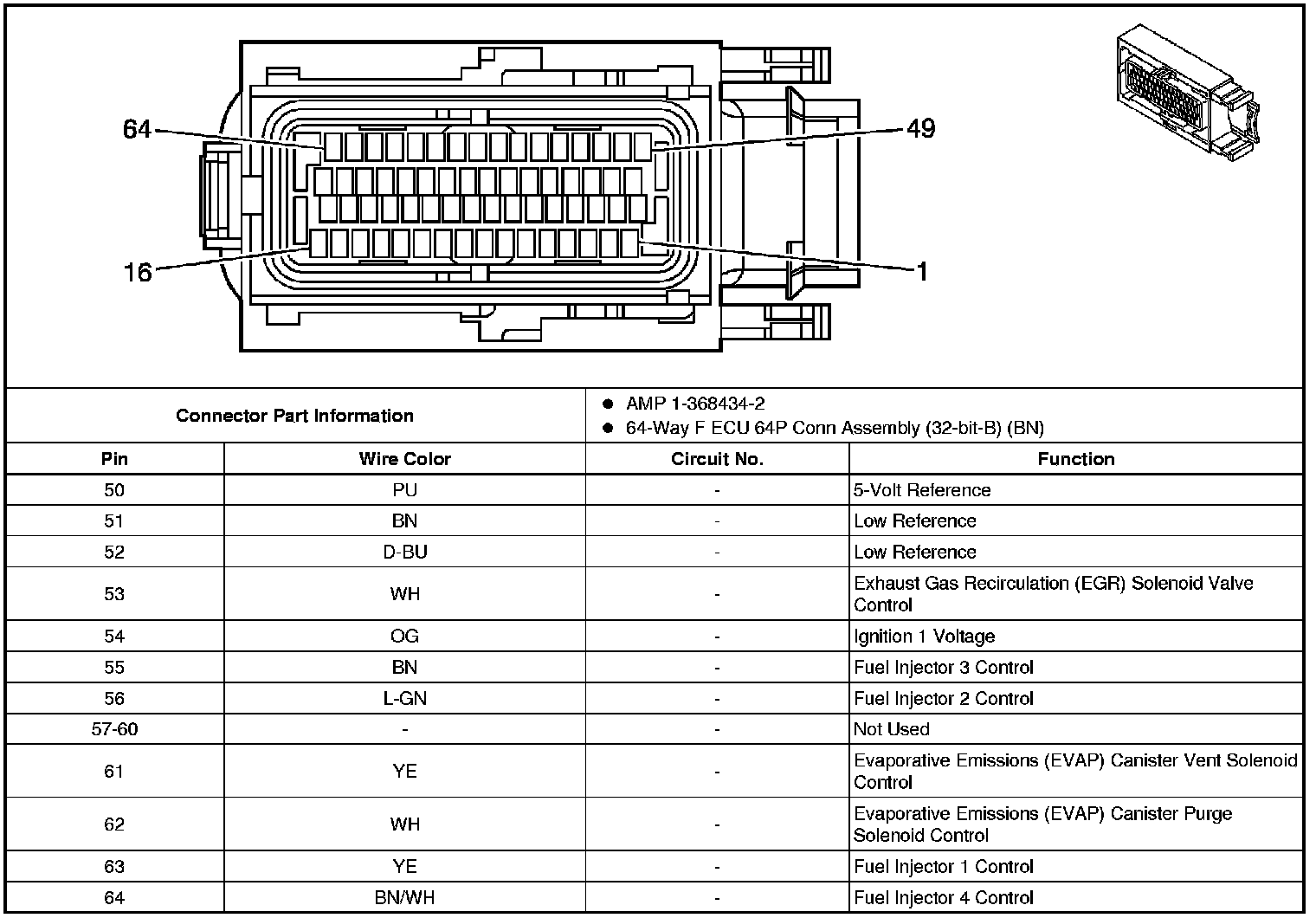

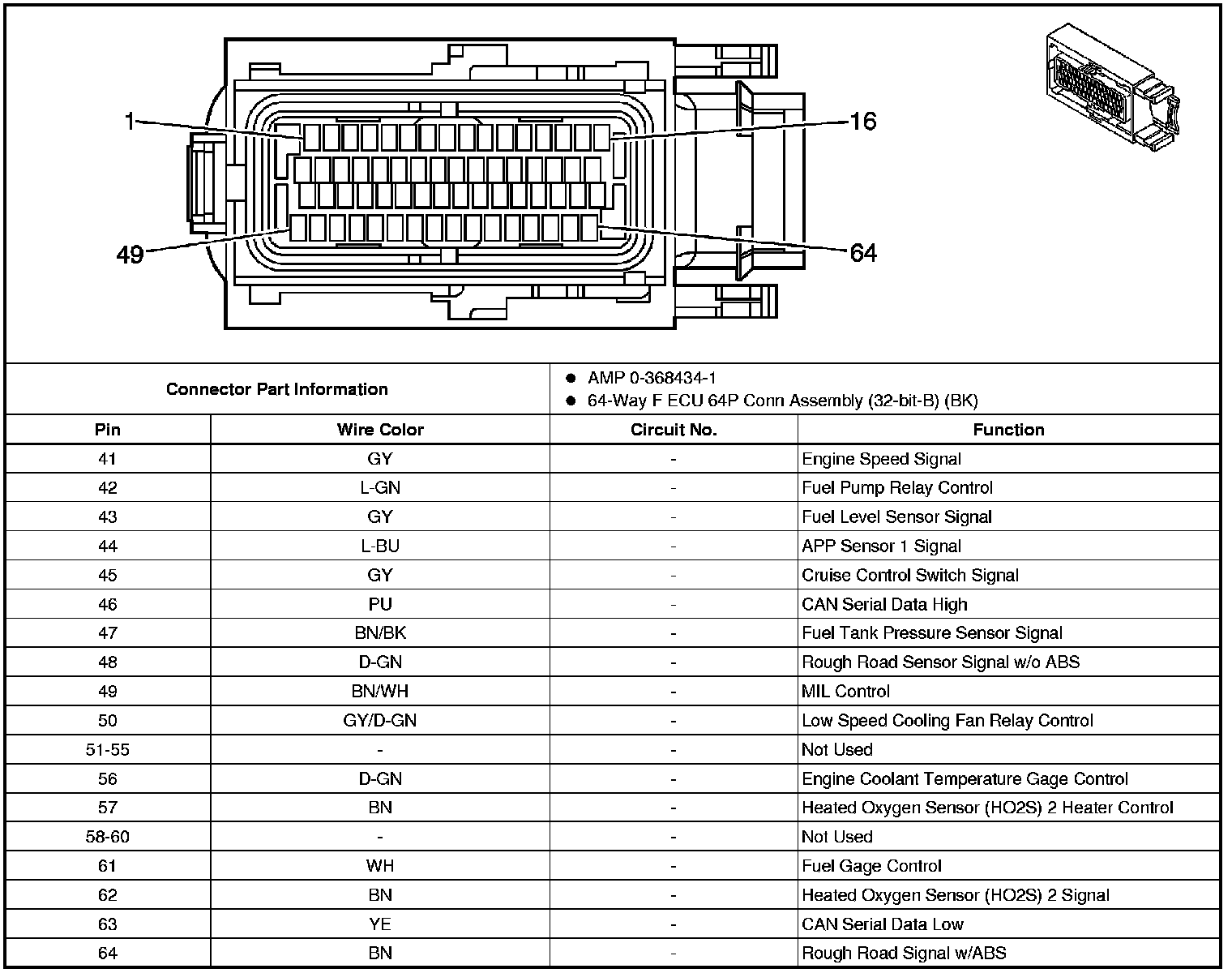

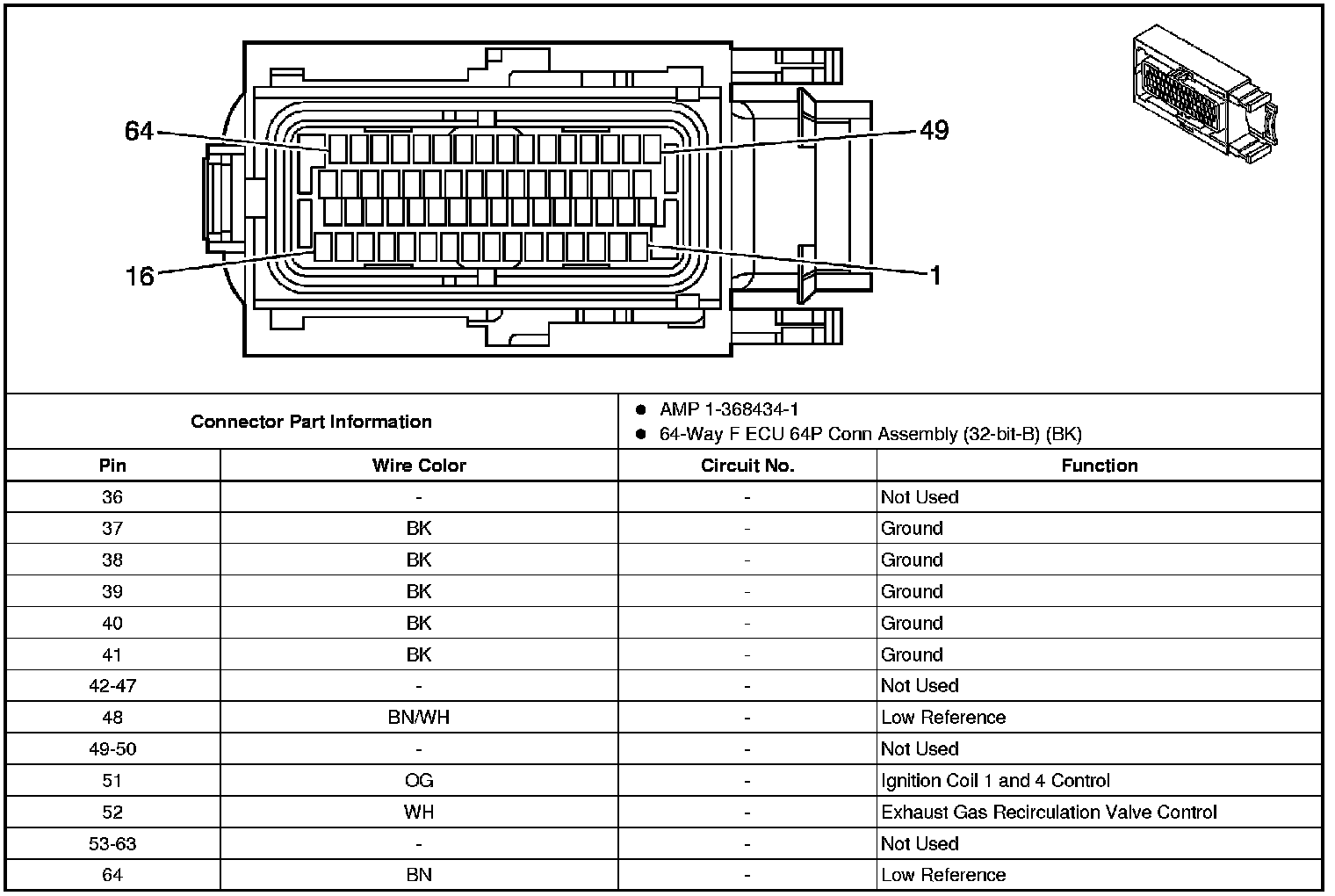

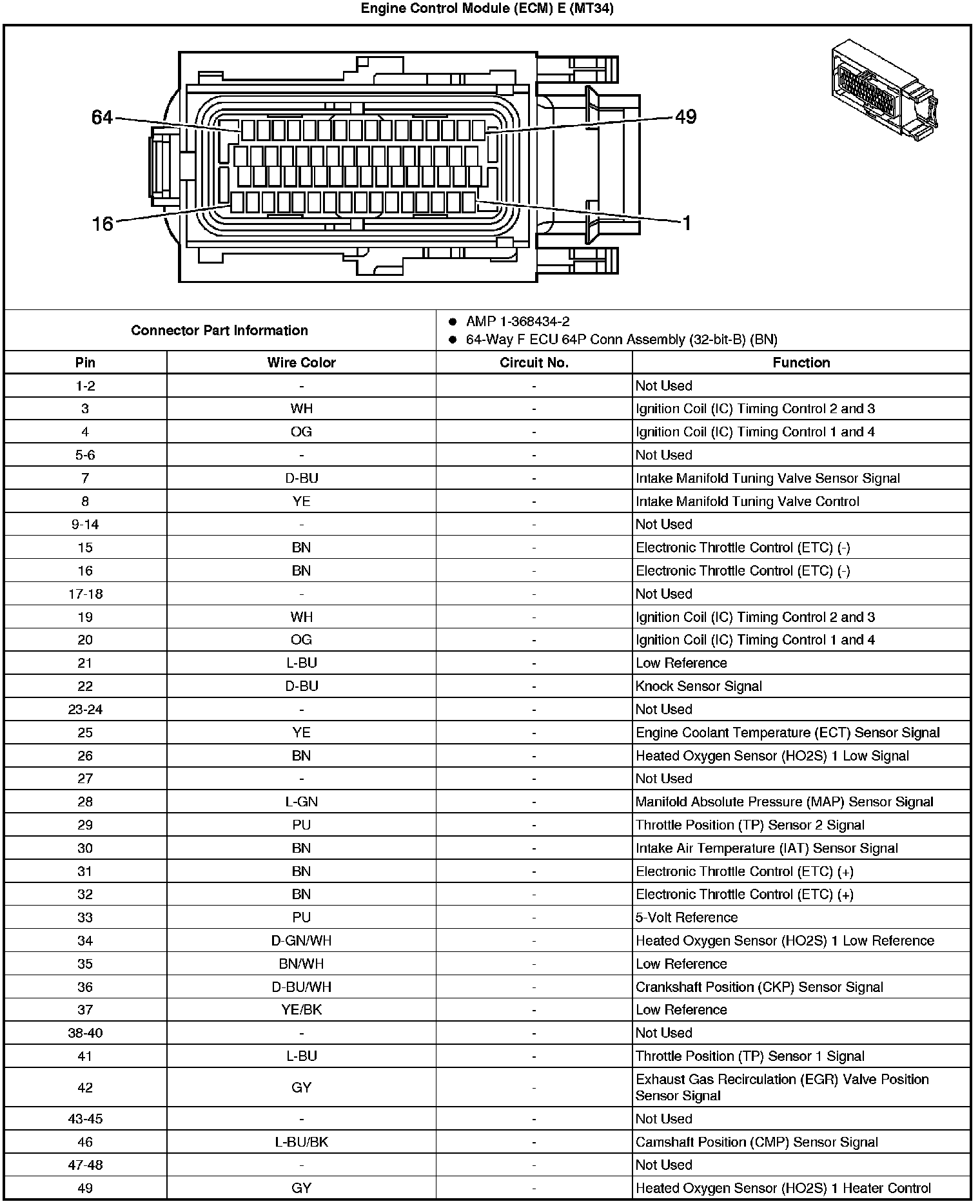

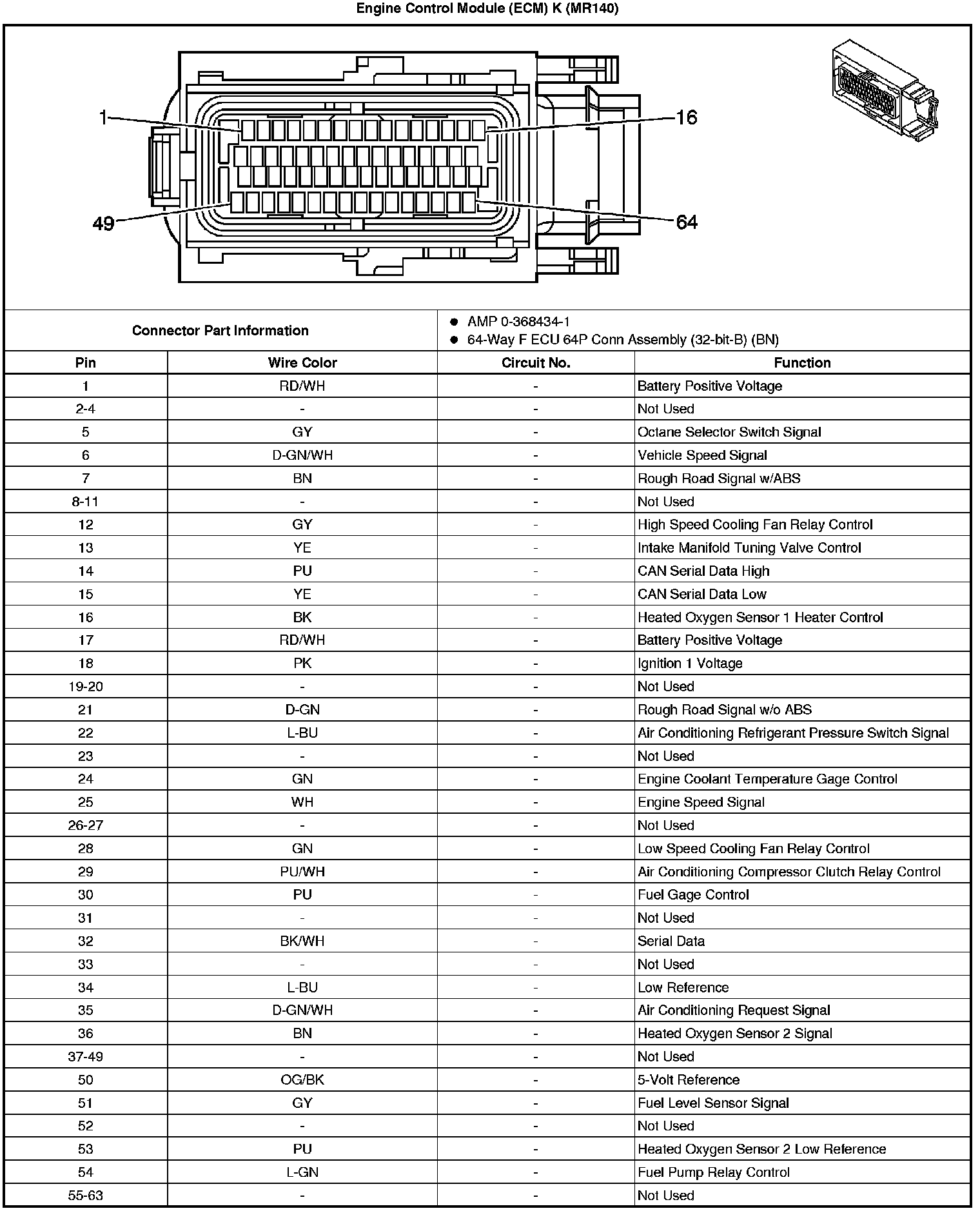

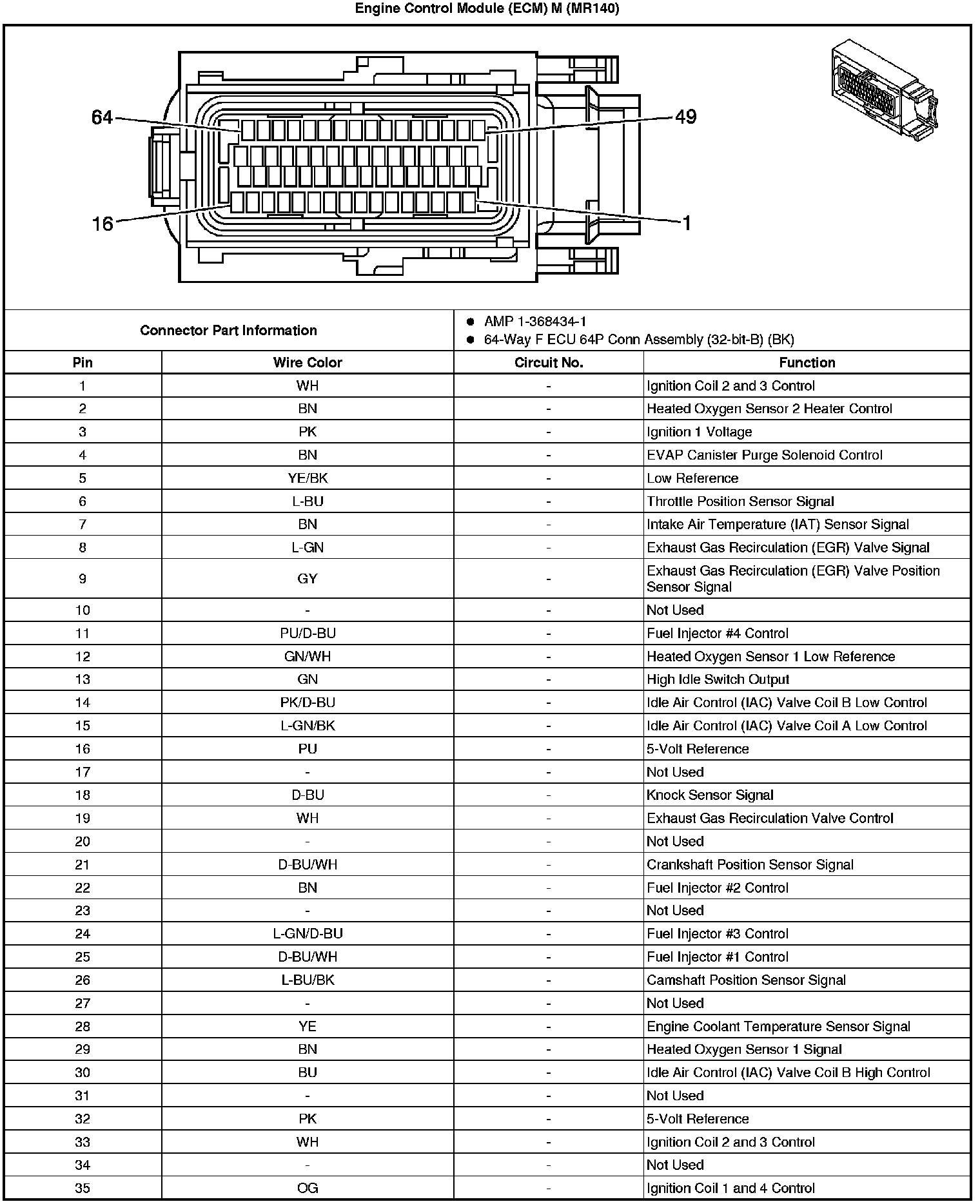

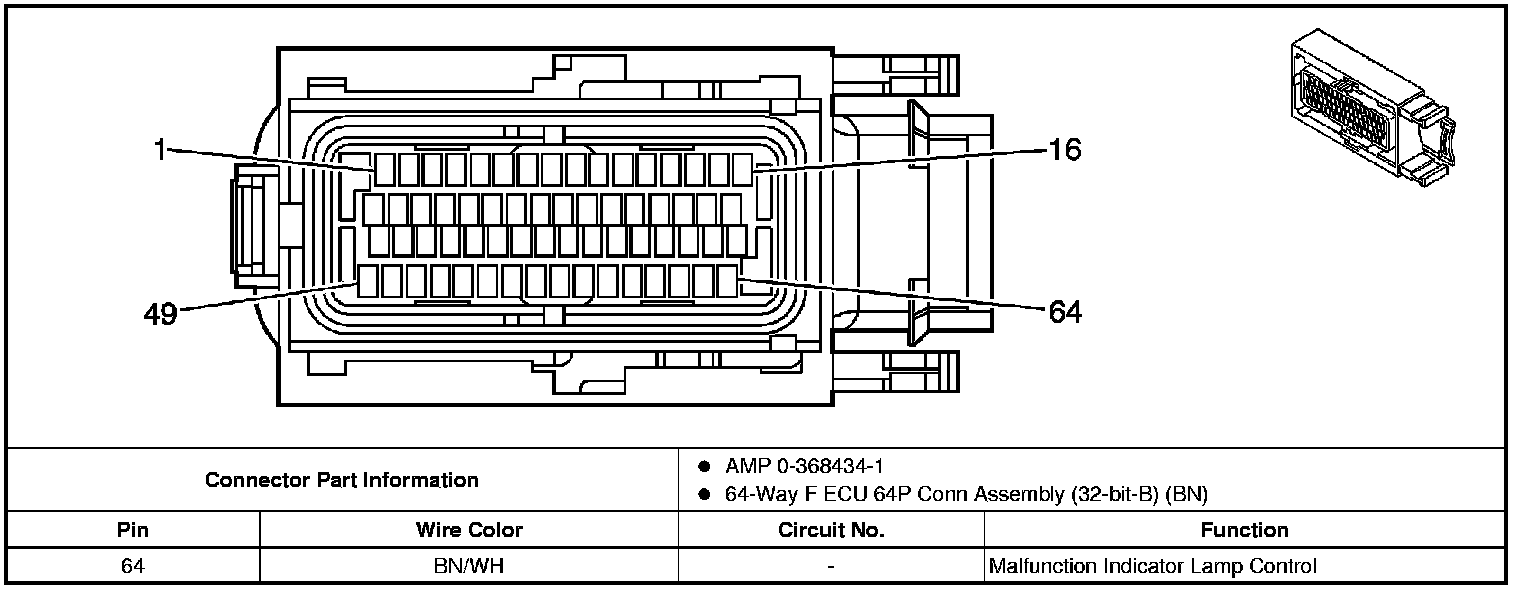

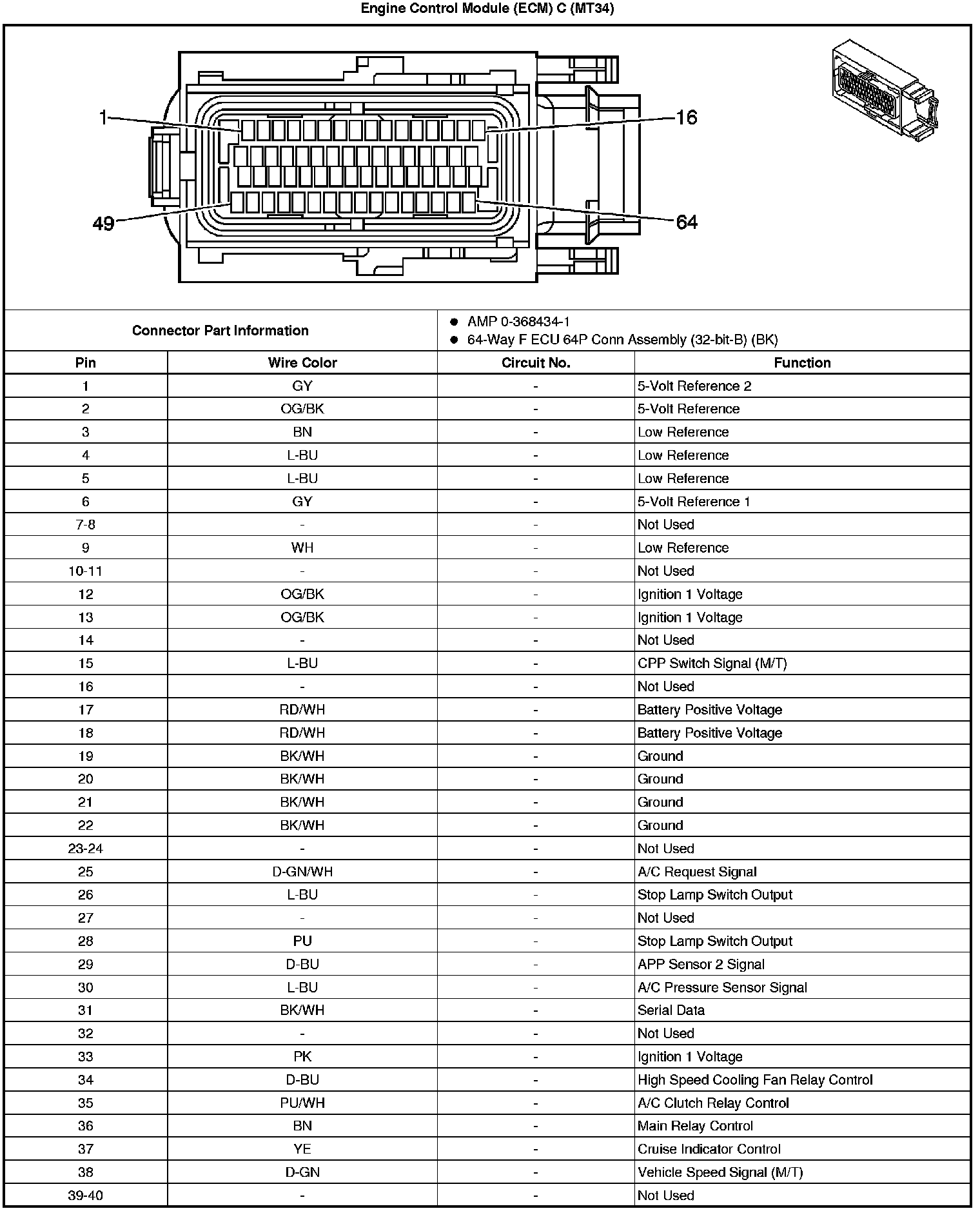

Engine Control Module Connector End Views (Hatchback)



Engine Control Module Connector End Views (Hatchback)
