Engine Controls Component Views (Notchback)

Engine Controls Component Views (Notchback)

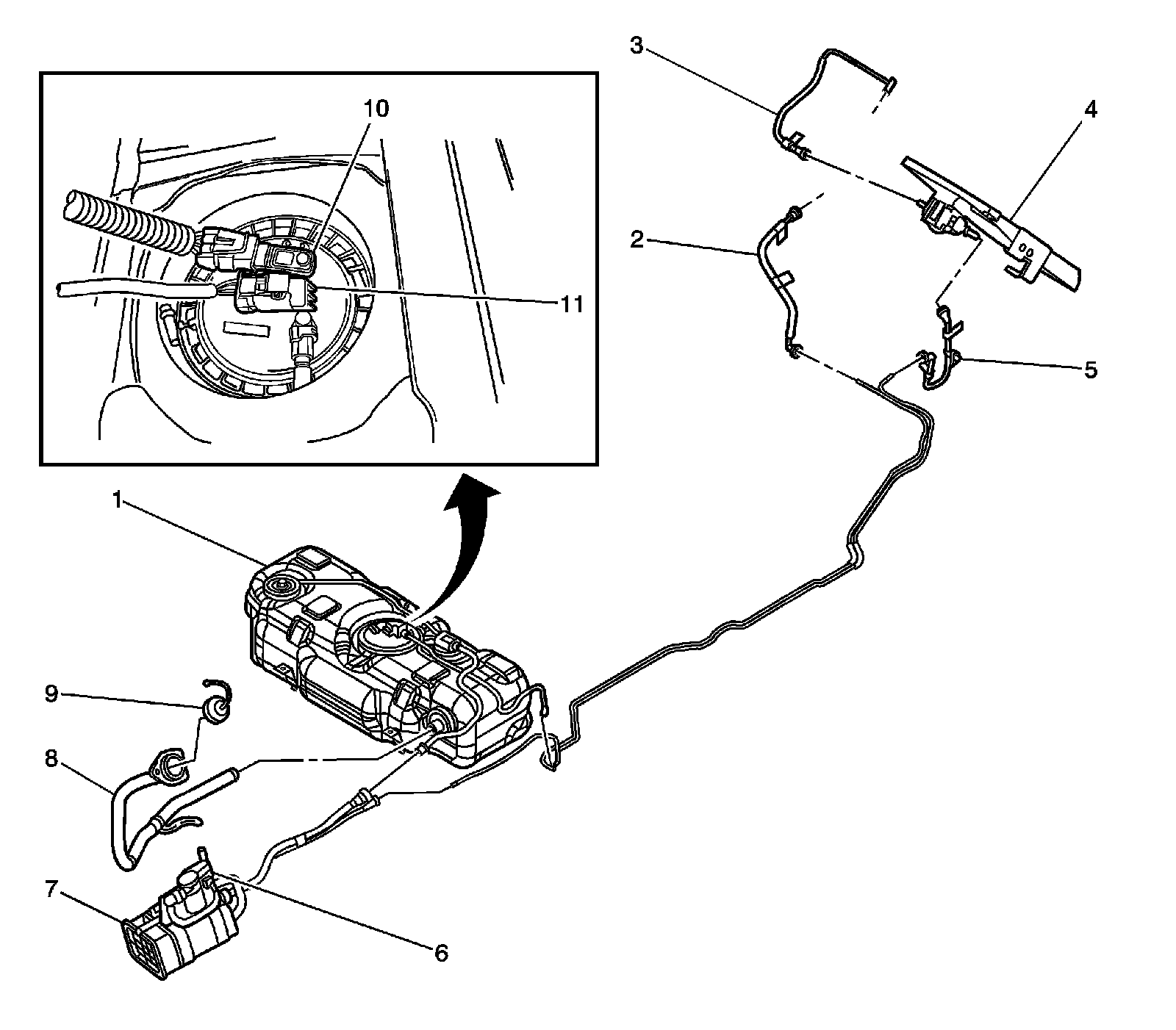

Fuel Vapor Recovery System




1 - Fuel Tank
2 - Fuel Line to Fuel Rail
3 - EVAP Canister Purge Vacuum Line to Intake Manifold
4 - EVAP Canister Purge Solenoid Valve
5 - EVAP Service Port
6 - EVAP Canister Vent Solenoid Valve
7 - EVAP Canister
8 - Fuel Fill Tube
9 - Fuel Filler Cap
10 - Fuel Tank Pressure Sensor
11 - Fuel Pump/Sender Assembly
