Alignment: Service and Repair

Front Toe Adjustment

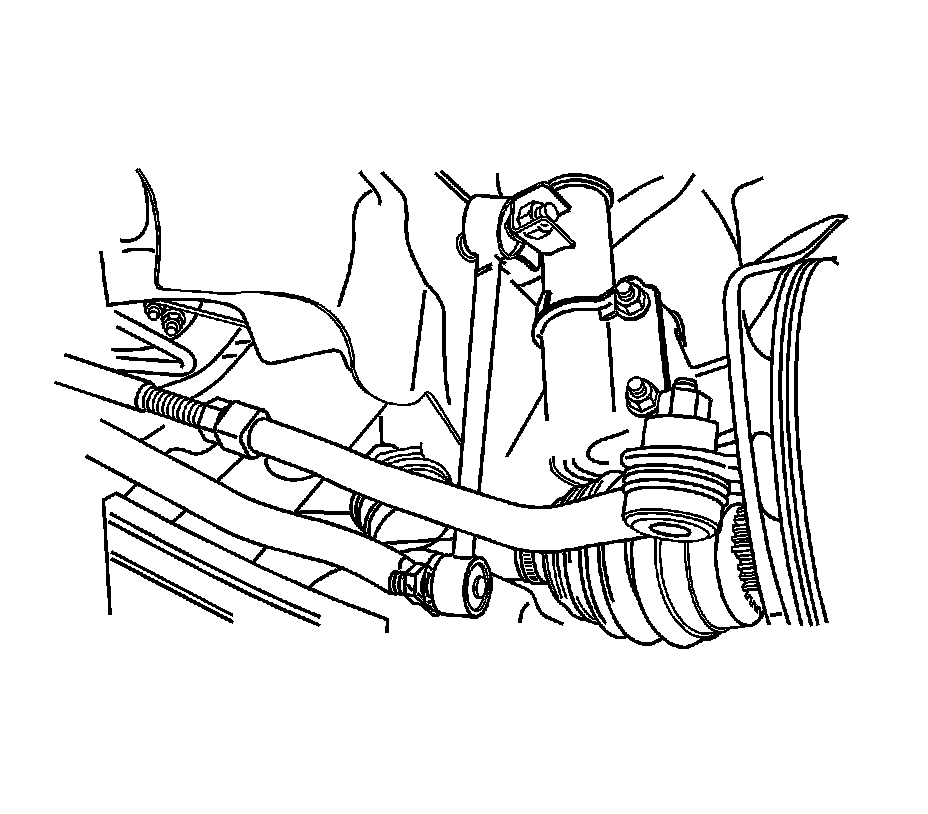

1. Loosen the right and the left rod lock bolts.

Important: In this adjustment, the right and left tie rods must be equal in length.


2. Turn the right and the left tie rod adjusters to align the toe to 0 degrees ±10 minutes.

Notice: Refer to Fastener Notice (Fastener Notice).

3. Tighten the tie rod lock bolts.

Tighten the tie rod lock bolts to 64 N.m (47 lb ft).
