Vehicle Speed Sensor: Diagrams

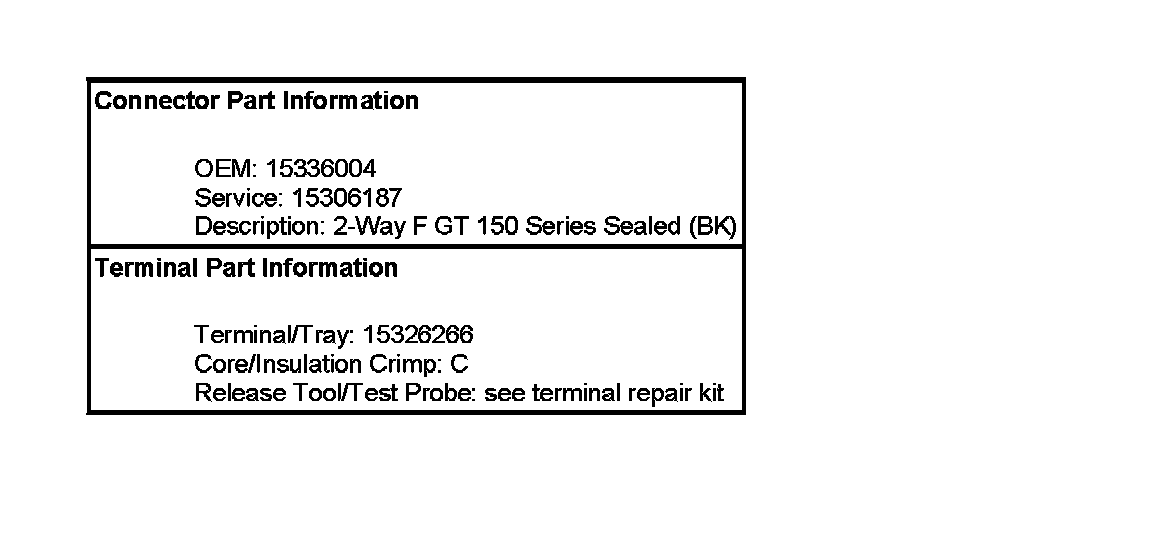

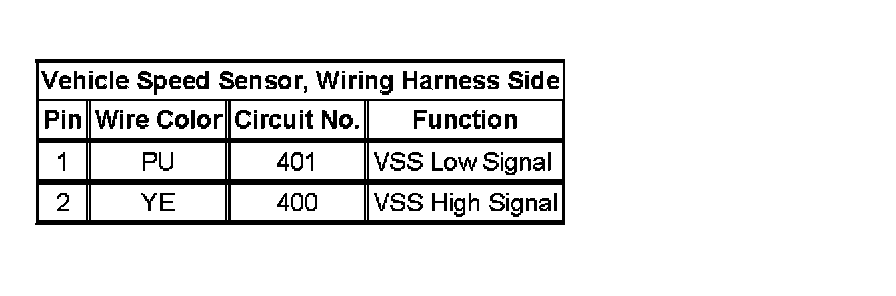

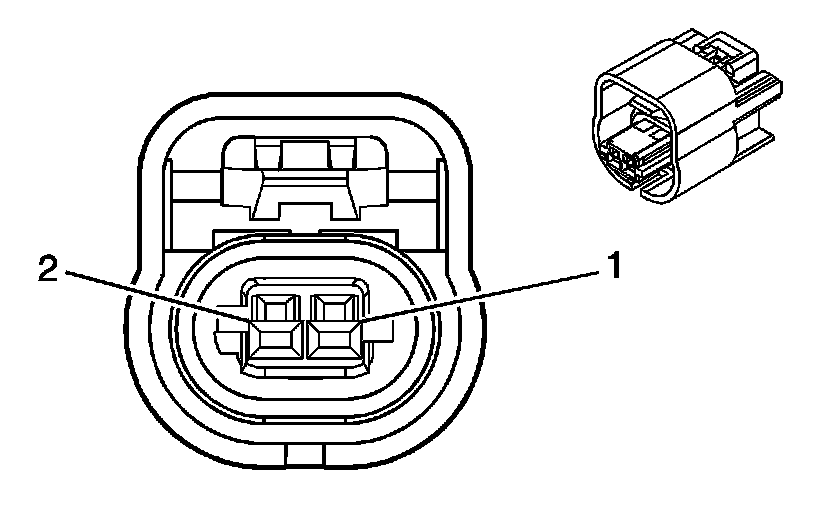

Vehicle Speed Sensor, Wiring Harness Side







Vehicle Speed Sensor, Wiring Harness Side:
