Air Flow Meter/Sensor: Locations

Engine Controls Component Views

Pedal Assemblies (JF4)

Front of Engine Compartment




1 - Battery Current Sensor
2 - Mega Fuse
3 - A/C Low Pressure Switch (C67/CJ2)
4 - Fuse Block - Underhood
5 - Engine Control Module (ECM)
6 - A/C Refrigerant Pressure Sensor (C67/CJ2)
7 - Mass Airflow (MAF)/Intake Air Temperature (IAT) Sensor
8 - Battery - Right

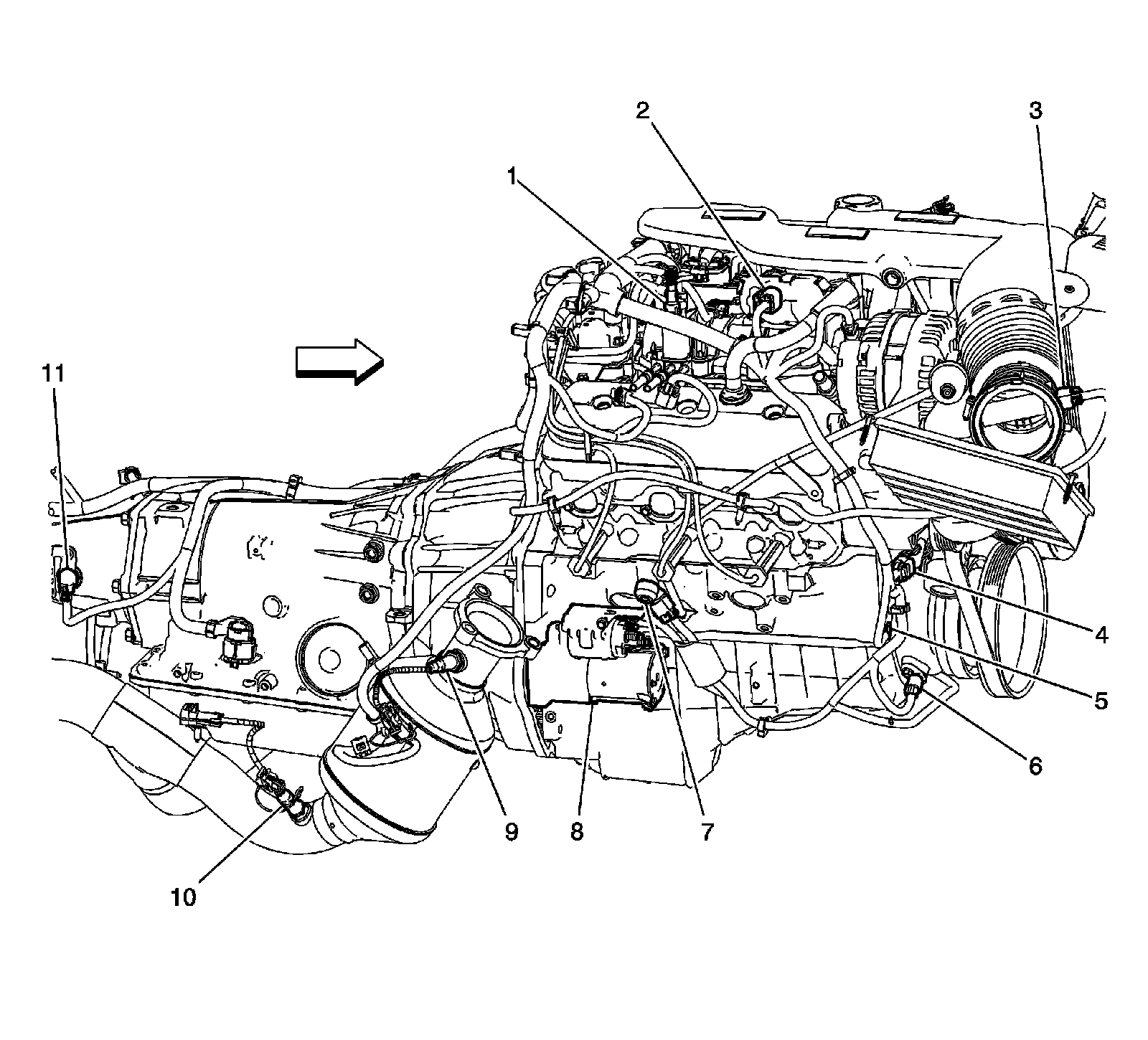

Right Side of Engine




1 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
2 - Throttle Body
3 - Mass Air Flow (MAF) / Intake Air Temperature (IAT) Sensor
4 - X112
5 - G103
6 - Crankshaft Position (CKP) Sensor
7 - Knock Sensor (KS) - 2
8 - Starter
9 - Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1
10 - Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2
11 - Vehicle Speed Sensor (VSS)
