Engine Control Module





Engine Control Module Connector End Views

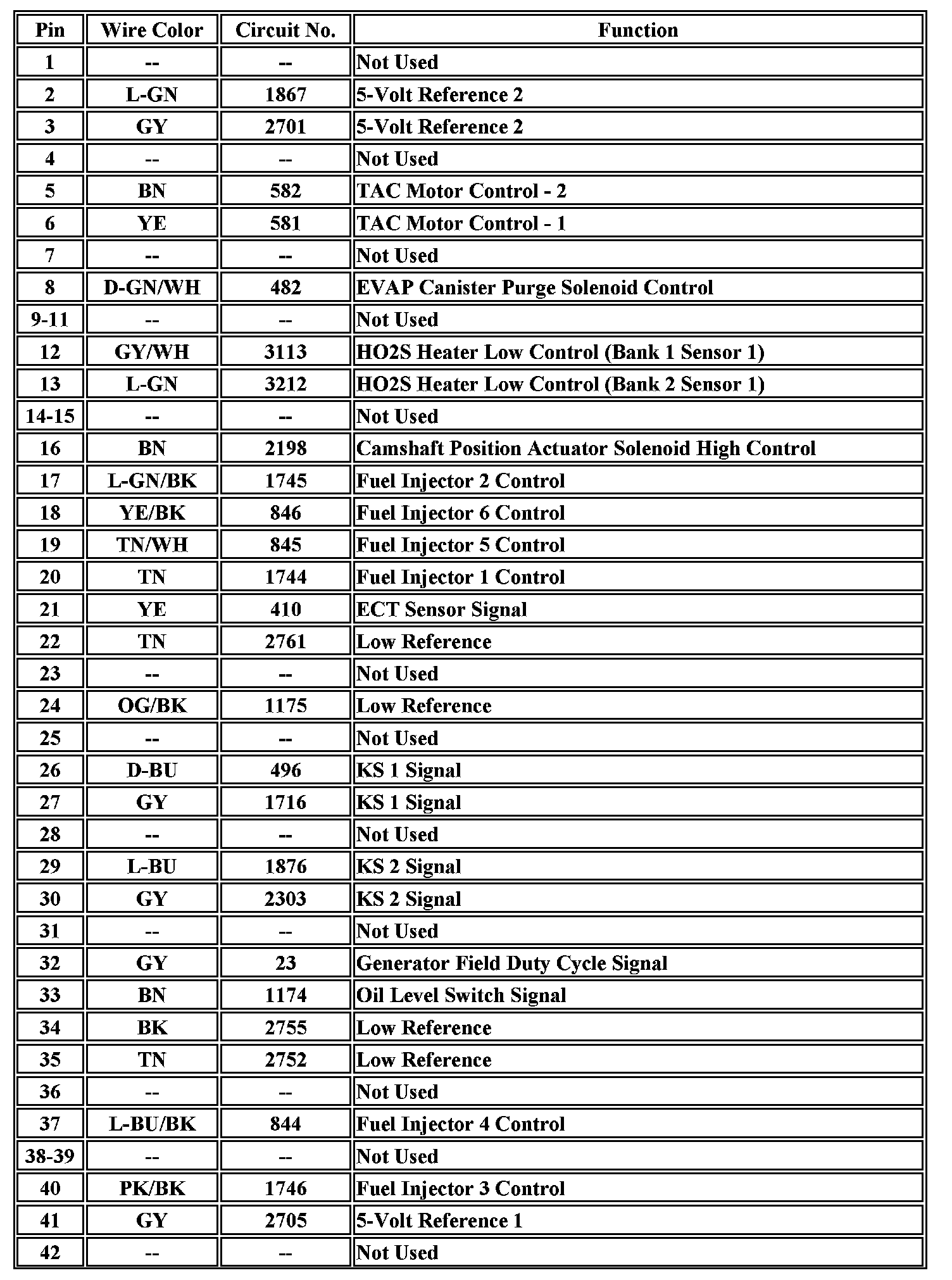

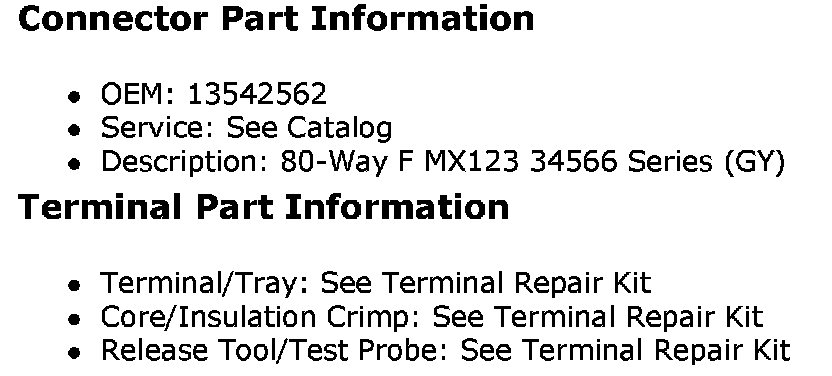

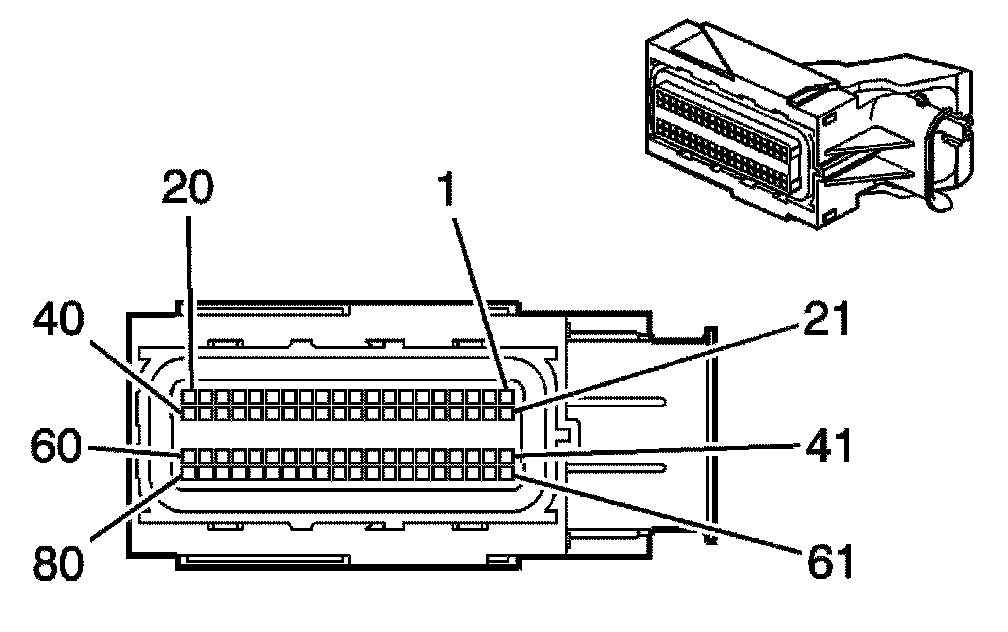

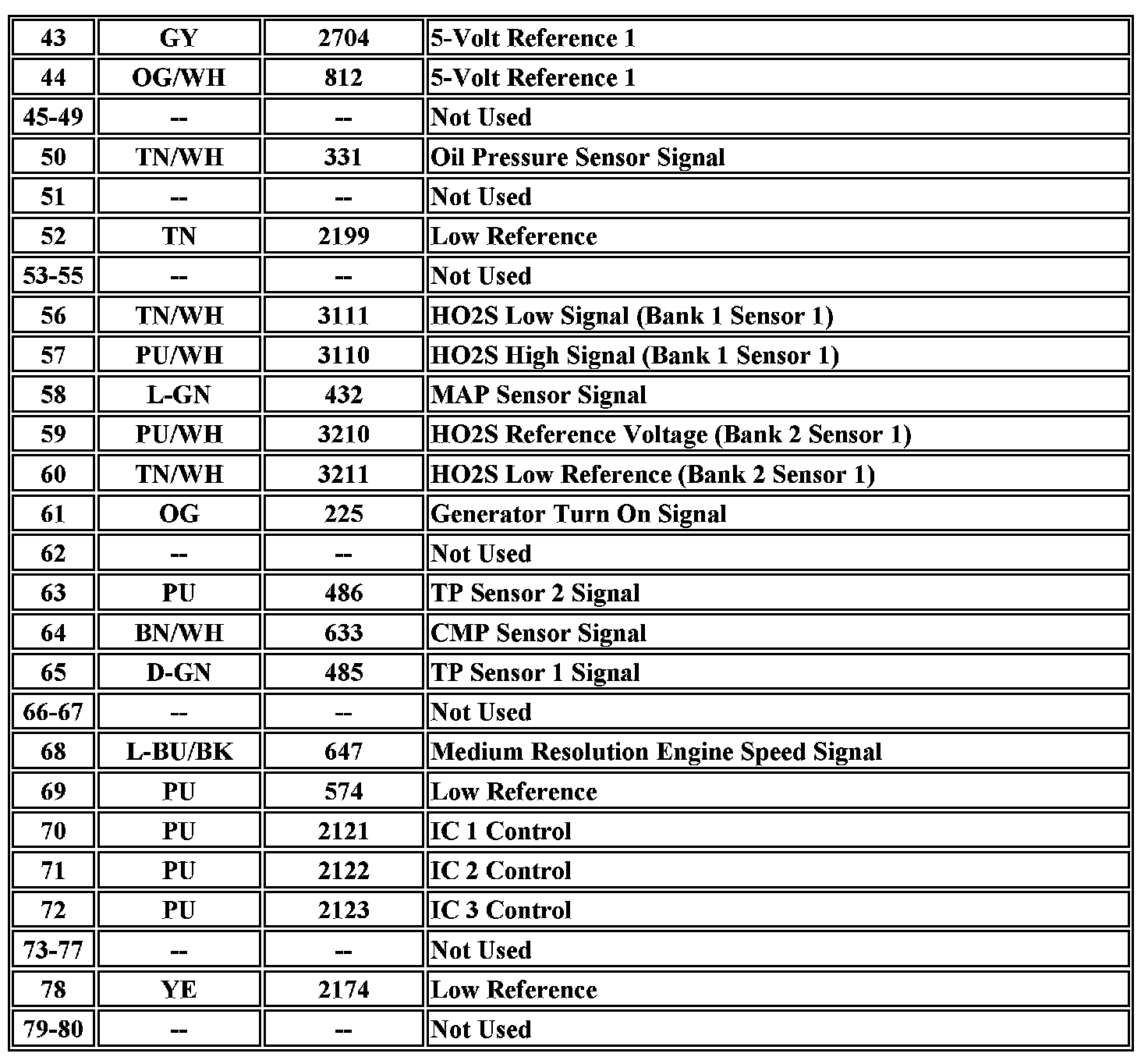

Engine Control Module (ECM) C1

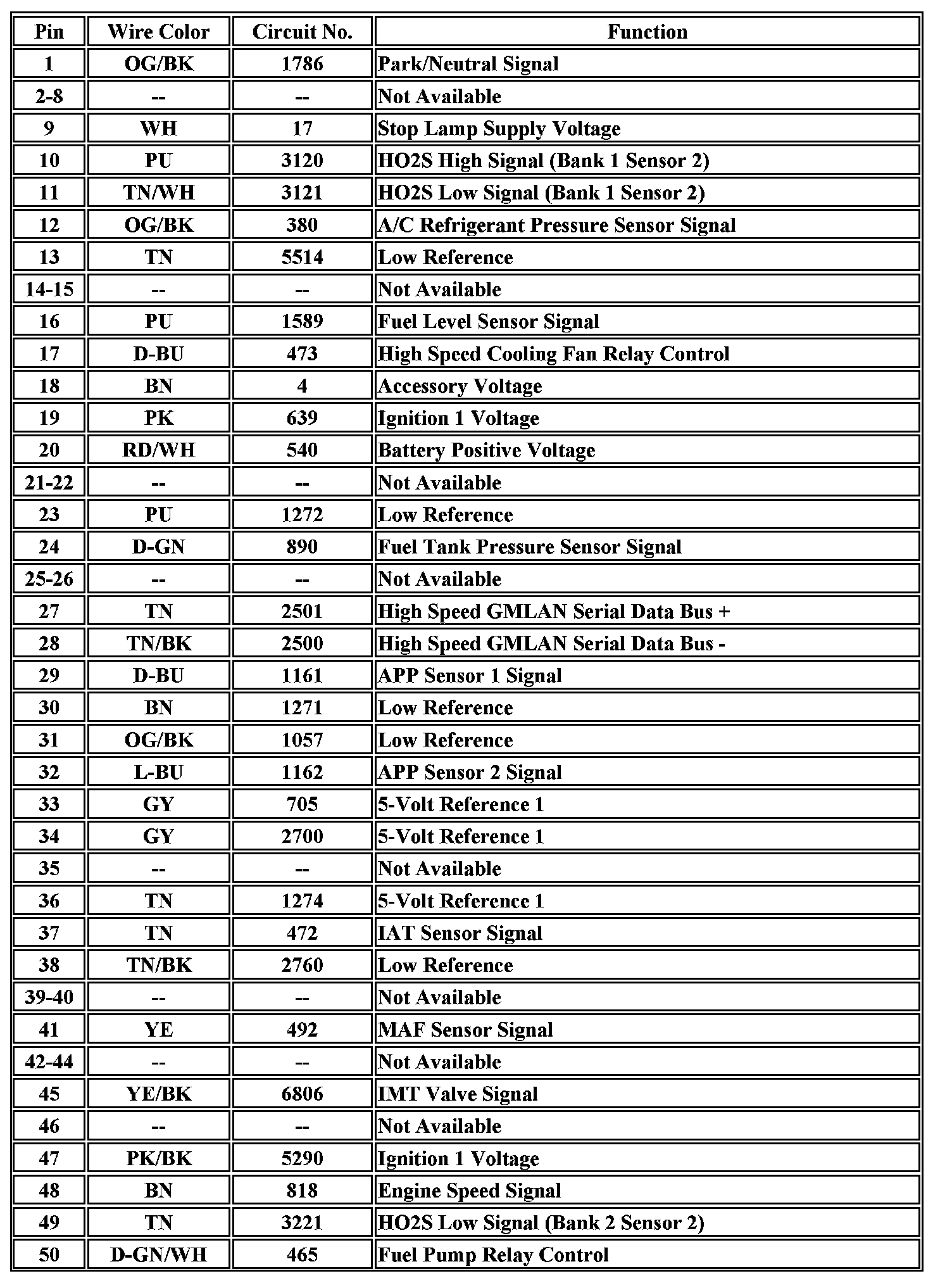

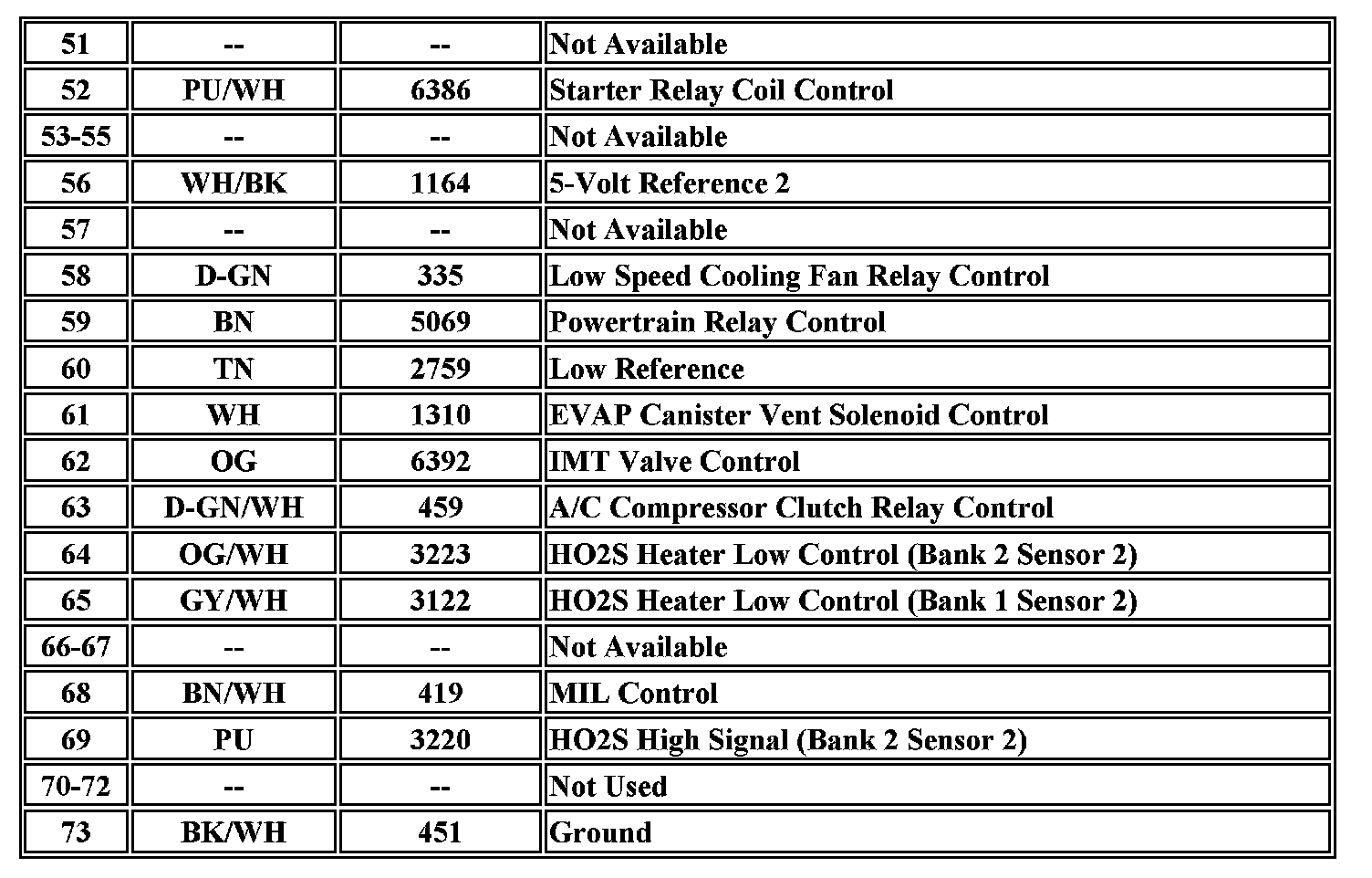

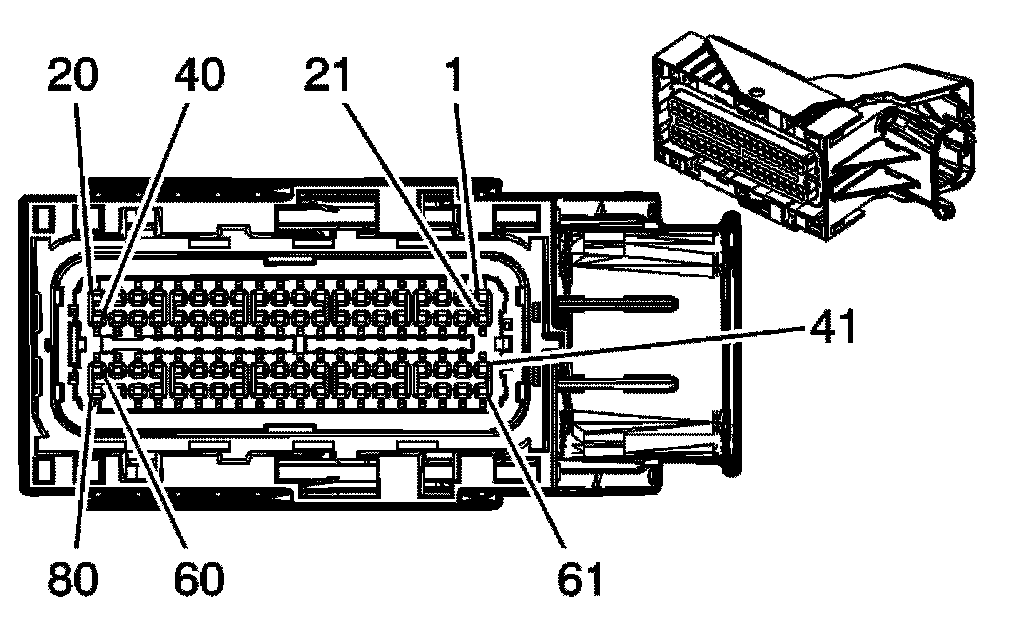

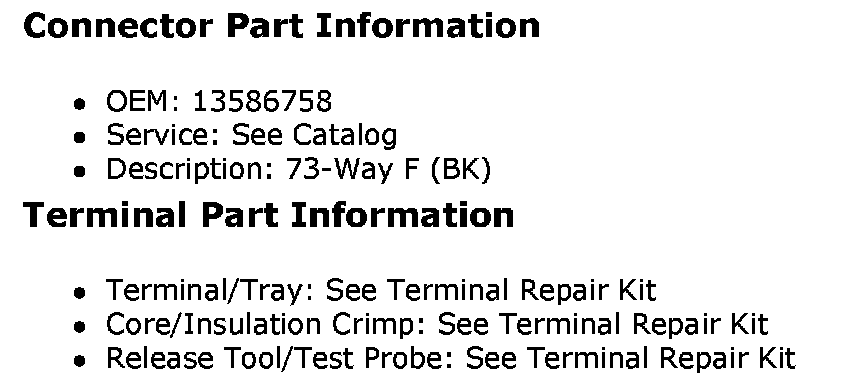

Engine Control Module (ECM C2)
