Air Flow Meter/Sensor: Locations

Engine Controls Component Views

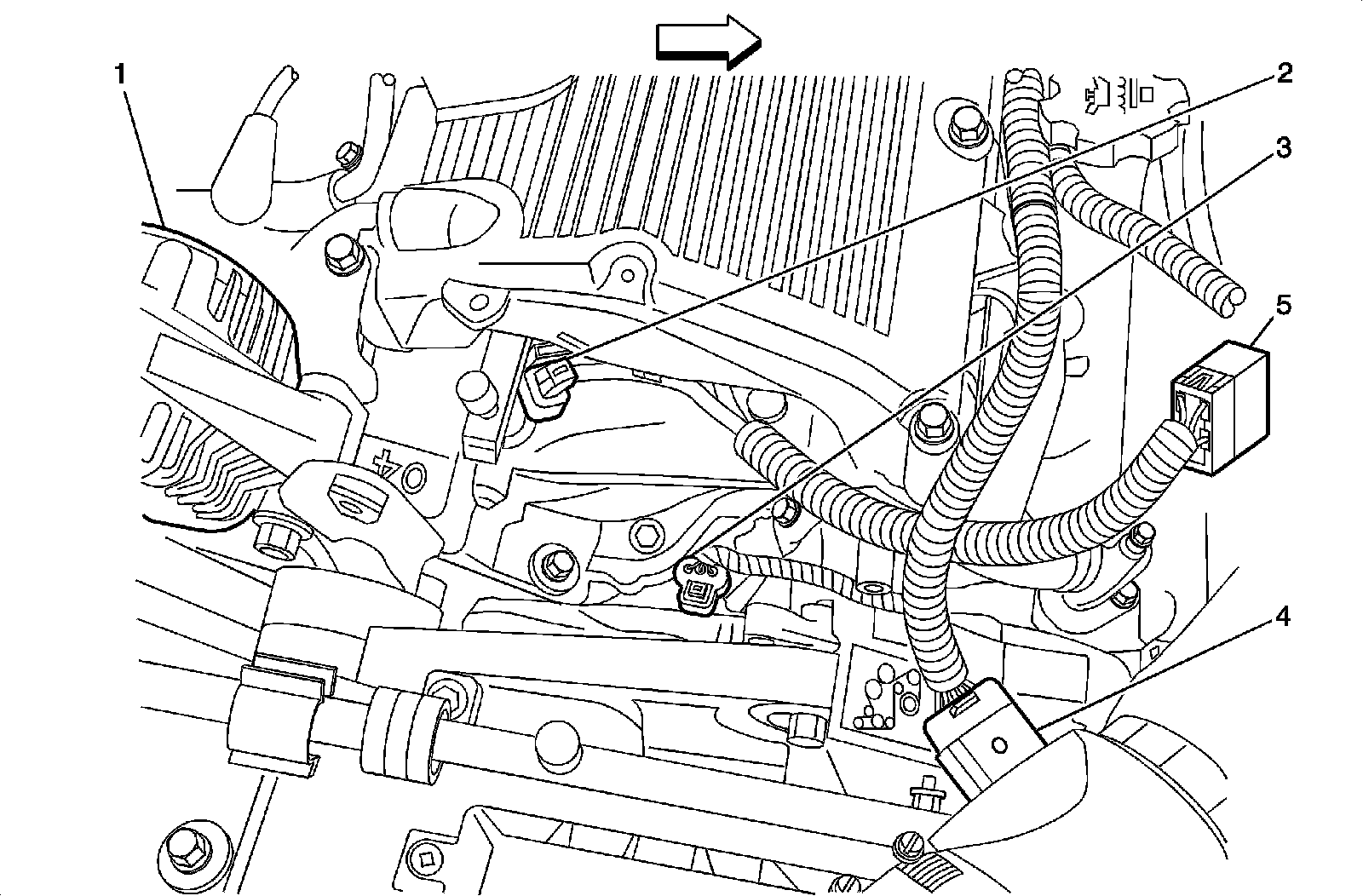

Top Right Side of Engine - LX9




1 - Generator
2 - Fuel Injector 1
3 - Camshaft Position (CMP) Sensor
4 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
5 - C130
