Seat Temperature Control Module



Heated/Cooled Seat Connector End Views

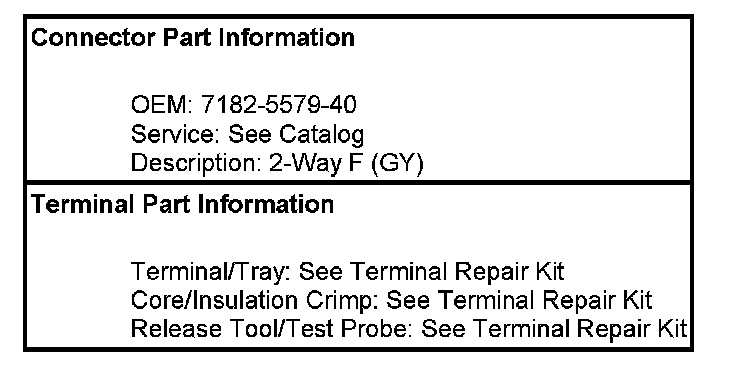

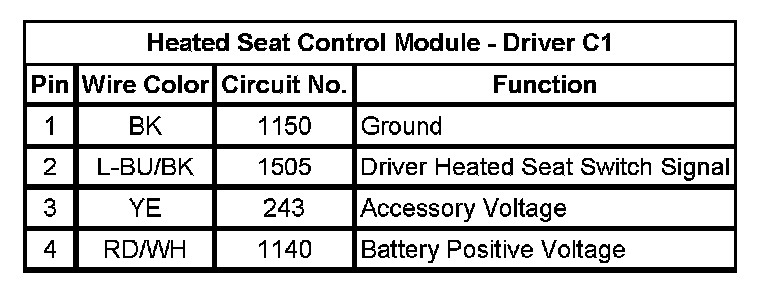

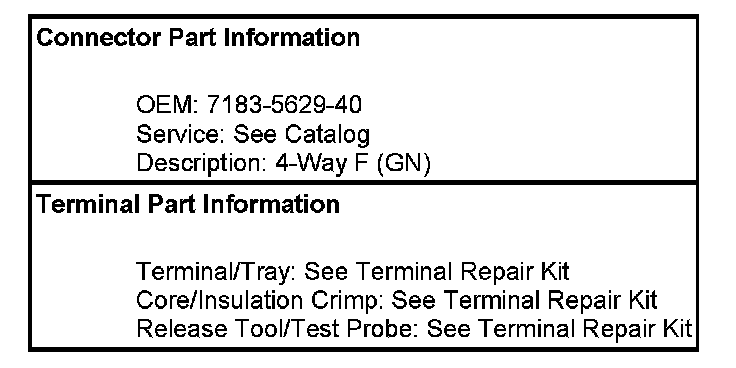

Heated Seat Control Module - Driver C1

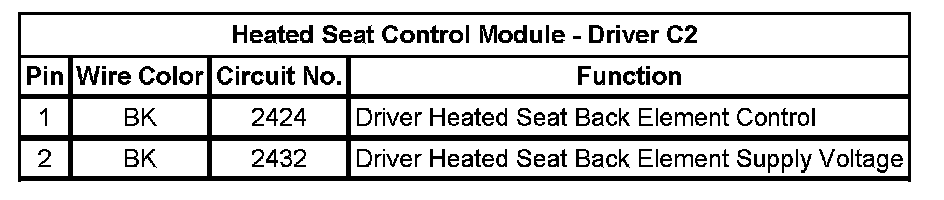

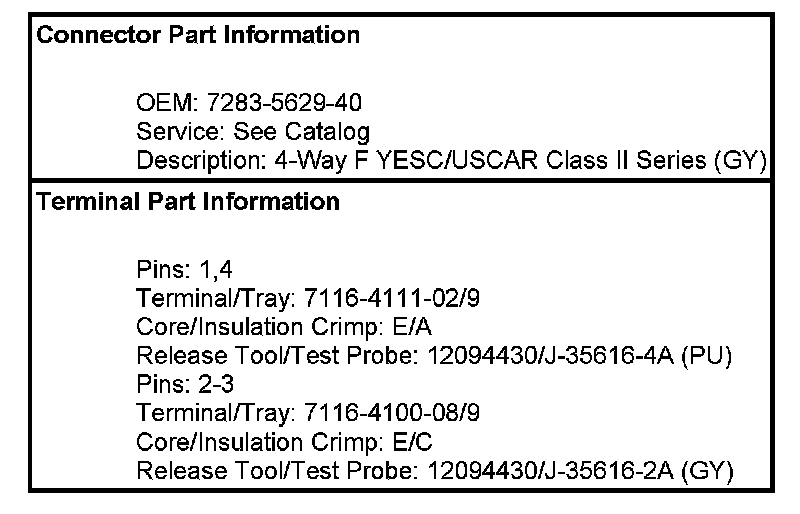

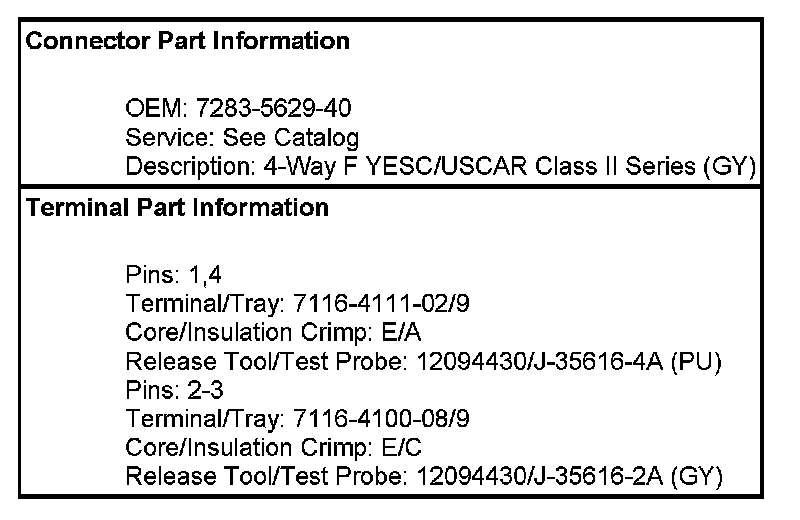

Heated Seat Control Module - Driver C2

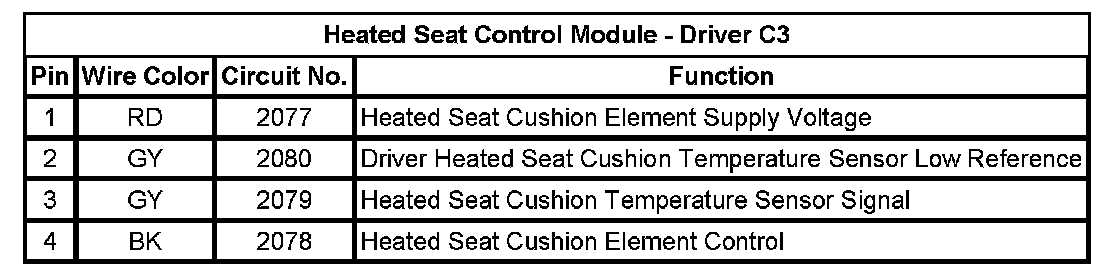

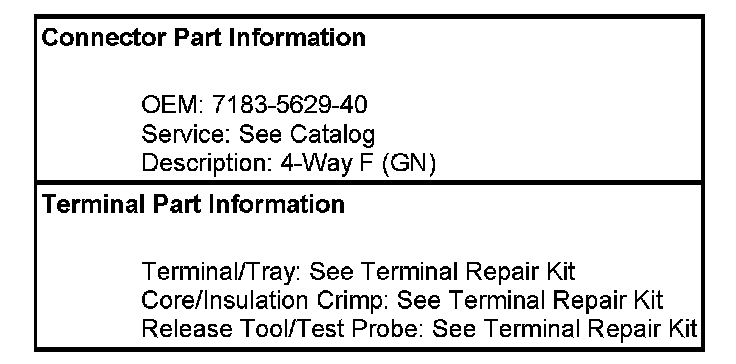

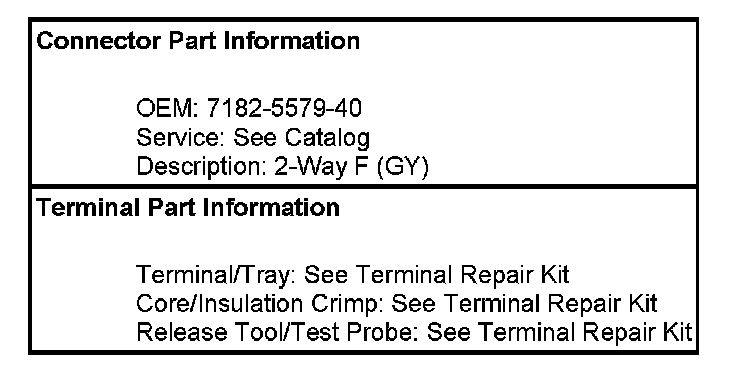

Heated Seat Control Module - Driver C3

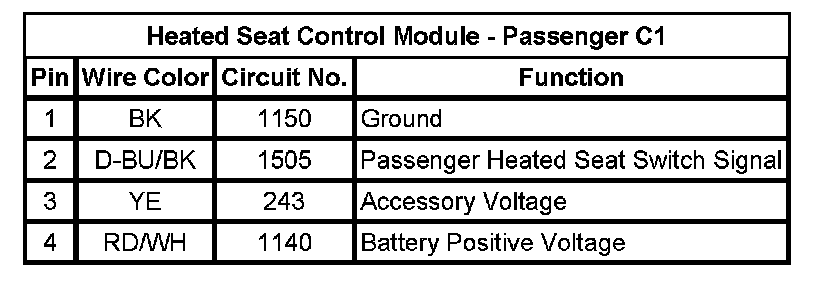

Heated Seat Control Module - Passenger C1

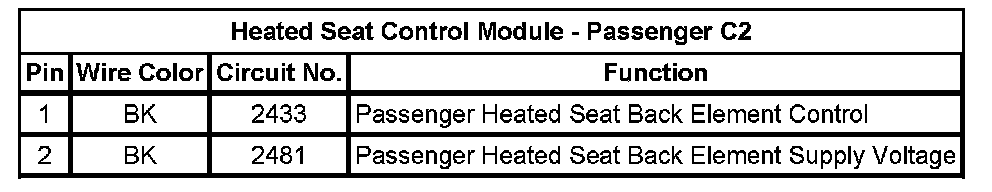

Heated Seat Control Module - Passenger C2

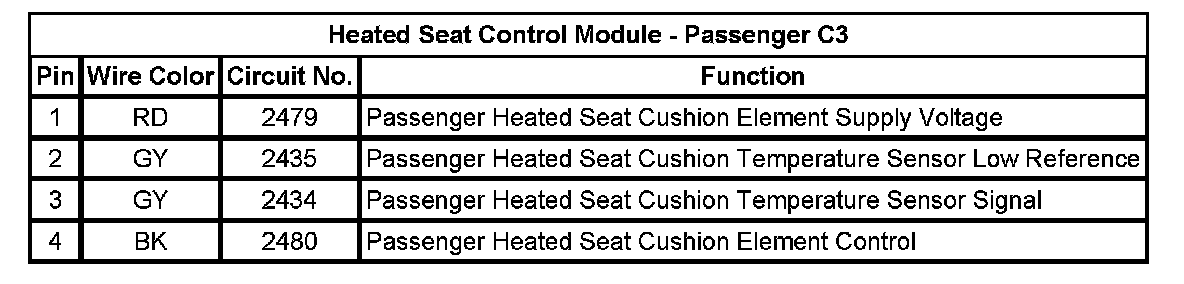

Heated Seat Control Module - Passenger C3
