Home >> Chevrolet >> 2007 >> Malibu L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Throttle Control Module

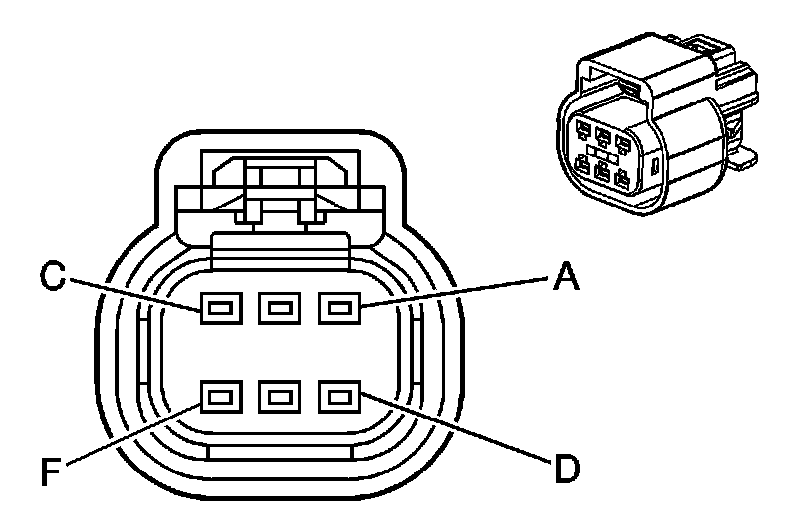

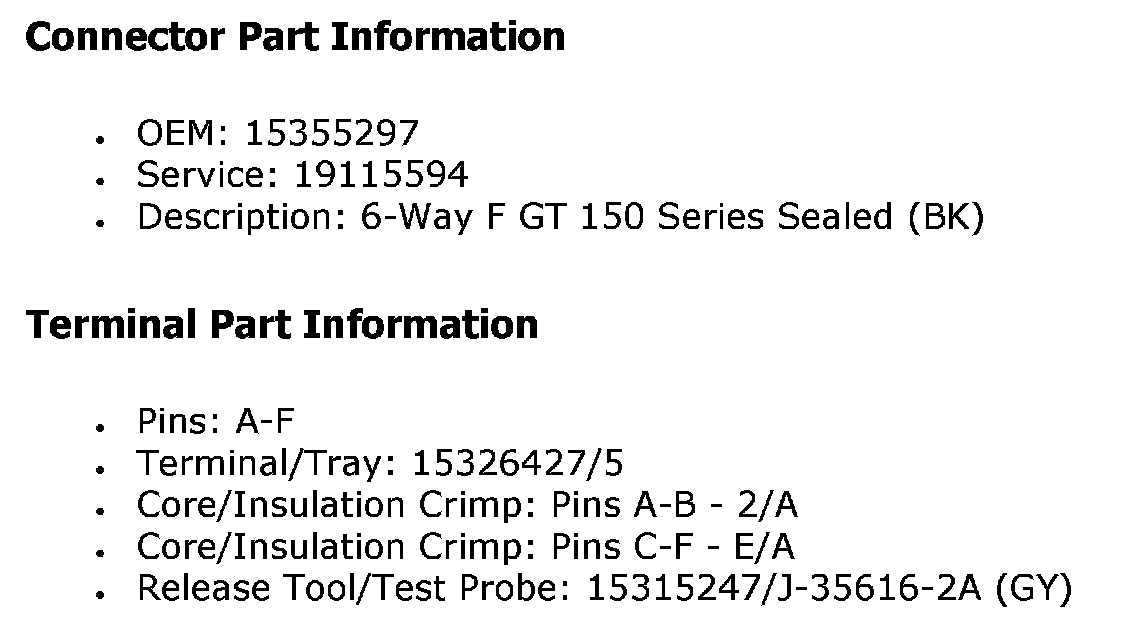

Electronic Throttle Control Module

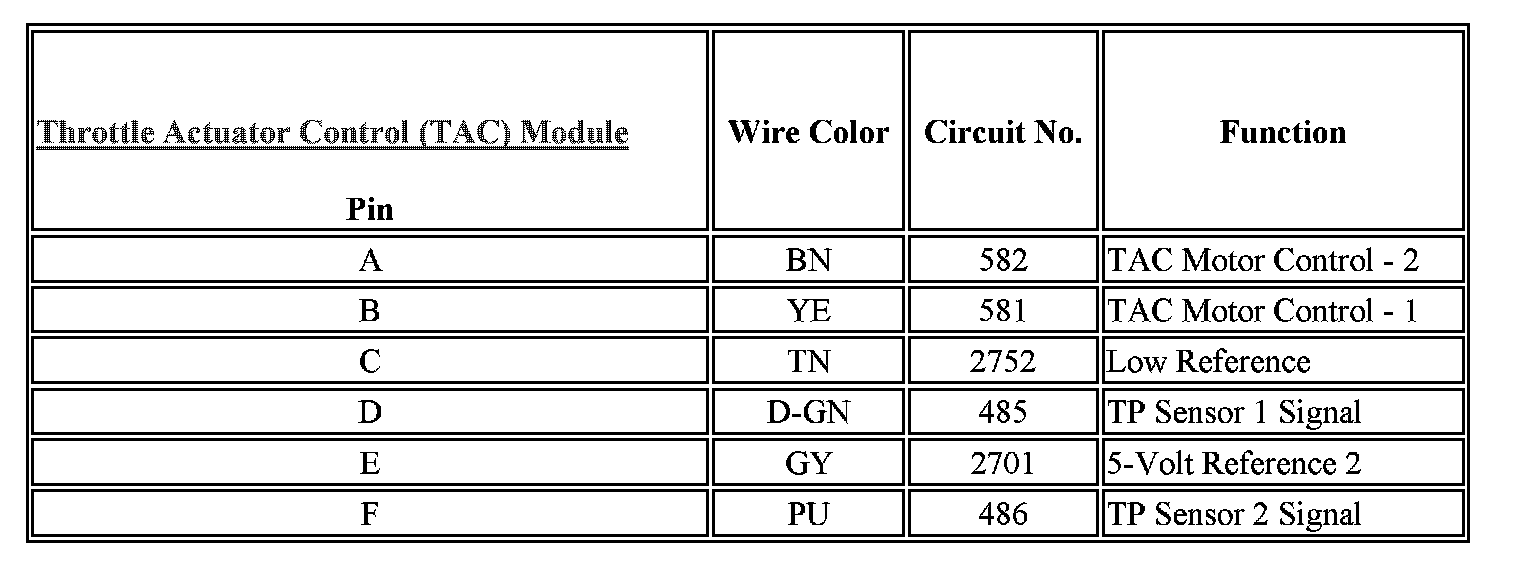

Throttle Actuator Control (TAC) Module
